Scratch Build – In Progress Scratch Build - PeculiarMac (updated 28/4/2008)

Hello all
Im from Portugal so please be advised...my english sucks!!!!

This is not my first mod but its the first one i show here, so go easy on me

This is a wood case build from scratch with apple as a theme for it... in a non conventional way

Its isnt over yet but let me show you what i´ve done so far...

Here is the case at the beginning


Were the apple will be

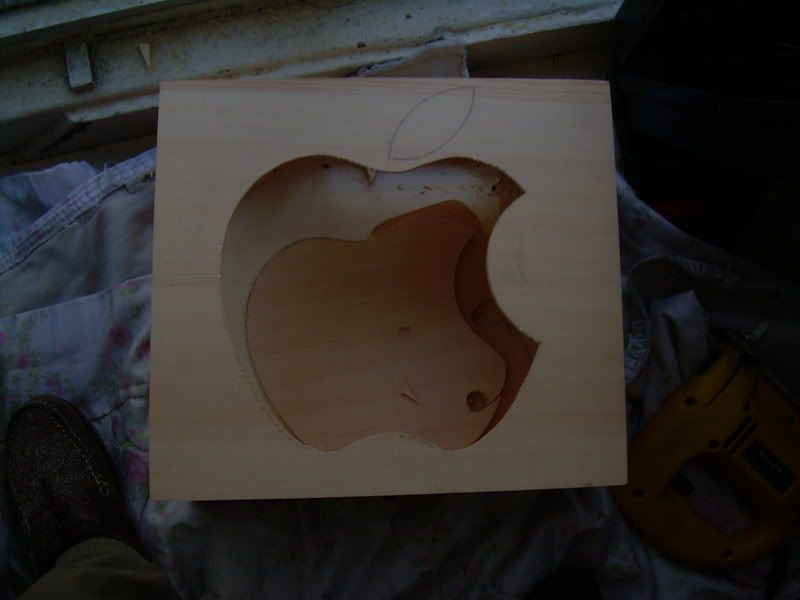

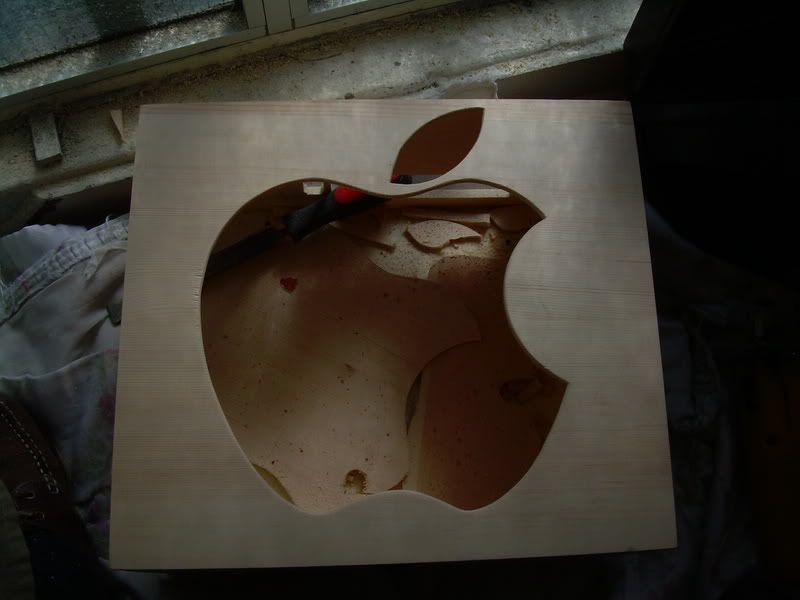

The cuts...




The cut for the 240 rad


After the cut and sanding the cuts

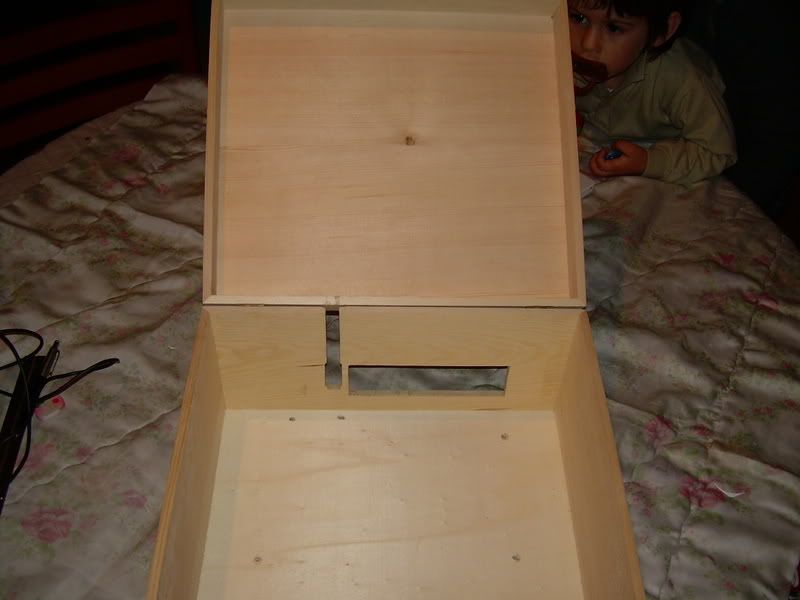

Rear panel cuts...




And this is the space i have to do the job....



After the cuts i started to do the test-fittings of the motherboard and the nesseçary elevation for it

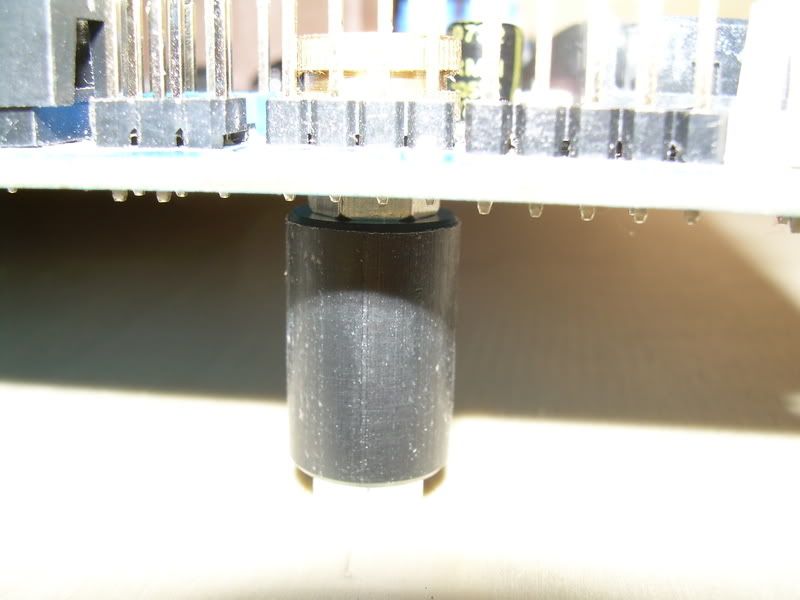

A small detail of the elevation of the board

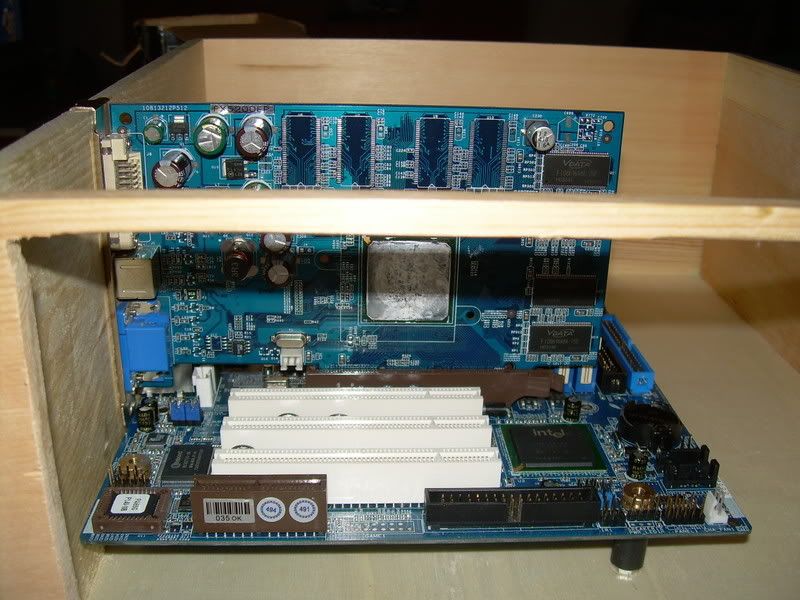

In its place with the graphics card


The back of the case with the board




And another one



After this done i started to work on the test fittings of the PSU and the watercooling pump

This is the plate i used to grab the naked PSU to the case


And here she is...




detail of the bolts that secure the PSU to the plate


A shot already with the pump


A detail of the conections on the rear of the board


And it was time to test fit all the rest of the components and to make the watercooling loop

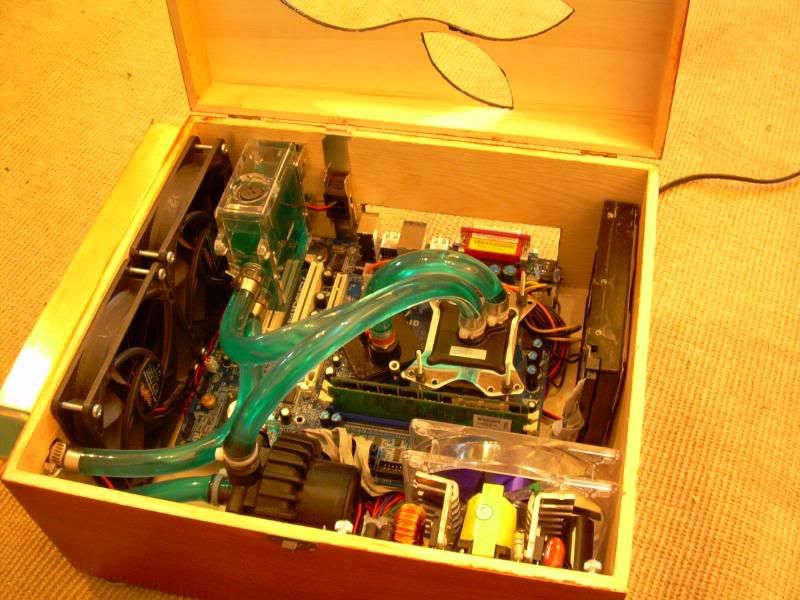

And heres the result. although it wasnt the final one




My not very clean work place at home and my little helper....


And for today its all.... tomorrow ill be back with some more.
Hope you like it and please leave your coments.



Nice compact loop. You're english seems great to me .



Wow man thats lookin great



So, i believe this will be a hackintosh?



Thanks for the coments....

@500mph- Yes it will be a Hachintosh...

Well, going on with the project....
The board you see above one fine day died so i had to rebuild the hole schematics for the watercooling loop and electrical connections.

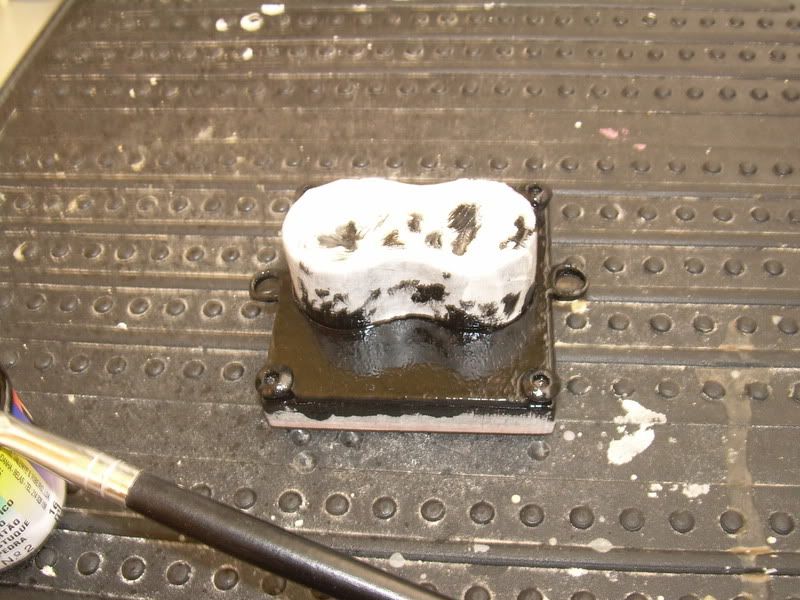

In the process i had a Apogge cpu waterblock that i wasnt using and the new board ( Asrock P4Vm890) had an excessive heating on the NB but i didnt have at the time any chipset waterblock... so i did a costum one from the apogee cpu one....

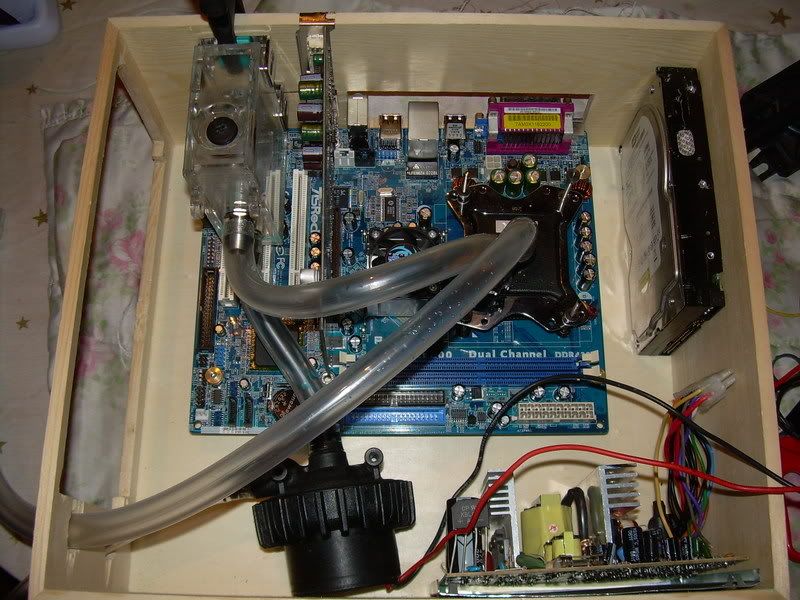

and this is the final loop










by the end of the day i will post more pictures on how the case in at the present moment
see you then....



So, as promised here are the pictures of how the case is at the moment.
As this is my main system ( and only one) the project goes very slowly because i need the pc working.
In these fotos you will see the first coat of varnish that gave the case the color i was looking for....

One of the sides and the front as they will stay....clean!


Now i would like to show you what i did with the rad...
I sanded over all the black paint until it got out and this is the result...this beatiful bronze color that matches the case perfectly

As you can see the inside of the rad needs some atention and it will be painted in a color that matches the case....

A little bit closer


This is the back of the case ( you will notice that theres no graphics card there because i dont have a pci-e one now, i had a agp one on the other board, so replacing it its the power button)

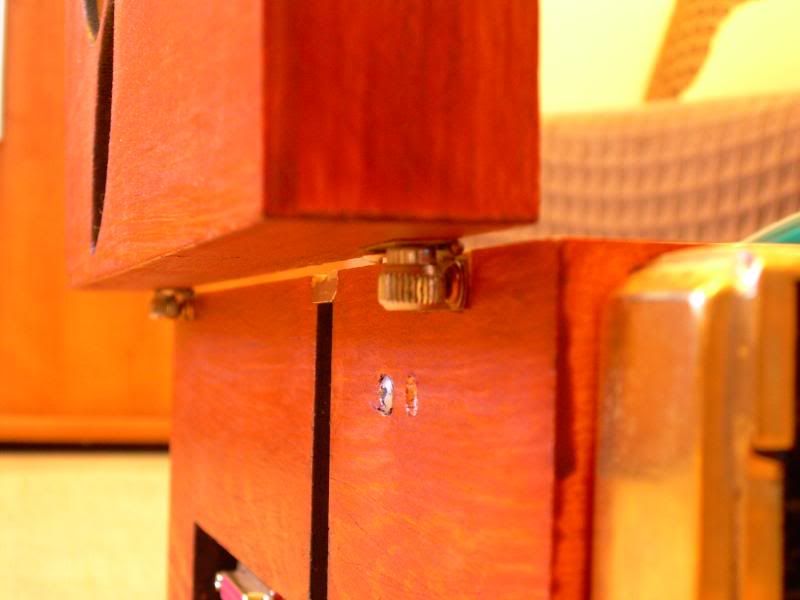

And now heres a detail that i would like to show you... these bolts are from a lian-li case and they have a double function on the case....one of course is the aesthetics ....


And the other is to prevent the case door to open too much...

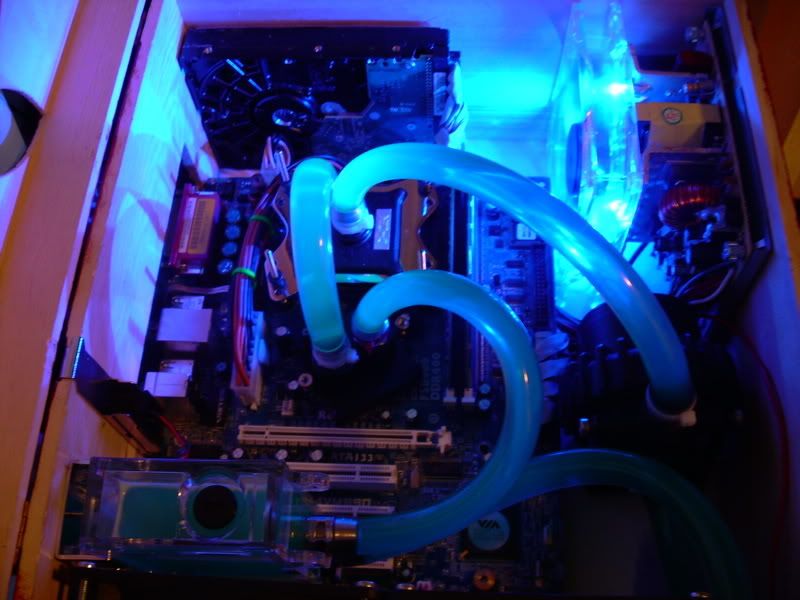

And now some general pics of the loop inside and hardware....




With the lid closed...

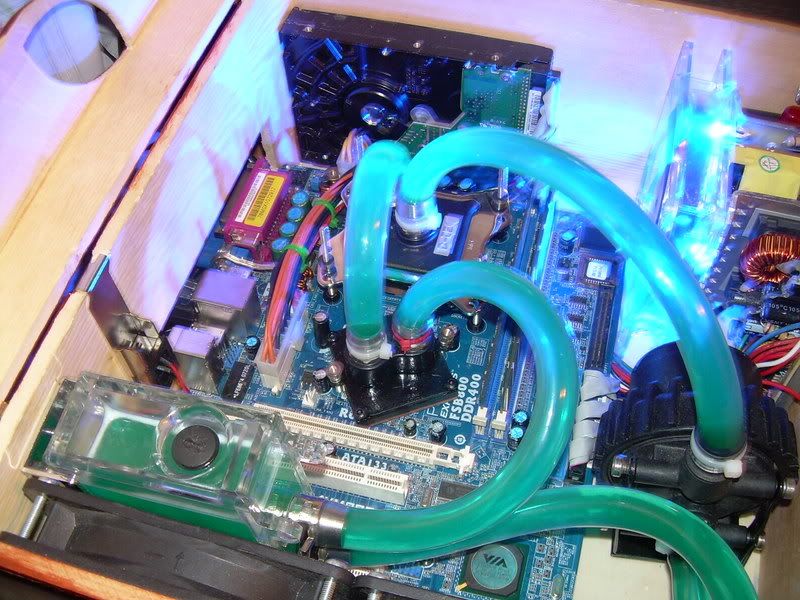

And a far general view....



Now i would like you to leave your coments and tell me waht you think that can be changed and what can be aded to the case...
I really dont know how will i get the acrilic on the top, if by the inside or by the outside...
And this only as one layer of varnish. Do i aply one more turning the case a little more dark colored?
Or can i go straigth to a clear coat?
Please give me your opinion....

Thanks
