SketchUp Sketchup Components Collection (SCC) Discussion

No I'm not building it but it would be sweet if I could. On Friday I drop a V8 (with Hilborn intakes) in the back and got the back sup. done and was just starting the front sup.

Like I said this is just a 3d project for CAD class



I'm thinking of designing a RC buggy and building it, if I find time

the scale shoud be around 1:8 or 1:10 using 1/4" tubing



Silverstone TemJin

Has anyone done a Silverstone TemJin SST-TJ07, perchance? Otherwise I'll be doing one in the near future.



been slowly making a tj07 model when i have the time, i used the one on google sketch up (the oversized one) then resized it a bit via adjustments for correct size. its not finished but you are free to do with it as you please.



HERE



I have updated pic of the buggy

I'll upload them later today



Can't wait Beast, looking forward to it.

@rchiileea, great work on the resize. I wish I had the case with me so I can do a model of it...anyone want to send me one.LOL!!!!



you got it



steering?
non-independent front suspension?



who need steering???



Google SketchUp 6 / Pro 6 Update:

http://sketchup.google.com/gsu6/download.html

Release Notes -Google SketchUp 6 for Windows - Maintenance Release 4

last updated 12/12/2007

Please note that these release notes apply to both versions of Google SketchUp: Google SketchUp 6 and Google SketchUp Pro 6.

SketchUp version 6.4.112
LayOut version 1.0.1199

For Additional Information:
The Google SketchUp Help Center has articles that will answer your questions and provides a search capability so you can look for issues of interest. To visit the Help Center, feel free to check out http://sketchup.google.com/support/
Our download page at http://www.sketchup.com/?section=downloads provides you with some additional software, including some Ruby scripts and additional components that can be used with SketchUp Pro 6.
The 3D Warehouse provides models from other SketchUp users that you can download and use! You can also place your models in the warehouse at http://sketchup.google.com/3dwarehouse/ for others to see!

System Requirements: Please visit http://sketchup.google.com/support/b...y?answer=36208

AutoCAD 2007 Support:

The major thrust of maintenance release 4 is support for AutoCAD 2007 DWG import and export.

Other Fixes

We also made a few other fixes for localization purposes.
There was one Ruby fix that also supports the AutoCAD 2007 initiative which is the ability to suppress results dialog box on DWG export.






Beast, I'm sure your still fine tuning your buggy but I must say it sure coming along nicely. I really like your headers...looking good bro.

Jez....you crack me up dude!!!!

BTW, I have been at XtremeSystems.com forum and I have seen a few guys using SU modles from Jez's SCC collection, I even saw one guy using my Asus Maximus board and he gave Jez and I a shout out. I thought that was just cool.



What's in that update? I still want them to fix circles...



in what way are they broken?



Added Release Notes to the post. You can also fine it in the link I posted above, just open the link and look for "Release Notes".

@sheninat0r, what problems are you having?



Well it's not a bug per se, I just don't like how the circles are made of short straight lines - for some reason it annoys me a LOT... [yes, im weird. dont start.]



Technically everything is made of little straight lines, but that is just me. I wouldn't worry about it, cause I doubt it will be fixed.



It's not a bug at all.
You can tell it to use more segments if that would appease you



I wish, it's due before finals which is wensday/thursday and I still have to do some technical drawing for it

the back is independent

that is what I was thinking

no time to fine tune


I'm at 274 parts

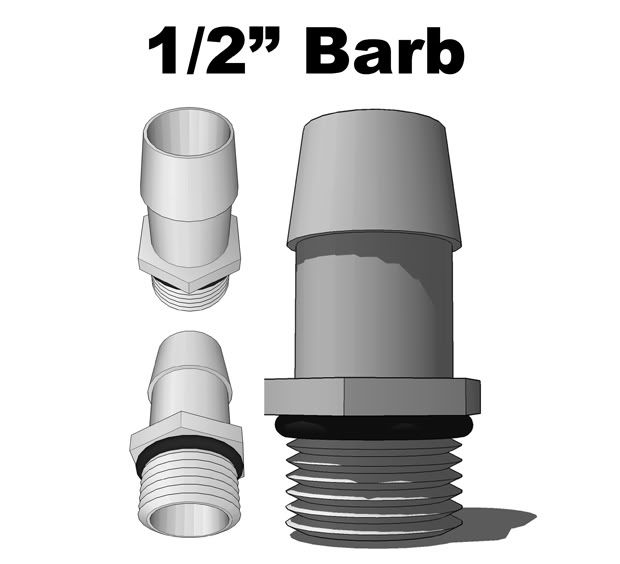

Did a watercooling barb with treads and "O" ring details.

Jez should have it up soon.




Scooby



very nice



very nice indeed. is up, despite the thread being fake!
