    This is another new project we build, up to now we call it STORM.

    We started a few days ago with this unspectacular big tower case (its not spectacular, but it has a removeable mainboard tray) which we got from ebay

    [​IMG]
    [​IMG]

    Because its huge like a stacker we decided to build in some kickass hardware (we didn´t decide which hardware exactly up to now) with a big watercooling loop, 2 or 3 radiators (3x120 + 2x120 + maybe another 3x120) and 2 optical drives.

    So at first we stripped the case down to its raw body to see how everything would fit and in which way we are gonna make the one or other thing....

    [​IMG]

    [​IMG]
    then we made 2 small mounting brackets out of some alloy stripes which we use to mount the radiator on the bottom of the frame. This was necessary to prevent the radiator from falling down on the next image :D and it prevents that the radiator could be shaked out of its position when moving the case.....
    [​IMG]

    as next we bend some alloy stripes into the right angles so that we could mount the 2 optical drives with them on the outside of the case....
    beside that we also bended some of those stripes to hold another radiator in front of the case, then we painted everything inside white except the radiators they get a fresh black paintjob...
    [​IMG]
    The Top of the case also gets a first cutout
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    one of the last things we could do up to now was to build a first water reservoir which will be attached directly to the pump to prevent it from sucking air....and to make the filling process a little bit easier....
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: 4 Aug 2009
  2. Farmboy UK

    Farmboy UK Hungry for knowledge

    Joined:
    19 Apr 2008
    Posts:
    196
    Likes Received:
    0
    Plenty of room in that beast!

  3. beesbees

    beesbees New Member

    Joined:
    29 Apr 2007
    Posts:
    85
    Likes Received:
    0
    That case is huge!

  4. nikeunltd

    nikeunltd Epic destruction around machinary

    Joined:
    5 Apr 2008
    Posts:
    116
    Likes Received:
    0
    this is a massive case!

  5. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    yeah your absolute right, it´s really a BIG Tower Case, but you can see that the free space is shrinking with every hour we put in :rock:

    today we cut the sidepanels....first we cut the complete panel in 2 pieces

    Then the both upper parts got their cutouts and holes so that we can mount a 2x120 mm radiator on each sidepanel. One of the sidepanels additionaly gets a few more cutouts which will be used as small windows....

    [​IMG]

    beside the cutouts we also cut out some acrylic parts in shape of the small windows which will be placed on the other sidepanel....

    [​IMG]

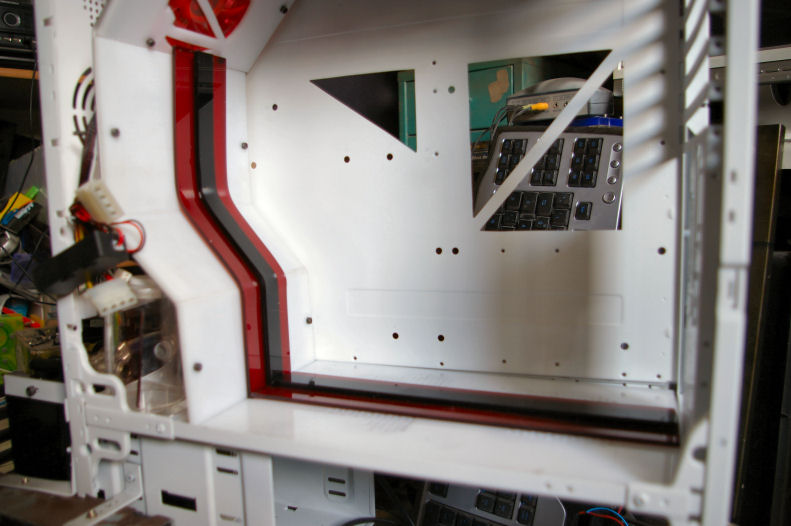

    For the inside we prepared a first cover which will be placed in the front part of the case, it will cover the pump, the small water reservoir and nearly all cables which will be needed for hdds and opt. drives....(atm its not fixed in its position that will follow later)

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    As last step we prepared a frame of alloy stripes which is screwed to the radiator on the front of the case

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  6. Angleus

    Angleus New Member

    Joined:
    28 Nov 2007
    Posts:
    673
    Likes Received:
    3
    Woah thats looking really cool man

  7. Farmboy UK

    Farmboy UK Hungry for knowledge

    Joined:
    19 Apr 2008
    Posts:
    196
    Likes Received:
    0
    Loving the 'grill' on the rad

  8. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thanks a lot!!! it´s always nice to hear when others like your own work:D

    today we build another radgrill for the radiator which will be placed on top of the case (another 2x120mm), after that we painted both in a plain black so that they will bring in some contrast to the white.

    [​IMG]
    [​IMG]
    [​IMG]

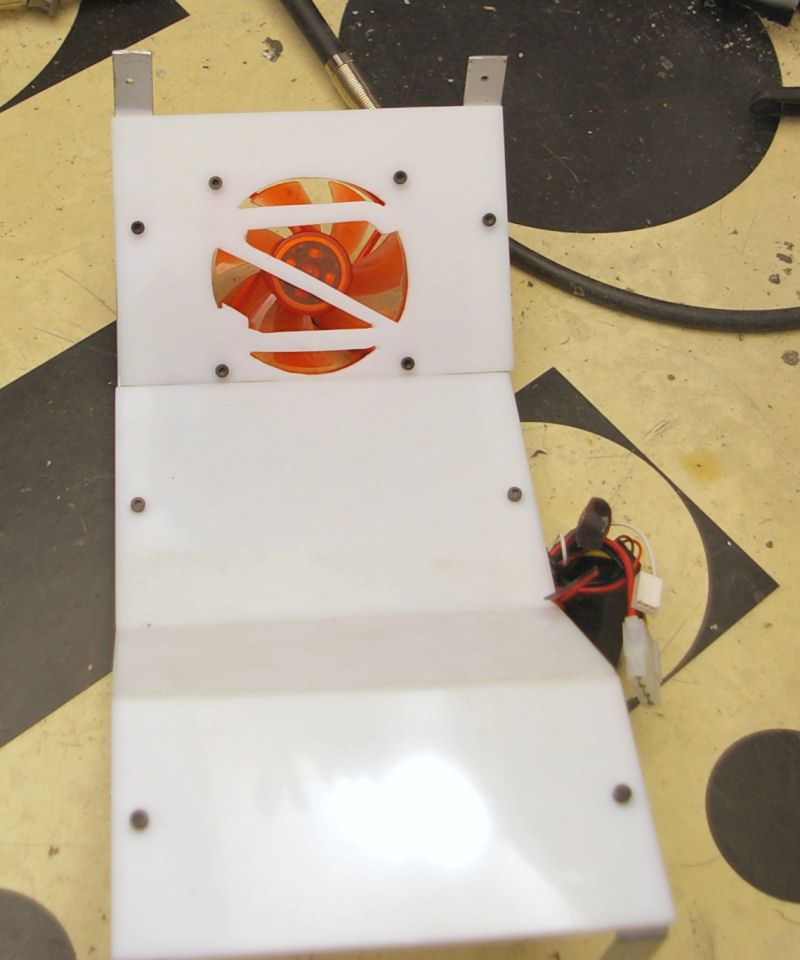

    For the inside we build another acrylic cover which will be placed on the floor of the top part. Then we drilled a lot of holes in it to guarantee that the PSU can pull air through it.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  9. modgodtanvir

    modgodtanvir Prepare - for Mortal Bumbat!

    Joined:
    28 May 2007
    Posts:
    1,960
    Likes Received:
    2
    Wow. I'm really liking the grille! Really professionally executed. Subscribed.

  10. JAxen

    JAxen New Member

    Joined:
    18 Nov 2005
    Posts:
    243
    Likes Received:
    0
    very cool grills! :thumb:
    "full-tower" will never mean the same :p

  11. mr_carl

    mr_carl New Member

    Joined:
    2 Jul 2007
    Posts:
    148
    Likes Received:
    0
    Sweet stuff, I like the stripes in the case :thumb:

  12. modgodtanvir

    modgodtanvir Prepare - for Mortal Bumbat!

    Joined:
    28 May 2007
    Posts:
    1,960
    Likes Received:
    2
    I really like this piece:
    [​IMG]

    I was intending to put something similar in my next mod, except coming from a bottom compartment, to the main one.

    Just love the acrylic. Its surprising how good it can look. And that's my favourite combination of colours.

  13. B[x]

    B[x] New Member

    Joined:
    3 Jul 2006
    Posts:
    270
    Likes Received:
    1
    I'll definitely be watching this one. Love the work so far.

  14. nickhelton

    nickhelton New Member

    Joined:
    13 Feb 2008
    Posts:
    240
    Likes Received:
    0
    oh man this is looking to be epic. subscribed!

  15. Farmboy UK

    Farmboy UK Hungry for knowledge

    Joined:
    19 Apr 2008
    Posts:
    196
    Likes Received:
    0
    Looking real good. Can't wait to see what you are going to do with the rest of all that space

  16. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thanks a lot !!!!


    in the last few days we could´t work much on this project because of the marriage of my brother (he is working with me on this project)
    but yesterday we made a little progress so here it is :D

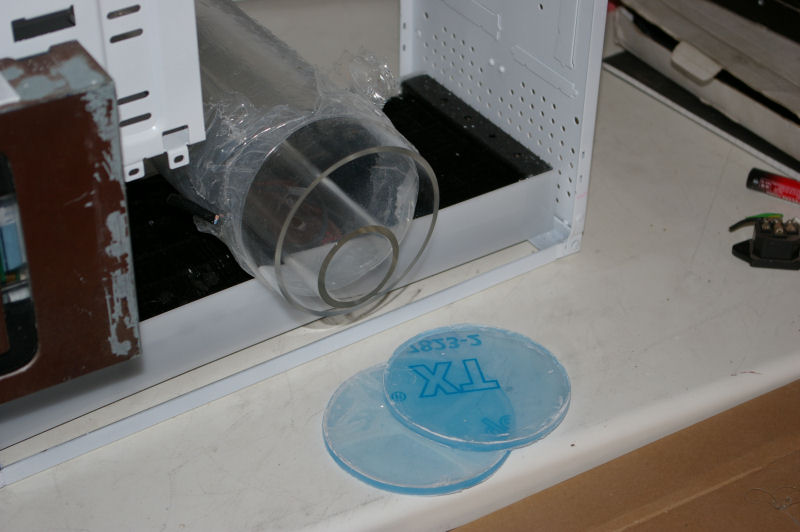

    at first we cut some Plexi Pipes (100mm + 60 mm diameter) so that we can use them for the real water resevoir which we will put in the lower part of the case, beside that we also made a top and bottom for it

    [​IMG]
    [​IMG]
    [​IMG]


    then we made a side part for the inner cover

    [​IMG]
    [​IMG]

    we also made 2 covers for the DVD Drives which we will mount later

    [​IMG]

  17. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    in the last days we made some progress.....

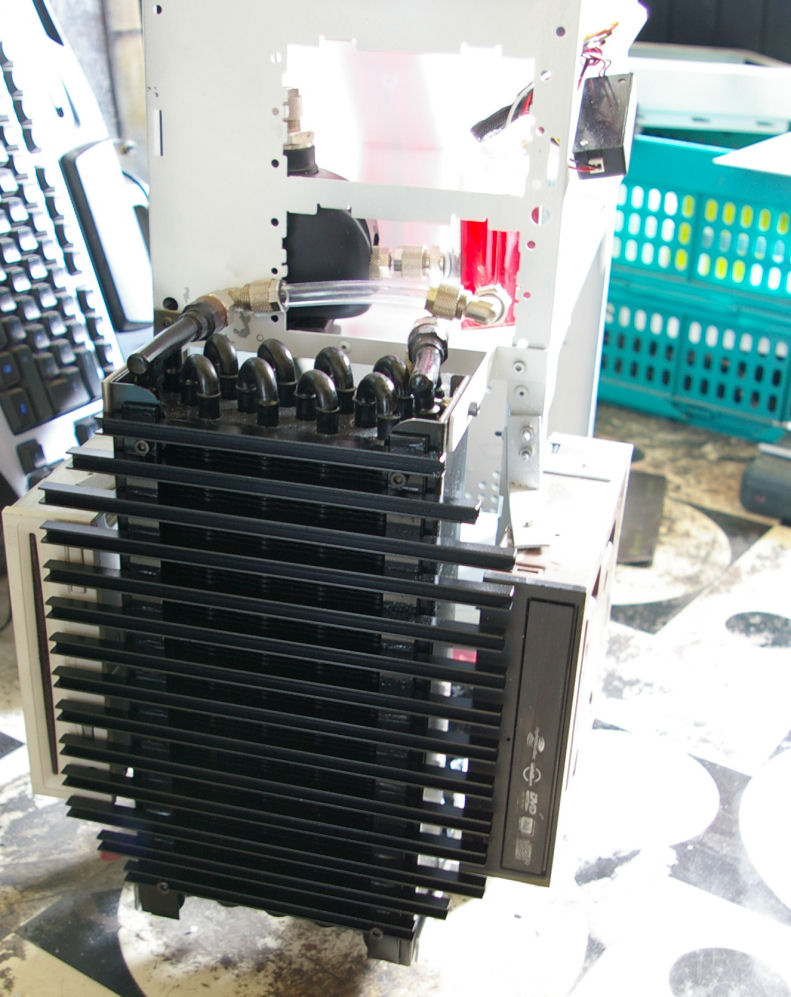

    first we made the last radiator / Fan Grill which we will use later, after building them, we put them in place to see if they fit in the way we want....

    [​IMG]
    [​IMG]
    [​IMG]

    then we cut a small plexi stripe and drilled in 20 holes for LED´s, later we build more of them....

    [​IMG]

    after that we cut out the first part of the water reservoir stand, i think tomorrow we cut the second one....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

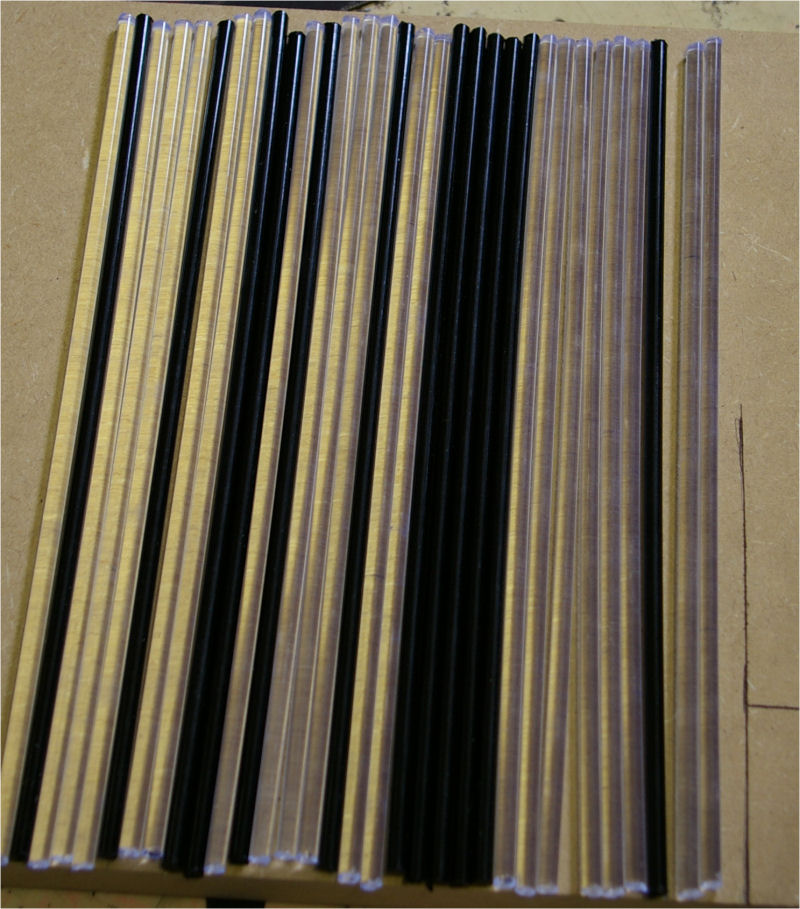

    as last we prepared a part of the outer skin of the mod....therefore we cutted 32 plexirods in 25cm length so that we can use them later.....

    [​IMG]

  18. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    today we made the 2nd holder for the water reservoir and put it in place for a quick test....
    [​IMG]


    after that we made a plexi circle which will surround the fillport of the rez...

    [​IMG]

    then we also made the first parts of the case feets...

    [​IMG]

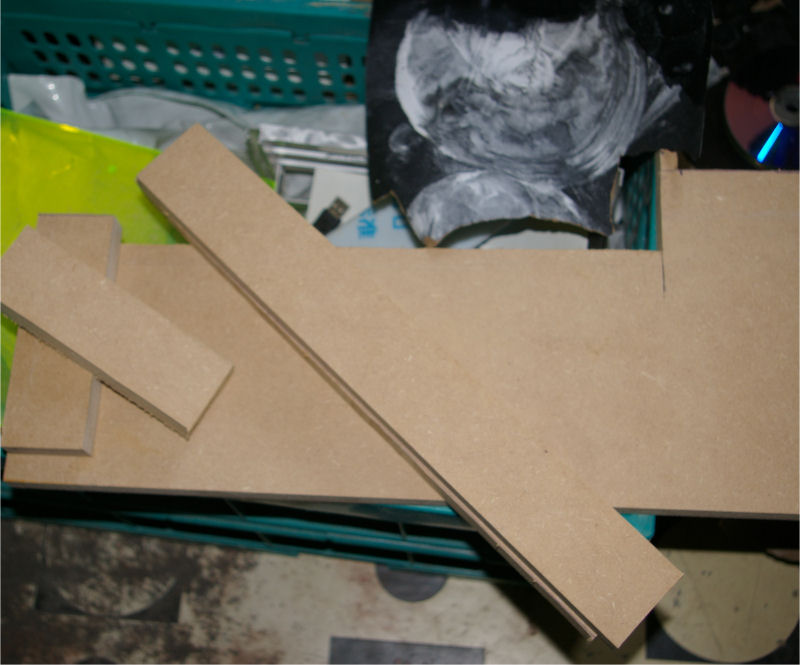

    after that we started to build the upper part of the front, therefore we cuttet a thin piece of wood in its raw shape and then we put a thick layer of building foam on it.......after everything dryed out we begin to give it a better shape...but it´s only the base for everything what will come later on.....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  19. Darkened

    Darkened New Member

    Joined:
    28 Feb 2004
    Posts:
    965
    Likes Received:
    17
    Damn, this must be one of the craziest designs I've seen for a computer case. If you pull this off (and I don't see why you wouldn't), it's going to look amazing.

    Only thing I'm not so sure about is the urethane foam you are using, I'd go with a solid polystyrene block. It's probably manufactured all over the world, but I don't know anything else besides Finnfoam.

    I know that people use it for making bodykits for cars, model airplanes, so it should be just the thing for this mod.

    Darkened

  20. Farmboy UK

    Farmboy UK Hungry for knowledge

    Joined:
    19 Apr 2008
    Posts:
    196
    Likes Received:
    0
    Amazing and original, i agree that solid closed cell foam would be a better base for the case than the expanded stuff but I'm sure you can make it work. Keep up the great work.
