Case Mod - In Progress [Storm] - 040809 - Rebuild /GC Online

Discussion in 'Project Logs' started by thechoozen, 12 May 2008.

  1. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    12,112
    Likes Received:
    1,737
    I agree. Awesome!:D
    It looks like you drilled the holes dry, though. A little water while drilling will make the edges clean enough to polish.

  2. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thx m8´s

    @Cheapskate thx for the advice...we must try that out! its always a pain to get those little holes clear. Atm we´re using a very fine injection needle and a very thin acrylic glue to get drilled holes clear, during the glueing process the plexiglas is a litte bit solved so that the surface gets clear

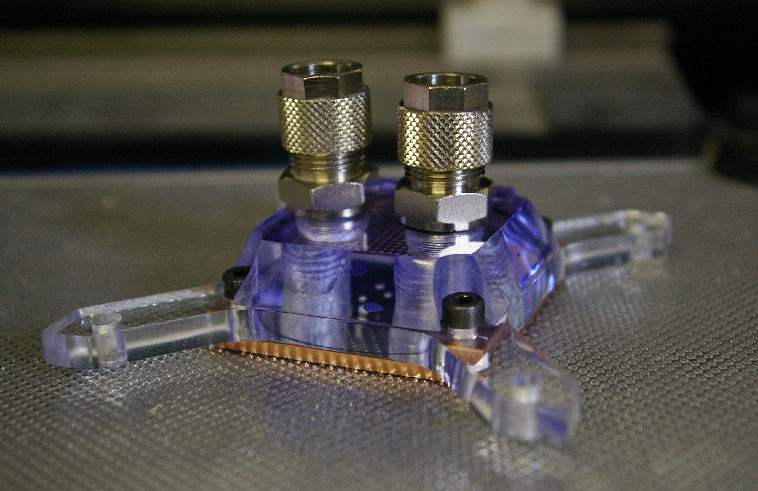

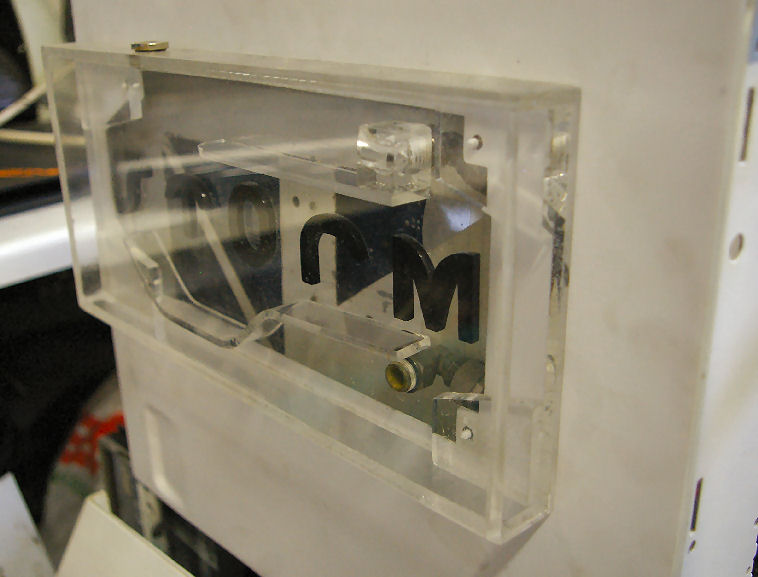

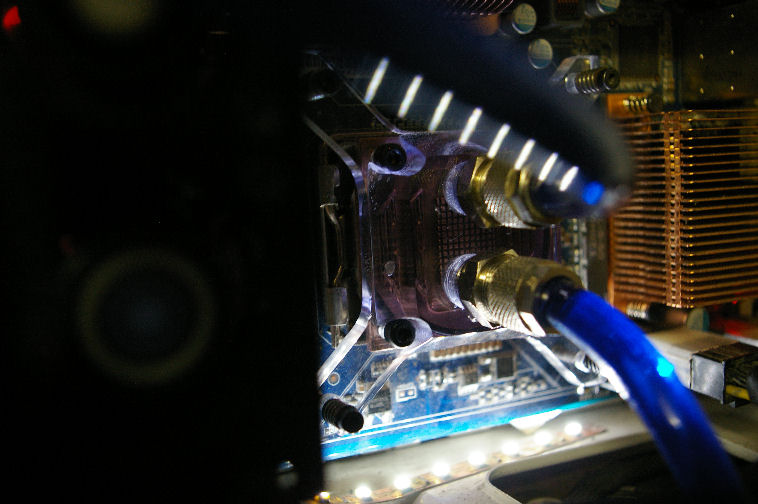

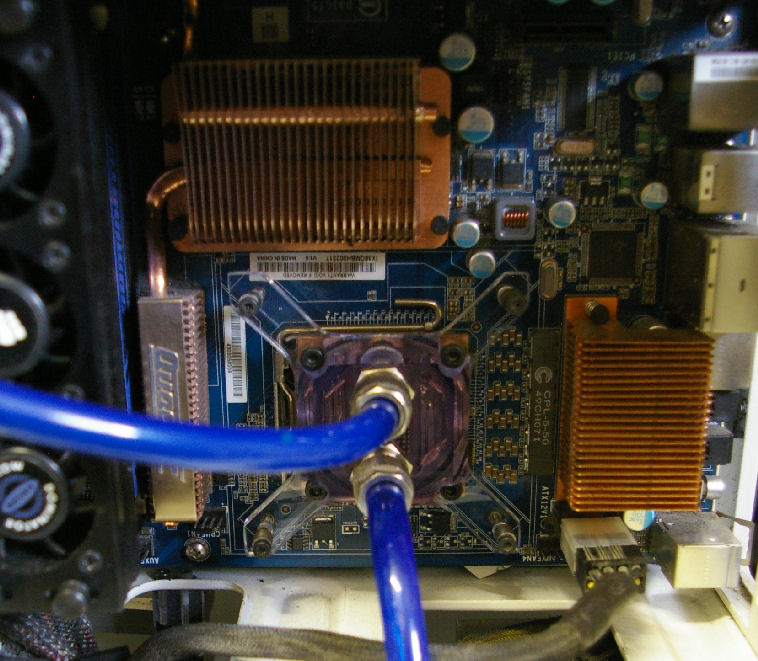

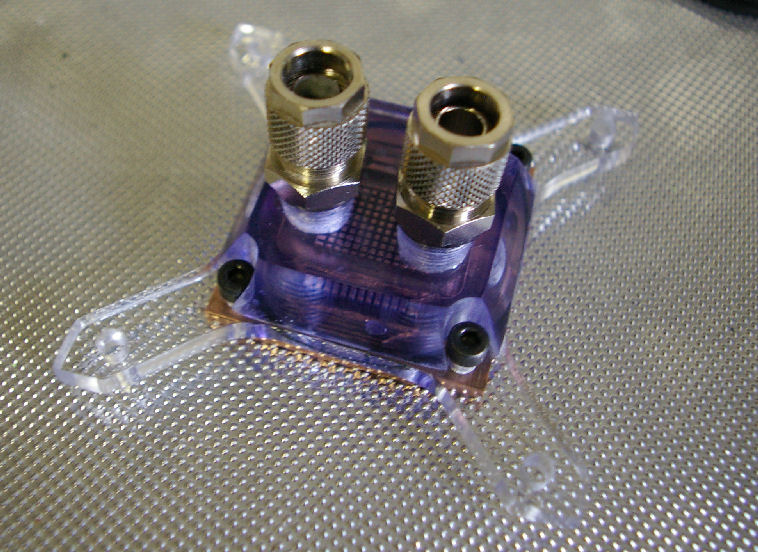

    today we disassemble the old watercooling loop and took the old rez and cpu cooler away....then we added the new ones so that we could test how they would perform with the rest of the loop....everything is still leak free and the cpu temp is @ 22° in idle aftert 1 h TF2...


    but here some new pics


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  3. headala

    headala What's a Dremel?

    Joined:
    9 Oct 2005
    Posts:
    194
    Likes Received:
    2
    Awesome :jawdrop:

  4. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thx!!!

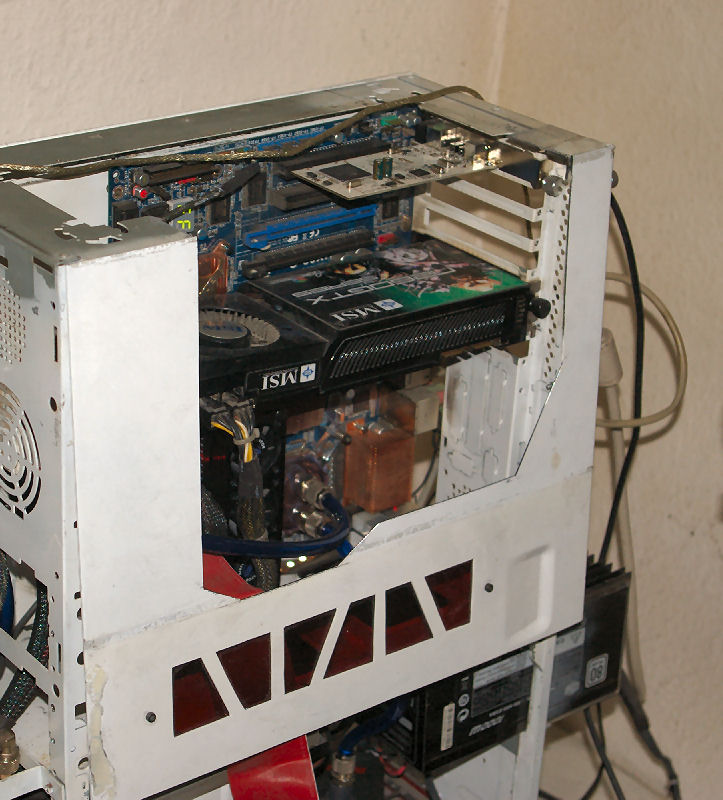

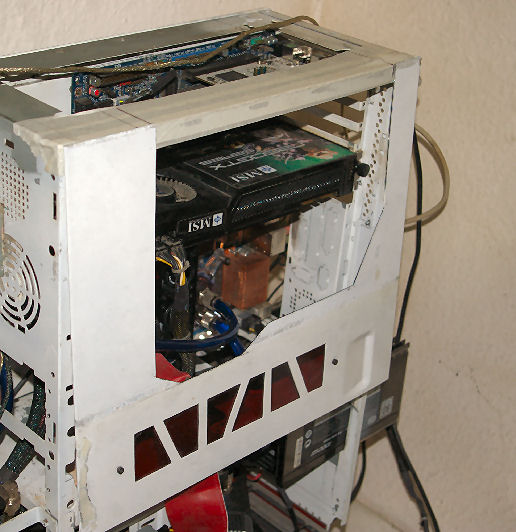

    today we made some progress on the right sidepanel and the top of the case. We want to change that part as well, so we started with a big window.....


    [​IMG]
    [​IMG]

  5. BlackWhizz

    BlackWhizz What's a Dremel?

    Joined:
    17 Jul 2008
    Posts:
    383
    Likes Received:
    1
    Much nicer :)

  6. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    :rock: :thumb: Thanks a lot for the MotM Nominee!!! and good luck to all!! :thumb::thumb:

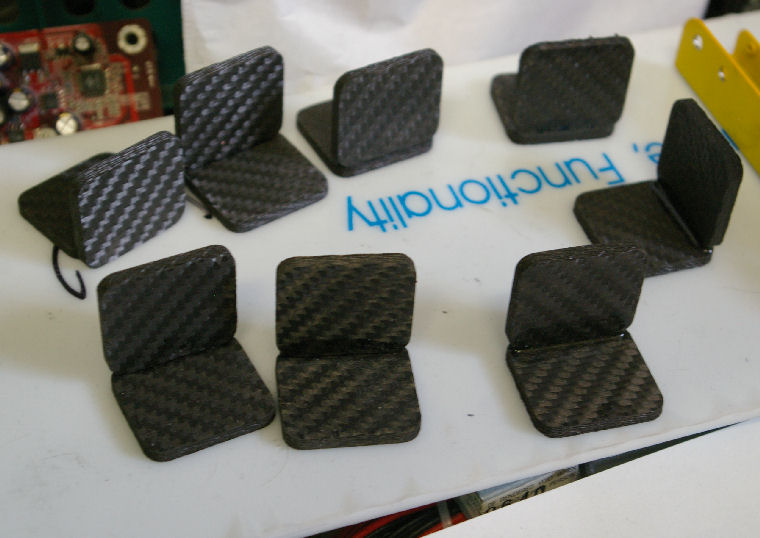

    beside that its time for a small update...in the last days we made some carbon fibre angles which we will use to mount 2 of the used radiators inside the case....they will later be placed inside of the lower case part...but that will come in the next days....

    [​IMG]
    [​IMG]

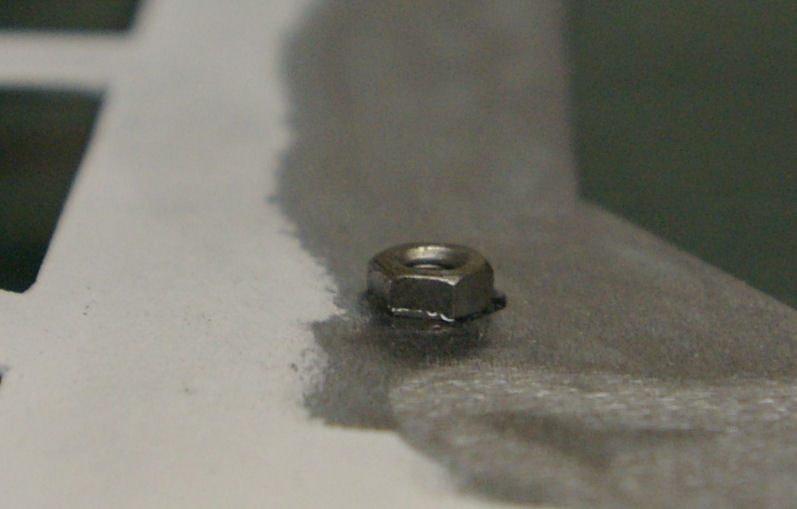

    we also started to build some custom mounting points for the case window, therefore we sanded the inside of the sidepanel and then glued (with j.b.weld) a few locknuts to the sidepanel so that we could later screw through the plexiglas from the inside so that there will be no visible screwheads on the outside....


    [​IMG]

  7. ringo

    ringo What's a Dremel?

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    Cool project, i followed this thread from the beginning. There are some interssting details in your worklog.

  8. DonT-FeaR

    DonT-FeaR I know what a fk'n Dremel is ok.:D

    Joined:
    23 Jul 2008
    Posts:
    867
    Likes Received:
    14
    i like the carbon corners gw

  9. Kumo

    Kumo What's a Dremel?

    Joined:
    18 Oct 2004
    Posts:
    698
    Likes Received:
    0
    Interesting project. Like overall design and some details. Although it's a little big to me.
    Impressive work, anyway.

  10. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    :clap: thx guys!!! :clap:

    yesterday and today we made some progress on the "Mounting Thing" for the radiators :D....

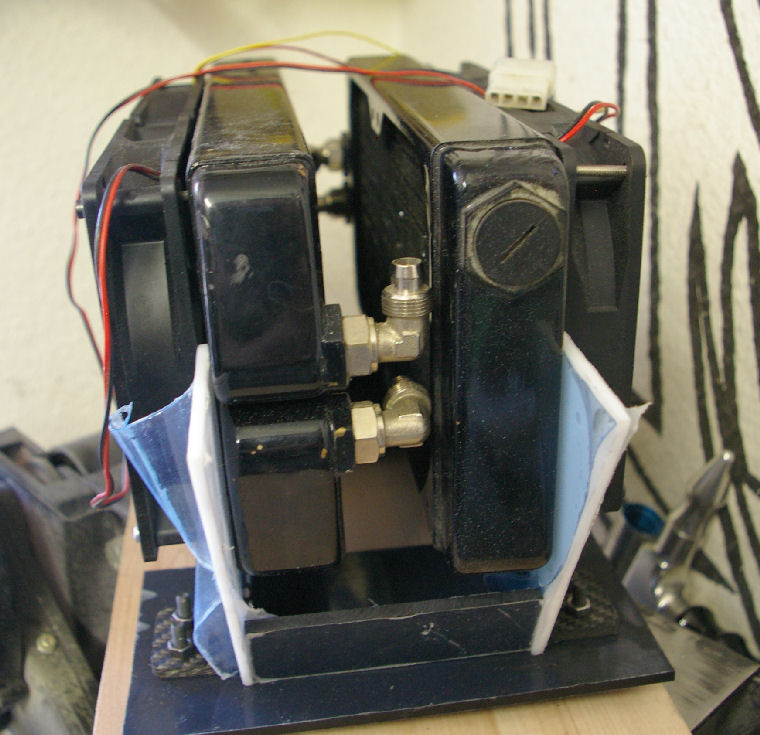

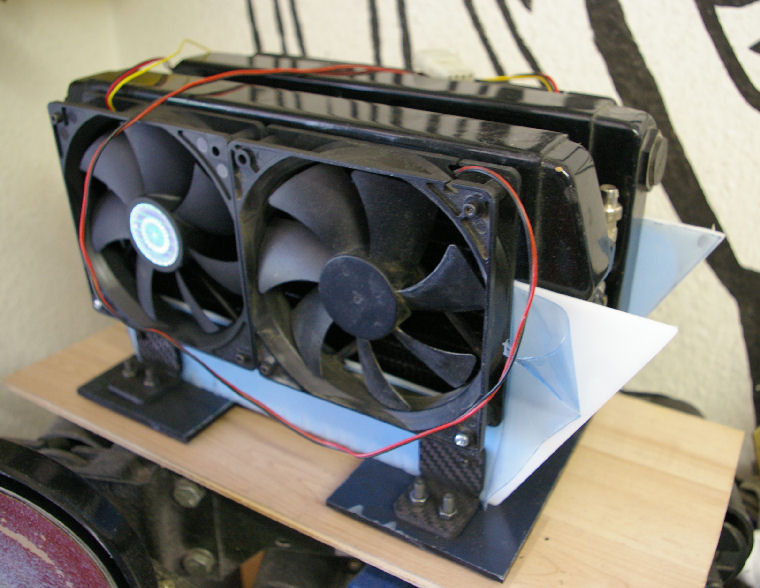

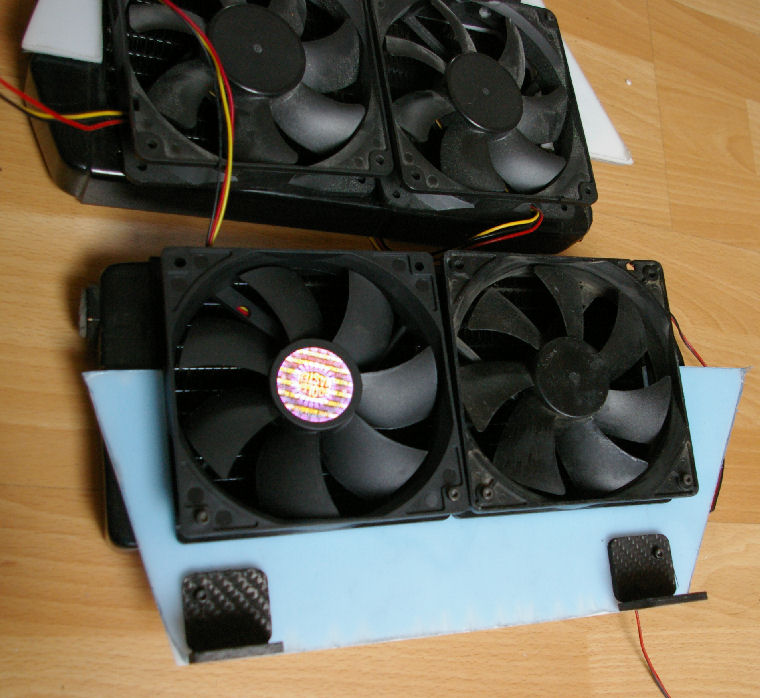

    we attached the carbon corners to the plexiglas parts and also mounted them on 2 sheets of black plexiglas on which everything will stand. The Black parts will also be used to mount everything on the bottom of the case.....


    [​IMG]
    [​IMG]


    Beside that we prepared the first fan for the radiators, to see if it will look like we thought...before we start to build another 3 of them.....

    [​IMG]
    [​IMG]

  11. ringo

    ringo What's a Dremel?

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    Nice Fan. Are the radiators not a little bit to close?

  12. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thx!!


    we hope not :D


    today we made the next fans and mounted the first 2 on a radiator ....

    [​IMG]

  13. Angleus

    Angleus What's a Dremel?

    Joined:
    28 Nov 2007
    Posts:
    673
    Likes Received:
    3
    Awesome work

  14. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thx!!

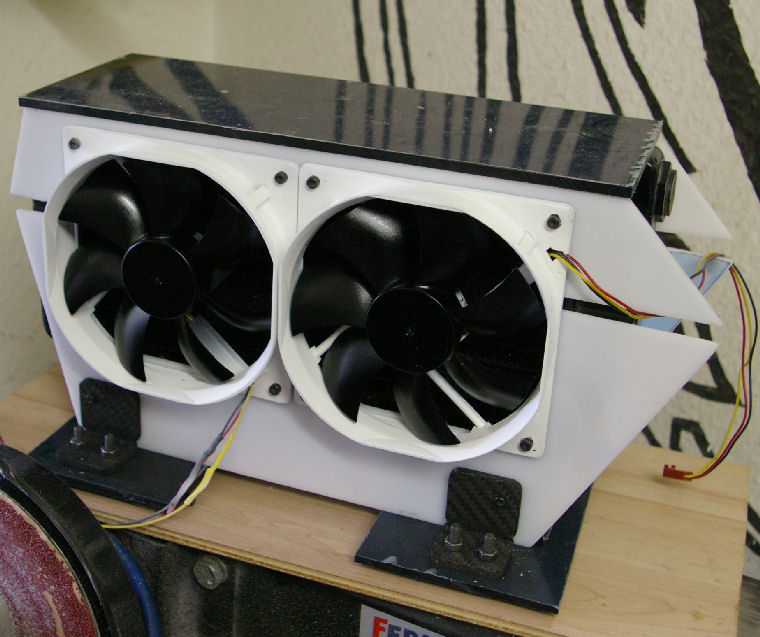

    today we finished the work on the fans and added another layer ontop of the radiators....

    [​IMG]
    [​IMG]
    [​IMG]

  15. Bad_cancer

    Bad_cancer Mauritius? 2nd speck east of africa

    Joined:
    7 Apr 2009
    Posts:
    708
    Likes Received:
    12
    Now that is awesome!!!!!

    got to say some of the shapes you chose are kinda weird but the overall look is awesome! Some of the details i don't agree with too much, but to each his own.

    But i do appreciate good workmanship, and here sir is a fine fine example.

    keep it up! :rock:

  16. DonT-FeaR

    DonT-FeaR I know what a fk'n Dremel is ok.:D

    Joined:
    23 Jul 2008
    Posts:
    867
    Likes Received:
    14
    there very cool decals

  17. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thx m8´s!!!

    @DonT-FeaR....oh, no decals....airbrush ....forget to mention that before...:D

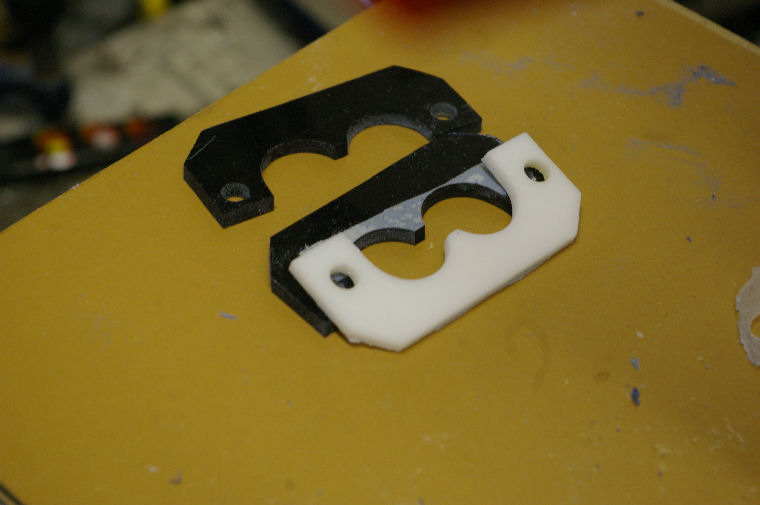

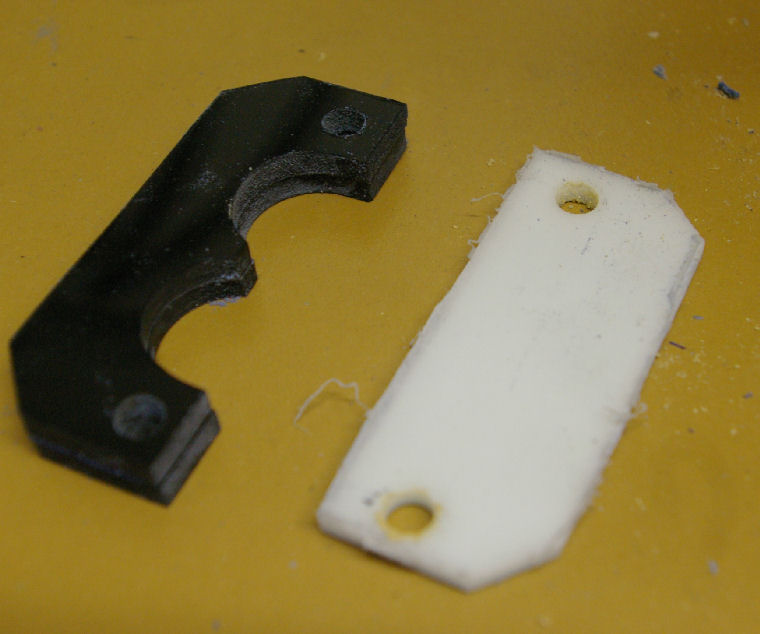

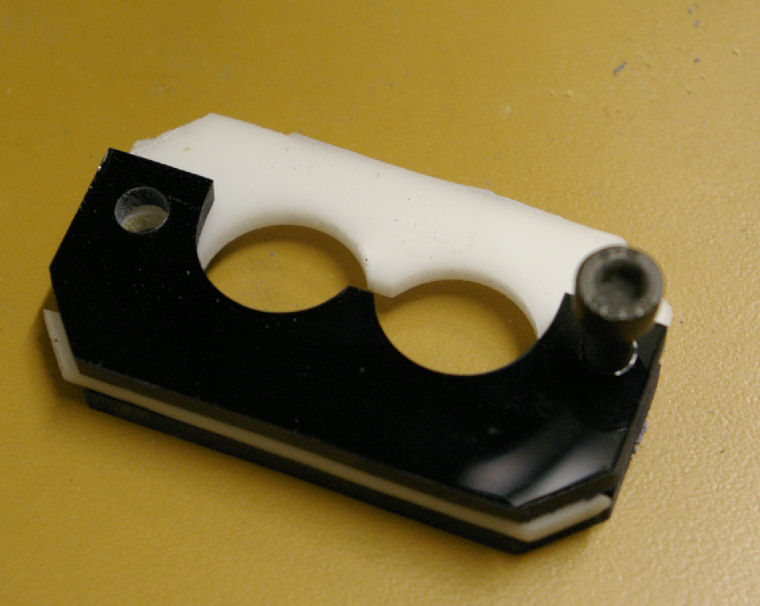

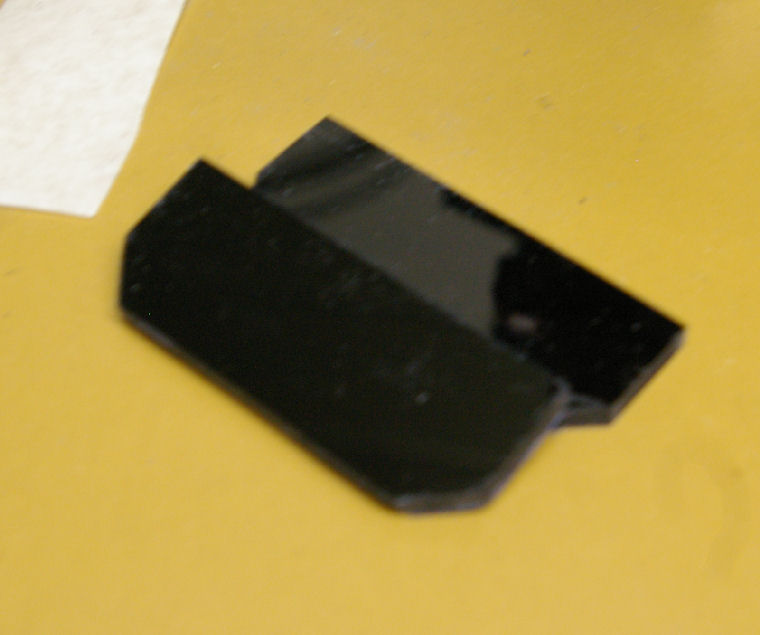

    today we made the first parts to route the cables from the psu to the periphals....the first 2 will be placed upon the radiator stand....


    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  18. BlackWhizz

    BlackWhizz What's a Dremel?

    Joined:
    17 Jul 2008
    Posts:
    383
    Likes Received:
    1
    Cool! Love the originality in this mod! Im still following this one! :D

  19. DonT-FeaR

    DonT-FeaR I know what a fk'n Dremel is ok.:D

    Joined:
    23 Jul 2008
    Posts:
    867
    Likes Received:
    14
    nice brackets mate.

  20. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    :thumb: thx :thumb:

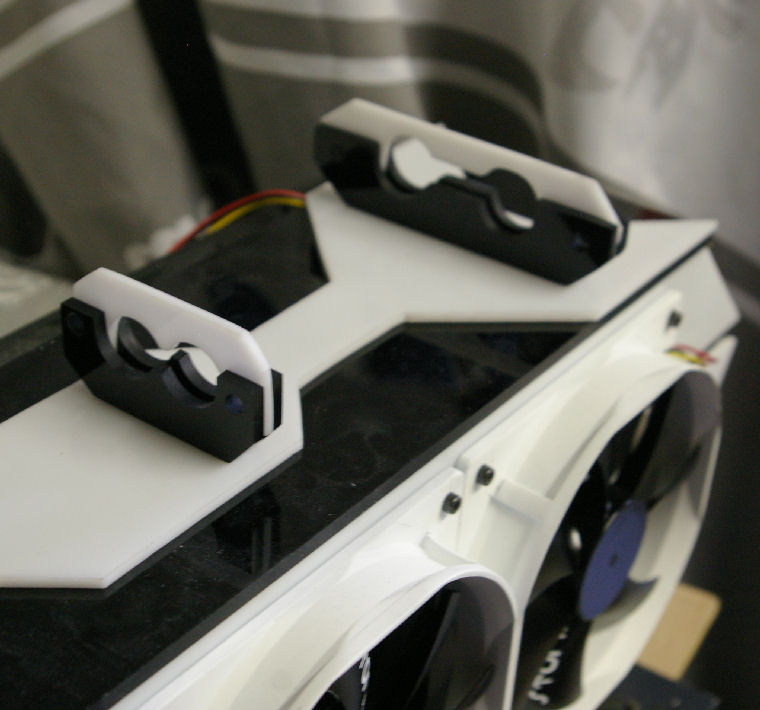

    just to share this...here is a pictures of the radiator housing with both cable routing brackets :D

    [​IMG]

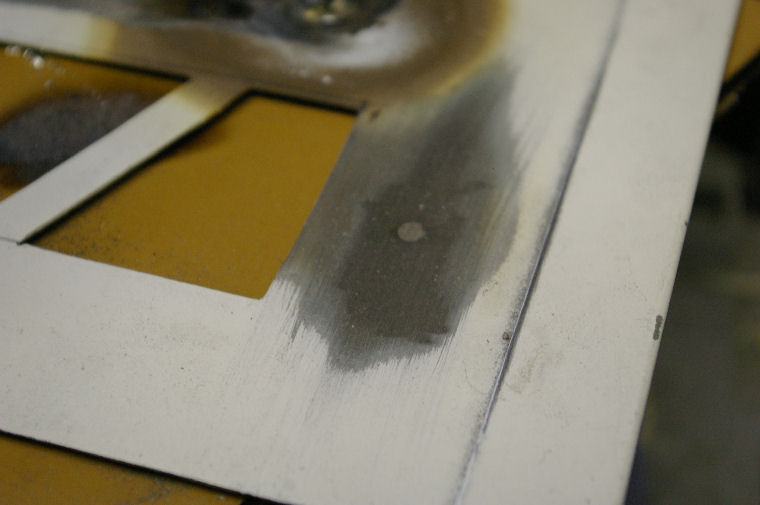

    beside that we closed some holes in the upper side panels which we not need anymore....as we were closing the holes we thought that it might be a good decision to replace the glue under the locknuts with something more solid ....like metal...so we welded the locknuts on....

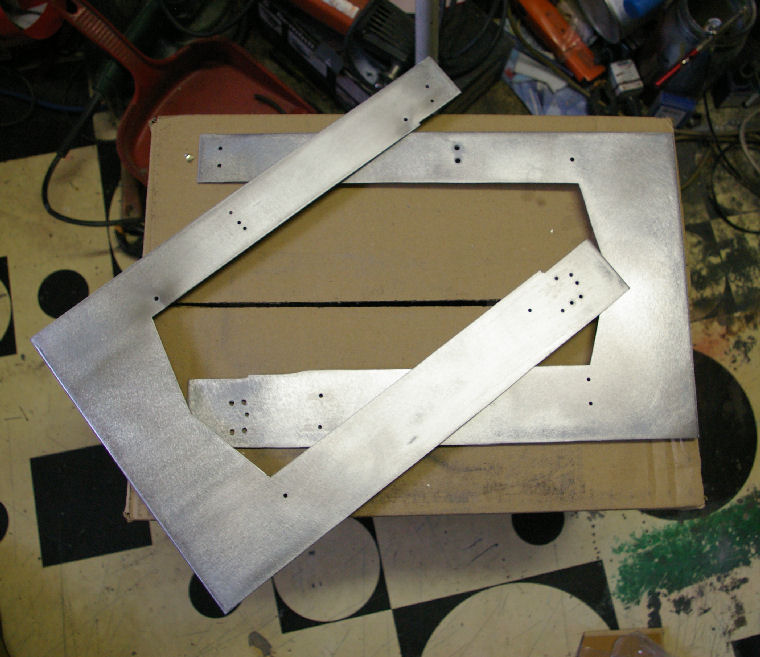

    then we stripped down the lower side panels to their raw metall and removed all plastic parts from the first build....

    [​IMG]
    [​IMG]
