Case Mod - In Progress Tartaros - Xigmatek Elysium for Gamescom Booth (update:110811 Final Pics

Discussion in 'Project Logs' started by thechoozen, 10 Jul 2011.

  1. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    And the next one....:clap:


    This time we modify a Xigmatek Elysium for the Gamescom Booth of Caseking (a big german distributor).
    Later after the Show, they want to take the System as a Part of their Shop Decoration.

    After a few hours of brainstorming we thought, that we will set on an eyecatching Airbrush (dark biomech/ giger inspired) over the complete Case, combined with a big custom Window (which perfectly fits into the airbrush).

    Naturally we will add a few lights, a custom top and a few other details.....(maybe watercooling)but more to that later....

    here comes the first bunch of pics and the first Video of the unboxing...and the window cutout process....

    The Base Chassis
    [​IMG]

    the first drawings on the case...(just to help us)
    [​IMG]
    [​IMG]

    and the cutout process....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]




    Last edited: 11 Aug 2011
  2. KiiYzOo

    KiiYzOo What's a Dremel?

    Joined:
    11 Mar 2011
    Posts:
    233
    Likes Received:
    4
    awesome :D

  3. St3ph

    St3ph What's a Dremel?

    Joined:
    8 Aug 2009
    Posts:
    84
    Likes Received:
    1
    Are you going to cut out the eyes of the skulls. You have sketched them on the tape after all...

    Promising start ;)

  4. Rai

    Rai What's a Dremel?

    Joined:
    22 Jun 2011
    Posts:
    97
    Likes Received:
    1
    What about the nose?

  5. Bullitdodger

    Bullitdodger If it ain't broke....Tweak it.

    Joined:
    9 Oct 2005
    Posts:
    318
    Likes Received:
    3
    How about a workbench. My back hurts just by watching the video. But then again I'm not a young man.....:sigh:

    Also my dremel gave up the other day, and I miss it....:dremel:

    Last edited: 11 Jul 2011
  6. St3ph

    St3ph What's a Dremel?

    Joined:
    8 Aug 2009
    Posts:
    84
    Likes Received:
    1
    Rest in piece, you rotary tool!

  7. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s!!


    No, to both :D
    We thought over that option, but than we came to the decision that we will not cut them out...we think it would look so nice in the dark when you can´t see the contours of the skull (just a few dots)


    :D hehehe, the room is full of them....but on our workbenches there are lots of cases at the moment...so we´re running a bit out of space from time to time....(specially with that case...it´s really big)

  8. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    time for a small update :clap:

    we started the airbrushing process, but before we could start, we first had to change the case color from black to white ...:D

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    beside that we already started to modify the top of the case, we removed the outer mesh with the embossed X and also the plastic honeycomb mesh which is under it...so that we have only the frame left (for the moment)
    [​IMG]
    [​IMG]

  9. Scrappy

    Scrappy Mod in progress!

    Joined:
    10 Jul 2011
    Posts:
    52
    Likes Received:
    1
    Wow, nice airbrushing, all will look even better when finished

  10. Tokari

    Tokari What's a Dremel?

    Joined:
    24 May 2011
    Posts:
    79
    Likes Received:
    1
    The skulls look absolutely superb! Looking forward to see how this turns out.

  11. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s!!

    today its time for an update again :rock:

    After starting the airbrushing process...we couldn´t wait to continue....so here we go with a new video and a nearly finished first sidepanel....

    [​IMG]
    [​IMG]
    [​IMG]




    beside that the next parts already get their base coat so that we continue with them....


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  12. Warsmith

    Warsmith Enginseer

    Joined:
    5 Dec 2010
    Posts:
    38
    Likes Received:
    1
    Loving this!

  13. Stem83

    Stem83 Addicted to modding.

    Joined:
    26 Mar 2011
    Posts:
    498
    Likes Received:
    16
    mmm that airbrushing is top notch, its stuff like this that makes all the difference.

  14. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s!!!

    In the last days we continued the airbrush process with the first layers of laquer on the front and Top of the Case....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    beside that we also started to work on the 2nd Sidepanel....

    [​IMG]
    [​IMG]

  15. Tokari

    Tokari What's a Dremel?

    Joined:
    24 May 2011
    Posts:
    79
    Likes Received:
    1
    The artwork here is really good.

  16. ColdzeroTeam

    ColdzeroTeam What's a Dremel?

    Joined:
    9 Dec 2010
    Posts:
    184
    Likes Received:
    6
    wow... nice work you did :)
    keep it up :thumb:

  17. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s :clap:

    today it´s time for an update again :D

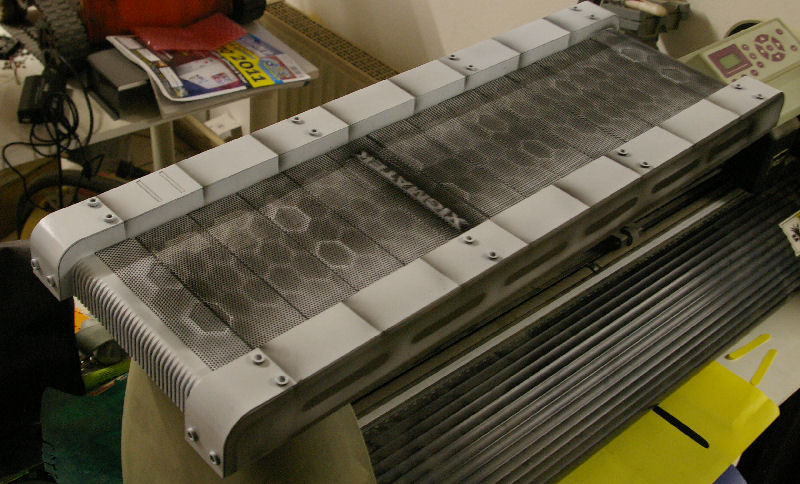

    In the last days we continued the work on the top part of the case...

    We already prepared the original top piece earlier, so that we could continue with a new center piece for it....after cutting it out we had to fit it into the frame from the original part so that we can attach it to the case like before... (without screws)

    [​IMG]
    [​IMG]
    [​IMG]


    Then we started the painting process of it, so that it will look like the rest of the case....


    [​IMG]
    [​IMG]

    and we also continued the airbrushing process on the second sidepanel.....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  18. Stem83

    Stem83 Addicted to modding.

    Joined:
    26 Mar 2011
    Posts:
    498
    Likes Received:
    16
    wow.....

  19. microsoftPerson

    microsoftPerson What's a Dremel?

    Joined:
    27 Dec 2010
    Posts:
    614
    Likes Received:
    15
    I was wondering what you were doing with the panel without the window, but that is awesome. Are you going to be lighting the case internally? I wonder how it will enhance/change the effect of the faux-window and the rest of the airbrushing and I definitely look forward to finding out. Really excellent work . . . I have owned a Pasche airbrush for six years now and still have to take it out of the box and learn how to use it - how long have you been using the airbrush?

  20. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx a lot m8´s!!!

    yeah, for sure we are going to light the case internally. But i think it will took a few days until we reach that point :D
    Oh and i think we´re airbrushing for 5-6 years now :D


    Today the Hardware for this beast arrives :clap:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
