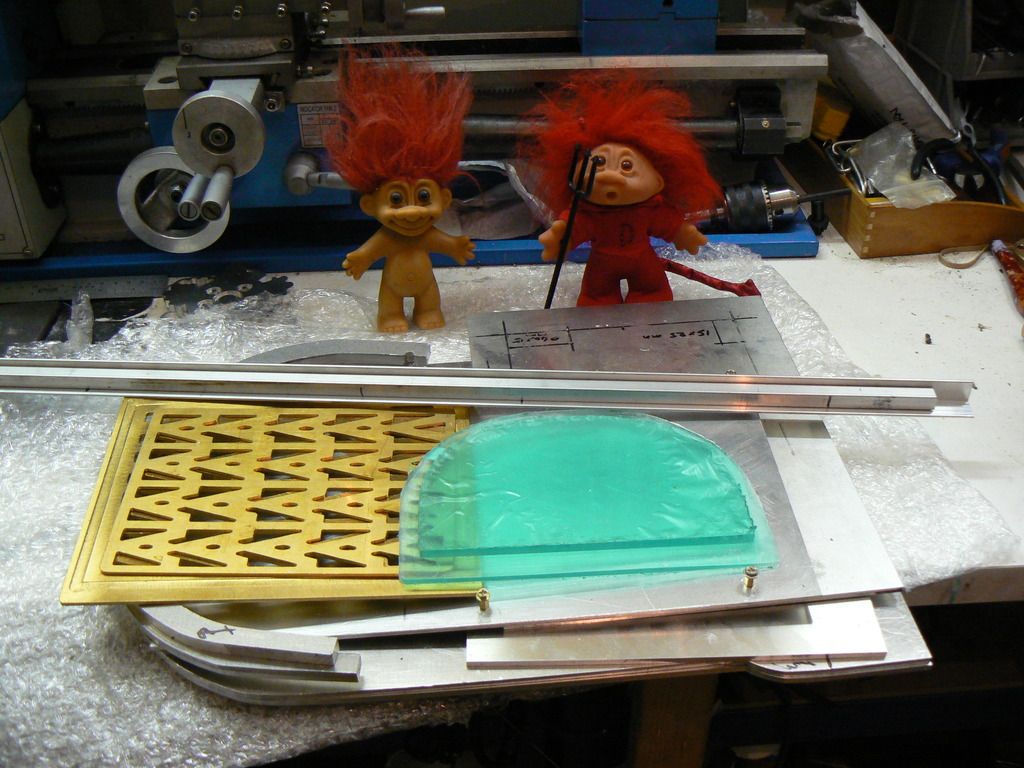

So as I'm still waiting on materials coming, I've been making a few odd pieces.

First what will be the motherboard tray

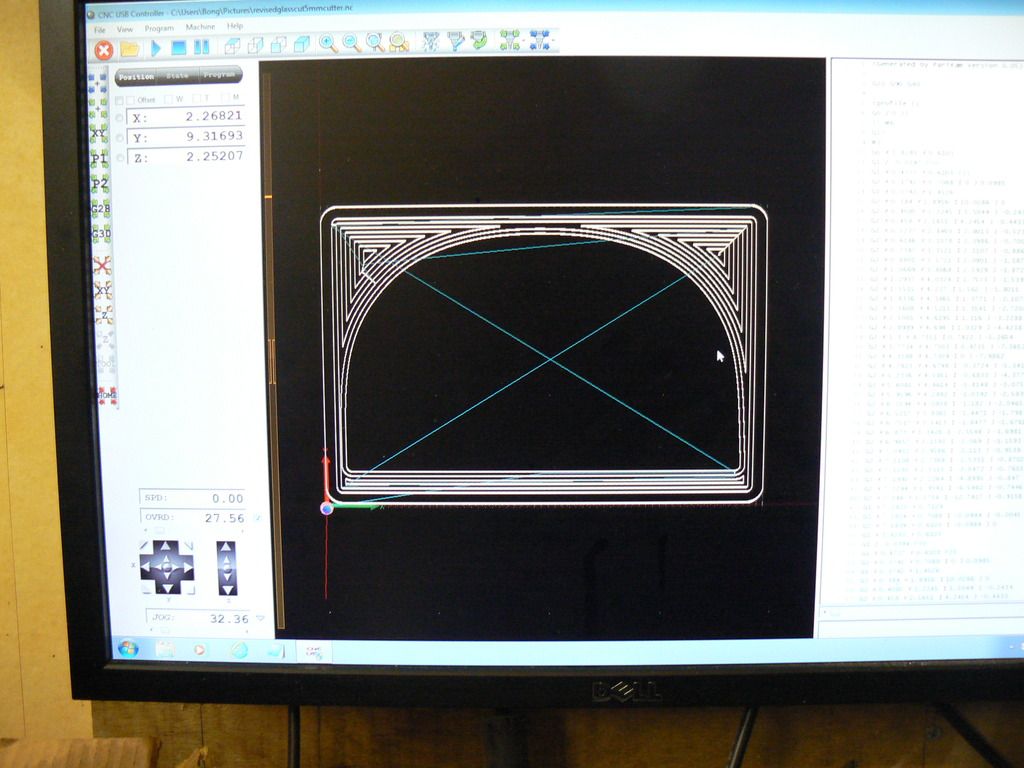

And next the perspex window



Cut and trimmed

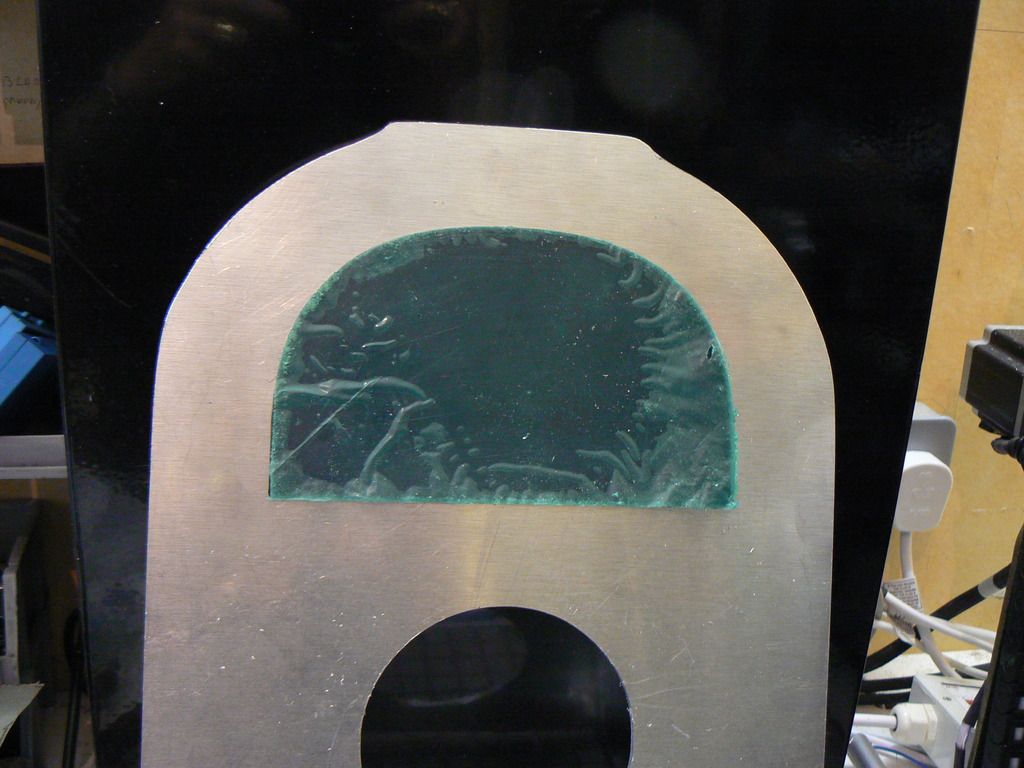

Fits perfect



So I end up with a flat pack computer case lol



Right finally got the Aluminium I've been waiting on sorted should be with me Wednesday I'll be able to get on with the interesting cutting.

I'm considering using glass in stead of Perspex on the top not sure yet though that should please Cheapskate



Lol almost a long as his project then

Actually glass could be a better option you can get a lot more interesting colours, of course I'll have to make a mould



Do EEET!



A small update

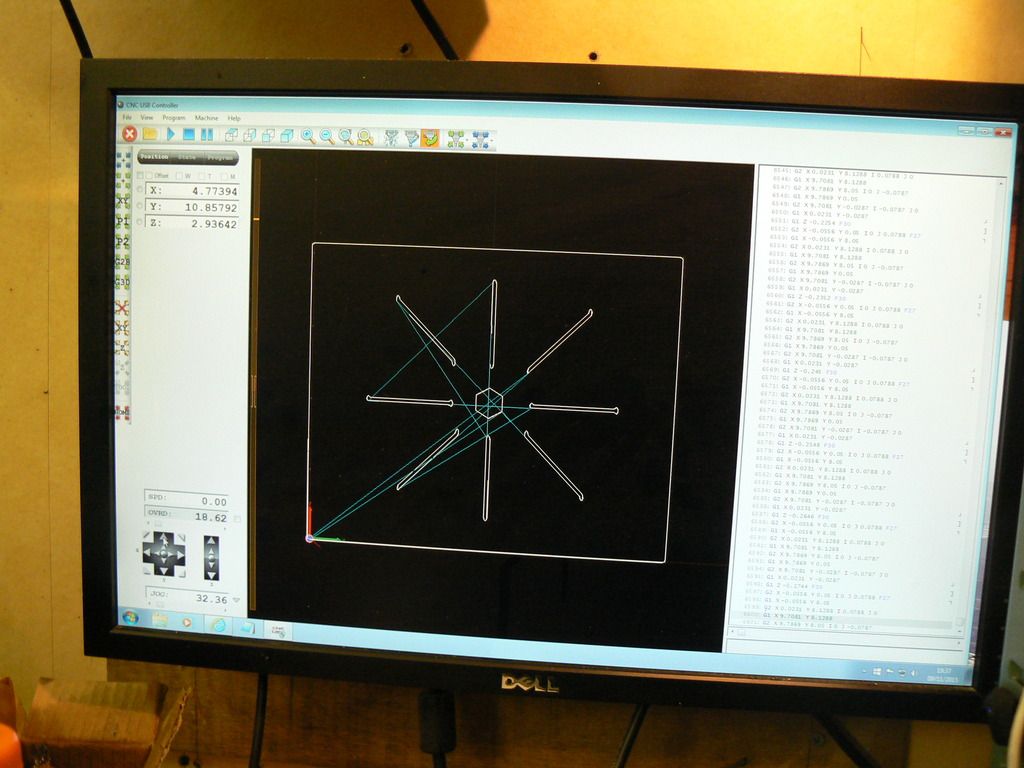

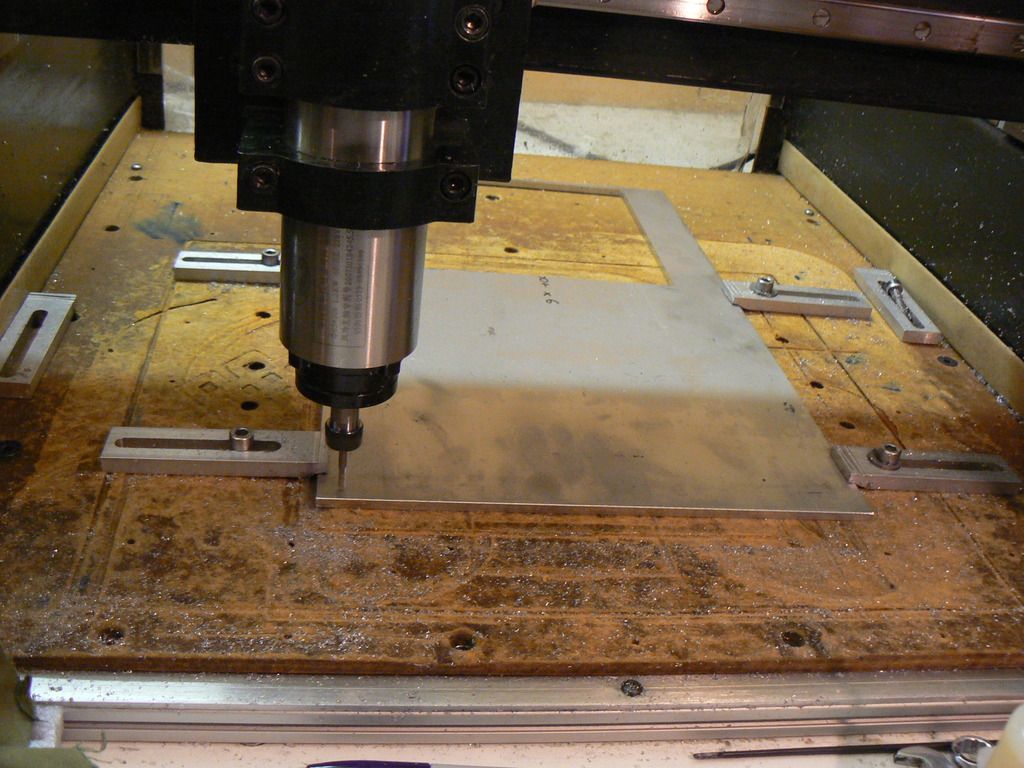

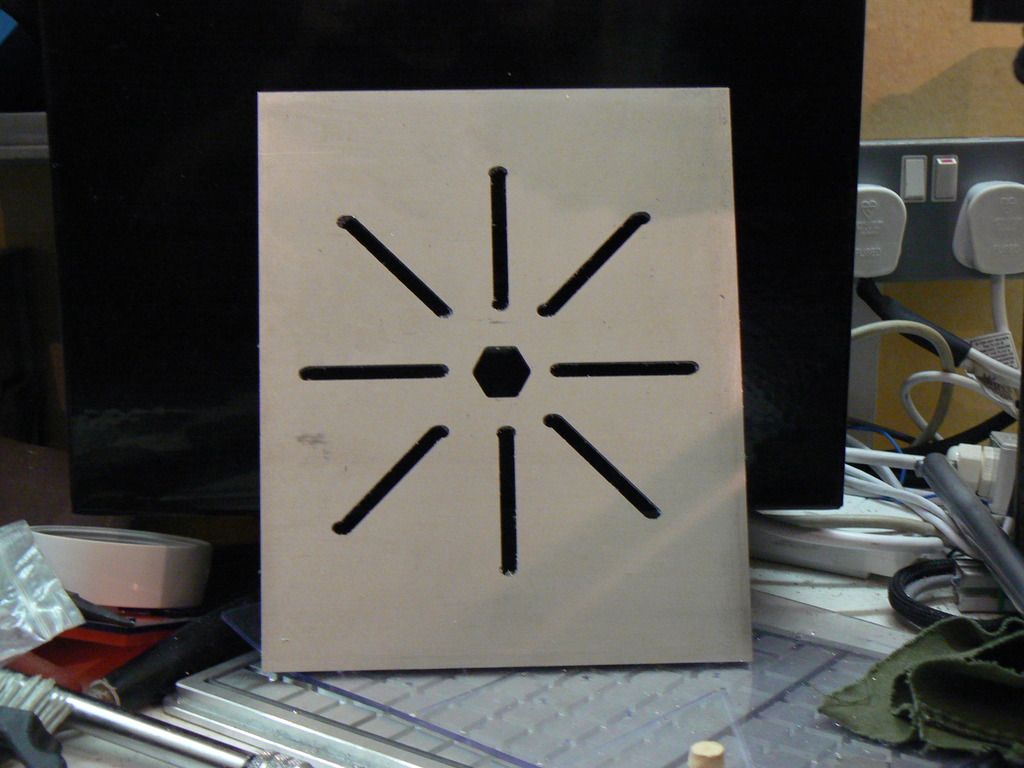

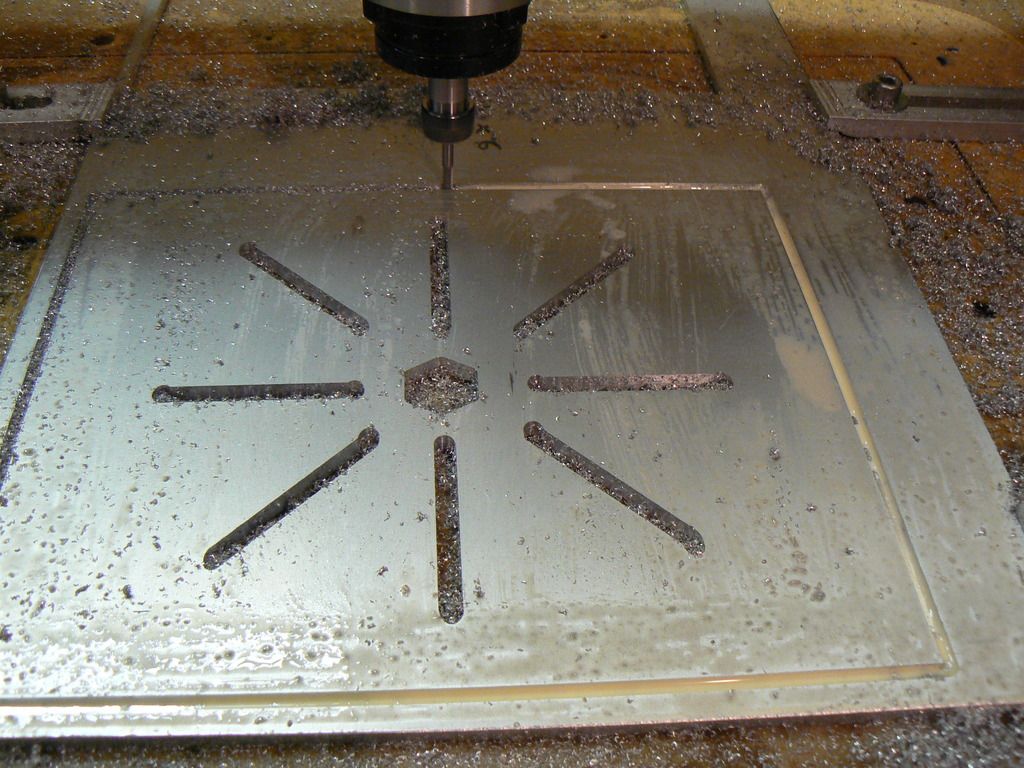

I've designed the bottom and put in some ventilation nice piece of 6mm plate

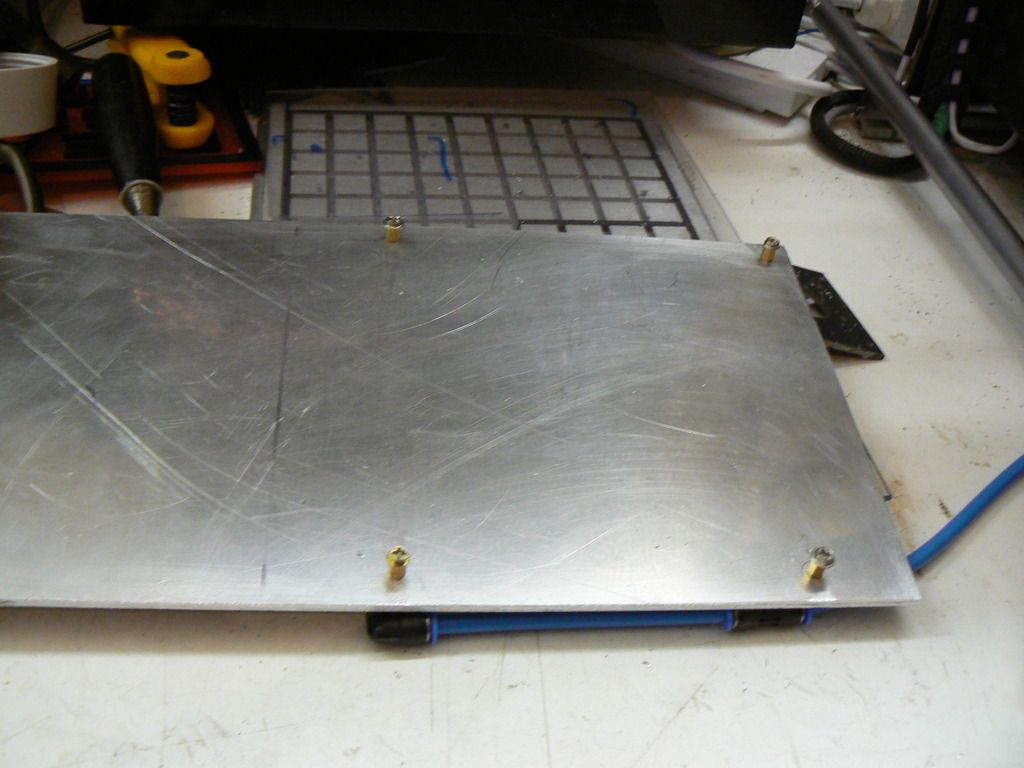

The bottom plate



The case still needs to be riveted etc but all fits well, The back is all tapped and screwed because that will be the way in to the case



thick aluminum always looks so damn good, pardon my french



Yeah, The next two pieces will be milled out of a 2 1/2" x 2 1/2" x 11" aluminium bar each



Beefy. -err.. aluminiumy?



Yup it sure is

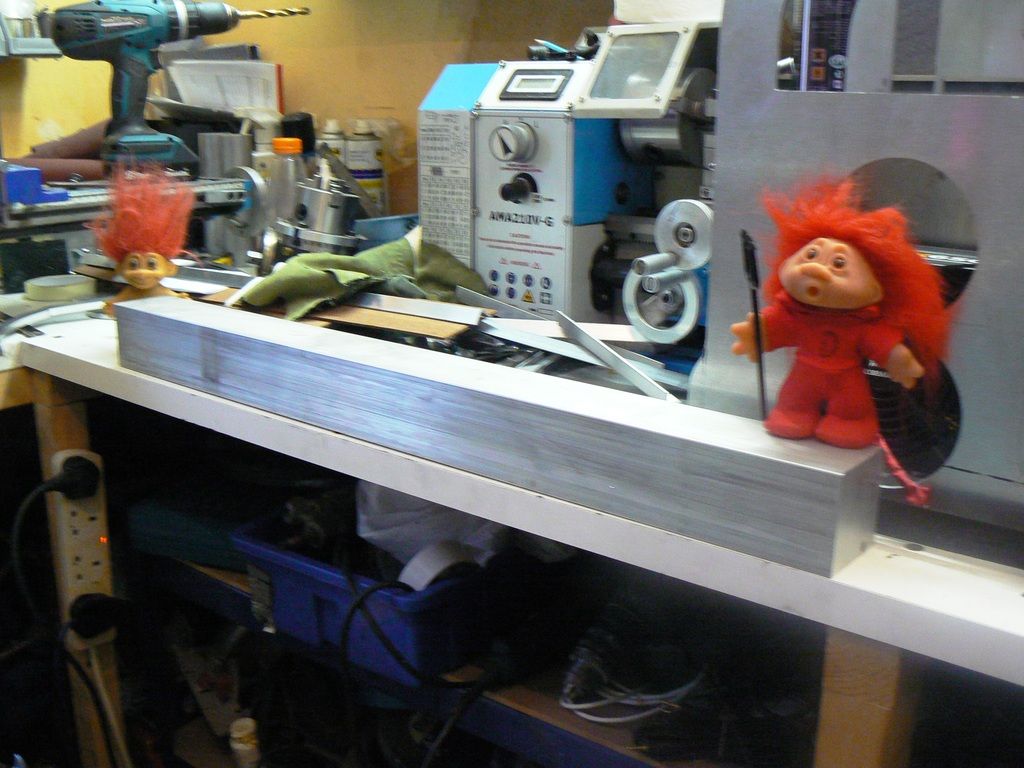

The bar arrived today now that is a thick chunk of aluminium



After cutting the first piece I need Oh and the workbench ffs lol
