Thermaltake Virtual - Thermaltake Modding Trophy Powered By Scan (Completed)

Discussion in 'Project Logs' started by Deblow, 10 Mar 2016.

  1. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    From you a big complement :D
    Thanks!
    Yours is looking fantastic!

  2. abbas-it

    abbas-it We came, we saw, we mod, you awe!

    Joined:
    1 Jun 2011
    Posts:
    910
    Likes Received:
    277
    is that rowan atkins or jimmy carr in the background:D

  3. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    Atkins AKA Mr bean :D

  4. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46

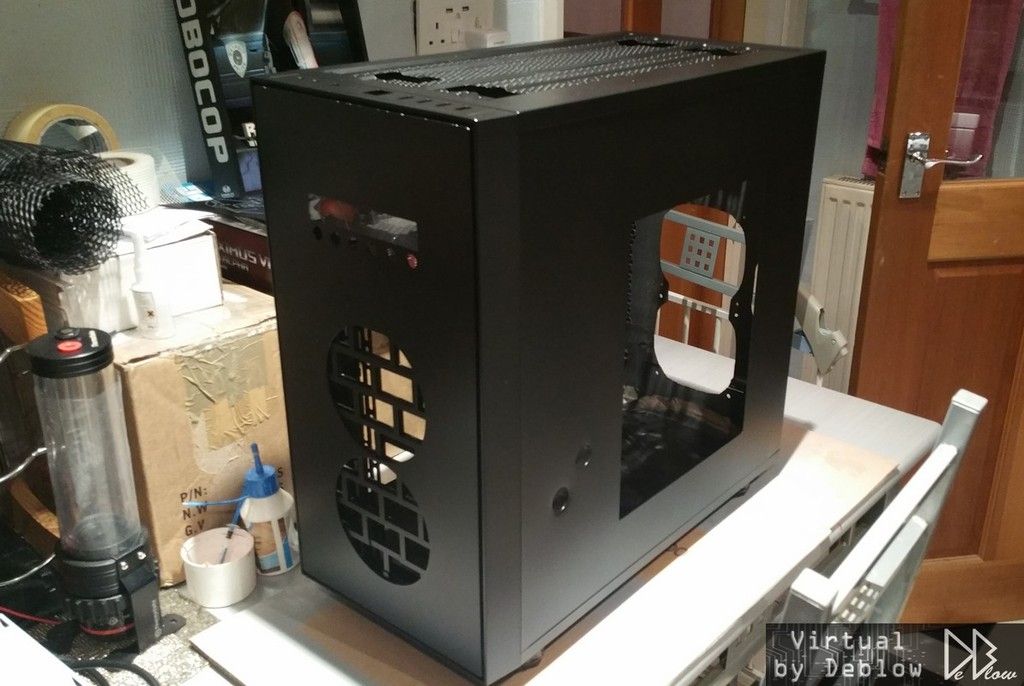

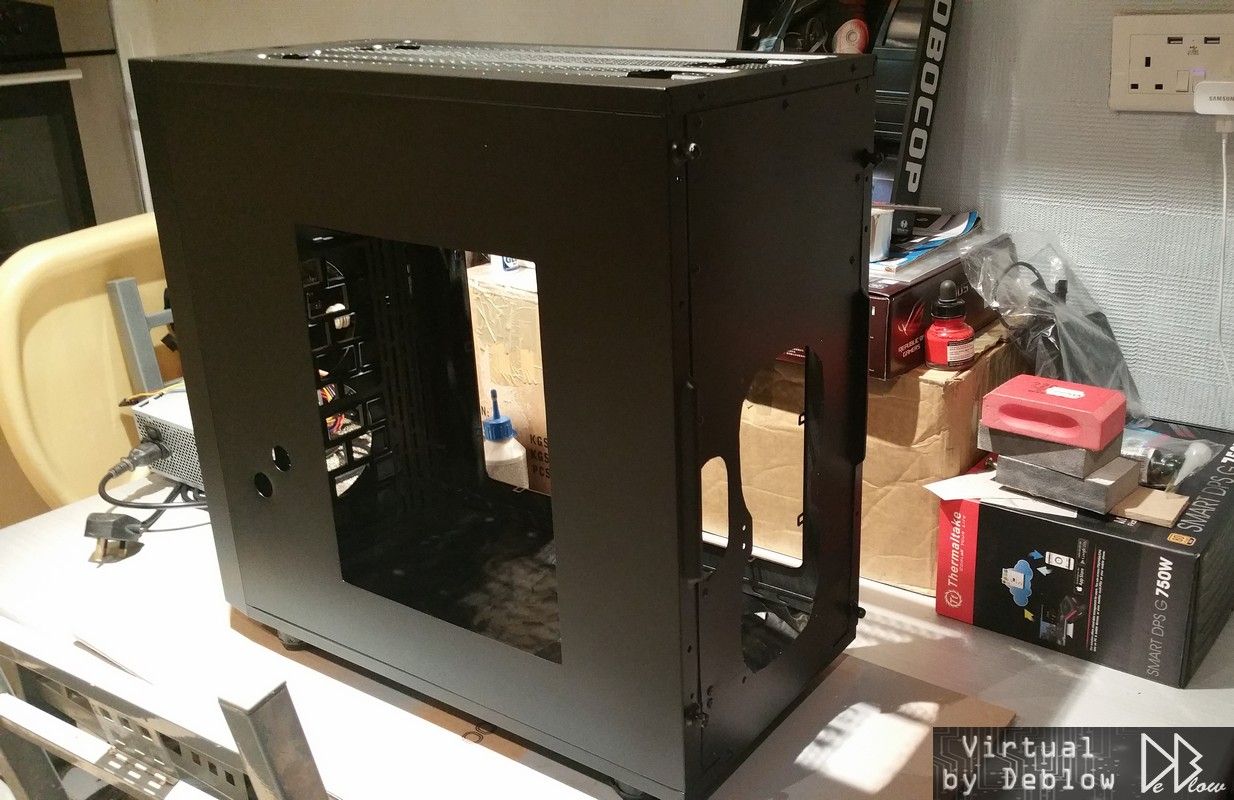

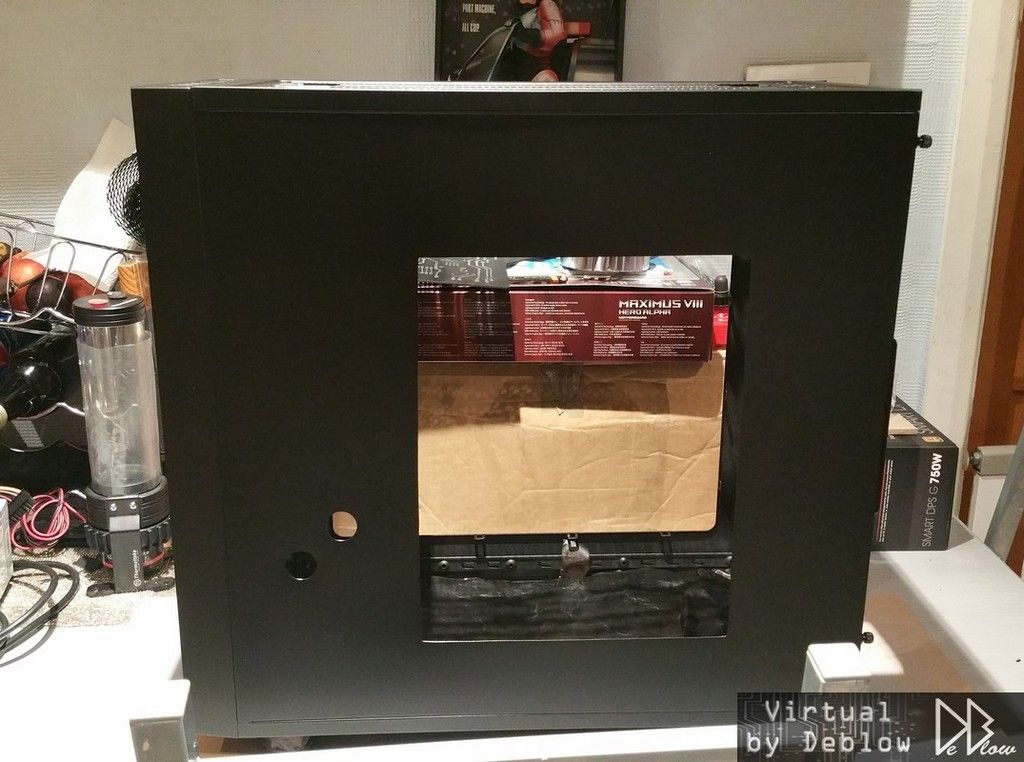

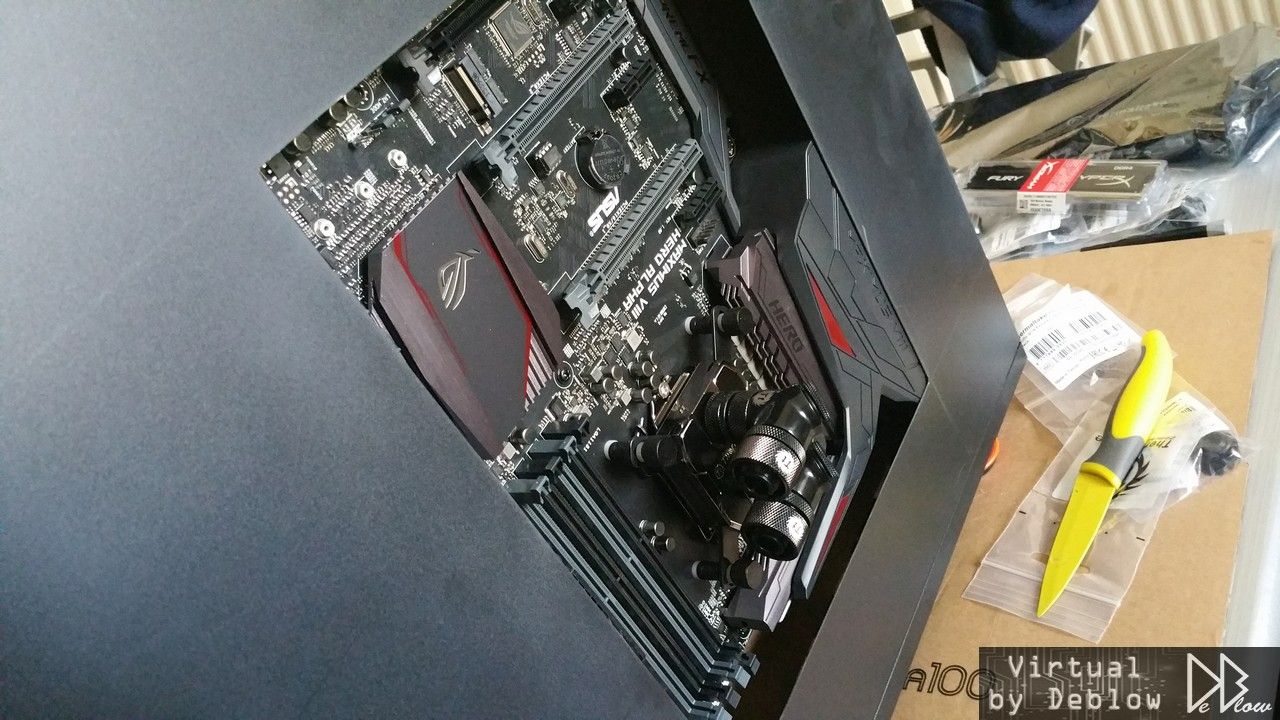

    After deciding not to mount the MB on the outside of the case I went ahead and cut a window in the right side of the case.

    [​IMG]

    [​IMG]

    The window is 5mm smaller than the MB to help hide some wires, although when viewed from an angle you will still see them, so will need some walls building around the tray.

    [​IMG]

    Fit the CPU block and some fittings so I could see how far they would sickout from the case.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

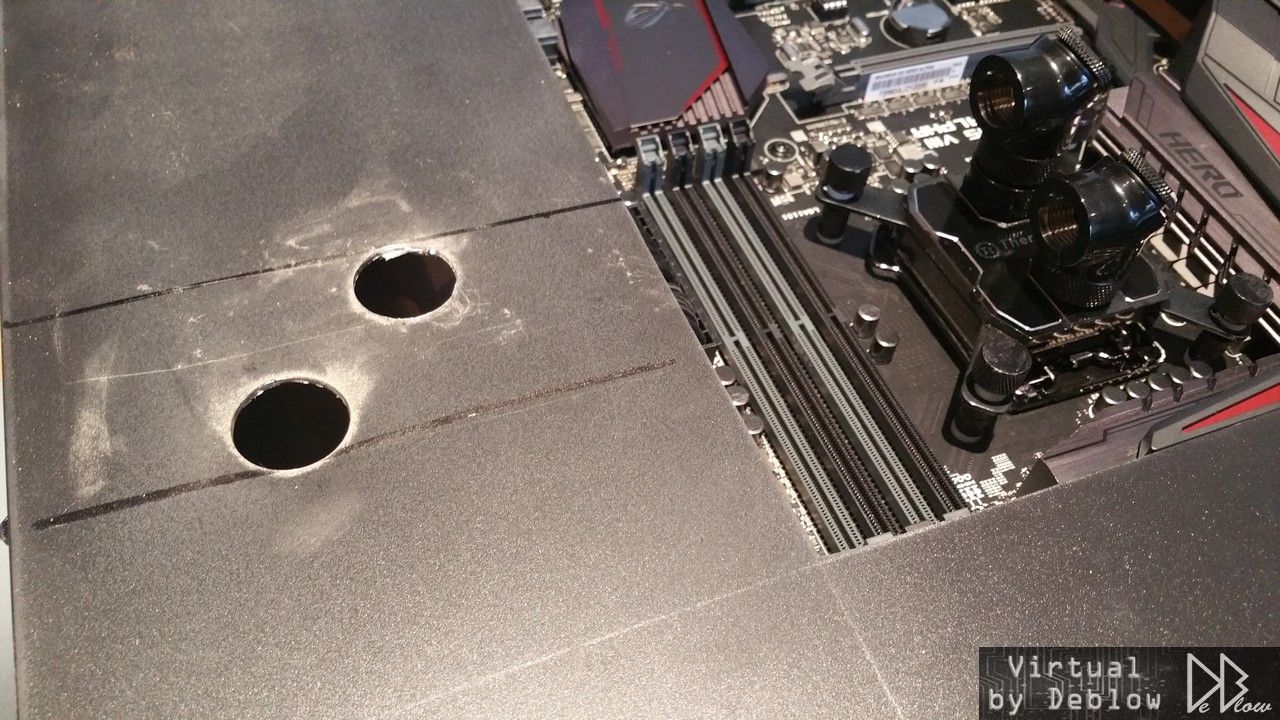

    I was going to have the water tubing going over the MB and behind the side panel but decided it would look better going in a straight line to the 2 holes shown, I just need to find a nice way to attach
    the fitting to the holes and still be able to remove the side panel.

    [​IMG]

  5. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    Started the long process of hand cutting some stencils for the airbrush work.

    [​IMG]

    [​IMG]

  6. F3nixMods

    F3nixMods What's a Dremel?

    Joined:
    24 Jun 2014
    Posts:
    109
    Likes Received:
    0
    Looking great mate. Keep at it ;)

  7. IceTouch

    IceTouch What's a Dremel?

    Joined:
    26 Aug 2015
    Posts:
    39
    Likes Received:
    1
    Nice job!! Always fun to see!

  8. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    Thanks guys :)

  9. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46

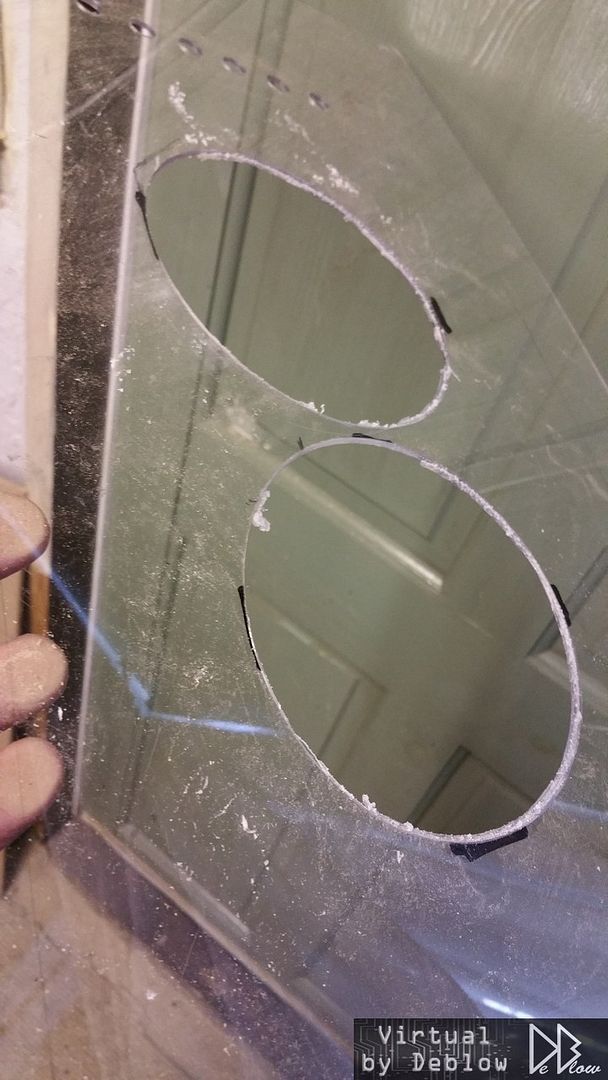

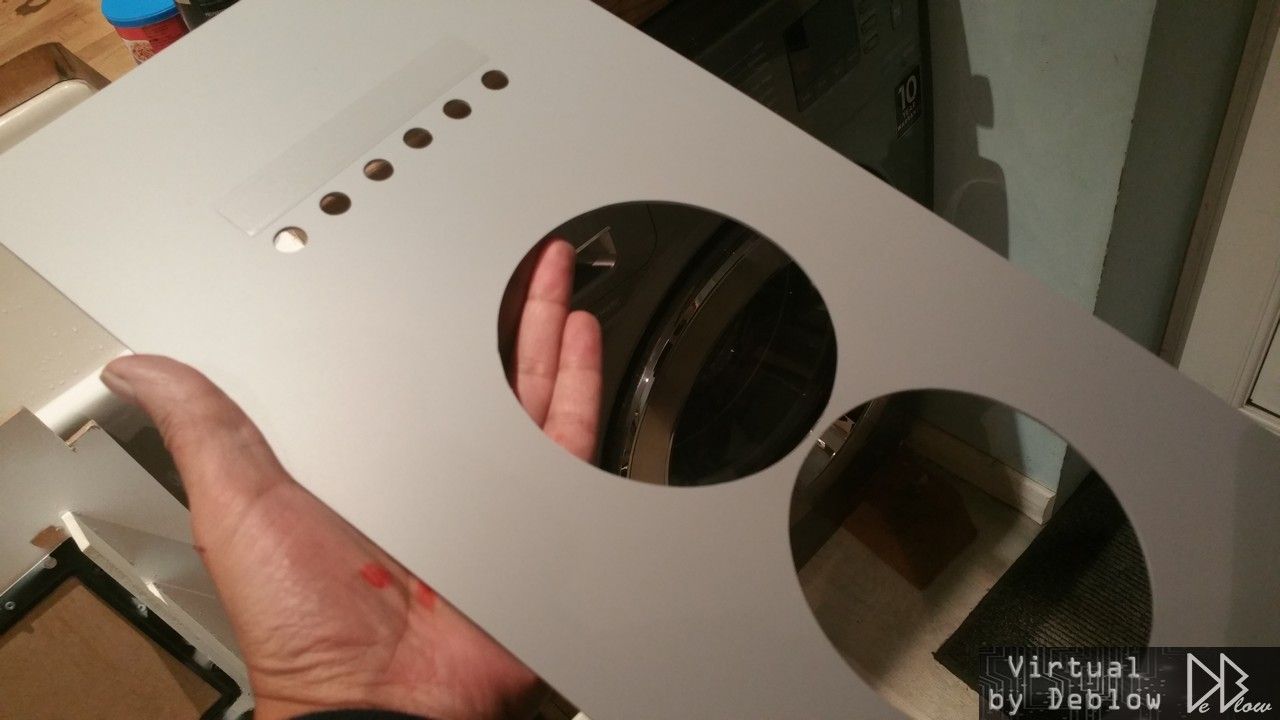

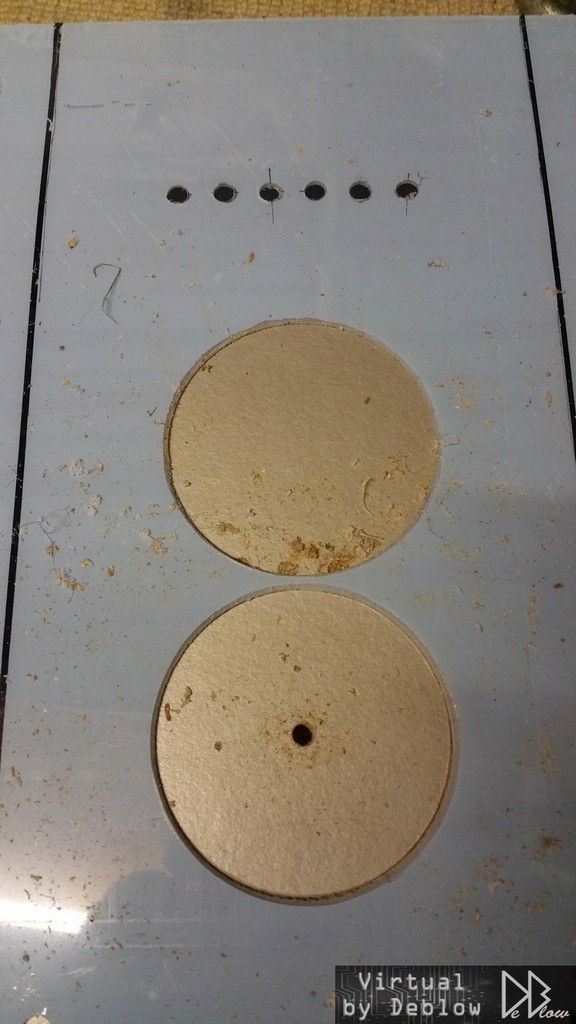

    Cut a new front panel, its a bit rough looking as I had to use my drill for most of it but
    cleaned up nicely with some files and sandpaper.


    [​IMG]

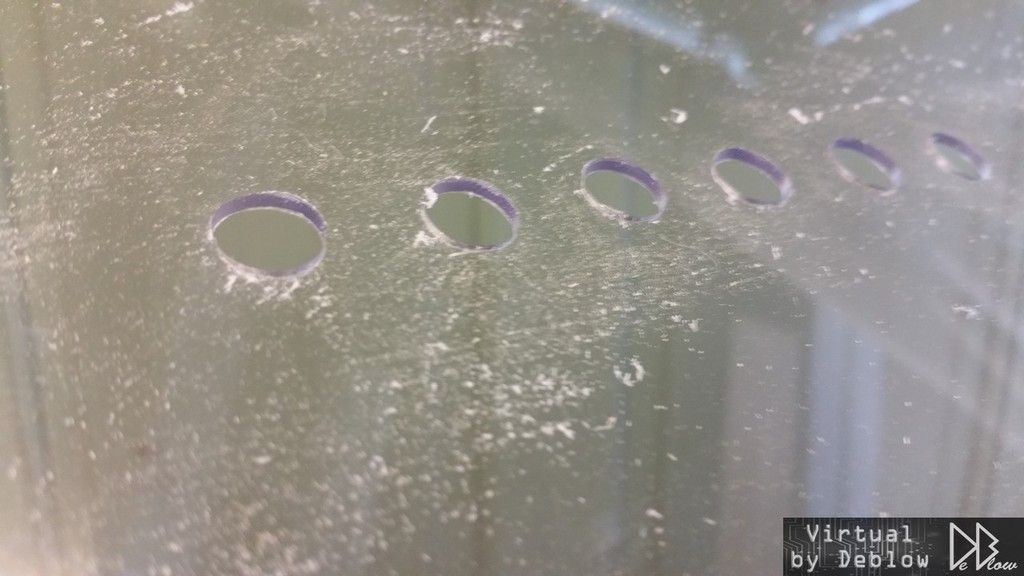

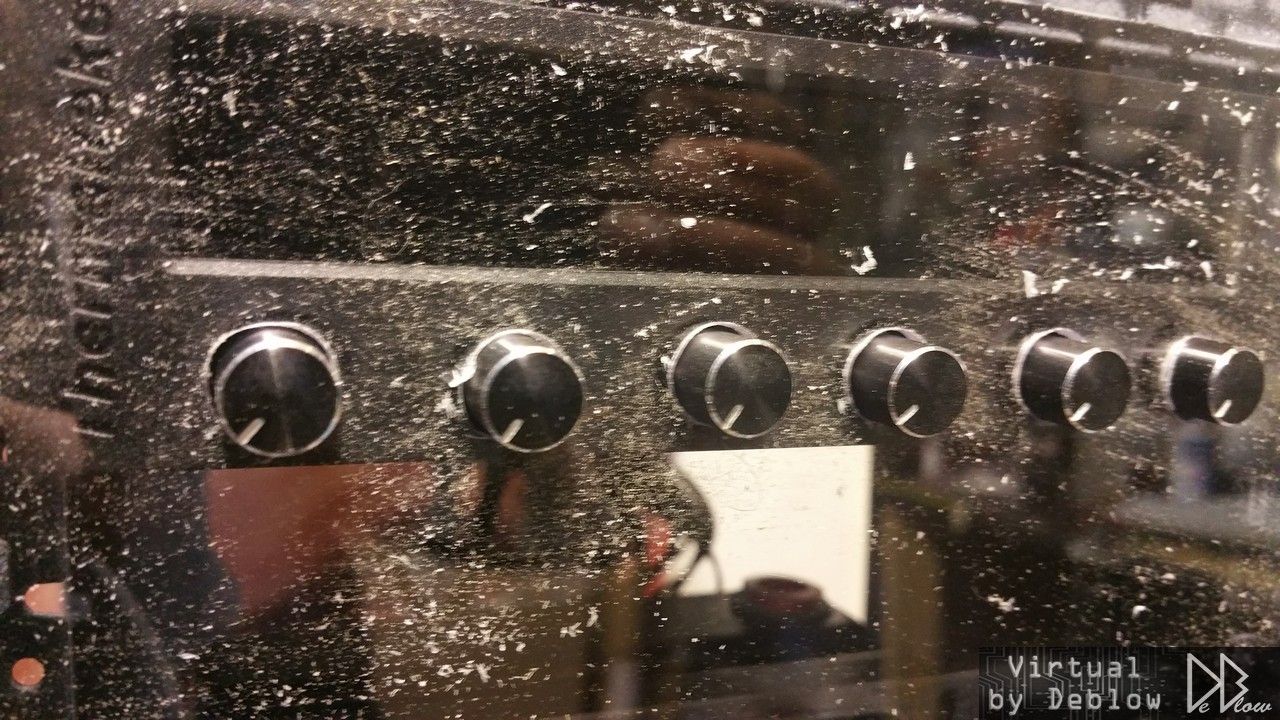

    Holes here are cut for the fan controller, as I want to hide most of the controller and have the front as
    clean looking as possible, taped over part of it to block the paint so the controllers display can still be seen.

    [​IMG]

    [​IMG]


    This is the second cut as the 1st was a bit rushed becasue I just see how it would look.

    [​IMG]


    undercoat done.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  10. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    Quick update before the weekend, Black base coat now on the case and looking slightly less mat
    than I was hoping but I will see how it looks when I start the top coat.
    I know the case was black to start with but this black base was needed for the next stage and
    its also a lot smoother.
    plan is to have the top coat gloss but keep the black as mat looking as I can so the final coat should pop-out if all goes to plan :worried:

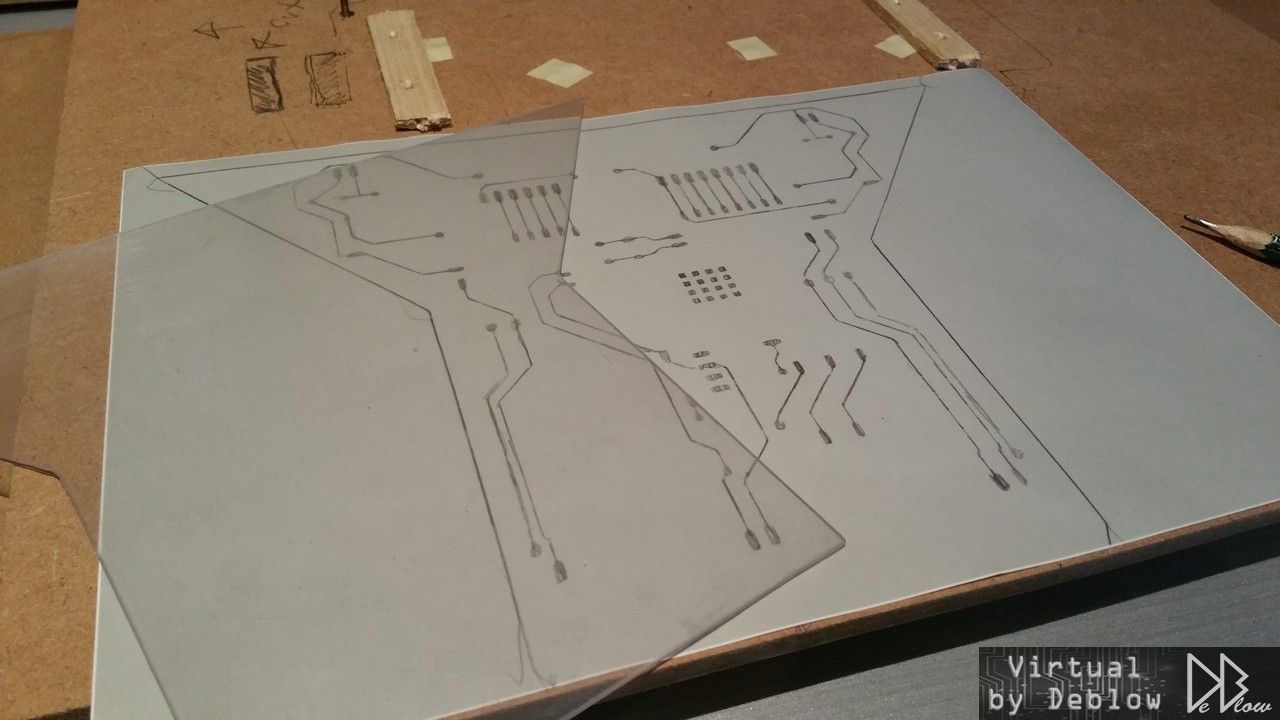

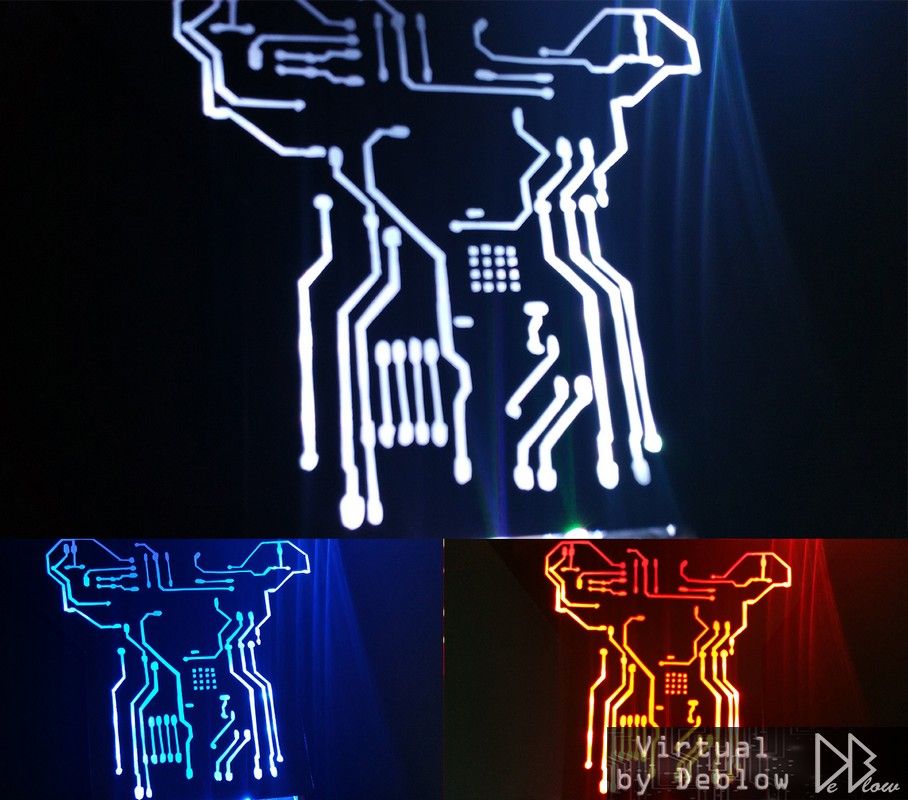

    Also tested the lighting for the internal circuit design I recently finished painting, so far so good.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    started on the rad and pump paint, just planing to highlight some parts with reds.

    [​IMG]

  11. jojoharalds

    jojoharalds Minimodder

    Joined:
    30 Apr 2014
    Posts:
    441
    Likes Received:
    2
    This is pretty badass so far.looking really forward to this one :)

  12. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46

    Thank you, hope you last until the end :D
    wont be long as we only have just over a week to complete :worried:

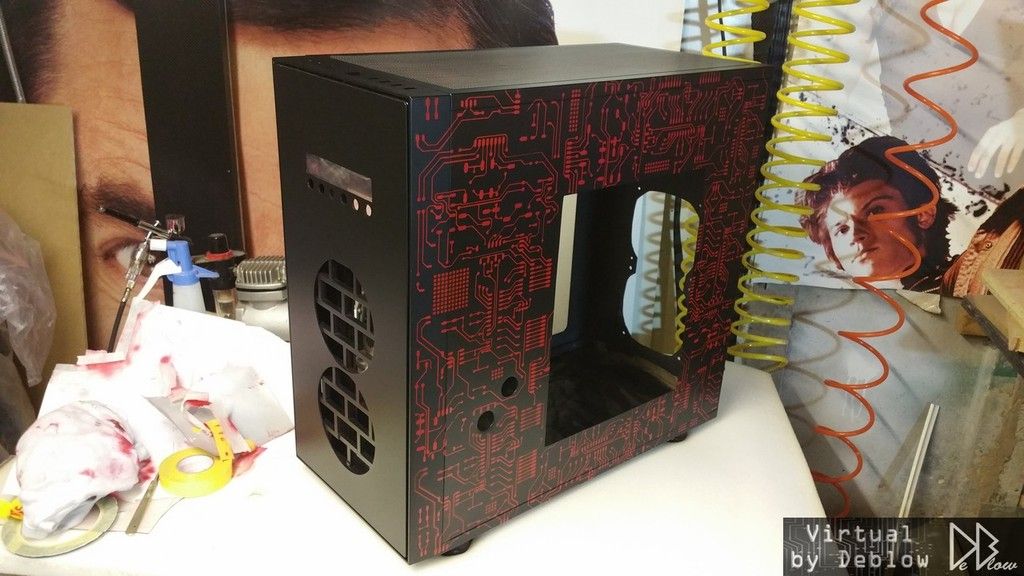

    Started to add some colour to the case now, candy gloss red to stand out from the mat black.

    [​IMG]

  13. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46

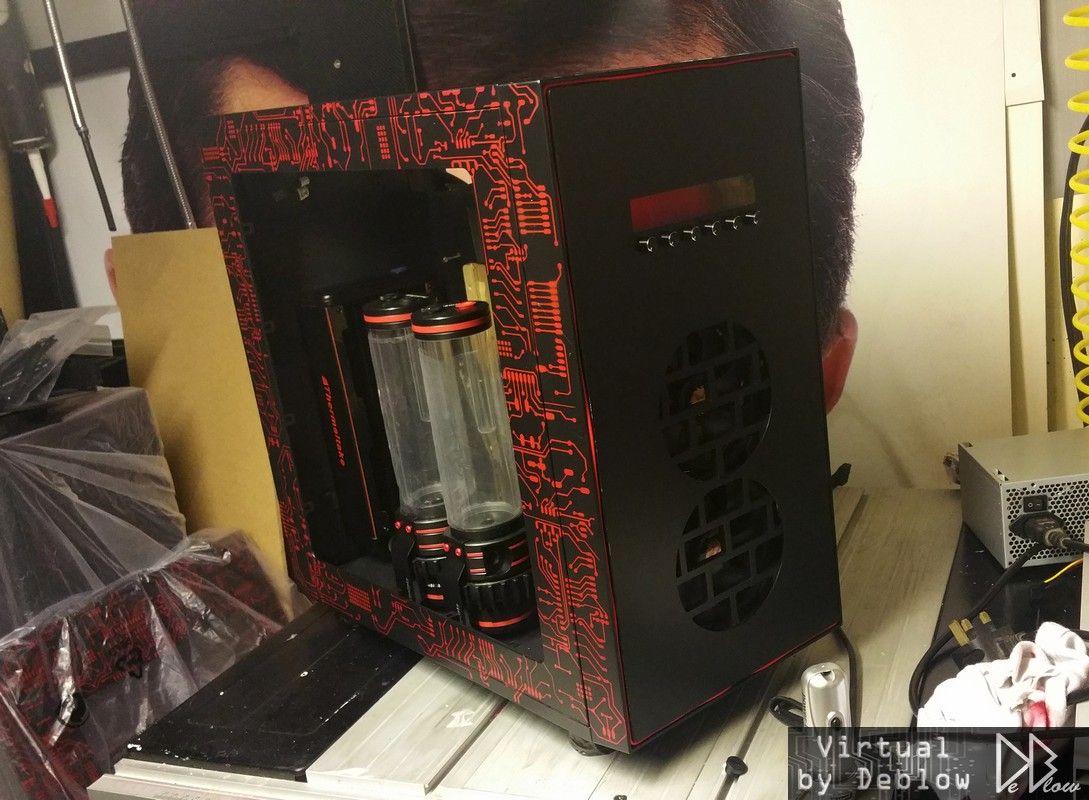

    Most of the outer paintwork is now complete, just need to sort the front and possibly the top.
    Camera not picking out the texture very well, but then again I have been using my phone :wallbash:

    I will be sure to take the final shots with my camera and maybe do a quick vid.

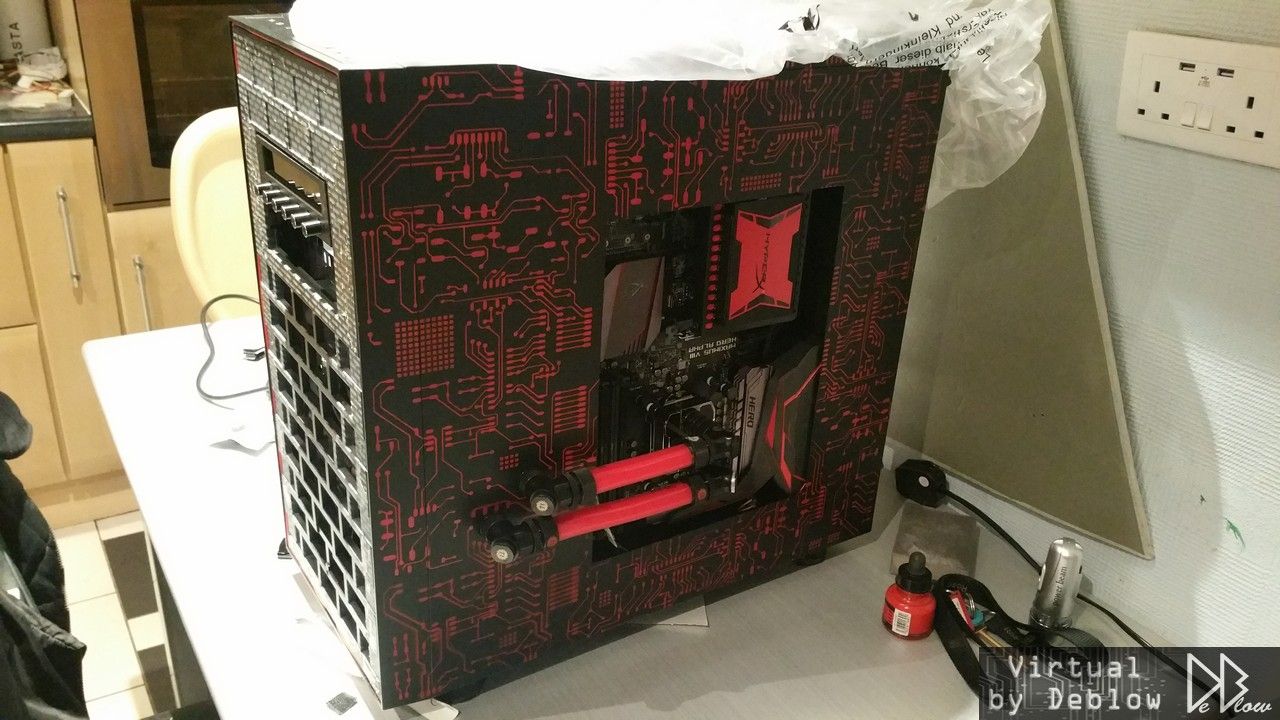

    [​IMG]

    [​IMG]

  14. BLAMM0

    BLAMM0 What's a Dremel?

    Joined:
    28 Jul 2014
    Posts:
    37
    Likes Received:
    0
    Looks very nice with the paint :eek:

  15. Hukkel

    Hukkel James' minion

    Joined:
    20 Dec 2012
    Posts:
    1,284
    Likes Received:
    25
    Did you make a big mask for over the case and then painted it?

  16. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    Thanks, I needed to start using my paints a bit more :)

    No, lots of smaller ones, then I could re-use most of them. photos above show what I mean
    and I will upload some more by the weekend.

    Thank you Mic :)

  17. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,835
    Likes Received:
    1,525
    You hand cut the stencils? Wow!

  18. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    Thanks! here are some more for you :D

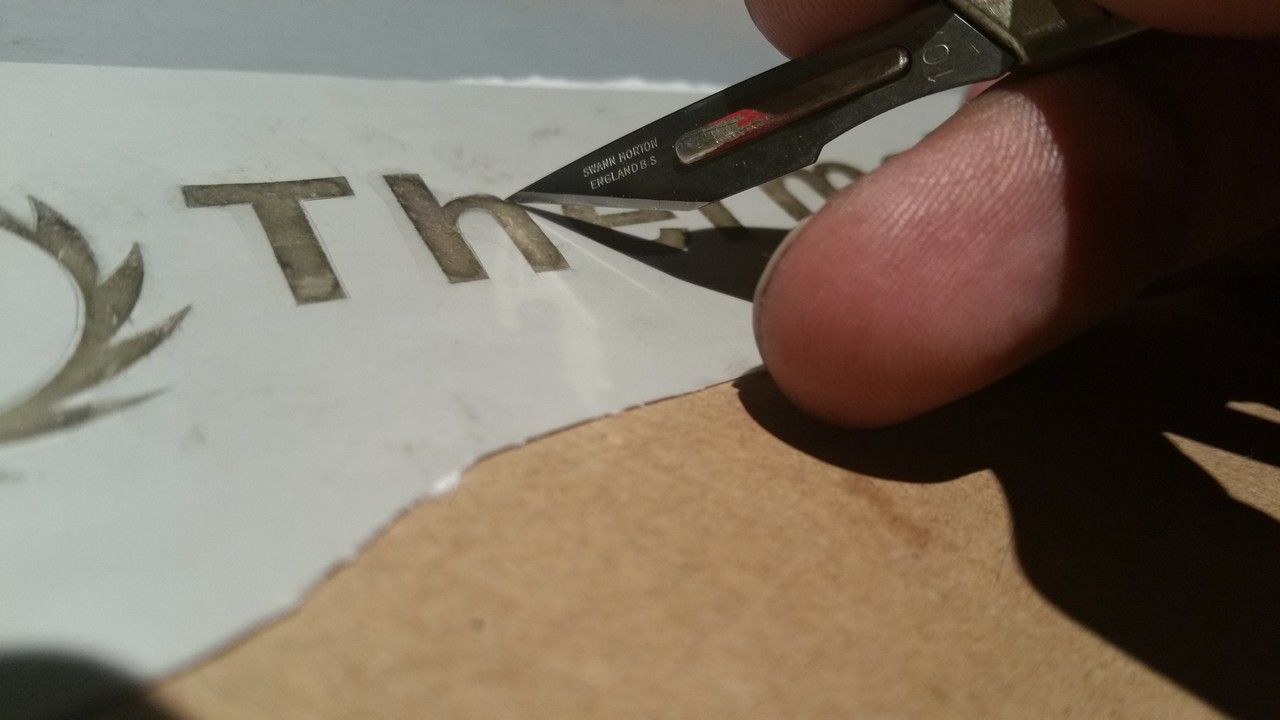

    On the front I want to add a Thermaltake logo to replace the one I removed and also the build name Virtual.

    [​IMG]

    [​IMG]

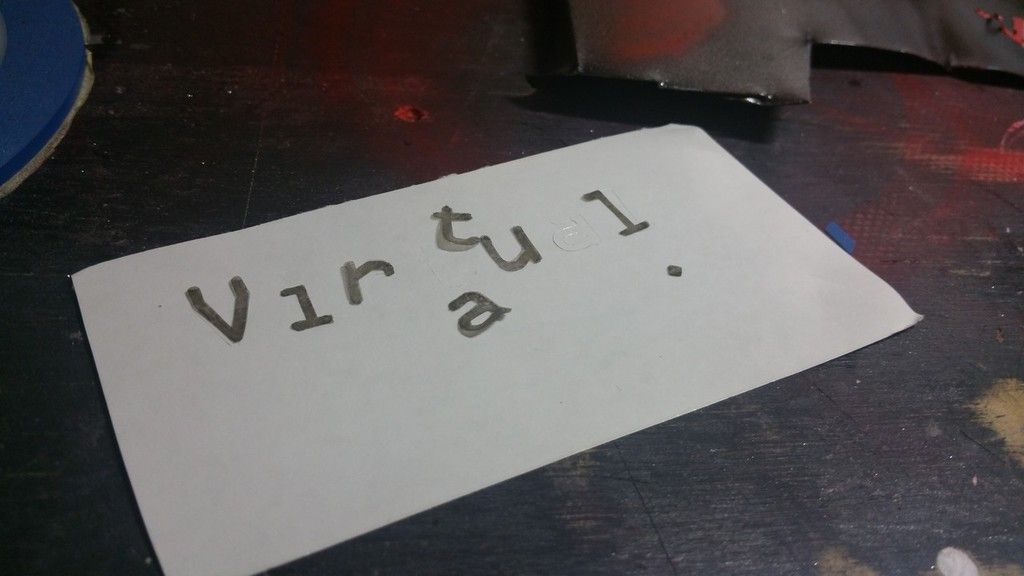

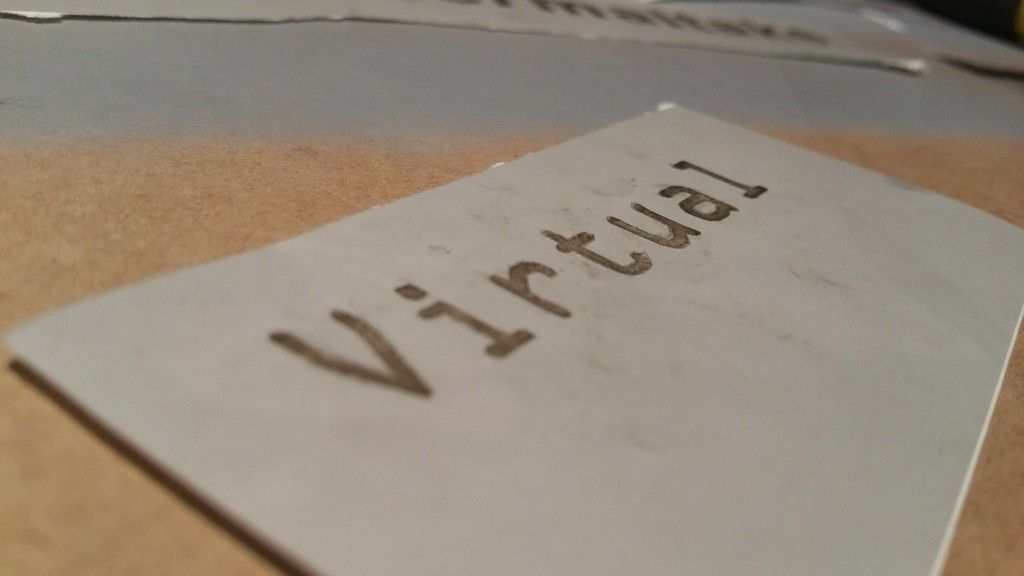

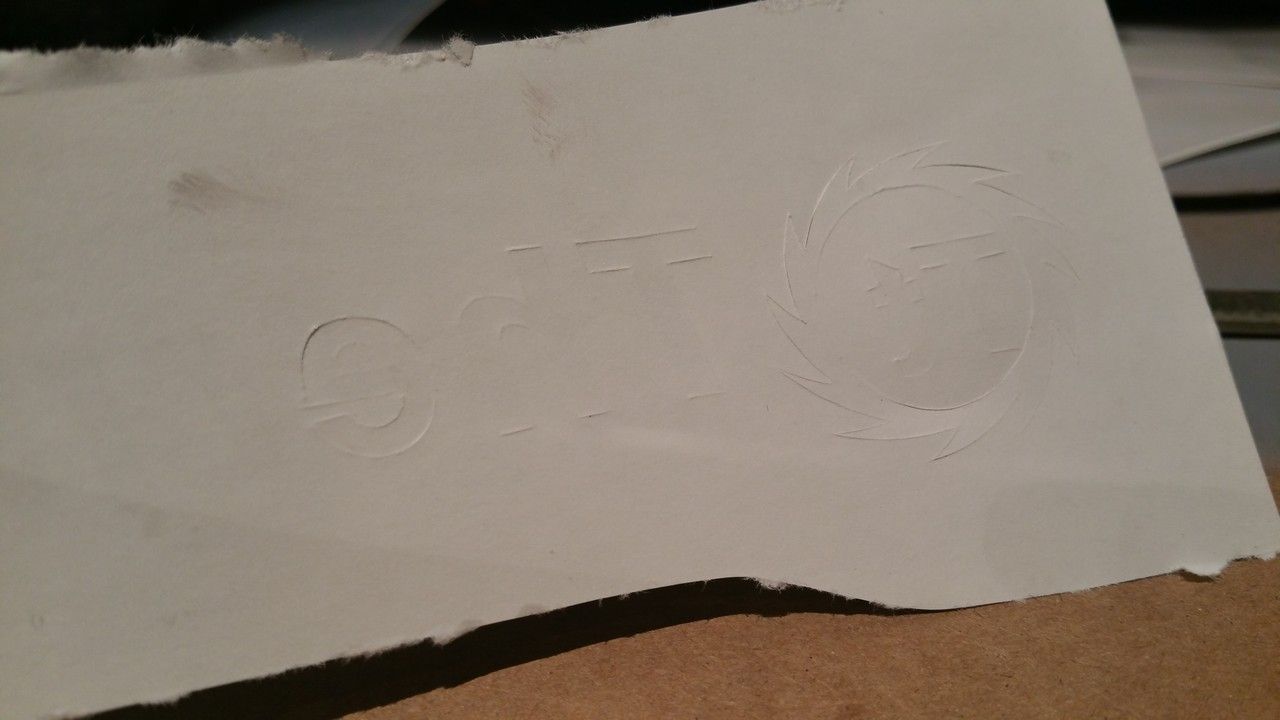

    Have to cut just deep enough as to not cut all the way though the backing.
    [​IMG]

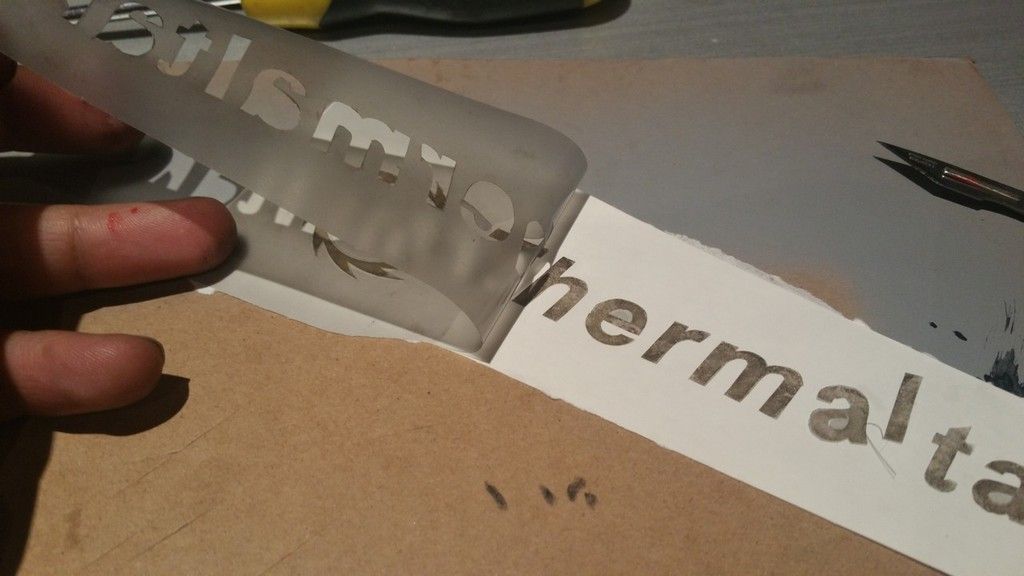

    Then when pealing, the backing will stay intact :D

    [​IMG]

    [​IMG]

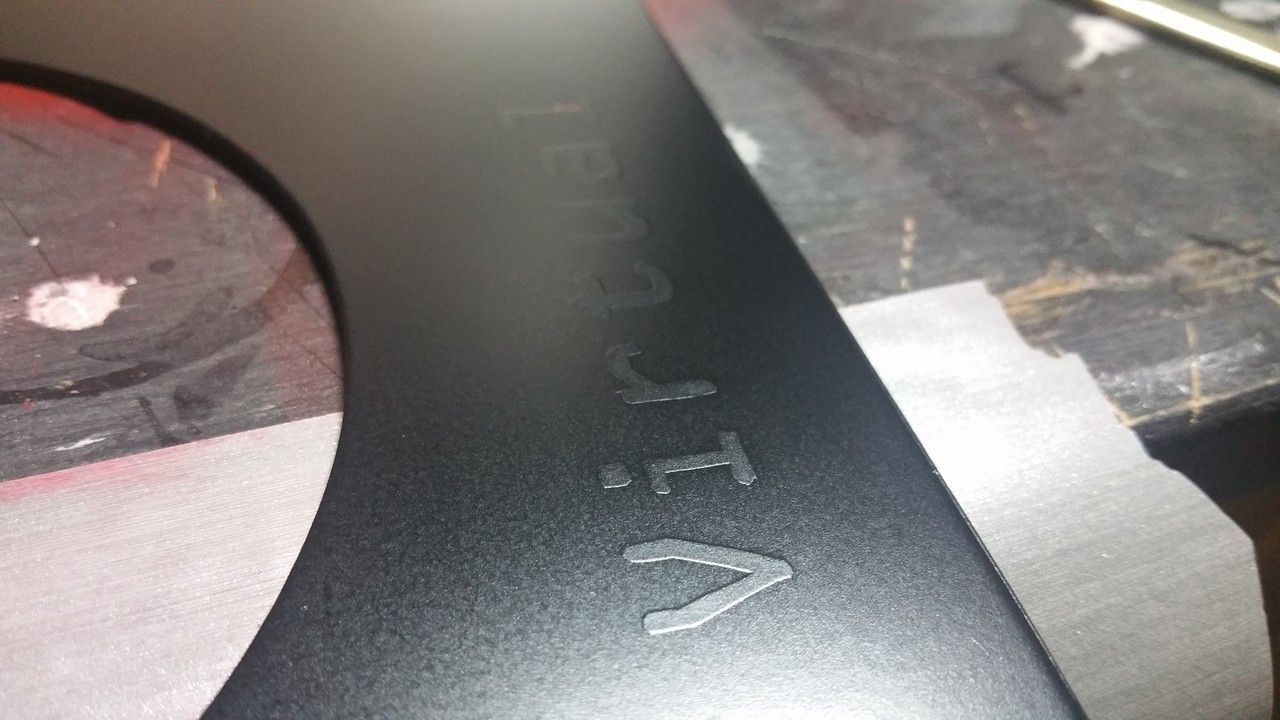

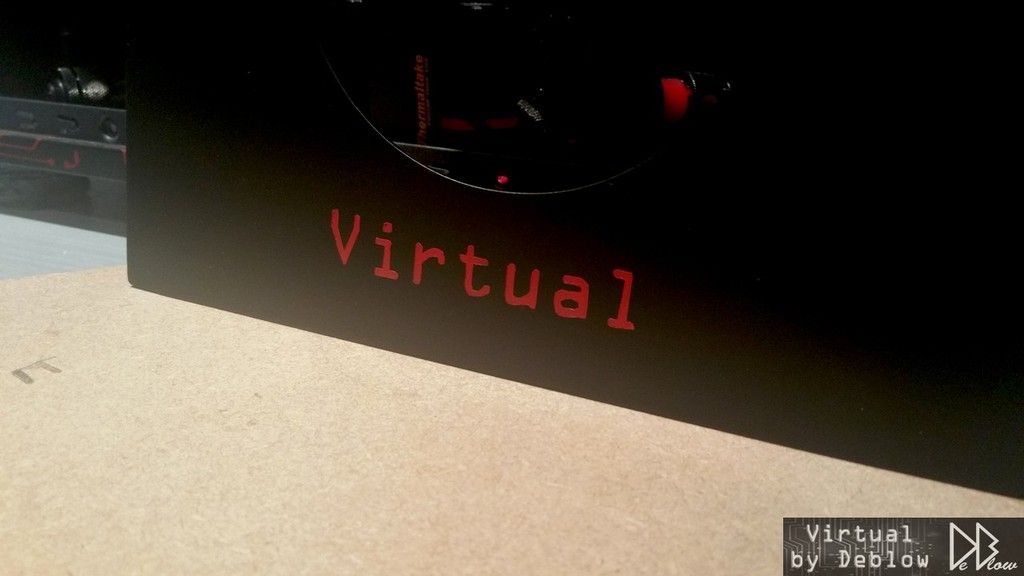

    This was my 1st attempt at the Virtual logo, I used some paint thinners to make the paint look embossed.
    however, I decided to do this to the Thermaltake logo instead, as it looks too overpowering because its big and red.
    the virtual logo is less than half the size, so I will do that in red.

    [​IMG]

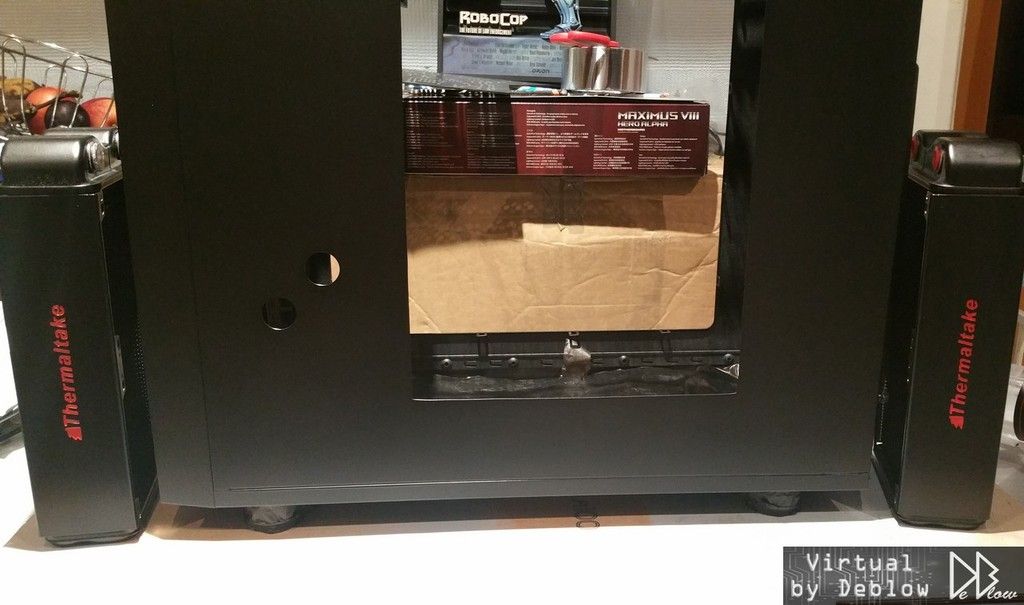

    Rads with the added red lines to match up with some other parts.
    [​IMG]

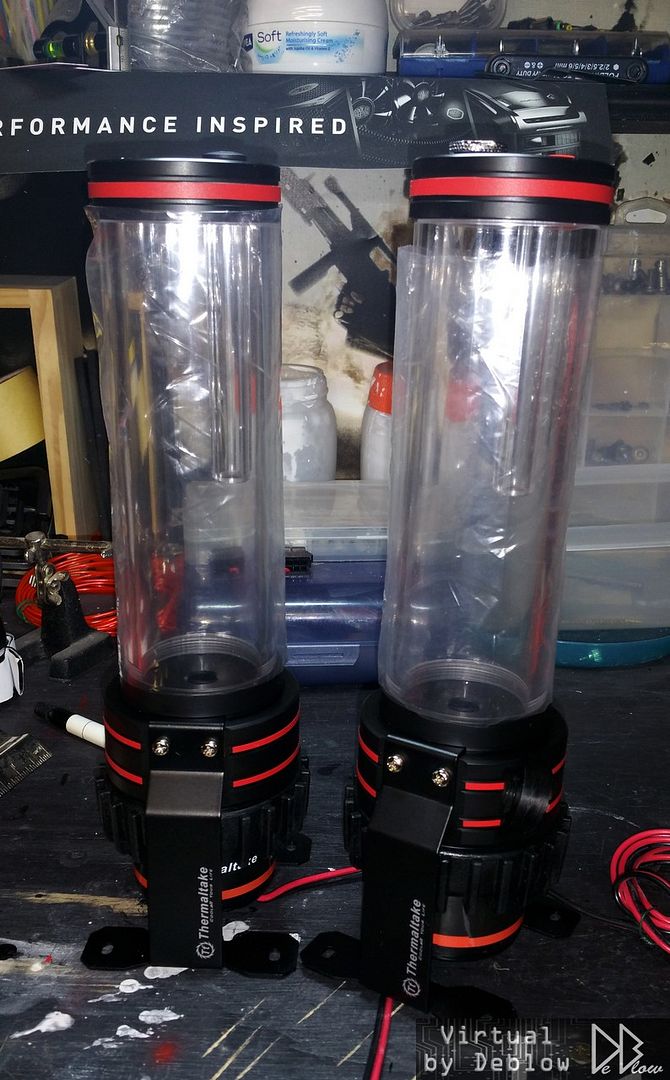

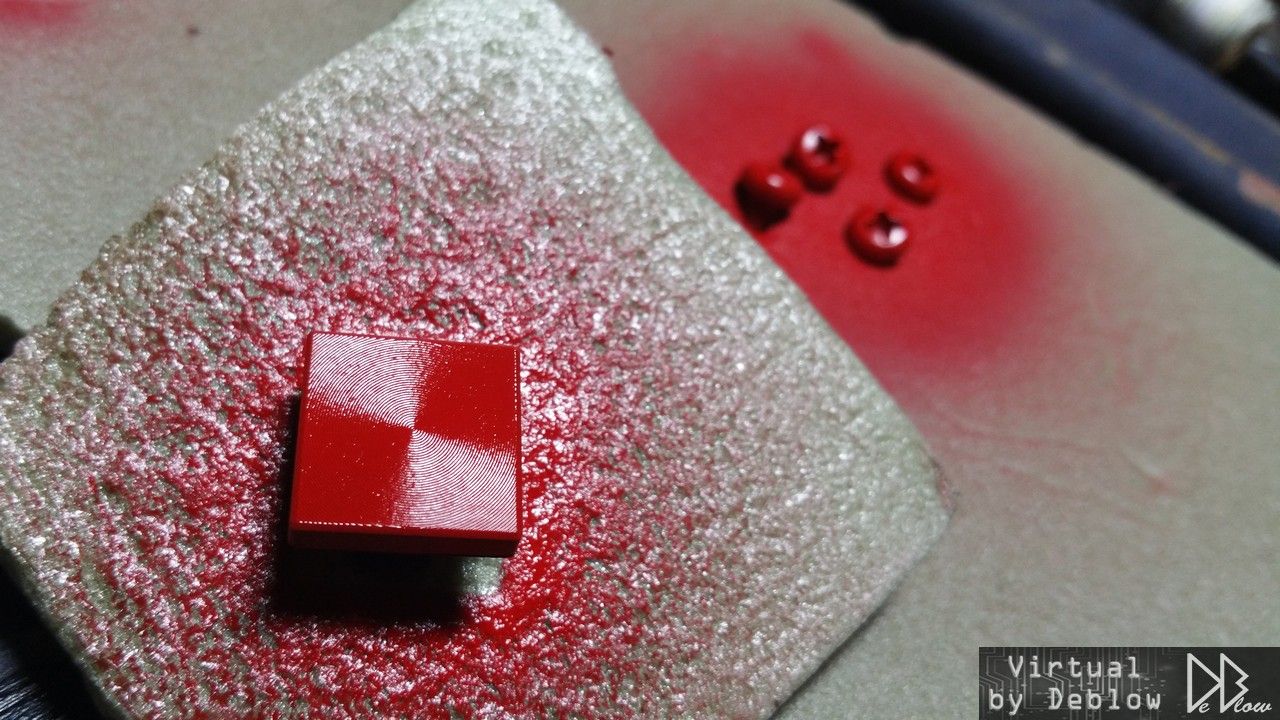

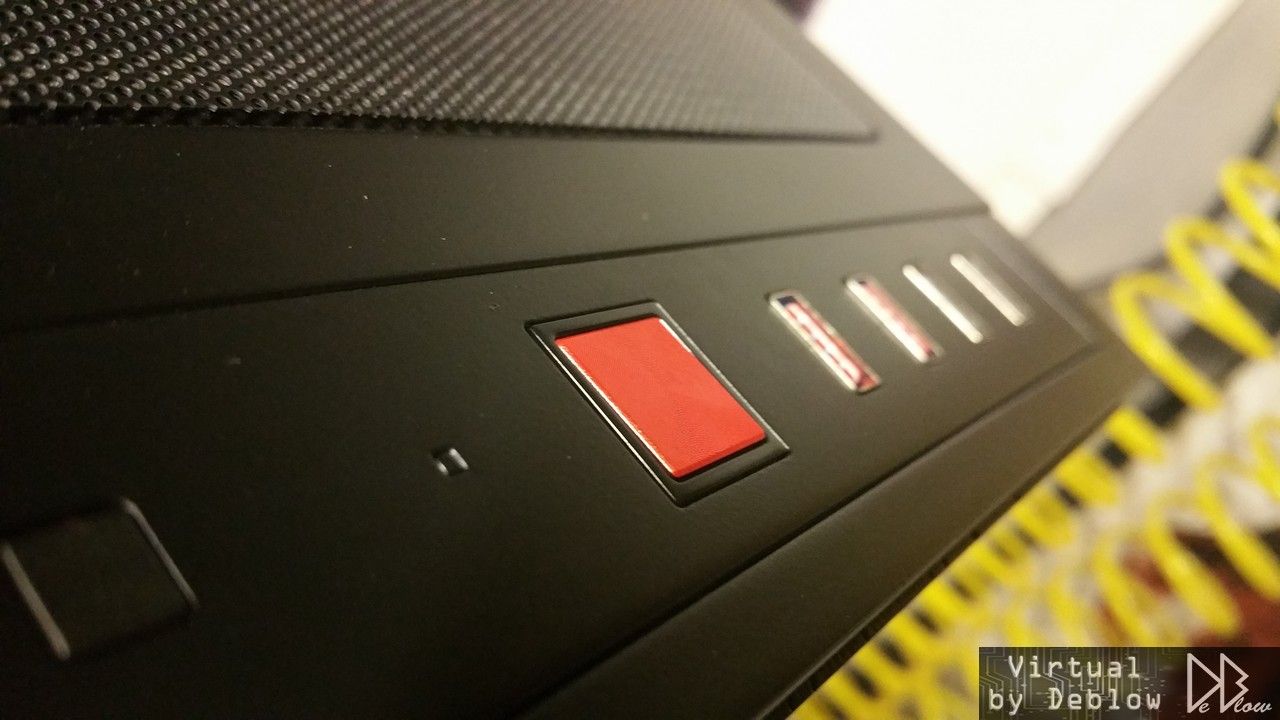

    Screws for the RES's, pump base and power button all red. want to try keep everything black or red where possible.

    [​IMG]

    [​IMG]

    [​IMG]

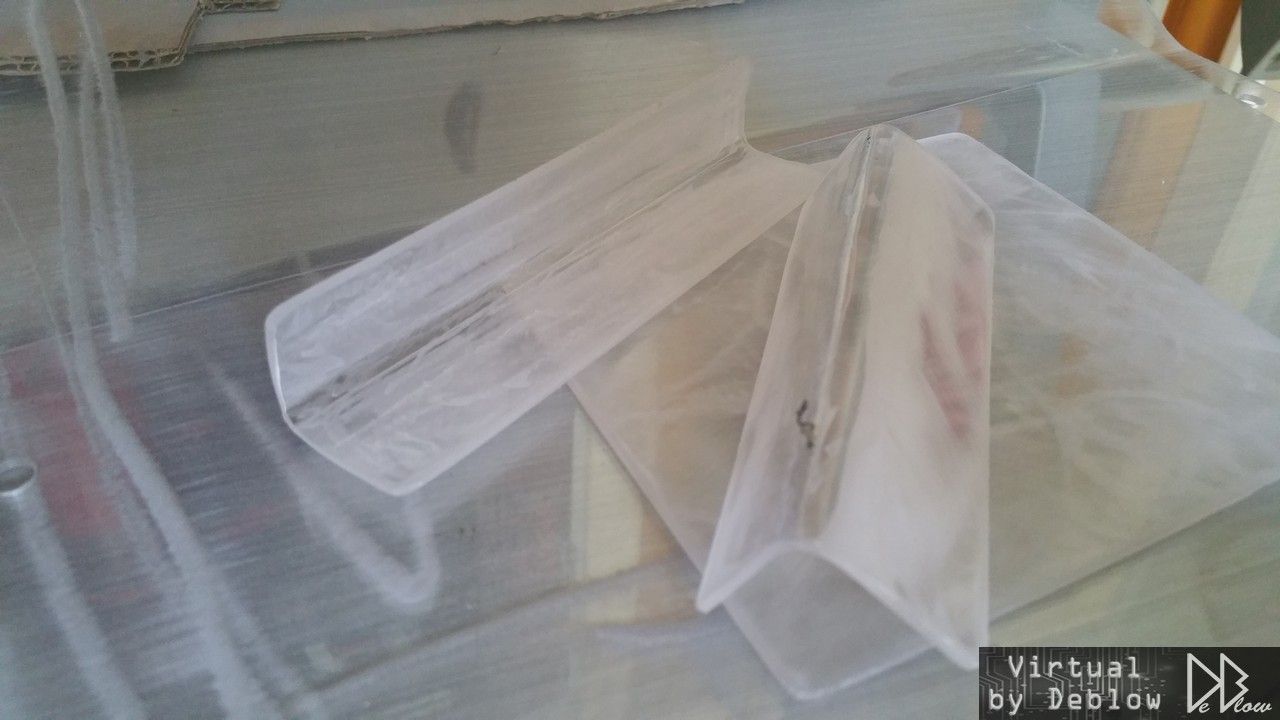

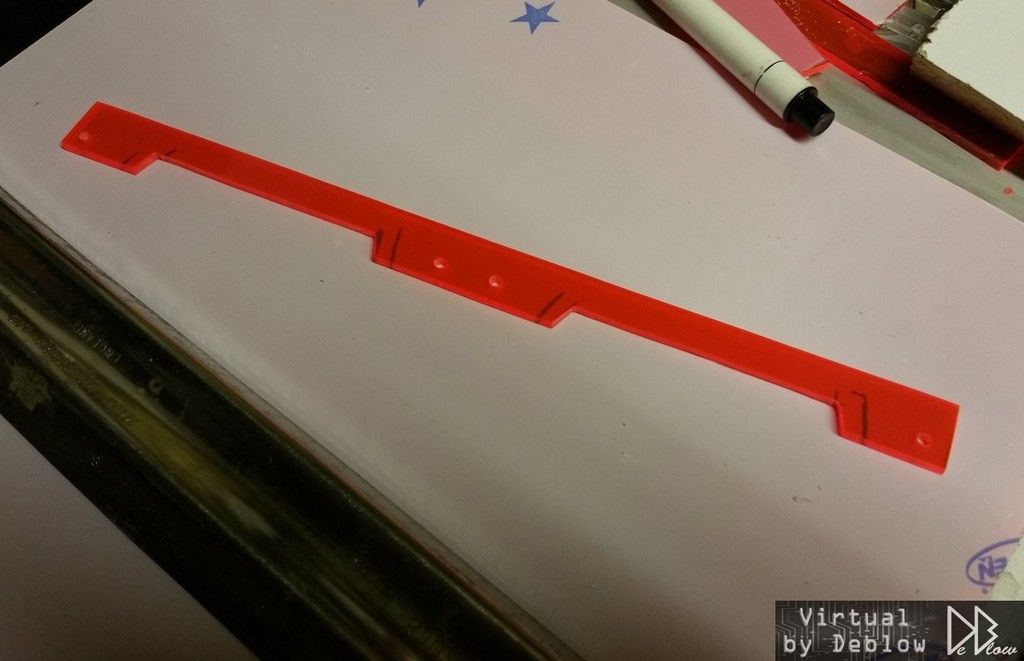

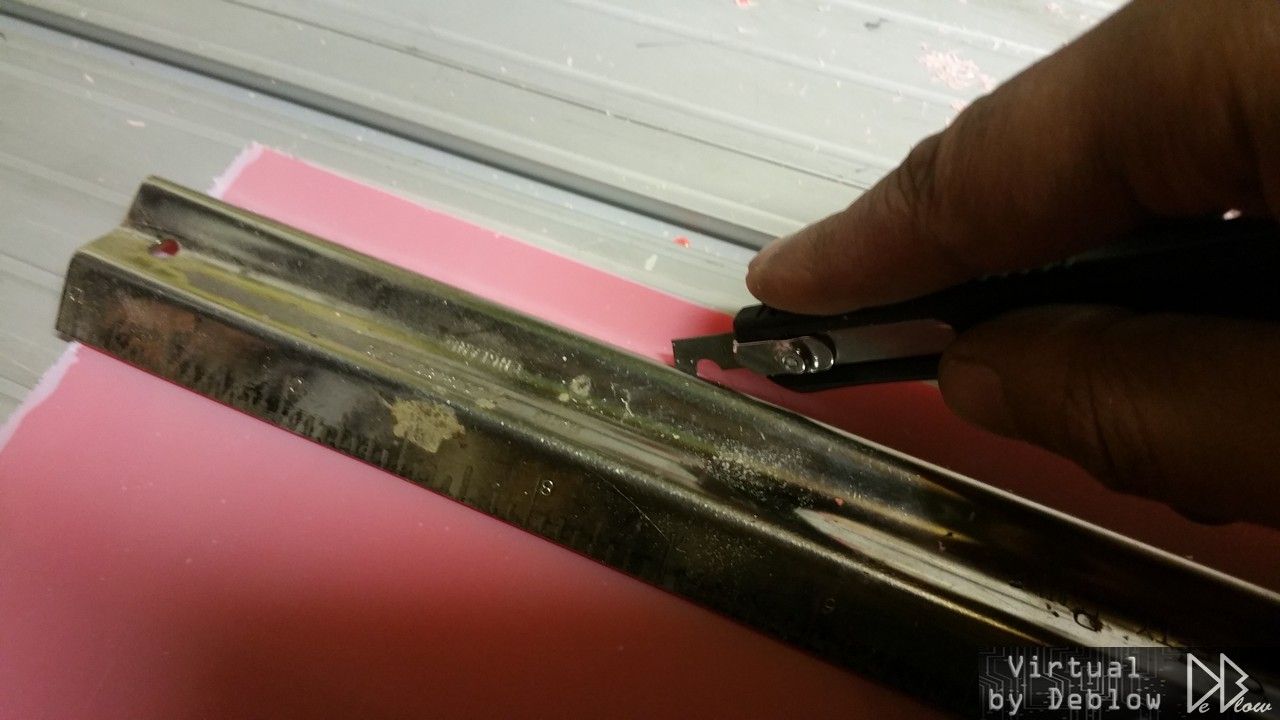

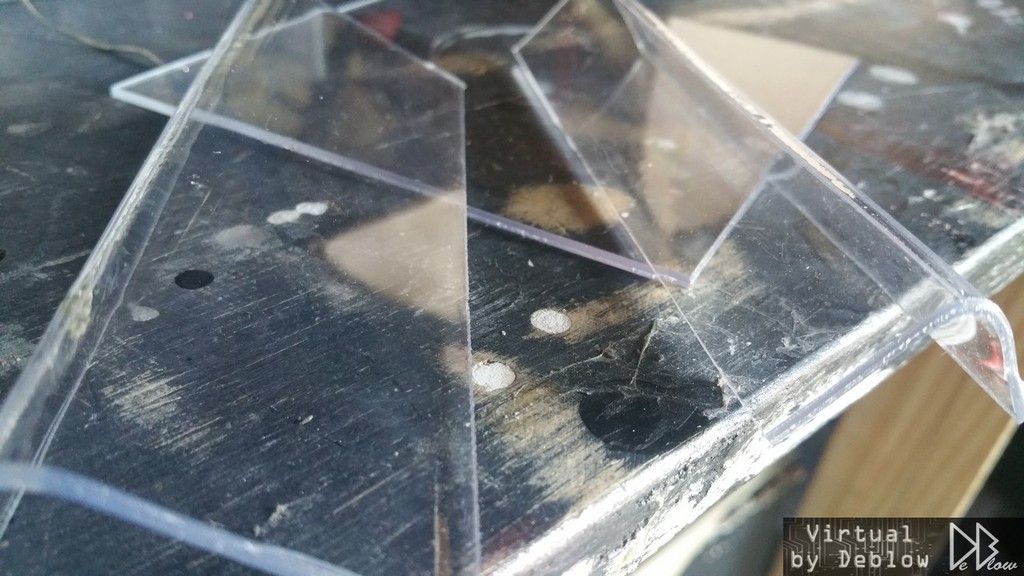

    Making some covers for the inside, RADs, I did them in red plexi but not happy with the red as its a lot paler than the other parts.
    So im going to be painting them and I will update once complete...

    [​IMG]

    [​IMG]

    [​IMG]

  19. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46

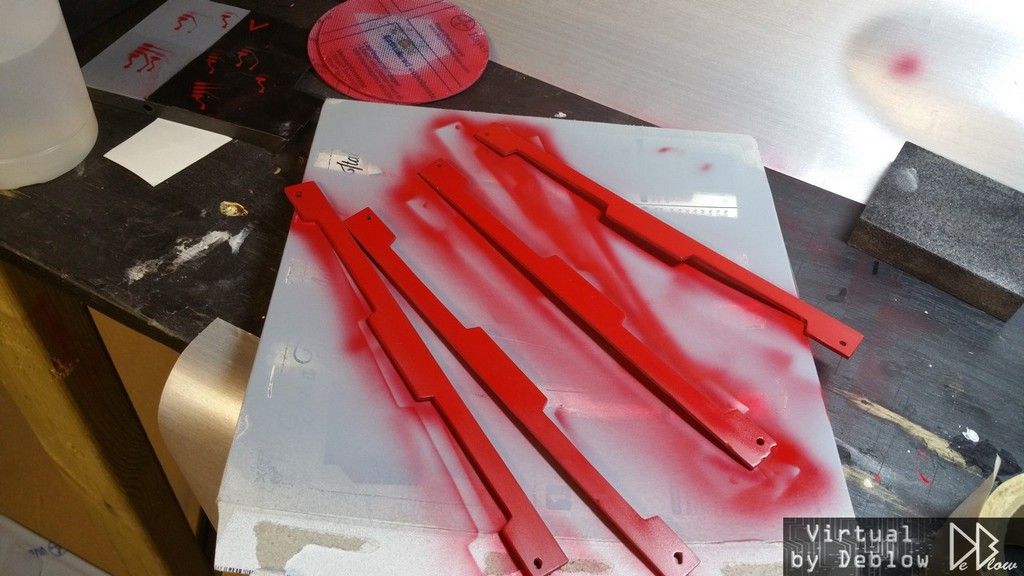

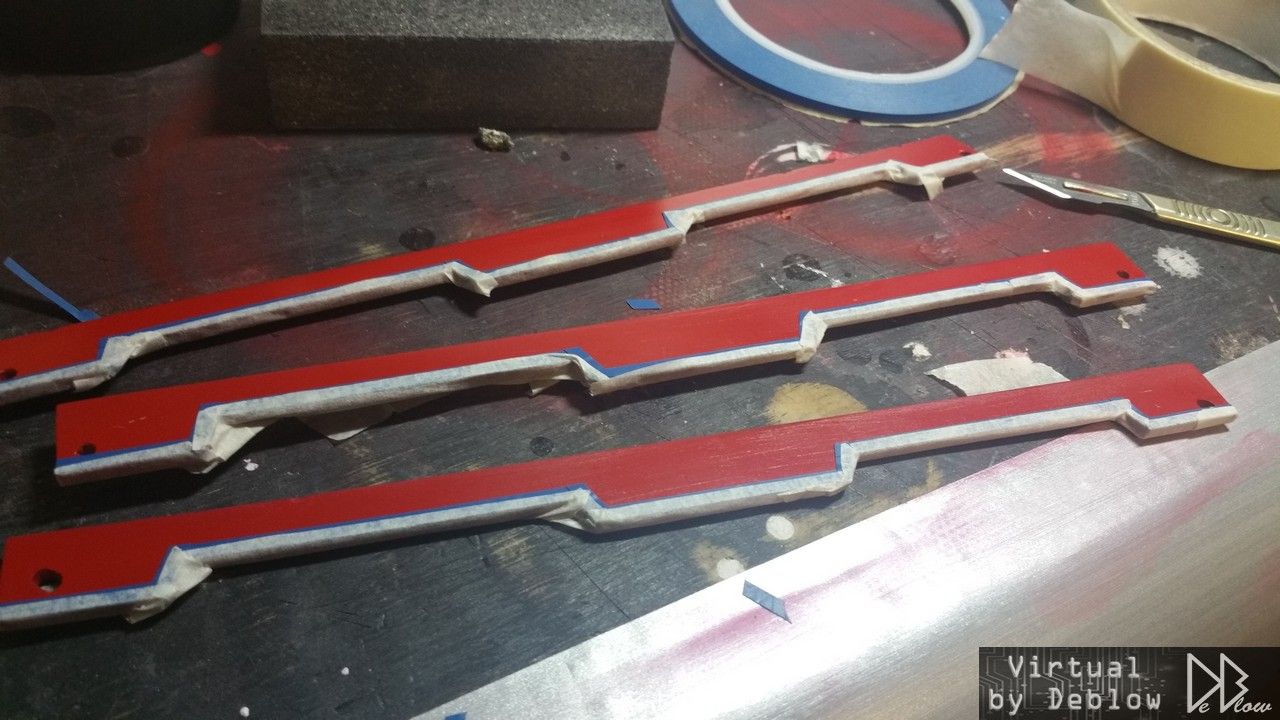

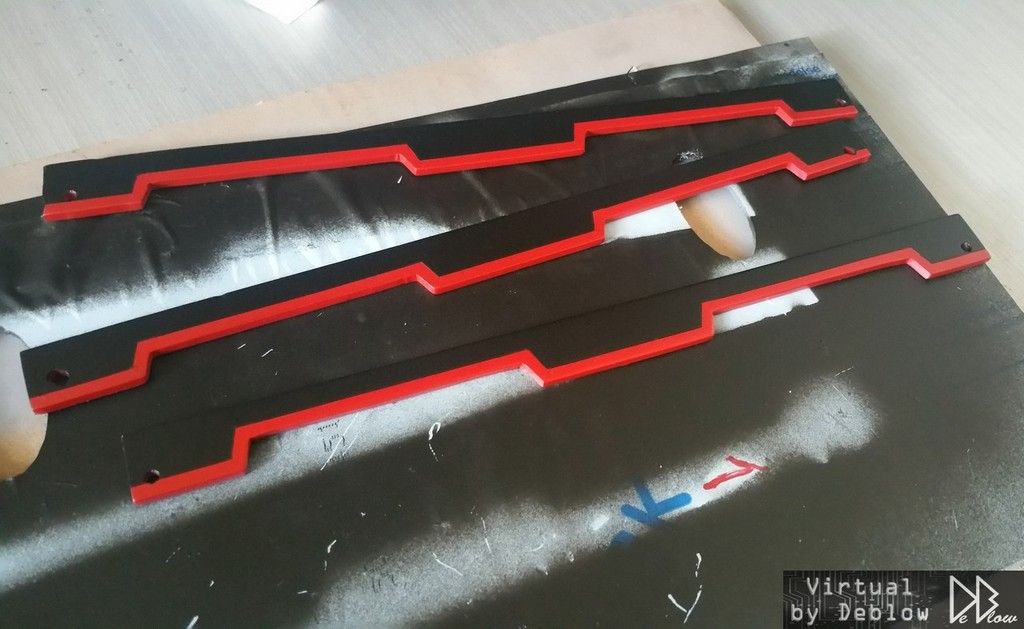

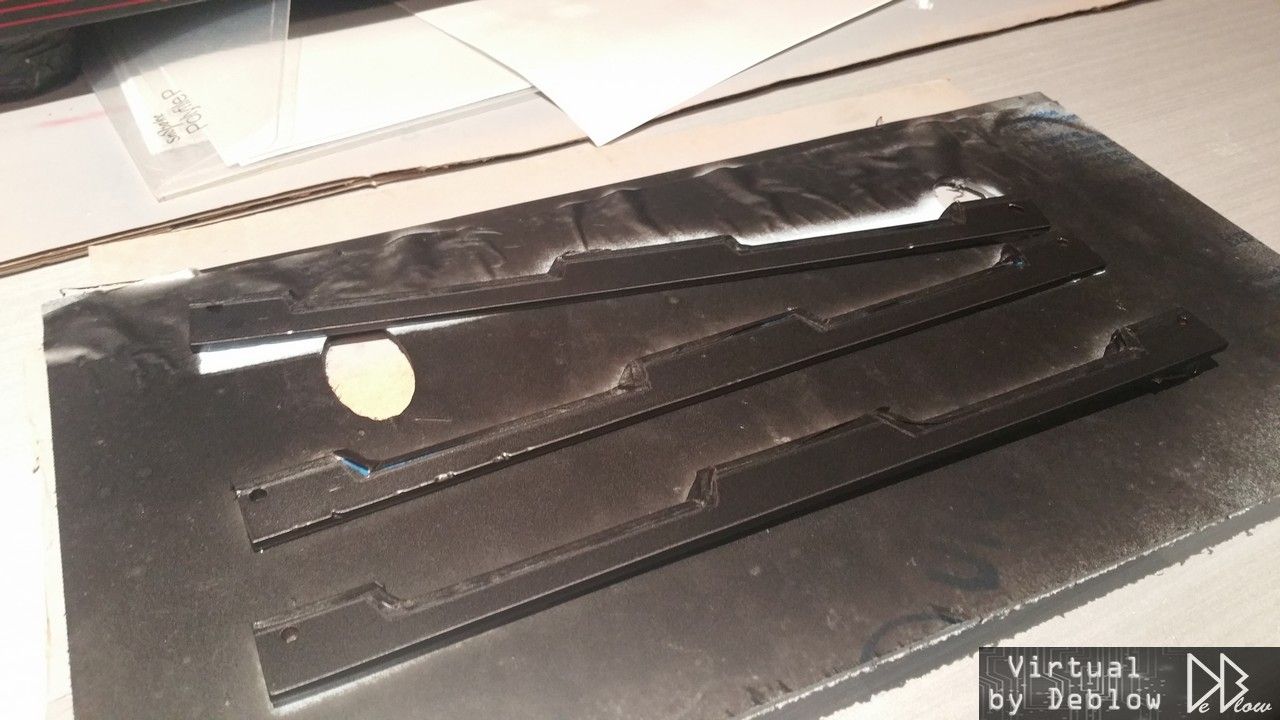

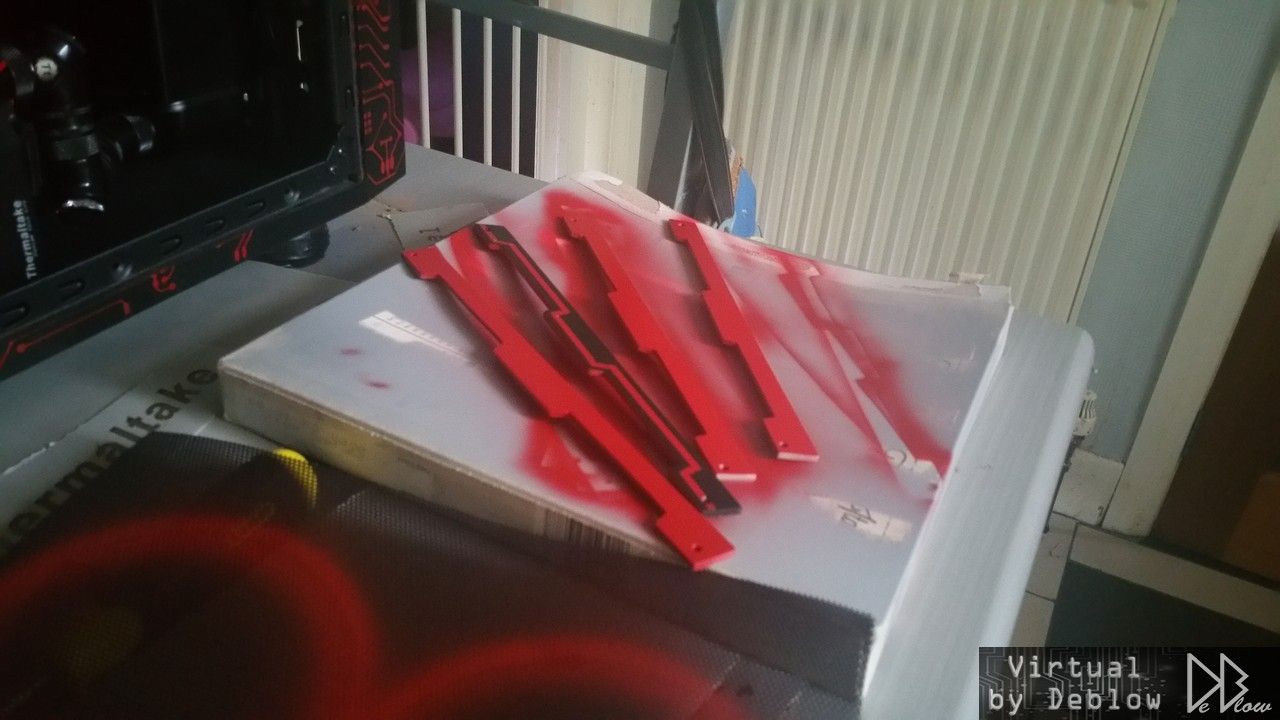

    Ok, sticking with the RAD covers, I painted them red and black but again wasn't too happy with the
    design so I did them again :wallbash:

    [​IMG]

    the one with the black was the design I wanted to redo and slightliy change so the red line was on the
    outer edges.

    [​IMG]

    [​IMG]

    [​IMG]

    and this is the final design I'm sticking with as time is running out!

    [​IMG]

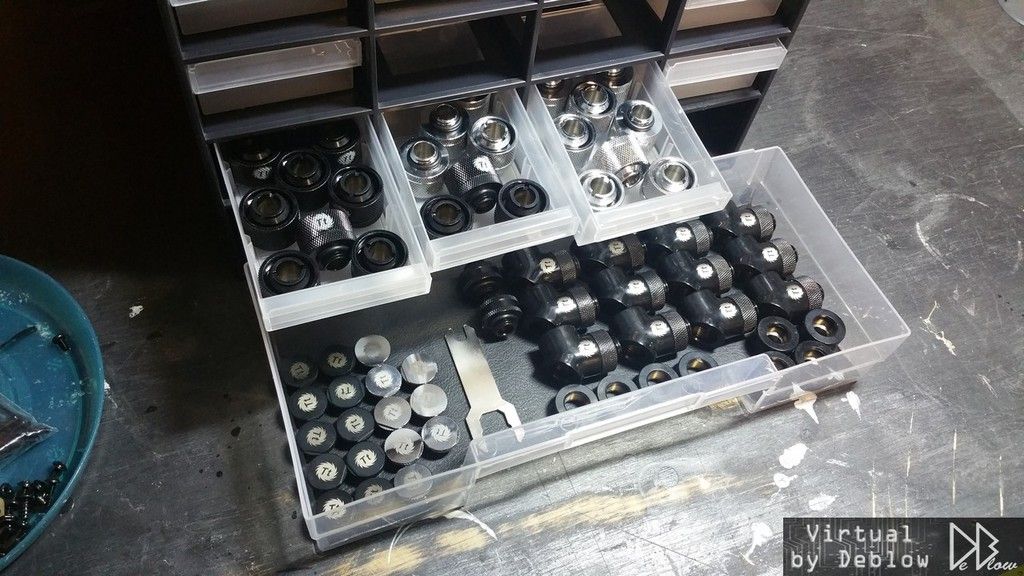

    I have finished the CPU loop but need more fittings to complete the GPU loop, should arrive Monday :worried:.
    I never planned to have two loops but as I din't order the parts originally I have basically just been doing stuff with no real plan lol

    [​IMG]

    Again, sorry for the misty photos I keep snapping with my phone. I promise to get some better detailed shots up when its completed and then I can relax :cooldude:

    [​IMG]

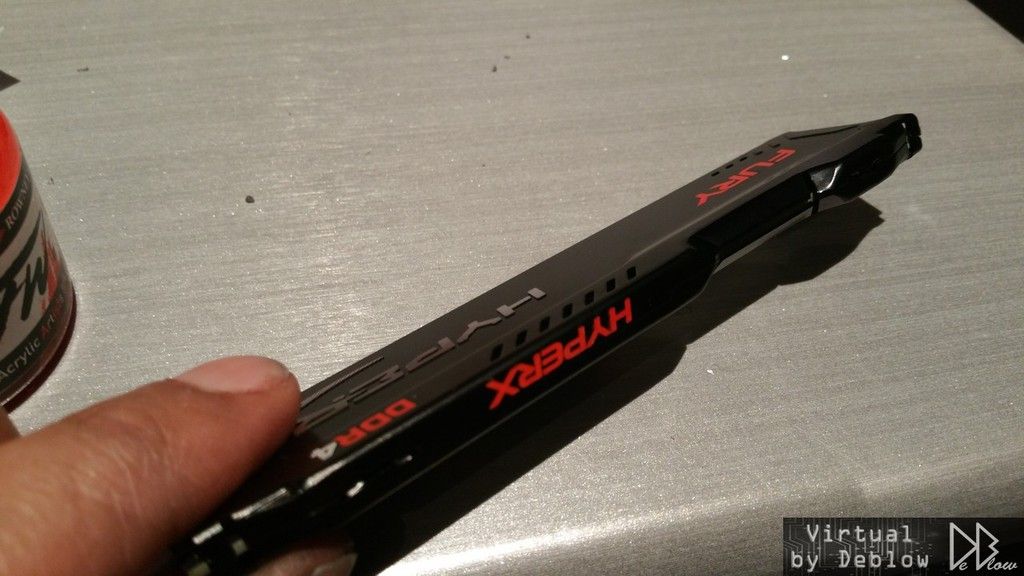

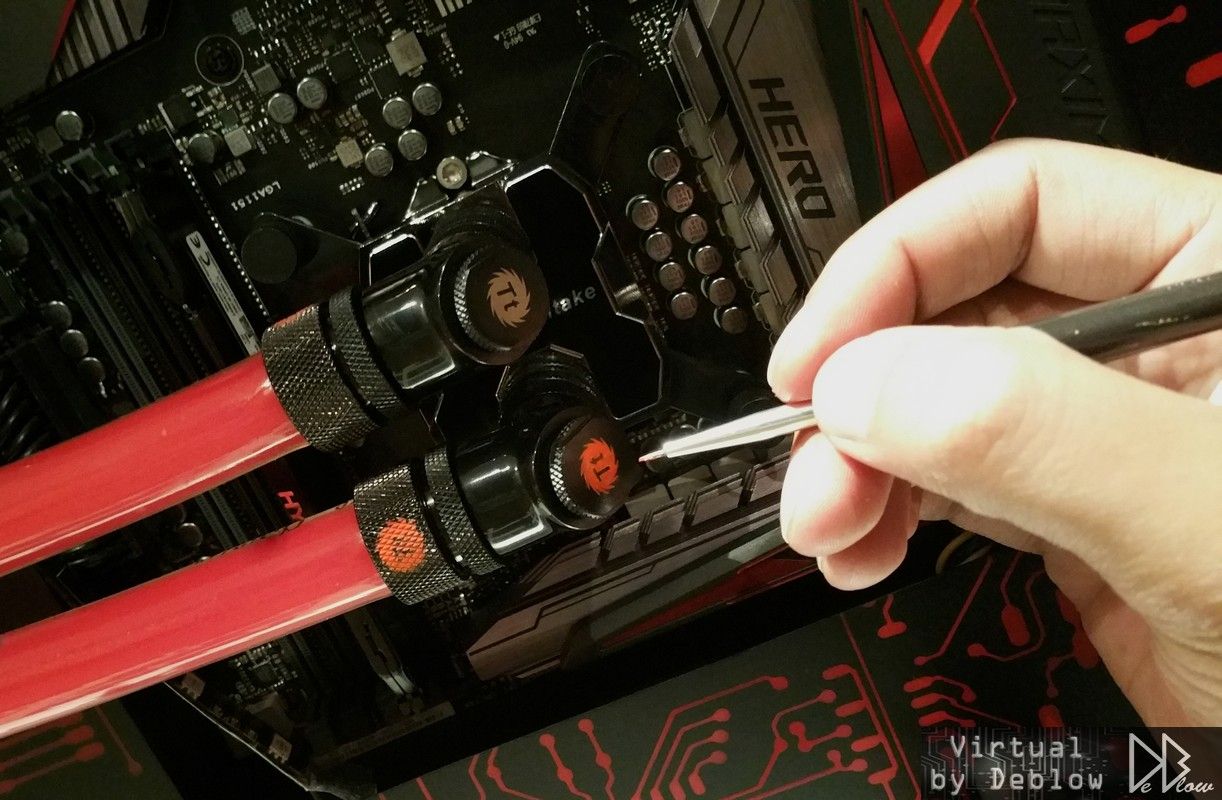

    I'm repainting most of the logos and other bits on the build that are white or clash with the red n black theme.

    bit tricky and I need plenty of tea to steady my hands lol but very happy with the RAM, and most the other parts I've done so far.

    [​IMG]

    [​IMG]

    [​IMG]

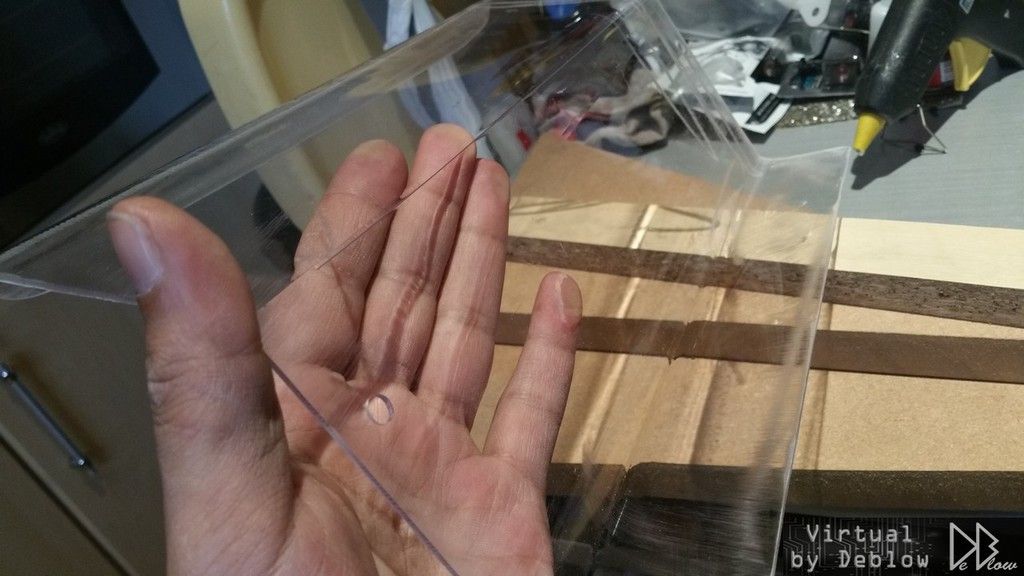

    At this very moment im working on the PSU cover and some others to hide the workings a bit better.
    they will all be covered with some leftover leather from the last build.

    [​IMG]

    [​IMG]

    [​IMG]


    Don't be shy, drop a comment as this is the very 1st "case mod" I have posted online for almost 16 years so im happy to hear your thoughts on the progress :dremel:

    P.S, let me know if any photos don't look to be working, as some show as broken for me yet they return sometimes when I refresh the page.

    Last edited: 24 Apr 2016
  20. Deblow

    Deblow Minimodder

    Joined:
    12 Dec 2013
    Posts:
    477
    Likes Received:
    46
    here's a quick look at the left side, still need to sort the GPU loop, fix the lighting and add some covers.

    [​IMG]

    This is the ASUS WIFI adapter/antenna, hell might as well add some red to it lol
    Im using the built in magnet to attach it to the back of the case.

    [​IMG]

    [​IMG]

    [​IMG]

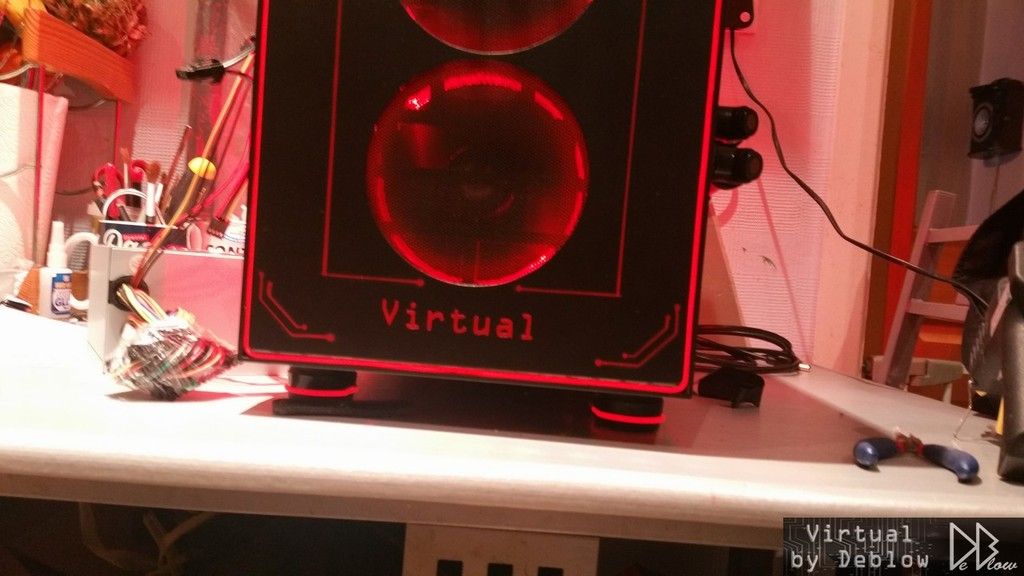

    front almost complete so I did a light test.

    [​IMG]
