Cooling What CPU Heatsink should I use???

Discussion in 'Hardware' started by midleman, 10 May 2008.

  1. midleman

    midleman What's a Dremel?

    Joined:
    5 May 2008
    Posts:
    7
    Likes Received:
    0
    My system is as follows; Cooler Master Stacker 830 Evo case with a 1000W Real Power Pro PSU, Q9450, dual 3870's in CF, 4 hard drives in dual RAID, 8 120mm LED fans, Blu-ray player, DVD burner, media card reader with floppy, RAID controller card, 4GB (2x2) DDR2 1066 RAM, Gigabyte X38 Motherboard, HT Omega Claro Plus+ sound card, Logitech WebCam, front panel LCD fan controller, 2 external hard drives, keyboard, mouse, 28" LCD monitor and 42" LCD HDTV.

    The following is the list of CPU Heatsinks that I have narrowed it down to.

    1) Thermalright Ultra-120 CPU Cooling Heatsink - Retail - $60
    http://www.newegg.com/product/product.aspx?item=N82E16835109125

    2) Thermalright Ultra-120 eXtreme - cpu-tri-39 - $74
    http://www.buy.com/retail/product.asp?sku=205121074&listingid=20983864&dcaid=17902

    3) ZALMAN CNPS9700 LED 110mm 2 Ball CPU Cooler - Retail - $45
    http://www.newegg.com/product/product.aspx?item=N82E16835118019

    4) ZALMAN CNPS 9700 NT 110mm 2 Ball Ultra Quiet CPU Cooler - Retail - $70
    http://www.newegg.com/product/product.aspx?item=N82E16835118020

    5) Scythe SCINF-1000 120mm CPU Cooler - Retail - $45
    http://www.newegg.com/product/product.aspx?item=N82E16835185027

    6) Scythe SCASM-1000 120mm Sleeve Andy Samurai Master CPU Cooler - Retail - $40
    http://www.newegg.com/product/product.aspx?item=N82E16835185042

    7) Scythe SCORC-1000 140mm CPU Cooler - Retail - $70
    http://www.newegg.com/product/product.aspx?item=N82E16835185064

    8) ARCTIC COOLING Freezer 7 Pro 92mm CPU Cooler - Retail - $27
    http://www.newegg.com/product/product.aspx?item=N82E16835186134

    9) ZEROtherm Nirvana NV120 120mm 2-ball UFO Bearing / Transparent CPU Cooler - Retail - $50
    http://www.newegg.com/product/product.aspx?item=N82E16835887011

  2. dimebar

    dimebar What's a Dremel?

    Joined:
    26 Jul 2003
    Posts:
    183
    Likes Received:
    1
    depends on what you want to do with the cpu,

    looking at your rig, i wiuld expect you to overclockit, therefore if your going to run air get a thermalright ultra 120 extreme and a good fan, sflex 1200 on mine!
    if you going to midly clock get a non extreme version, the difference in performance is not that great!

    if your not going to do a thing to it, and have good case cooling, a freezer 7 is cheep and functional!

  3. shadow12

    shadow12 I lie

    Joined:
    30 Sep 2007
    Posts:
    231
    Likes Received:
    1
    I second: Thermalright Ultra-120 eXtreme with either a Noctua or Scythe fan. As far as what rpm for the fan depends on how loud your rest of your rig is.

  4. pistol_pete

    pistol_pete Air Cooled Fool

    Joined:
    7 Jan 2008
    Posts:
    815
    Likes Received:
    29
    The TRUE120 sure is a big investment considering you need to buy a fan as well, but it looks like you've got plenty of money to spend judging by that component list!

    Looking at the graph here, it may be the second best cooler but that's with a fan at low, with a bit more airflow it would be the champion:
    http://www.bit-tech.net/hardware/2008/01/20/noctua_nh-u12p/4


    Bit-tech's review is here:
    http://www.bit-tech.net/hardware/2008/01/04/thermalright_120_extreme_zerotherm_nv120/1

    Dont worry about the installation, it's easier than the article describes. Practice fitting the fan and clips before you mount it on the motherboard, to get the hang of things. The clips actually go into the holes between each fin, which is a bit easier and more secure, i've never woried about them falling off. You can add a second fan without the need to buy another two clips, just use one clip per fan and put a cable tie through the top corner of the fan and round one of the heatpipes ontop of the cooler. Finally, the backplate and screws are very secure, since your building from scratch just make sure you mount the cooler while the MB is still out of the case and it'll be fine.

  5. Hazardous

    Hazardous What's a Dremel?

    Joined:
    21 Jan 2004
    Posts:
    2,614
    Likes Received:
    0

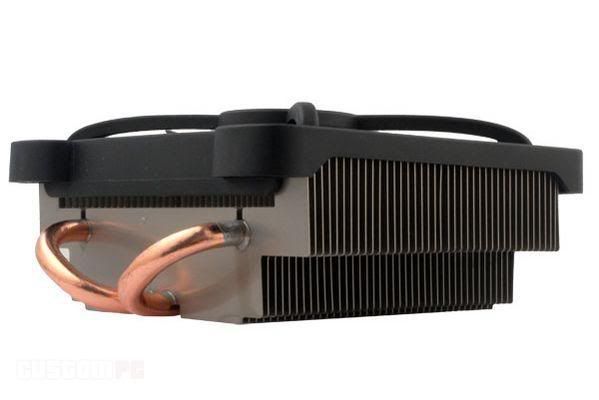

    Dunno if you can get it over in the USA yet, but Arctic Cooling have just released a new version of their popular Freezer 7 cooler... the Freezer 7 LP (LP = Low Profile):

    [​IMG] [​IMG]



    For anyone in the UK who's interested... it's expected to cost around £15 when it becomes available over here :thumb:

  6. badders

    badders Neuken in de Keuken

    Joined:
    4 Dec 2007
    Posts:
    2,645
    Likes Received:
    76
    I'm sure the Q9450 is a 95W TDP Processor, so the Freezer 7 LP wouldn't be suitable I'm afraid.


  7. mushky

    mushky gimme snails

    Joined:
    24 Mar 2003
    Posts:
    5,755
    Likes Received:
    3
    It's only about 5% out, I'm sure it would be fine. There should be a tolerance in there to account for ambient temps, use patterns etc.

  8. BUFF

    BUFF What's a Dremel?

    Joined:
    25 Mar 2005
    Posts:
    912
    Likes Received:
    1
    also worth considering the Xigmatek HDT1283 & it's Kingwin RVT-12025 clone.

  9. Ending Credits

    Ending Credits Bunned

    Joined:
    4 Jan 2008
    Posts:
    5,322
    Likes Received:
    245
    That freezer 7 is almost exactly the same as the heatsink that came with my Phenom.
    Edit: The low profile one.

  10. blakeblogger

    blakeblogger What's a Dremel?

    Joined:
    6 Nov 2008
    Posts:
    1
    Likes Received:
    0
  11. mm vr

    mm vr The cheesecake is a lie

    Joined:
    18 Nov 2007
    Posts:
    2,968
    Likes Received:
    84
    Thermalright Ultra 120 eXtreme cheesecake! :rock: I've got one and it's superb.



    I don't think he wants to cool his Q9450 passively. First of all, it's not necessary. The other fans in the computer do noise aswell. Second, he propably wants to oveclock and then it's necessary to have a good cooler.

  12. [PUNK] crompers

    [PUNK] crompers Dremedial

    Joined:
    20 May 2008
    Posts:
    2,909
    Likes Received:
    50
    The freezer 7 Pro would cope, but for ocing headroom go for something bigger

  13. lamboman

    lamboman What's a Dremel?

    Joined:
    25 Jul 2006
    Posts:
    1,509
    Likes Received:
    28
    Out of those, the TRUE would be the best choice. I would go for the Xigmatek HDT-S1283 myself though, much cheaper and performs nearly as well.

  14. CanadaPhil

    CanadaPhil What's a Dremel?

    Joined:
    12 Aug 2008
    Posts:
    49
    Likes Received:
    0
    I'd go with the zerotherm NV120. Lots of cooling capacity, a big fan for low noise, decent price point and it got a "recommended" stamp from Bit-tech when it was reviewed. Just make sure you have a case big enough for it. The thing is huge.
    Phil

  15. wyx087

    wyx087 Multimodder

    Joined:
    15 Aug 2007
    Posts:
    12,254
    Likes Received:
    804
    same :rock:

    just make sure to get some quality fans and blow away the heat effortlessly.

  16. AFX

    AFX "Bling" Silver Mountain 2

    Joined:
    19 Sep 2006
    Posts:
    295
    Likes Received:
    1
    TRUE Cheesecake or a HR-01 Plus for silence.

  17. 500mph

    500mph The Right man in the Wrong place

    Joined:
    22 Jun 2007
    Posts:
    2,129
    Likes Received:
    33
    How about the Cooler Master V8? Seems to be a great performer, and bit-tech will be doing a review soon.

  18. spudevo

    spudevo What's a Dremel?

    Joined:
    26 Nov 2004
    Posts:
    238
    Likes Received:
    0
  19. Cupboard

    Cupboard I'm not a modder.

    Joined:
    30 Jan 2007
    Posts:
    2,148
    Likes Received:
    30
  20. Guest-16

    Guest-16 Guest
