thechoozen - "A-51" - finished 090906

Discussion in 'Project Logs' started by thechoozen, 9 May 2006.

  1. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70

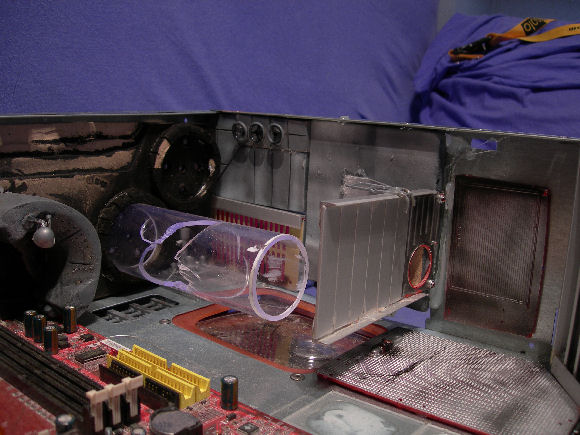

    This will be my next project, the work title is „A-51“.

    It will be inspired by Area 51 and all those spooky stories around it…. The Rig is build from a normal ATX Midi Tower which I already converted to WTX.

    It will get a huge side+top Window and a lot of eyecatching details in the inside of the case.

    Up to now I already have done some of the gadgets I will built in, like an motorized “Iris” which regulates the airstream from a stealth mounted Fan under it.
    But enough of the words here are the first pictures of it ….more will follow in the next days….

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    The Pictures aren´t the best, but i think they are ok for a first impression.

    Last edited: 9 Sep 2006
  2. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    and here are some more pictures....

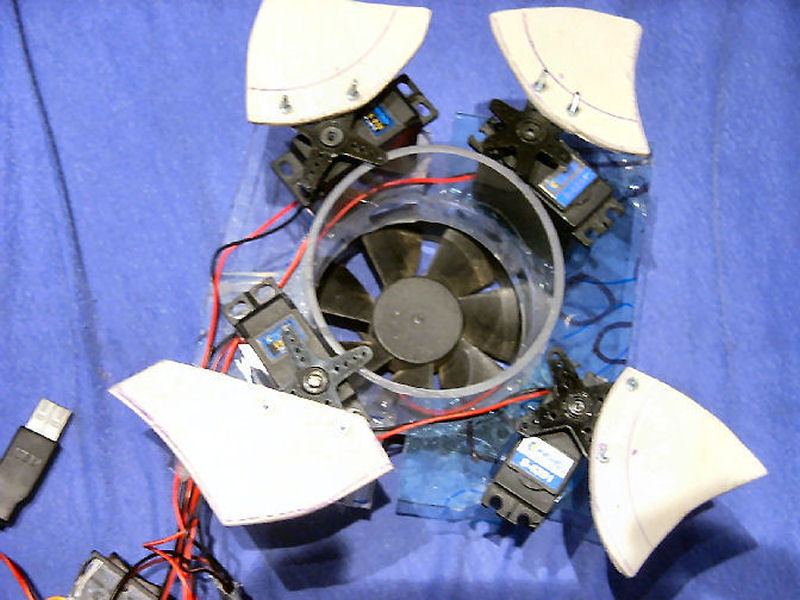

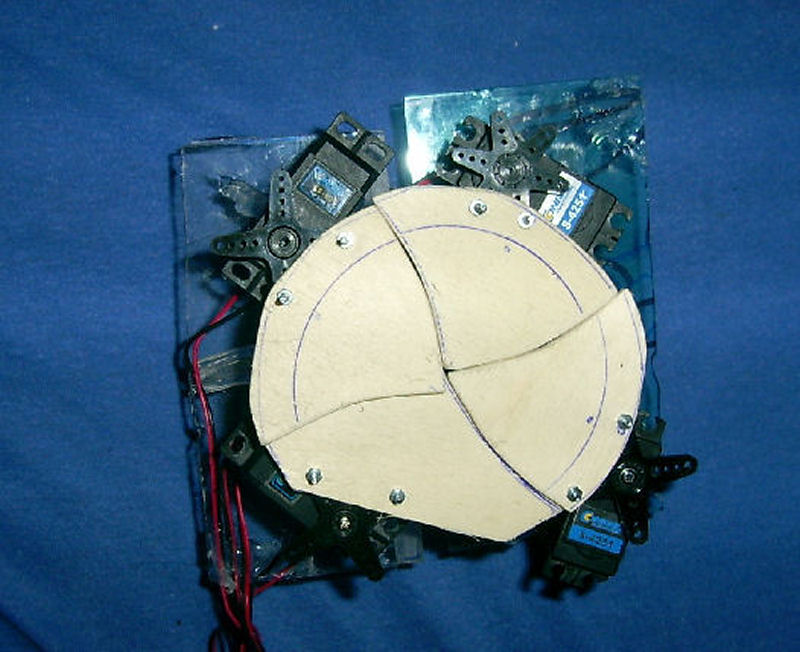

    here are some pictures from my "Iris" in the first version....

    [​IMG]
    [​IMG]

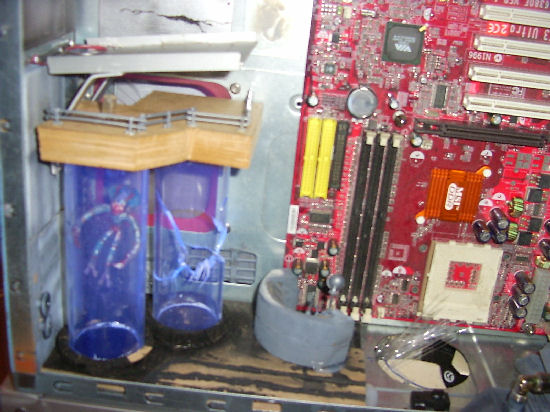

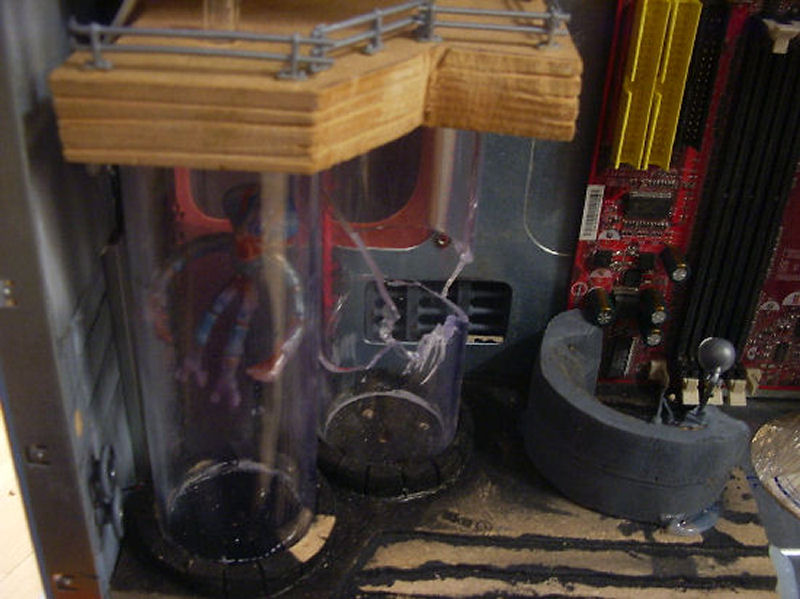

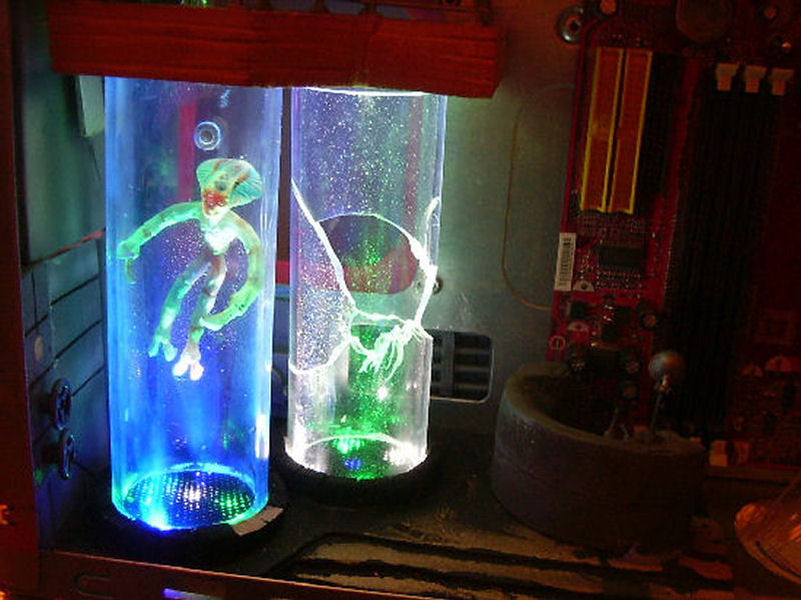

    the 2 water reservoirs...
    [​IMG]
    [​IMG]
    [​IMG]

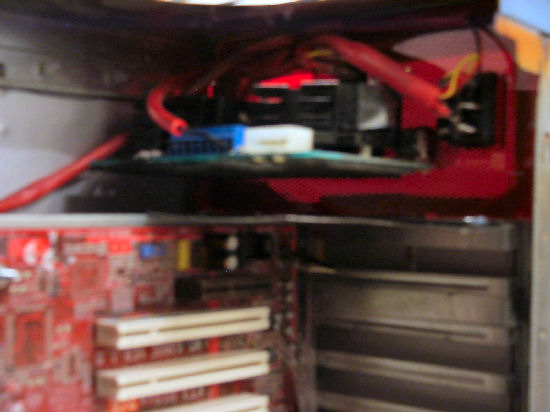

    and this is a backplate i made for a fan controll and some controll switches which i need to controll the iris and the fan below.....

    [​IMG]

  3. Axly

    Axly slo-mo...dder

    Joined:
    7 Nov 2003
    Posts:
    108
    Likes Received:
    0
    You know, this is actually starting to look interesting :)
    A complete "secret research A51 lab" inside a computer, very creative.

  4. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    :D
    thanx!

    this is what i´ve done today.....

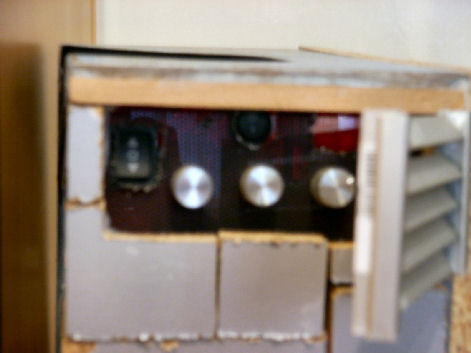

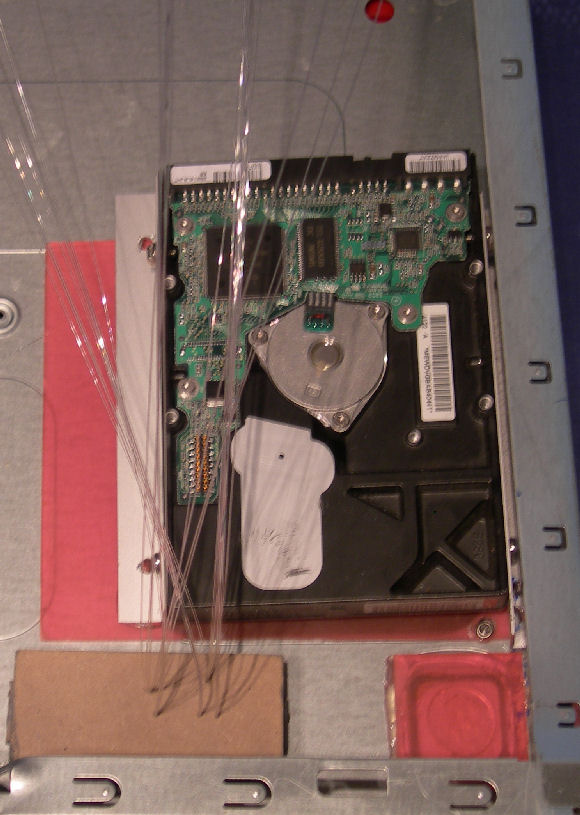

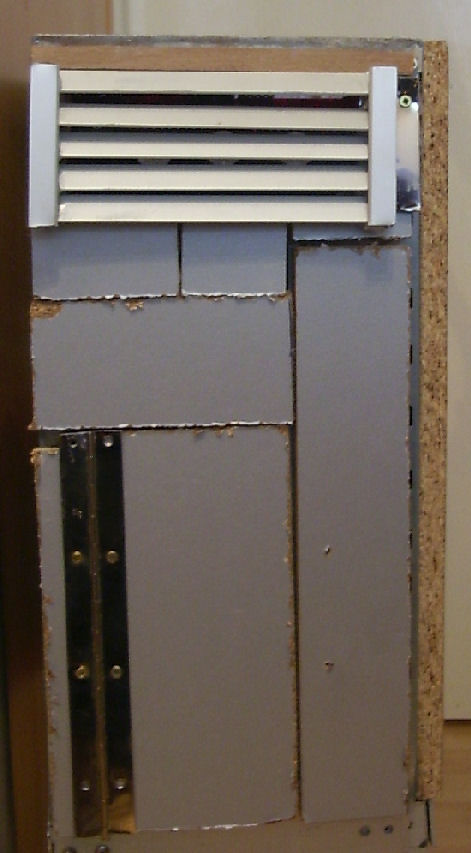

    some shots from the backside of the case

    [​IMG]
    [​IMG]

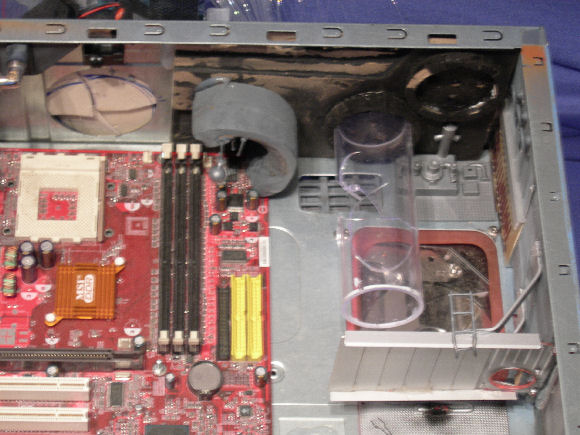

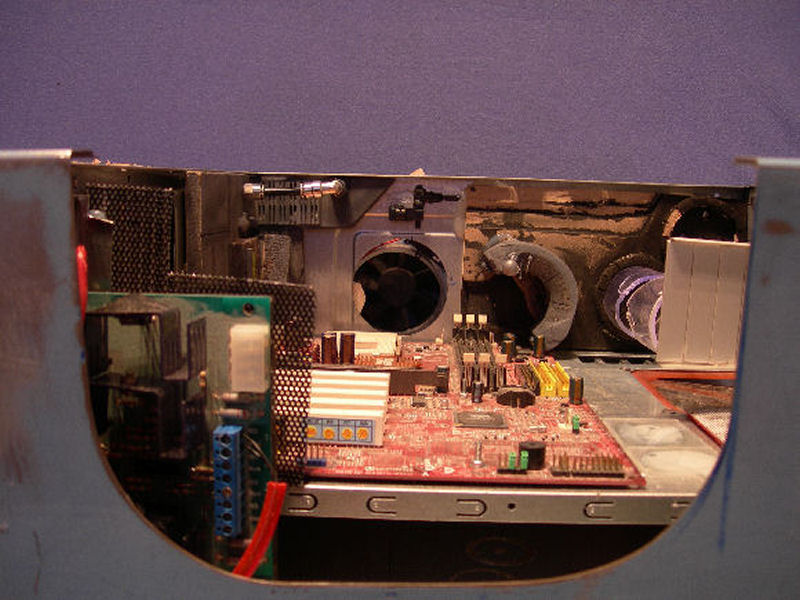

    a view from top to ground.....
    [​IMG]

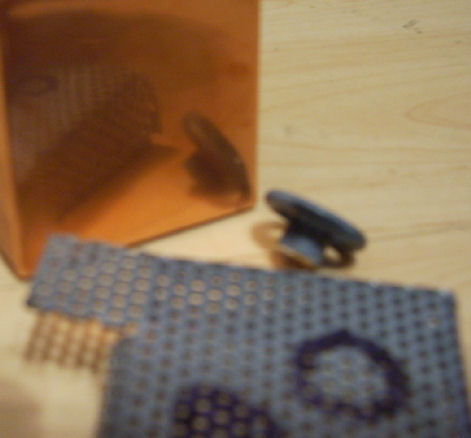

    a first cooler experiment which i build for the Northbridge of the system...
    [​IMG]

  5. Mnet_Gaming

    Mnet_Gaming What's a Dremel?

    Joined:
    15 Oct 2003
    Posts:
    583
    Likes Received:
    4
    Wow thats looking great, I'm LOVING the case fan idea.

  6. bender386

    bender386 What's a Dremel?

    Joined:
    5 Jan 2006
    Posts:
    475
    Likes Received:
    0

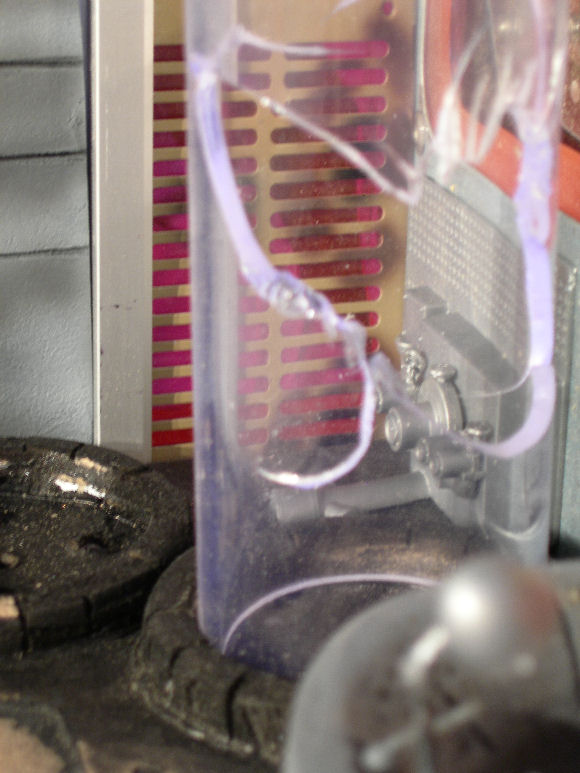

    is that pipe broken or is it ment to look like that?

  7. simosaurus

    simosaurus What's a Dremel?

    Joined:
    12 Jun 2005
    Posts:
    353
    Likes Received:
    0
    is it meant to look so.... ghetto?

  8. Bbq.of.DooM

    Bbq.of.DooM Custom User Title

    Joined:
    12 Feb 2005
    Posts:
    1,477
    Likes Received:
    1
    What would be Really cool on that mod, is big ass hanger doors, with only a small crack to let you see what looks like a UFO on the inside. That, and a massive TOP SECRET stamped somewhere.

  9. tanviper

    tanviper What's a Dremel?

    Joined:
    11 May 2006
    Posts:
    6
    Likes Received:
    0

    LMAO, I was just thinking the same thing :D

  10. mattthegamer463

    mattthegamer463 What's a Dremel?

    Joined:
    26 Nov 2004
    Posts:
    2,804
    Likes Received:
    1
    That iris thing is sick!! Post a video of it moving for us, so we can see its awesomeness!

  11. Guest-23315

    Guest-23315 Guest

    if you buy an iris for a Theather Follow Spot (im a techy) they fit perfectly over a 12cm fan, but you would need a small motor for an autamated opening/closing

    Looking cool though

    Aj

  12. Lucanus

    Lucanus What's a Dremel?

    Joined:
    13 May 2006
    Posts:
    21
    Likes Received:
    0
  13. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thanx for your comments and the idea with the theater spots...never thought of them.....

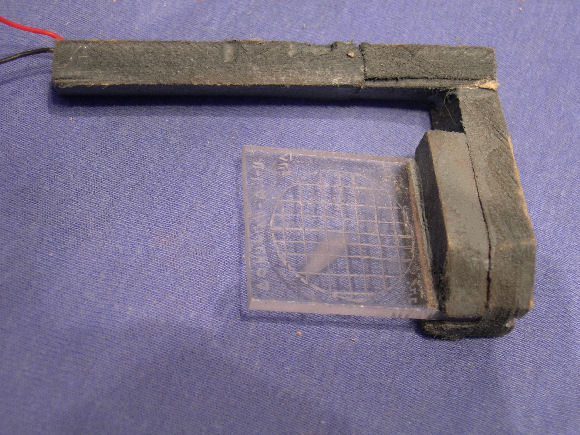

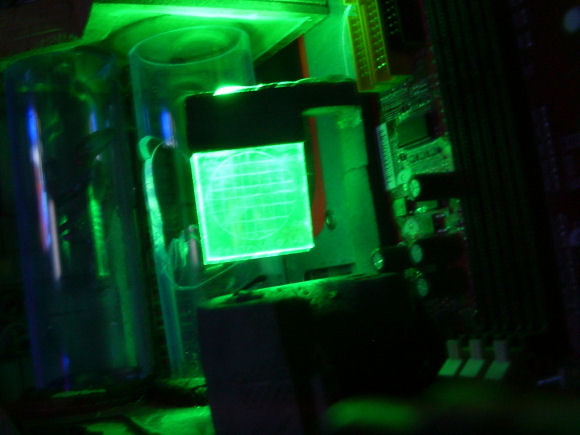

    here is just a small update with the small radar screen on his place with some light on.....

    and i´ve made a small video from my "iris".....at the moment everything is a little bit fast but i will slow the movement down in the later progress....



    [​IMG]

    Video

  14. madhatter

    madhatter What's a Dremel?

    Joined:
    16 Sep 2003
    Posts:
    226
    Likes Received:
    0
    I LOVE the look of this. I really do quite like case mods that aren't trying to look perfect, but are trying to look imperfect. I'd say that was much more difficult, but I do appreciate both styles. Love this! Will be checking it a lot... hehe.

  15. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70
    thanks a lot!!!! :rock:



    here is what i have done today....

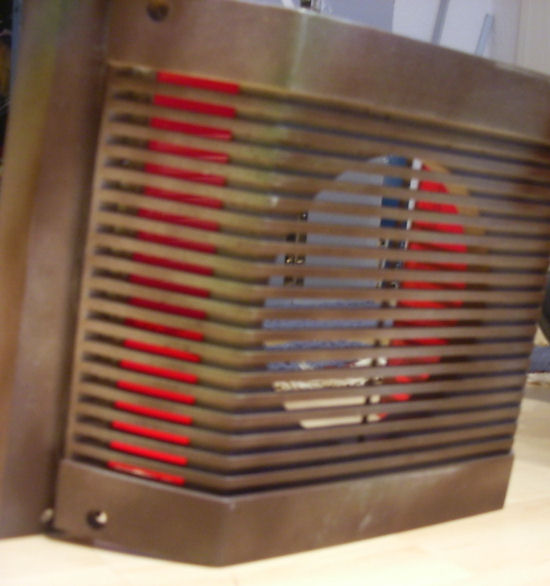

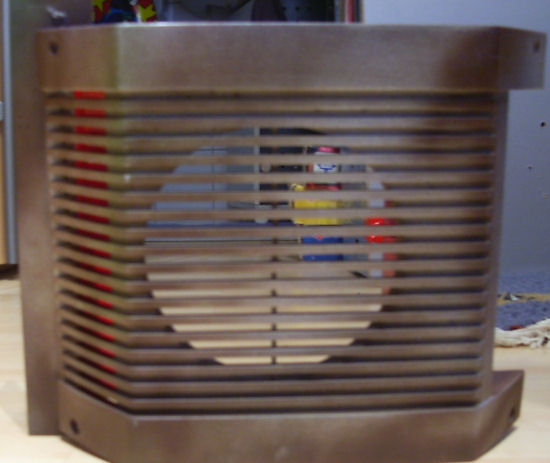

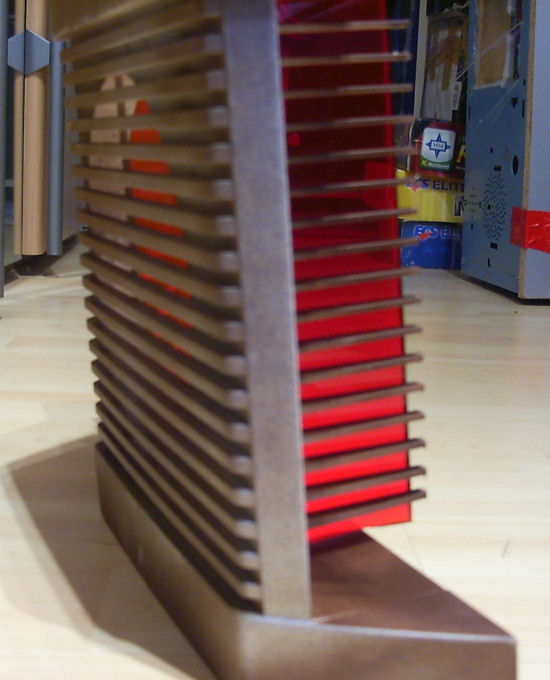

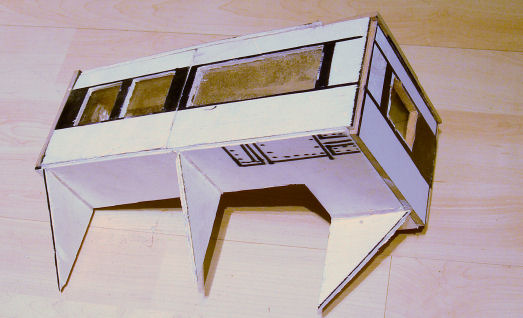

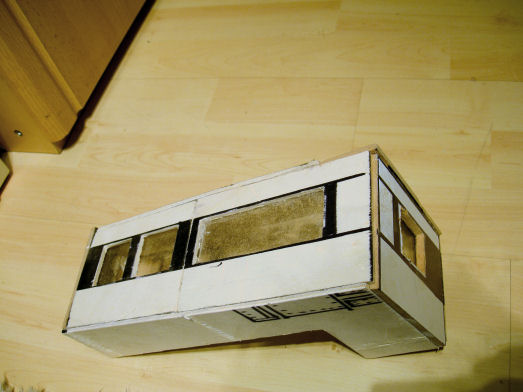

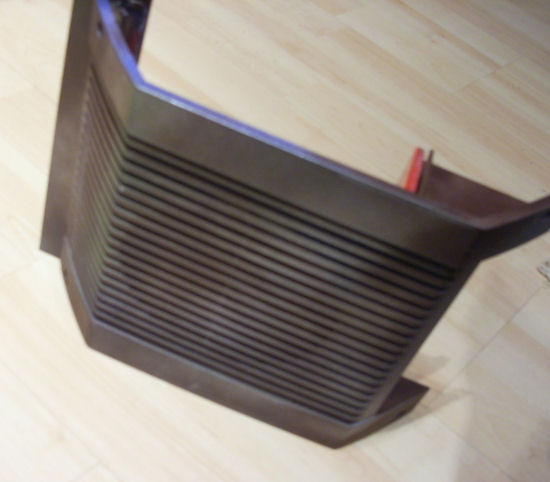

    i made a first part of the sidepanels which will be placed on the bottom part of the case.......
    inside i will place a huge fan which will cool down the radiator which i will use for the watercooling system.....

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  16. hellas91

    hellas91 What's a Dremel?

    Joined:
    18 Feb 2006
    Posts:
    93
    Likes Received:
    0
    Looks nice! :D

  17. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70

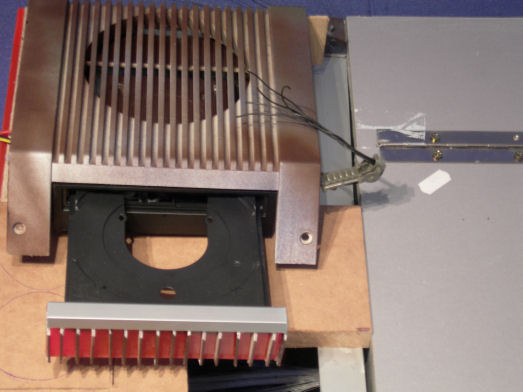

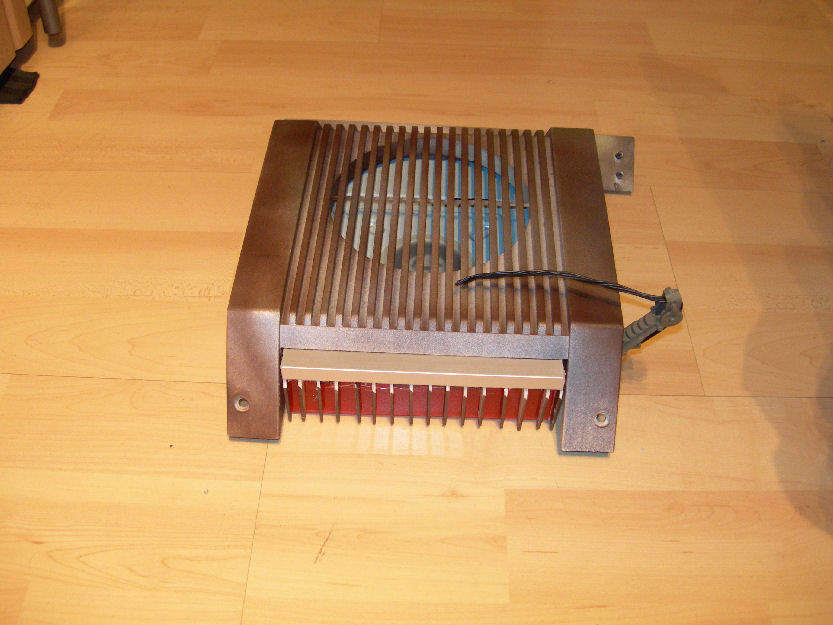

    in the last days i decided to change a few things.....like the DVD Drive which is now mounted outside of the case in the sidepanel....


    [​IMG]
    [​IMG]

    it´s now only thrown in to see if everything would work ..... in the next steps i will build something to mount the drive correctly...

  18. Vorx

    Vorx What's a Dremel?

    Joined:
    10 Jan 2006
    Posts:
    9
    Likes Received:
    0
    Your worklog picture is very confusing.

  19. MrMacomouto

    MrMacomouto What's a Dremel?

    Joined:
    28 Mar 2004
    Posts:
    113
    Likes Received:
    0
    I am scared just looking at that :p

    Interesting idea though.

  20. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    70

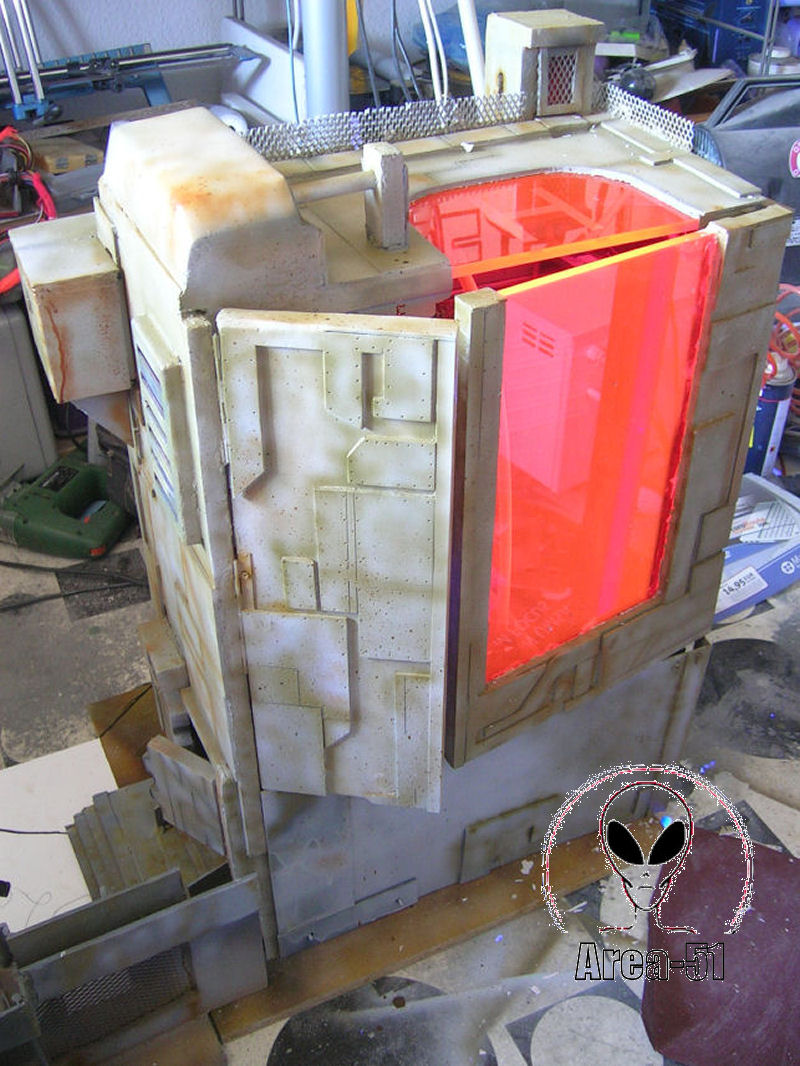

    here are some new pics.....


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    update 020606:

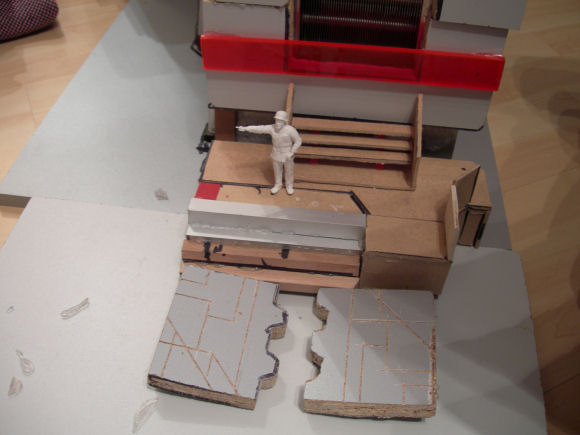

    i have just made a first try for the front "entrance".....the stairs will be part of the ground plate........the front door which finally will cover the radiator will be motorized so that both panels would slide away

    [​IMG]

    Last edited: 2 Jun 2006
