SketchUp Bit-Tech Digital 3D Render Gallery

Discussion in 'Modding' started by scooby, 6 May 2009.

  1. Dark~3nergy

    Dark~3nergy what was dat sandvich ?

    Joined:
    14 Jan 2007
    Posts:
    1,424
    Likes Received:
    45
    Well, you'll never learn about rendering if you can't bother to install a PDF reader to read how the program is used :/

  2. jezmck

    jezmck Well-Known Member

    Joined:
    25 Sep 2003
    Posts:
    4,456
    Likes Received:
    36
  3. ĿªЪяεġø™

    ĿªЪяεġø™ Rabbit Modder !

    Joined:
    19 Jun 2009
    Posts:
    39
    Likes Received:
    0
    No way I'm gonna be as good as you guys , but here's my shot :

    [​IMG]

    Thanks for watching :thumb:

  4. boogerlad

    boogerlad New Member

    Joined:
    27 Jun 2009
    Posts:
    55
    Likes Received:
    1
    [​IMG]
    Is this material close enough to lian li brushed metal?

  5. Dark~3nergy

    Dark~3nergy what was dat sandvich ?

    Joined:
    14 Jan 2007
    Posts:
    1,424
    Likes Received:
    45
    boogerlad, it looks a bit too reflective imo, but otherwise yes.

    i'm working on something big :D

    [​IMG]
    applying textures takes so much time :/

    Last edited: 6 May 2010
  6. Editor22

    Editor22 E22 | Hex-Gear

    Joined:
    3 Jan 2009
    Posts:
    1,688
    Likes Received:
    55
    Damn man I remember saying something about architectural designs a while back but that looks crazy! I pity the machine that has to render that thing lol

  7. dullonien

    dullonien Master of the unfinished.

    Joined:
    22 Dec 2005
    Posts:
    1,277
    Likes Received:
    28

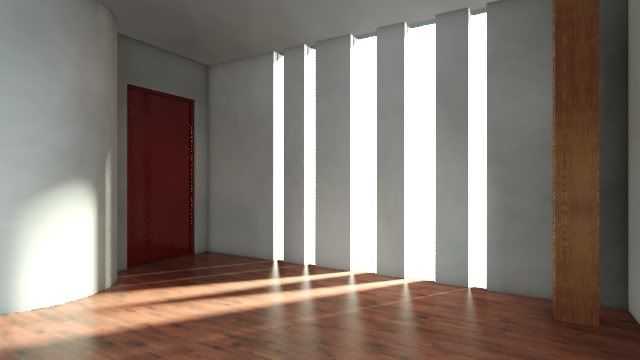

    After a bit of advice here from people who know 3ds Max and Mental Ray better than I do. Here's a quick test render (12 min) of the interior of part of my final year uni submissions. I wonder if anyone knows how to get a similar result but without the whiteout of the outside through the windows. It's set-up with a mental ray daylighting system for light. It's been rendered without Global Illumination.

    [​IMG]

    I've tried a number of different things, including reducing the exposure value and increasing both the sky and sun multipliers or increasing the global lighting level. Global illumination didn't seem to increase the brightness of the interior when I turned it on, and it also increased rendering time tinfold.

    Any hints are appreciated, otherwise I'll try and blend in some external views in photoshop.

    Anything else I can improve? DOF is something which I'll apply when I'm happy with the rest of the scene, and have imported some furniture into it. Cheers.

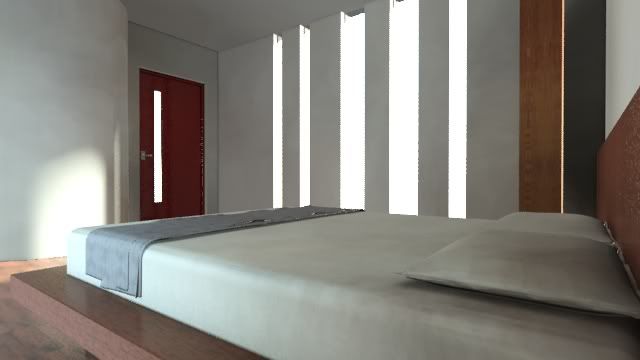

    Edit: an update on how it's coming along.

    [​IMG]

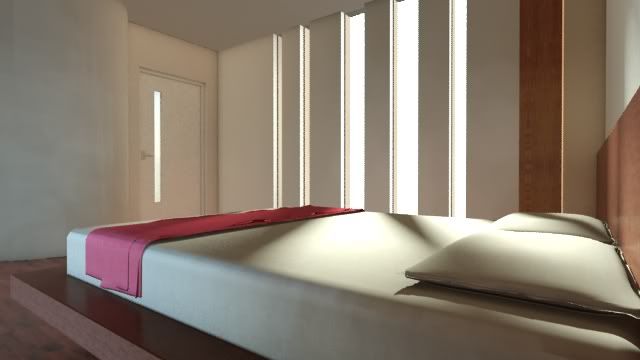

    Further edit. One more image, this time with Global Illumination turned on to 0.5 intestity.

    [​IMG]

    Last edited: 8 May 2010
  8. Raiden

    Raiden Portuguese reviewer

    Joined:
    26 Oct 2009
    Posts:
    377
    Likes Received:
    1
    You did this all by yourself?

    Every component?

    If yes it looks good , pratice makes perfection mate:thumb:

  9. Metric

    Metric has a bazooka

    Joined:
    1 Jun 2009
    Posts:
    89
    Likes Received:
    17
    Boogerlad: You're getting close, your bumpmap scale needs to be lower (looks too coarse). Also it looks like you're using displacement too which isn't necessary for details that small and will just cause longer render times.

    Some Maxwell materials in the works from me:

    Bitspower Matte Black w/ Gold Detailing
    [​IMG]

    Bitspower Chrome w/ Black Detailing
    [​IMG]

    Lian-Li Black Brushed Anodized Aluminum
    [​IMG]

  10. confusis

    confusis Kiwi-modder

    Joined:
    5 Jan 2006
    Posts:
    2,406
    Likes Received:
    63
    very very nice!

  11. Dark~3nergy

    Dark~3nergy what was dat sandvich ?

    Joined:
    14 Jan 2007
    Posts:
    1,424
    Likes Received:
    45
    awesome materials metric ! could you share the bump map you use for the brushed anodized aluminum ?

    soon done with my house :D

    [​IMG]

  12. Editor22

    Editor22 E22 | Hex-Gear

    Joined:
    3 Jan 2009
    Posts:
    1,688
    Likes Received:
    55
    I'll send you a message when I win the lottery dark :p

  13. Roboduck

    Roboduck 01110001 01110101 01100001 01100011

    Joined:
    1 Dec 2009
    Posts:
    549
    Likes Received:
    24

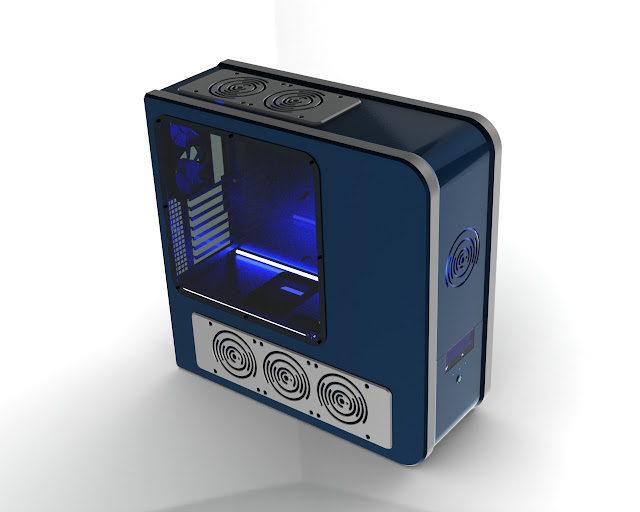

    Here are just a few quick renders of some concept cases. I didn't spend a whole lot of time on them just trying to get some ideas down. Let me know what you think!

    [​IMG]


    Ford Raptor SVT Case

    [​IMG]

    Last edited: 11 May 2010
  14. cronicash

    cronicash New Member

    Joined:
    25 Aug 2009
    Posts:
    165
    Likes Received:
    8
    Nice revamped tj07's

  15. ĿªЪяεġø™

    ĿªЪяεġø™ Rabbit Modder !

    Joined:
    19 Jun 2009
    Posts:
    39
    Likes Received:
    0
    No , not all :D just picking components from other models and get them all together :thumb:

    Another shot :

    [​IMG]

    What should I improve ?

    • Metal material ;
    • Some components missing ;
    • Dark plastic too dark ;

    Thanks for watching :thumb:

  16. Aterius Gmork

    Aterius Gmork smell the ashes

    Joined:
    25 Sep 2007
    Posts:
    1,816
    Likes Received:
    73
    Fixed the image for you, vbulleting won't link pictures via https.

    Can't say I'm a fan of the 45 degree perspective tbh, a horizontal perspective would work better. Both the metal and the mainboard itself should be a bit more reflective.

    Edit: Doh, apparently it does. Oh well, no matter.

  17. Valdisnei

    Valdisnei Can i haz a dremelz!?

    Joined:
    22 Sep 2007
    Posts:
    82
    Likes Received:
    6
    I was testing the PhotoView360, a simple renderer wich came with SolidWorks. For easy and fast rendering, it does good results..
    I render an Advan RGII2 wheel SolidWorks drawn..
    The result:
    [​IMG]


    Cya! ;)

  18. stuartwood89

    stuartwood89 Please... Just call me Stu.

    Joined:
    20 Aug 2008
    Posts:
    1,566
    Likes Received:
    52
    If you're using Kerkythea, then try the MLT (Metropolis Light Transfer) setting in the render menu. It gives more realistic results. You may also want to download some metal material libraries from the KT site, you should be able to apply one of them without playing with any material settings and get some great results. Try applying globals instead of lights if you want an even coverage of light.

  19. Chaos_Engine

    Chaos_Engine New Member

    Joined:
    16 May 2010
    Posts:
    21
    Likes Received:
    0
    awesome detail on motherboard, how long did it take you?

  20. Teyber

    Teyber ******

    Joined:
    18 Mar 2007
    Posts:
    1,369
    Likes Received:
    9
    hey metric, how did you get maxwell and how much did you pay for it?

    cheers
