Case Mod - In Progress Hydra - MSI Big Bang Fuzion Demo Case [update: 030210 -Finishing/Premiere @cebit ]

Discussion in 'Project Logs' started by thechoozen, 7 Jan 2010.

  1. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    Hi @ all

    it´s time for a new Log! :rock:

    This build will be done for MSI. The Case will be used to promote the new MSI Big Bang Fuzion Motherboard Series on the Cebit this year (and as far as i know - after that it will be given away :rock::D to a lucky one)

    But more to that later.....

    The Motherboard which will be used features great stuff like the Hydra Technology which let the user use any combination of ATI and/or Nvidia video card.

    We like that feature that much, that we decided to use the Hydra also for our theme...
    so after a lot of research we finally found a nice grafic which we will use for our mod.
    The Casemod will be build upon a Coolermaster ATCS 840 so that we will have enough free room for 3 watercooling loops and some other nice stuff :D

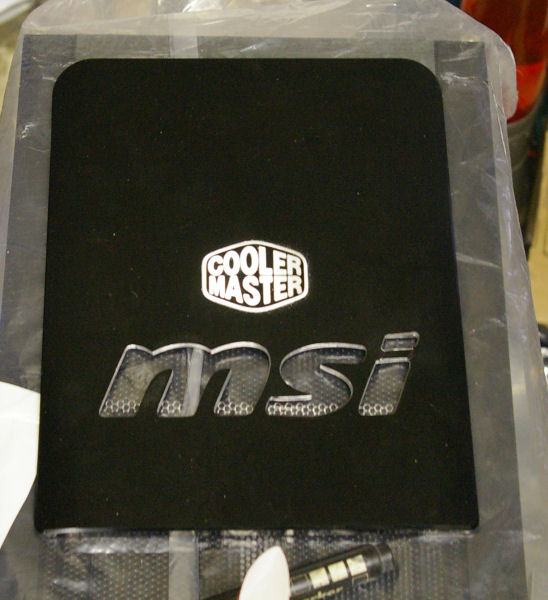

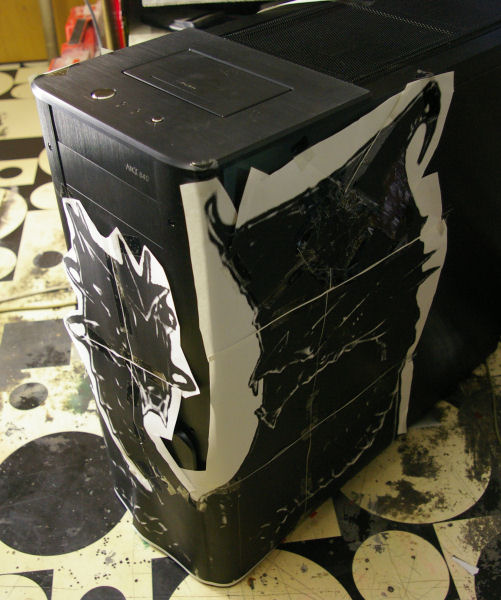

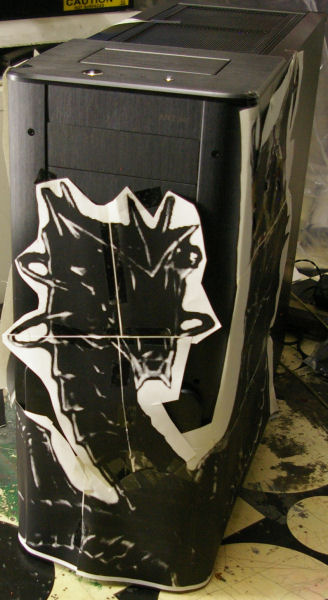

    We already started with a cutout of the MSI Letters in the Front....beside that we made a raw template for our hydra and tested how we will place it on the case.....but now enough of the words ...here are the first pics....


    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]


    [​IMG]

    And a pic of the most important parts :

    [​IMG]

    Last edited: 2 Mar 2010
  2. ringo

    ringo New Member

    Joined:
    14 Jun 2008
    Posts:
    322
    Likes Received:
    10
    I will follow this, because I want to know, want you do with the hydra.

  3. disturbed13

    disturbed13 New Member

    Joined:
    28 Nov 2008
    Posts:
    901
    Likes Received:
    3
    ^ you wait a couple of years for the tech to get the bugs worked out
    then you have a game crunching ATI card with a PhysX NVIDIA card :D

  4. Bullitdodger

    Bullitdodger If it ain't broke....Tweak it.

    Joined:
    9 Oct 2005
    Posts:
    318
    Likes Received:
    3
    That some migthy fine cuttin' there....:dremel:

    What'd you use?

  5. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx a lot m8´s

    today its time for the first update....:thumb:

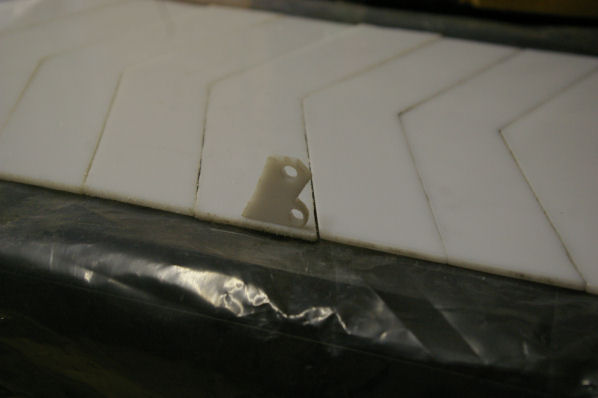

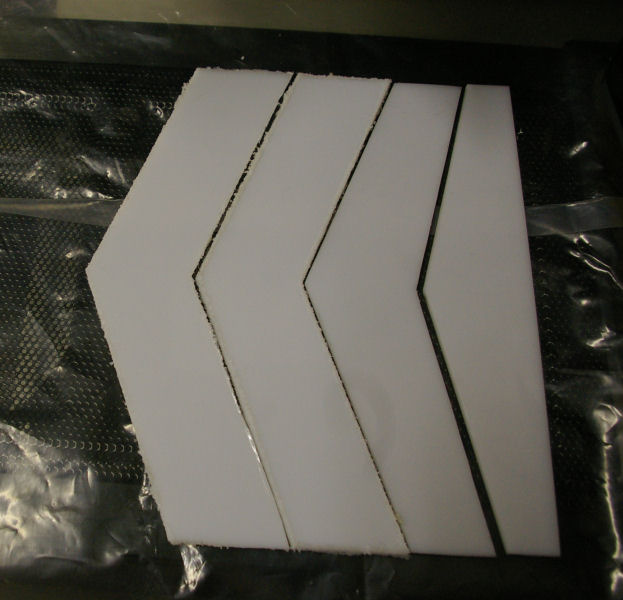

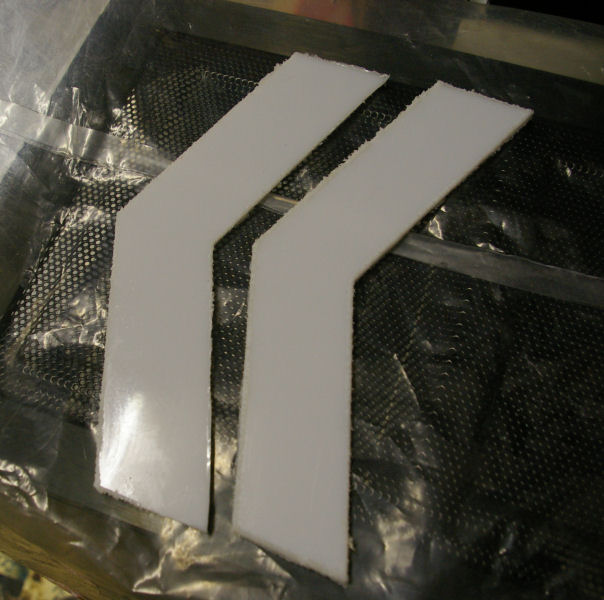

    For the Top of the ATCS we thought that a a construction of sheds/ribs would look good and would match our theme perfect...therefor we cut out the first parts out of white plexi (but the color will change) to see how it will look like in real.....


    [​IMG]
    [​IMG]

  6. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    today we made the next sheds/ribs ...and a first part of the mechanic which will move the ribs....


    [​IMG]
    [​IMG]

  7. Bad_cancer

    Bad_cancer Mauritius? 2nd speck east of africa

    Joined:
    7 Apr 2009
    Posts:
    708
    Likes Received:
    12
    Alienware anyone?

    Haha just kidding, knowing your work, im sure this will look better than the aurora :D

  8. x_JesusNinja_x

    x_JesusNinja_x New Member

    Joined:
    8 Mar 2009
    Posts:
    43
    Likes Received:
    0
    this is awesome:D

  9. Kilmoor

    Kilmoor lurker

    Joined:
    12 Jan 2010
    Posts:
    52
    Likes Received:
    2
    great choice for a case ;) subscribed!

  10. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thanks a lot mates!!!


    in the last days we spent the most of our time for those little parts of the mechanic.....but they had to be done....so that we can continue with the next part....
    [​IMG]

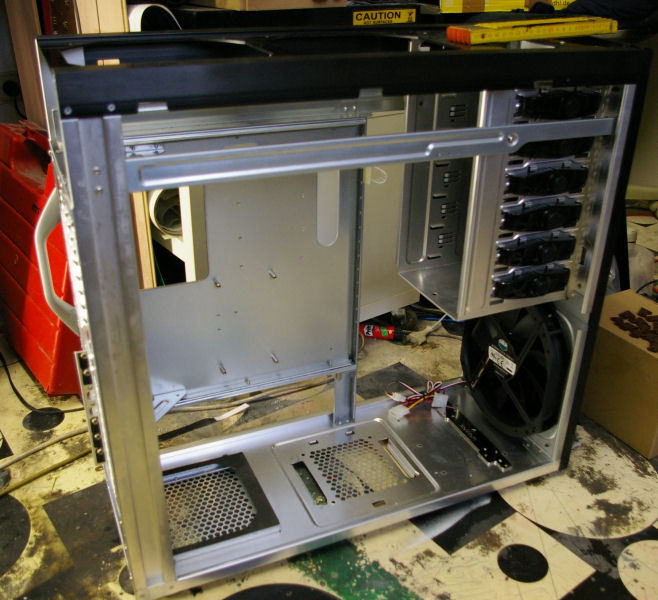

    beside that we continued the disassembling of the case so that we can start the metall work as soon as possible...therefore we already prepared a first cutout in the bottom of the case....above that we will place a 240 mm Radiator (overall there will be 2x240 & 2x120 integrated)

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  11. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69

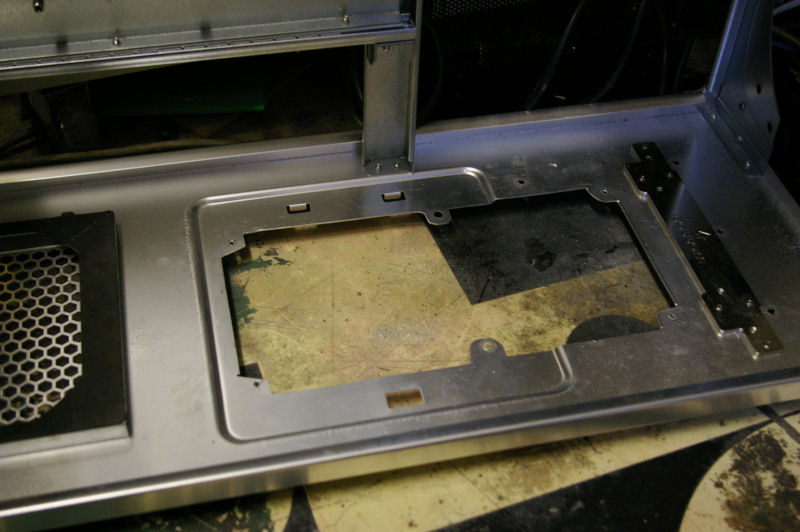

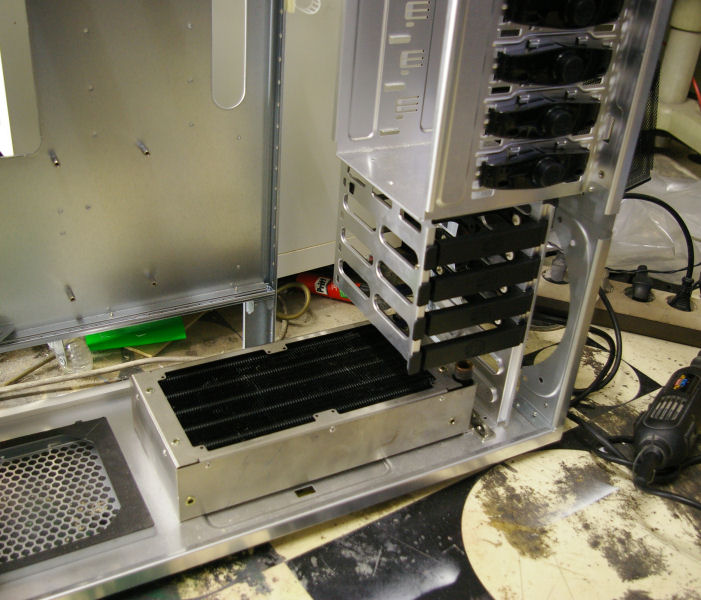

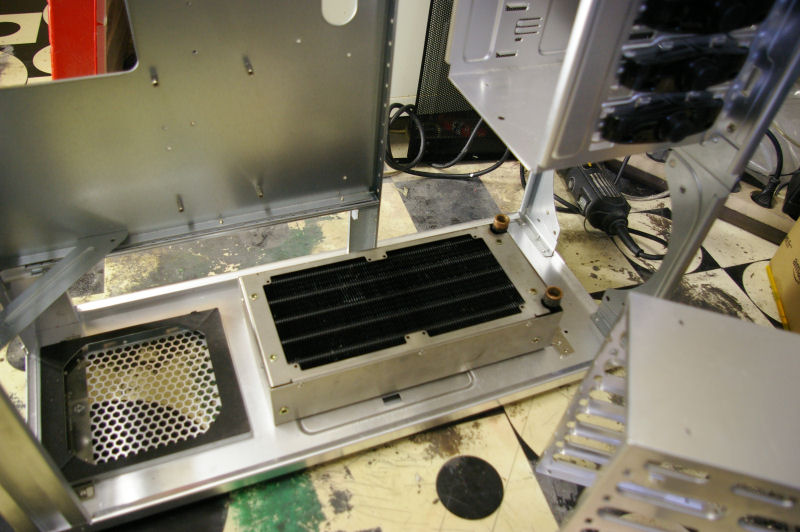

    yesterday we made the cutout for the radiator in the bottom, so that it can be placed in front of the PSU....after that we also shortened one side of the hdd drive cage so that we don´t get problems with it.....beside that we also tested if the calculated distances between the small plexi pieces are correct....just to see that we made a small mistake in the calculation....but it was good that we tested it ...that way we can make the final pieces with the correct distances and don´t have to make them twice.....:thumb:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  12. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69

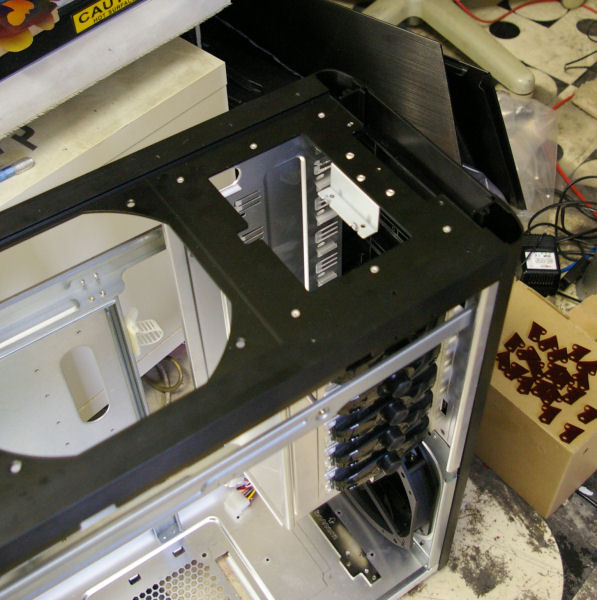

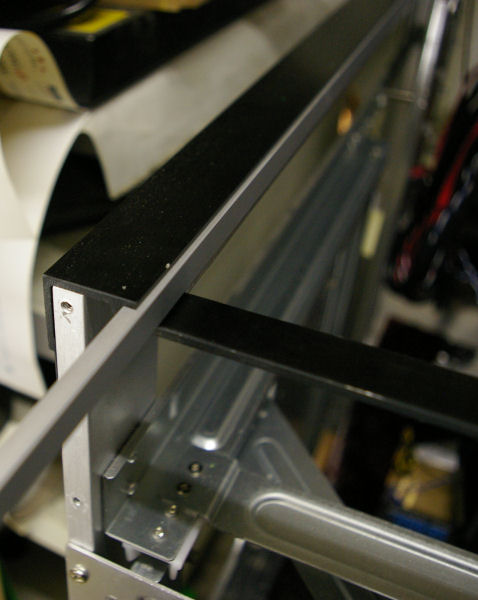

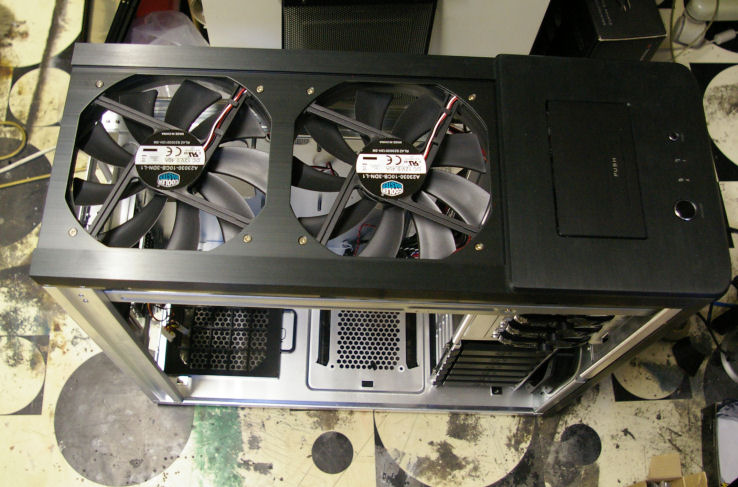

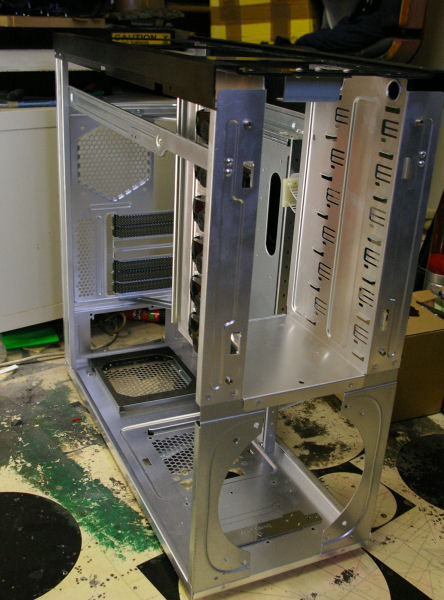

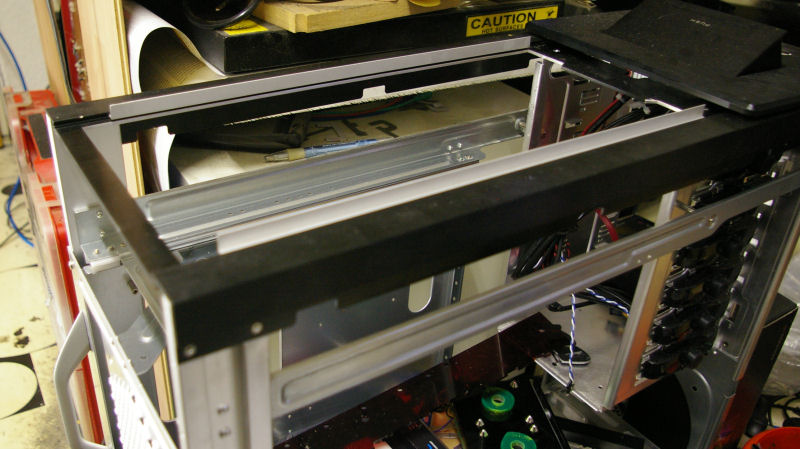

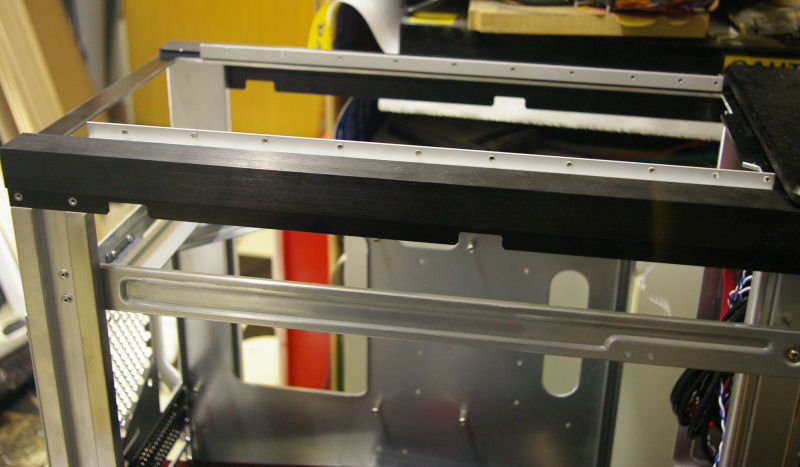

    After cutting out out the bottom for the radiator....we continued with the Top of the Case and cutted everything away which would disturb the mechanic for the Top Sheds/Ribs...
    [​IMG]

    Beside that we also started to build a triple Laing Pump Top for our 3 WC Loops....
    [​IMG]


    [​IMG]
    [​IMG]

  13. 500mph

    500mph The Right man in the Wrong place

    Joined:
    22 Jun 2007
    Posts:
    2,129
    Likes Received:
    32
    Thats going to look killer when finished.

  14. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8!! we really hope that it will look good when its finished

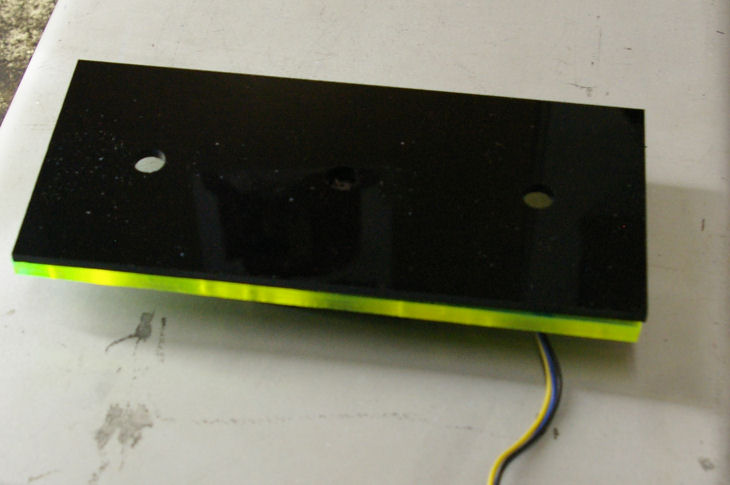

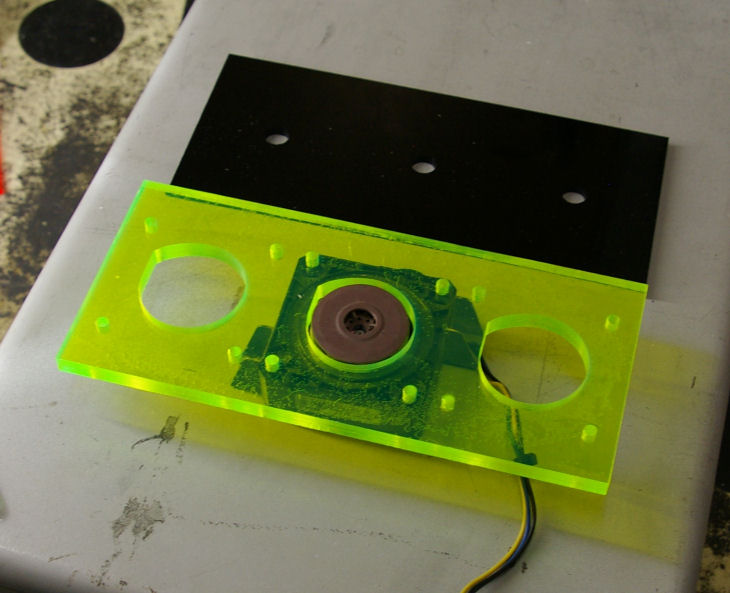

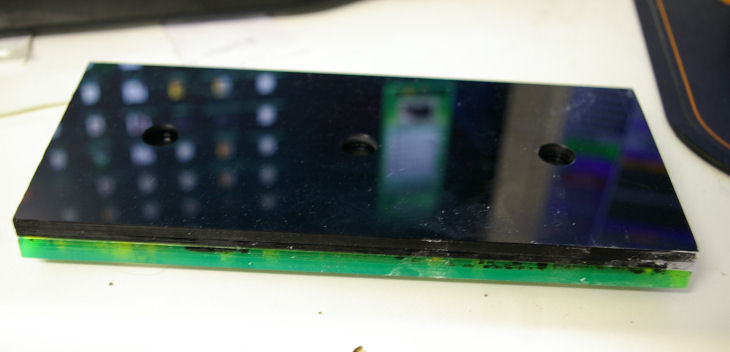

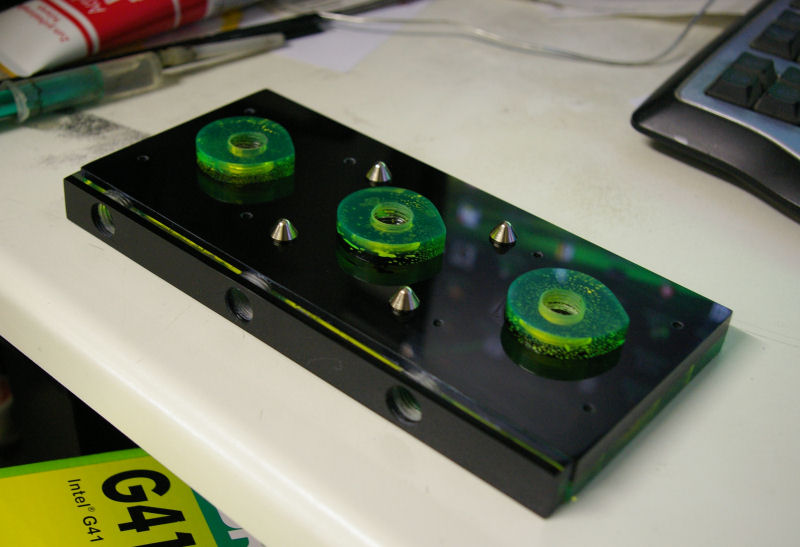

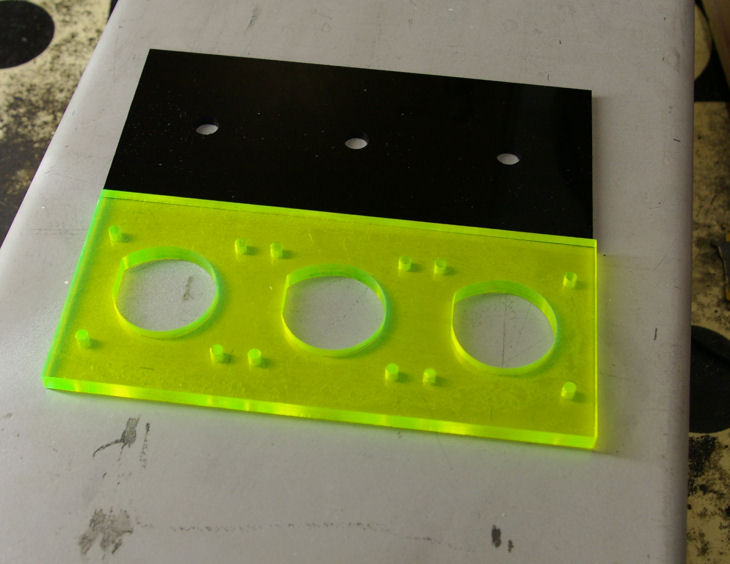

    in the last days we prepared the next layers for the Laing Top, the first 2 (black) layers are already glued together....for the fittings we made small risers with threads in it so that we gain a little bit height....

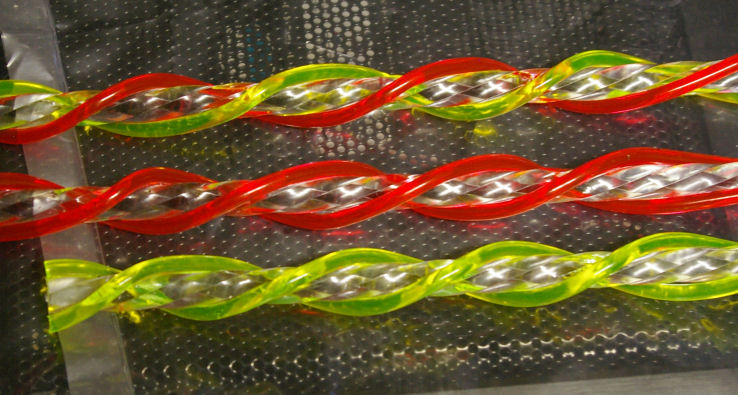

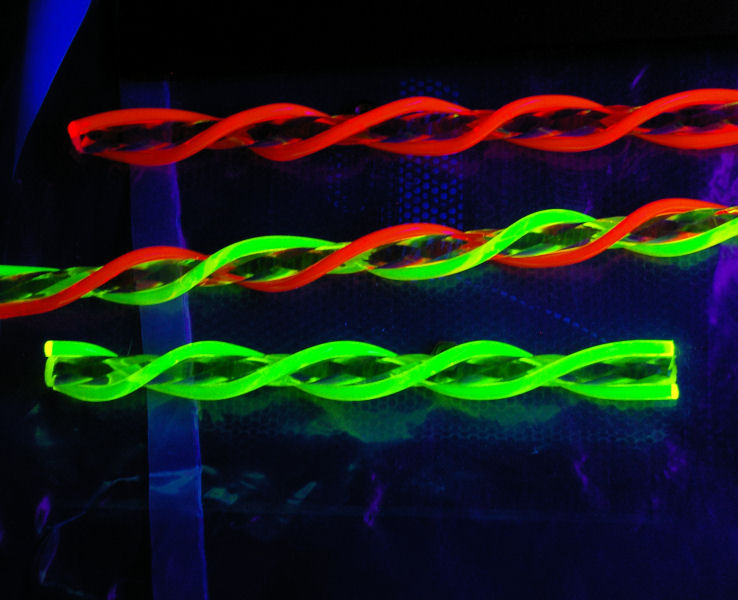

    beside that we also prepared the first parts for the reservoirs which will be used for the 3 WC Loops....to match the Ati/Nvidia Colorscheme we thought we bend some 3 Plexi DNA´s 1 in red 1 in green and 1 mixed for the Fuzion :D


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  15. The_Beast

    The_Beast I like wood ಠ_ಠ

    Joined:
    21 Apr 2007
    Posts:
    7,379
    Likes Received:
    164
    Very nice :thumb:


    I'll be keeping my eye on this

  16. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69

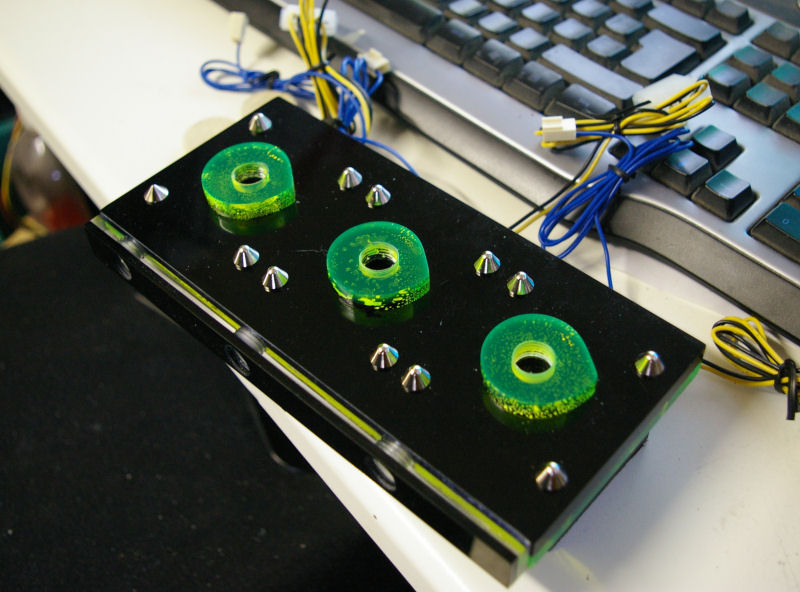

    In the last 2 days we finished the work on the triple Laing Top...

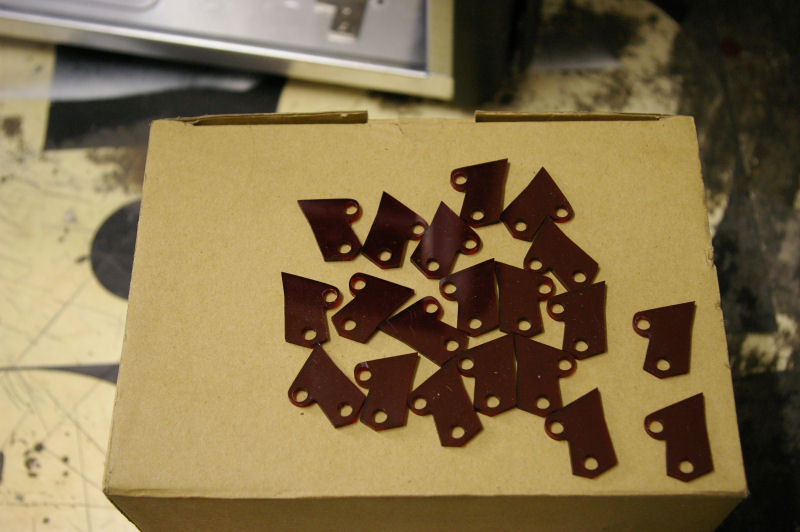

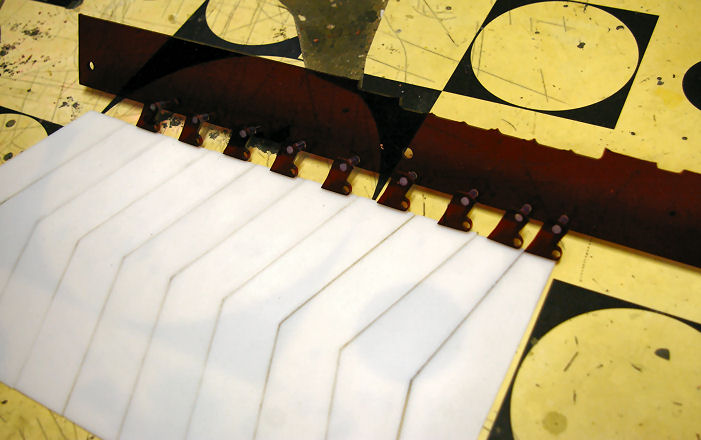

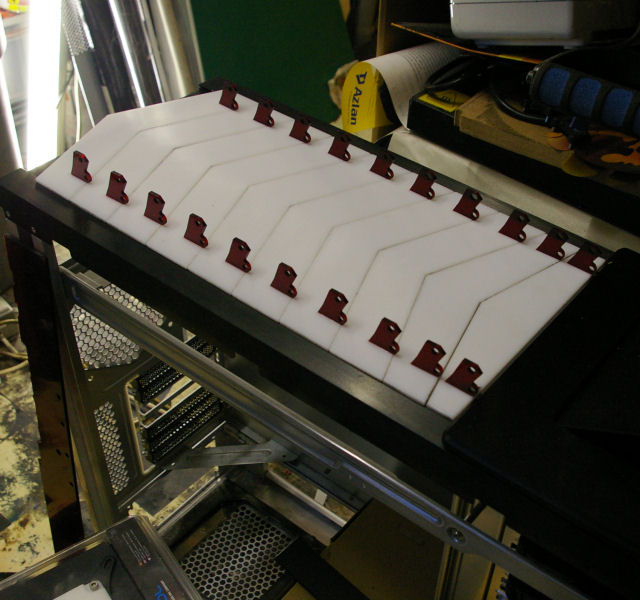

    beside that we glued all the small red parts to the sheds for the top of the case....that way we can easy measure all distances between the holes to make the last parts of the mechanic....

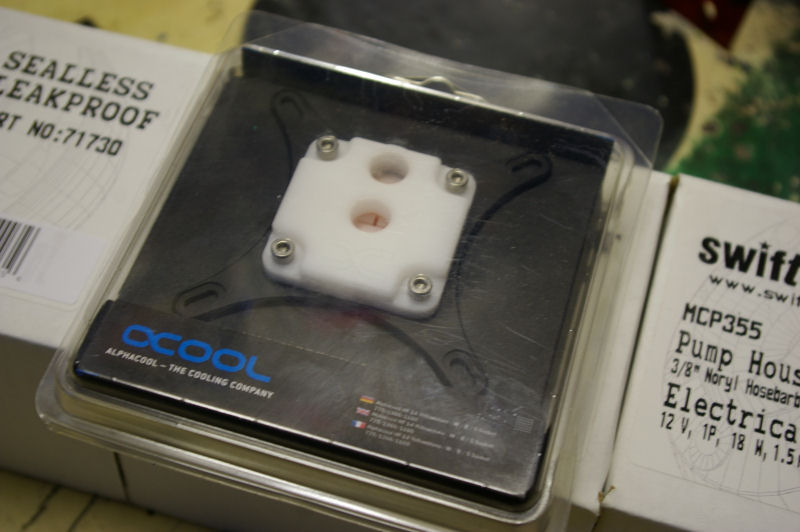

    we also got the pumps....and we decided which cpu cooler we will use....:D


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  17. Validus

    Validus New Member

    Joined:
    25 Aug 2009
    Posts:
    125
    Likes Received:
    1
    Ohhh I like those plexi DNAs.

    I'm excited to see this one!

  18. shakka65

    shakka65 New Member

    Joined:
    17 Jan 2010
    Posts:
    107
    Likes Received:
    0
    So far this mod is very interesting. I cannot wait to see what the HYDRA will look like on the finish case.

  19. Raiden

    Raiden Portuguese reviewer

    Joined:
    26 Oct 2009
    Posts:
    377
    Likes Received:
    1
    Where did you buy that adn stuff?
    Tell by pm please

    Awesome stuff your doing .. il be looking for more updates !

    :rock:

  20. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx a lot m8´s :rock:

    oh they are selfmade.....but just drop me a pm if you´re interested in them :thumb:

    yesterday we finished the work on the laing top, all 3 pumps are mounted, before we could mount them we had to drill the original mounting holes a bit deeper so that we could use 30mm screws, but now everything is fine....

    [​IMG]

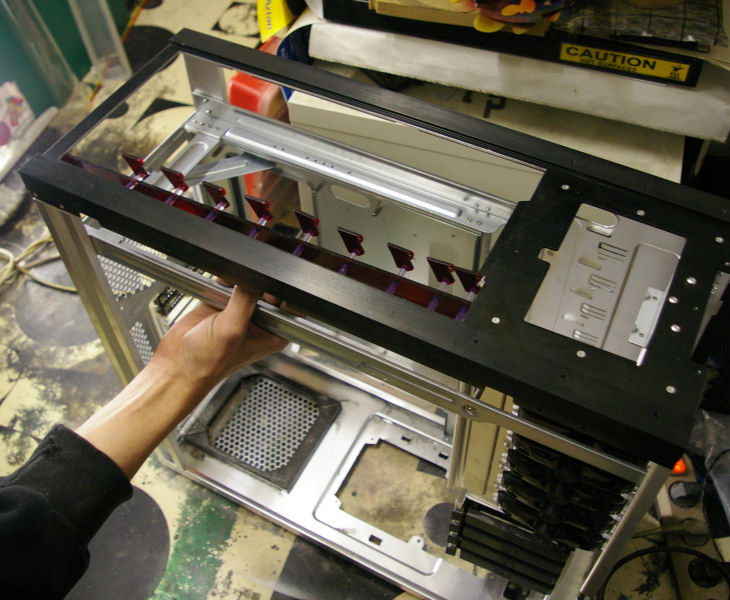

    beside that we prepared the top of the case for the shed/rib construction.....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
