Scratch Build – In Progress Project Tiny

Discussion in 'Project Logs' started by Floyd, 28 Feb 2013.

  1. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Well ive never done a build log on Bit-tech before but I sure have looked some over. Seeing all these wonderful builds inspired me to slap together some old hardware and make a case as small as I could around it.
    I know the hardware isnt the best but hey, its paid for and just sitting idle on the shelf.

    So for hardware i have:
    Zotac 775 socket mobo
    Adata 1600 meg ram (4 gigs)
    Good ol' Q6600 Quad core
    GTX260 GPU
    Rosewill PSU
    640gig 2.5" WD HDD

    Id love a new small form factor PSU to make the case even smaller but that money is no way in the cards having two little ones at home :D

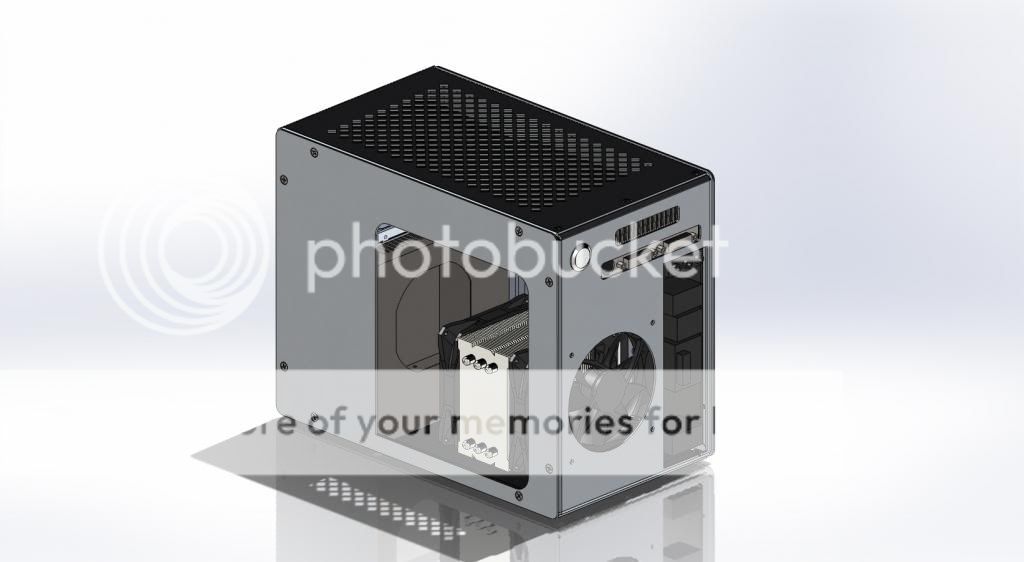

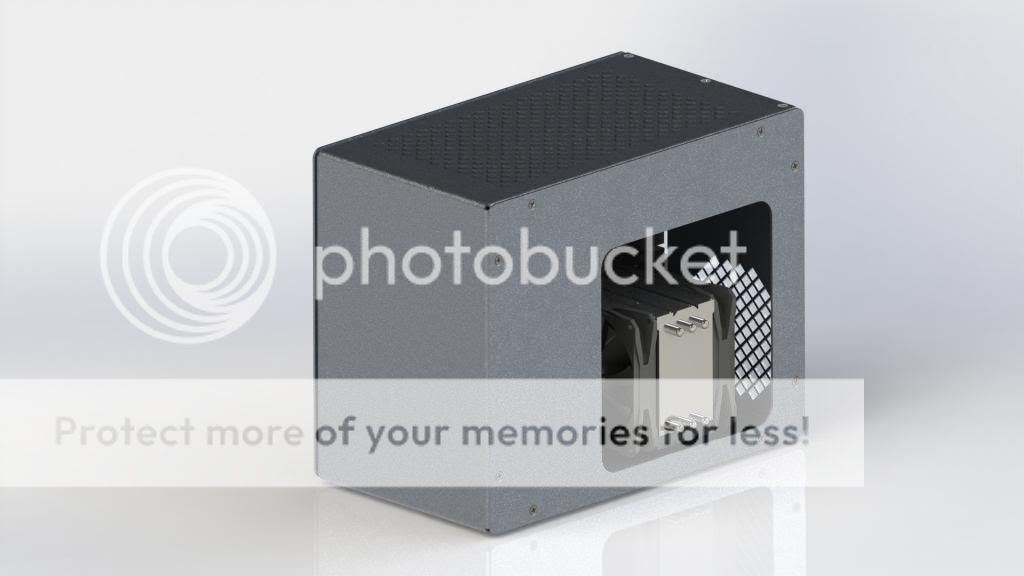

    So onwards to some screenshots of what I have thus far!

    [​IMG]
    [​IMG]
    [​IMG]

    As I update the model and tweak some stuff in more ill get a good render with some better textures and colors.

    Enjoy my first build log on Bit-Tech! :rock:

    EDIT: And for those wondering im at 9.9L and trying to squeeze all I can out of this to make it small.

    Livio likes this.
  2. Yariko

    Yariko New Member

    Joined:
    26 Jul 2010
    Posts:
    575
    Likes Received:
    41
    Umm.. The policy is that you should have started working on the project physically to throw it into Project Logs, this is more for Modding - Planning. But I don't really care if you just start it soon!

    One question, the PSU orientation is pretty exotic, I asume all the low-voltage wiring is coming out of the top where the ventilation is on the PSU, but where is the AC-plug for the PSU, on the bottom?

  3. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Sorry about that! Like i said its my first so i didnt know. Other sites dont require that so i just assumed.

    Ill have some other pics up tonight of the hardware getting preped.
    As for the psu, yes its a bit unorthadox but im going to hardwire the psu out the back of the case instead of under. The only downfall is that the cord cannot be removed but when you think about it you always use the cord so i dont care
    ill update later tonight!

  4. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1

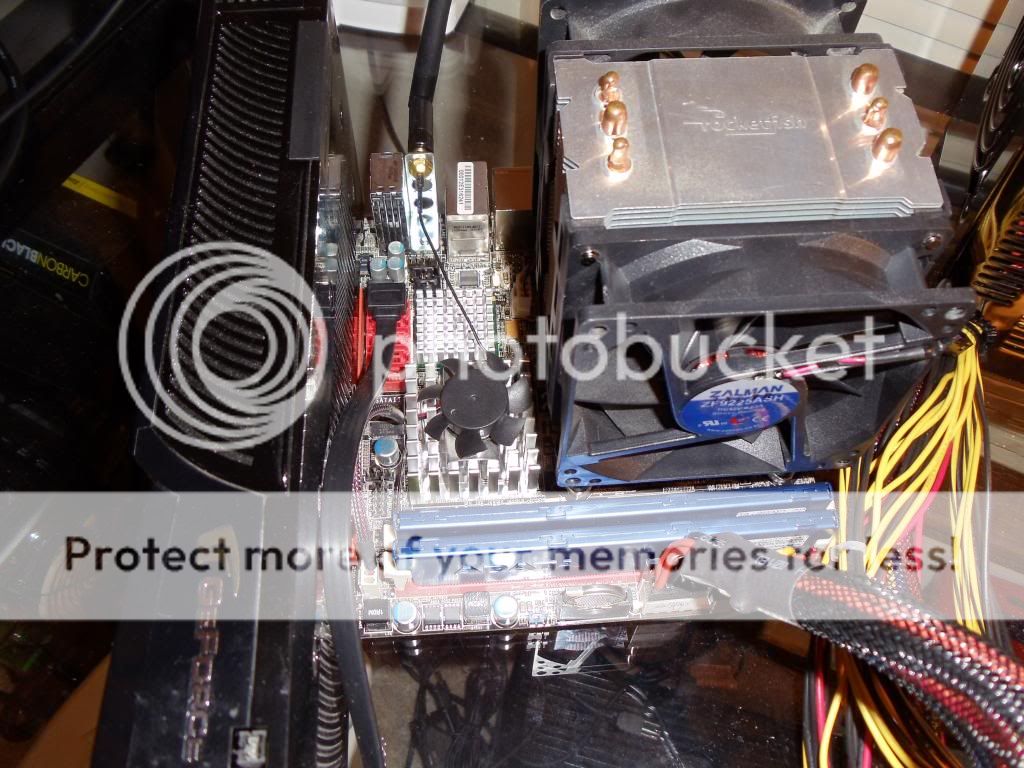

    Here is a quick shot of the hardware just before I hooked it up to make sure everything still works!
    Worked great and only pulled 250watts at the wall with OCCT running power supply test.

    [​IMG]
    [​IMG]

  5. White-Fox

    White-Fox New Member

    Joined:
    11 Feb 2013
    Posts:
    75
    Likes Received:
    4
    it's small :p waiting to see how it works and looks :3

  6. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    My two pieces really driving it to stay bigger are the long GTX260 and the slightly smaller than a normal Rosewill PSU.
    If I had a new PSU and GPU it would be a bit smaller!
    Oh well ill continue on the design and hopefully have it built in the shop here soon enough.

  7. jrs77

    jrs77 Well-Known Member

    Joined:
    17 Feb 2006
    Posts:
    3,487
    Likes Received:
    103
    A SFX PSU and a 8" GPU do wonders when it comes to small builds :)

  8. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Yea but considering that would cost a few hundred its all good that its a little bigger!
    Heck even the SFX PSU would greatly shrink the size :dremel:

  9. jrs77

    jrs77 Well-Known Member

    Joined:
    17 Feb 2006
    Posts:
    3,487
    Likes Received:
    103
    I've got a SST ST45SF lying around, waiting to be used again, as I ditched my miniITX-system for a µATX. They're not that expensive actually. $80 for a very good 450W 80+ Bronze PSU isn't that much.
    They recently released this SFX-PSU with modular cable-management and now a 80+ Gold certification for $99 -> http://www.newegg.com/Product/Product.aspx?Item=N82E16817256084

    Be quiet is selling a 350W SFX-PSU for $55.

  10. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Thanks but even that is out of the budget.
    Everything in this build is free to me and sadly I dont have any money to put into this. Just another challenge of the project!

  11. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Here is a quick update from what last night and today brought.

    [​IMG]
    [​IMG]

    Happy modding guys:dremel:

  12. p0Pe

    p0Pe gief cake?

    Joined:
    23 Nov 2007
    Posts:
    1,442
    Likes Received:
    94
    Looks good floyd. I will look forward to see this getting off the ground!

  13. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Trying to get everything in order on the model within the next day or so and get a case built!
    Ill see how .080" 5052-H32 holds up once you place the components in there.

  14. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1

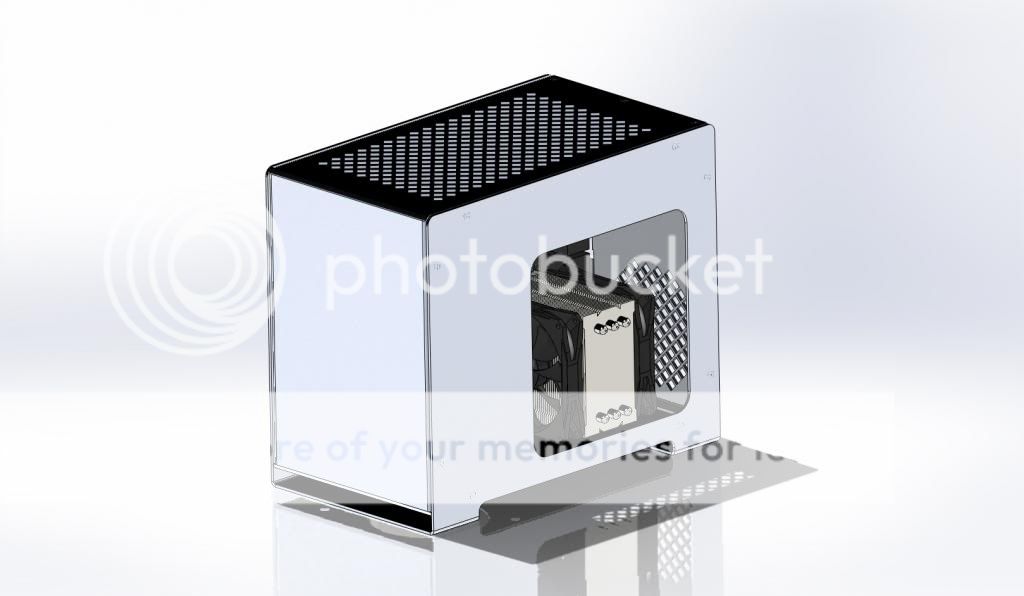

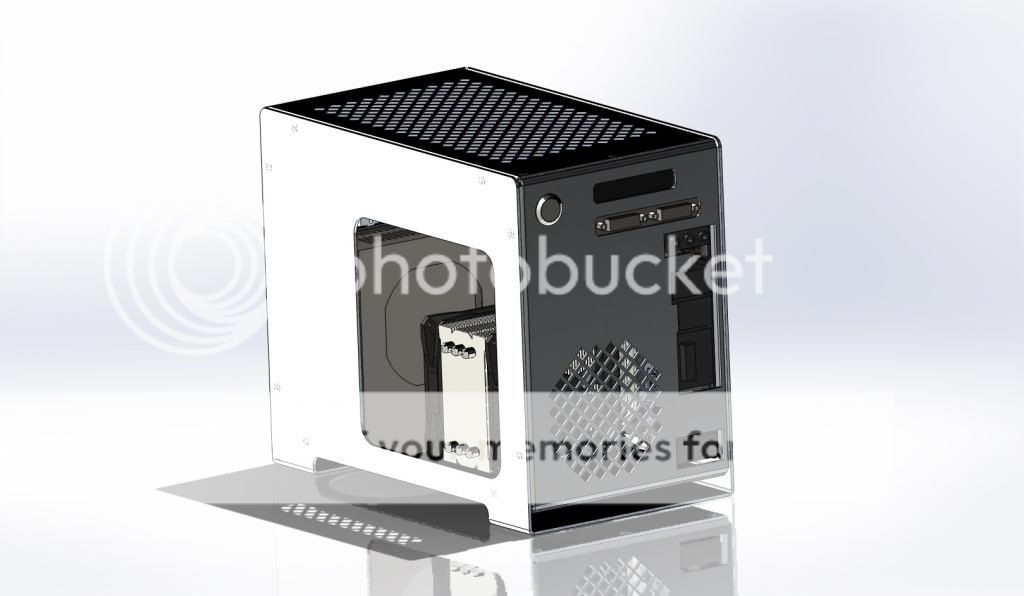

    Ok today's update! Getting closer! Just have a few more little details to fix and then its build time.

    [​IMG]
    [​IMG]
    [​IMG]

  15. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Just thought id give you all a heads up!
    Material has been pulled and last night I wrote the program to punch out the parts.
    Im trying to get it punched and bent during my lunch break today! stay tuned for pictures and a video of the punch machine in action!:clap:

  16. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
  17. Evenge

    Evenge Member

    Joined:
    16 Sep 2006
    Posts:
    659
    Likes Received:
    8
    Looks nice. I have a soft spot for small builds. :D

  18. Floyd

    Floyd Wire Twister

    Joined:
    4 Dec 2008
    Posts:
    288
    Likes Received:
    1
    Sorry that I missed a few "in progress" shots but I think you can get the jist of what is going on.
    I fit checked a few parts and they all seemed fine. Now that the case is together I have to add in the hardware and then work on the wiring and case finish.

    Here is a size comparison against a few random things that I was using:
    [​IMG]

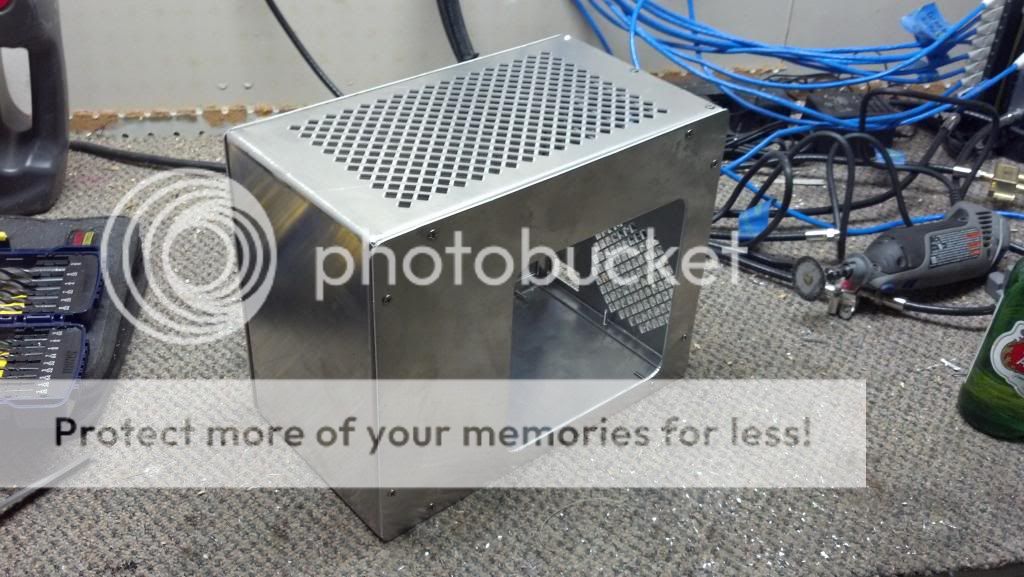

    And then a general shot of the front and rear. PLEASE keep in mind that I havent done much filing and sanding at this point so there are a few rough edges:
    [​IMG]
    [​IMG]

  19. hampurista

    hampurista New Member

    Joined:
    21 Jan 2013
    Posts:
    11
    Likes Received:
    0
    Wow, looks amazing so far, would wish to be able to have the tools and skills to do something comparable. Looking forward to further progress on this project.

  20. Pranja

    Pranja Blackwolf

    Joined:
    18 Dec 2011
    Posts:
    1,171
    Likes Received:
    24
    Looks great. Nice design. :)
