Overclocking Push 465x8 on Q66, but got questions about Term and PLL and need some help

Discussion in 'Hardware' started by Lord Xeb, 30 Jul 2011.

  1. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    I know PLL and VTT are used in helping get higher FSB speeds, but I have also heard that with 45nm chips, 1.4v VTT can kill a chip.

    Via a member on OCN who SS a data sheet from intel, it is stated that the maximum FSB Term is 1.55v. If this is true then, you think 1.5v is the absolute max on a 65nm chip?


    Also what is the absolute max PLL you can apply to the chip?


    Current settings:


    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster ...............: [Auto]
    CPU Clock Ratio ...........................:8
    Fine CPU Clock Ratio.....................:
    CPU Frequency .............................:3.72
    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control..................: [Enabled]
    CPU Host Frequency (Mhz) ............: 465
    PCI Express Frequency (Mhz) .........: 100
    C.I.A.2 ...........................................:[Disabled]

    DRAM Performance Control
    Performance Enhance...................: [Standard]
    X.M.P………………………………………………..: Disabled
    (G)MCH Frequency Latch...............: 400
    System Memory Multiplier ..............:[2.00D]
    Memory Frequency (Mhz) ...............:1066 930
    DRAM Timing Selectable ................: [Manual]
    Standard Timing Control
    CAS Latency Time........................: 5
    tRCD ......................................... 5
    tRP'........................................... 5
    tRAS.......................................... 18
    Advanced Timing Control
    ? Haven;t changed anything in here
    Driving Strength Profiles
    Same here
    Motherboard Voltage Control
    Load Line Calibration........................[enabled]
    Voltage Type.………... [manual
    CPU
    CPU Vcore….……….........................: 1.55
    CPU Termination…..... ......................:1.4
    CPU PLL………………….....................:1.57
    CPU Reference.…………........................:0.760V [Auto]
    MCH/ICH
    MCH Core……………....1.4
    MCH Reference….…….Auto
    MCH/DRAM Ref.…...... auto
    ICH I/O……………….....1.570V
    ICH Core…………...……1.200V
    DRAM
    DRAM Voltage ……....2.1
    rest is auto

    Thoughts or any assistance is appreciated.

  2. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    My QX9650, I wouldn't push more than 1.4v personally, I'd just worry too much...

  3. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22

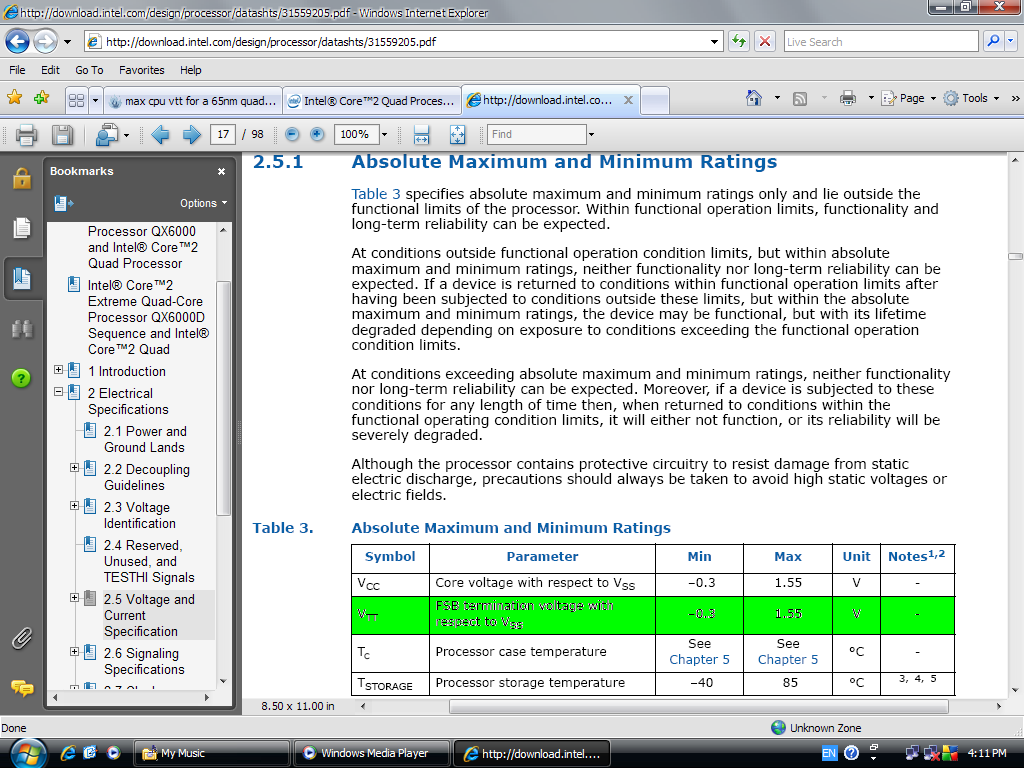

    45nm chip.... Mine is 65nm bud. It can go much higher. 45nm chip's max voltage is 1.5v, I can go 1.55v

    [​IMG]

    Besides Q6600s are built like tanks.

  4. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    I still wouldn't push it that high. Most cars can handle NOS, but wont last if you do...

  5. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    I am not going to push it to 1.5v, but if need be probably to around 1.42-1.44, but only if I need too.

    Later on this winter once it gets nice and cold, I plan on doing some benching again and test out my new found knowledge :D

  6. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    Plus the difference between 3.6 and 3.8GHz will be so low the wear on the CPU just isn't worth it... I dropped mine from 4GHz to 3.8GHz as it'd just randomly fallover, even with 1.35v...

  7. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    I can easily hit 3.8 if I want on this CPU, but I am not trying for speed, but FSB clock. The CPU can be left at 3.6GHz for all I care, but if I can push the FSB higher, it will limit the bottleneck of a 560Ti @ 1000+ core.

  8. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    hmmmm curious. My motherboard refuses to to 400 now though, although it did it happily with my old Q9450. What did you tweak to get 450?

  9. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    Hm.... looks like I have been stable for over an hour now :D


    Settings for 3.6GHz 450x8 (took a bit of play though D:)

    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster ...............: [Auto]
    CPU Clock Ratio ...........................:8
    Fine CPU Clock Ratio.....................:
    CPU Frequency .............................:3.6
    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control..................: [Enabled]
    CPU Host Frequency (Mhz) ............: 450
    PCI Express Frequency (Mhz) .........: 100
    C.I.A.2 ...........................................:[Disabled]

    DRAM Performance Control
    Performance Enhance...................: [Standard]
    X.M.P………………………………………………..: Disabled
    (G)MCH Frequency Latch...............: 400
    System Memory Multiplier ..............:[2.00D]
    Memory Frequency (Mhz) ...............:1066 900
    DRAM Timing Selectable ................: [Manual]
    Standard Timing Control
    CAS Latency Time........................: 5
    tRCD ......................................... 5
    tRP'........................................... 5
    tRAS.......................................... 18
    Advanced Timing Control
    ? Haven;t changed anything in here
    Driving Strength Profiles
    Same here
    Motherboard Voltage Control
    Load Line Calibration........................[enabled]
    Voltage Type.………... [manual
    CPU
    CPU Vcore….……….........................: 1.5125
    CPU Termination…..... ......................:1.34
    CPU PLL………………….....................:1.57
    CPU Reference.…………........................:0.760V [Auto]
    MCH/ICH
    MCH Core……………....1.32
    MCH Reference….…….Auto
    MCH/DRAM Ref.…...... auto
    ICH I/O……………….....1.570V
    ICH Core…………...……1.300V
    DRAM
    DRAM Voltage ……....2.1
    rest is auto


    ^_^

  10. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    Only many more to go :p

  11. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
  12. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    1.66V!!!!!!! What are you cooling that with?

  13. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    H50 with 1 UK3K and shroud outside when it was 20F XD There is a deadspot between 1.6v and 1.65v on this damn chip...

    EDIT: Still going

    EDIT2: This is interesting. I normal don't bother just bumping this up slowing... I usually ame like Hmm... lets put this this this and this at this and see if ti runs. if it is stable, leave it....

    Last edited: 30 Jul 2011
  14. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    How have you got it so high? What chipset does it use?

  15. Action_Parsnip

    Action_Parsnip New Member

    Joined:
    3 Apr 2009
    Posts:
    720
    Likes Received:
    40
    Hmmm. What has changed in your setup in the meantime?

    Try bumping the PCI-E clock up to 105/110. That can help shooting for high FSBs. Generally though, at 400+ you will need to get mean with that northbridge chip (push some volts through).

    EDIT: Pete, do you have GTA 4 by any chance??

  16. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    Nope. Why?

    I only changed the chip, nothing else...

  17. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    P45 yo. Also the VID on this chip is 1.275 :D

    http://www.youtube.com/watch?v=lRCFjfUXIgc&feature=channel_video_title

    I needed more term, PLL, and NB voltage, probably a notch up on the vcore would have helped BUT I did at least boot into 4.3 :D Although at the time I didn't know the max on this chip so >.>


    The UD3R/UD3P are known for being monsters when it comes to overclocking.

  18. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    Is that high....? Do you have your motherboard WC or something..?

  19. Lord Xeb

    Lord Xeb Derka Derpa Derka Derp

    Joined:
    7 Jan 2010
    Posts:
    176
    Likes Received:
    22
    20 more minutes till the 2 hour mark. Can I make it?

    Also, no, just air. The stock heat sink on the UD3P is pretty good. I just took off the metal logo plate and put a fan over it.

    Also it is 735MHz FSB if I recall. I think it holds the world record.


    Also the average for MOST people on the Q6600 is 3.6GHz. On water they are lucky to hit 4.0, if that. I hit 4.2. The highest overclock on a Q6600 is 5.2 or 5.3 with LN2.

  20. Bloody_Pete

    Bloody_Pete Technophile

    Joined:
    11 Aug 2008
    Posts:
    7,645
    Likes Received:
    620
    If I wanted to get my FSB higher, what do I need to tweak?
