    Long time since I have dealt with modding. It is time for a new case. This time it will be a computer desk.

    As always, I work without a final plan. I just have a general vision :)

    I've started from the top surface of the countertop. I've glued four oak planks with a total width of 60 cm. Ultimately, I would like to receive the white, smoked oak color. So to spice up the surface I've added some inlay in the shape, you don't guess by looking at the title, lizards.

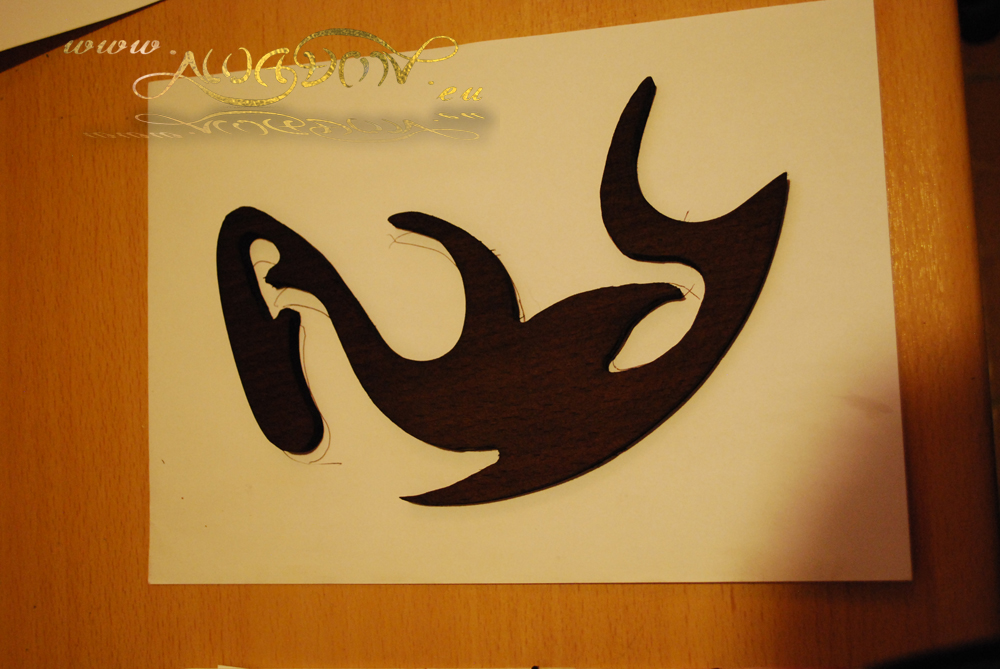

    I've cut out the individual elements, this time with a fine beech wood:

    [​IMG]

    I've tried at this stage to deep-stain the wood. Unfortunately, the color not sufficiently penetrated the wood :( I'll worry about that later.

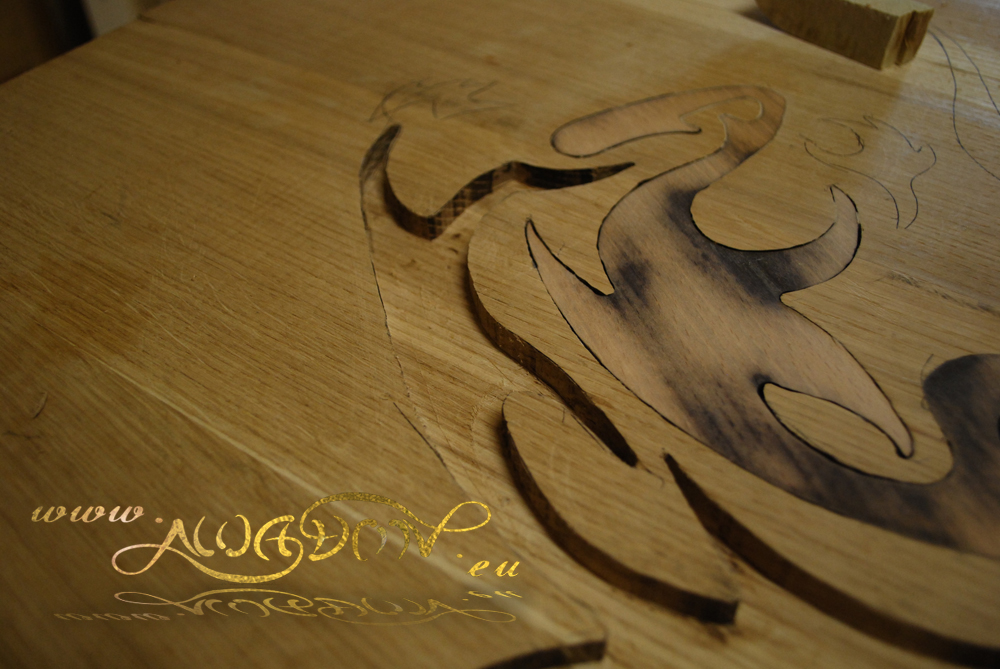

    Now I had to mill the space in the countertop to paste inlays.

    [​IMG]>

    [​IMG]

    You can see both: the traced outline, milled channel and already embedded element.

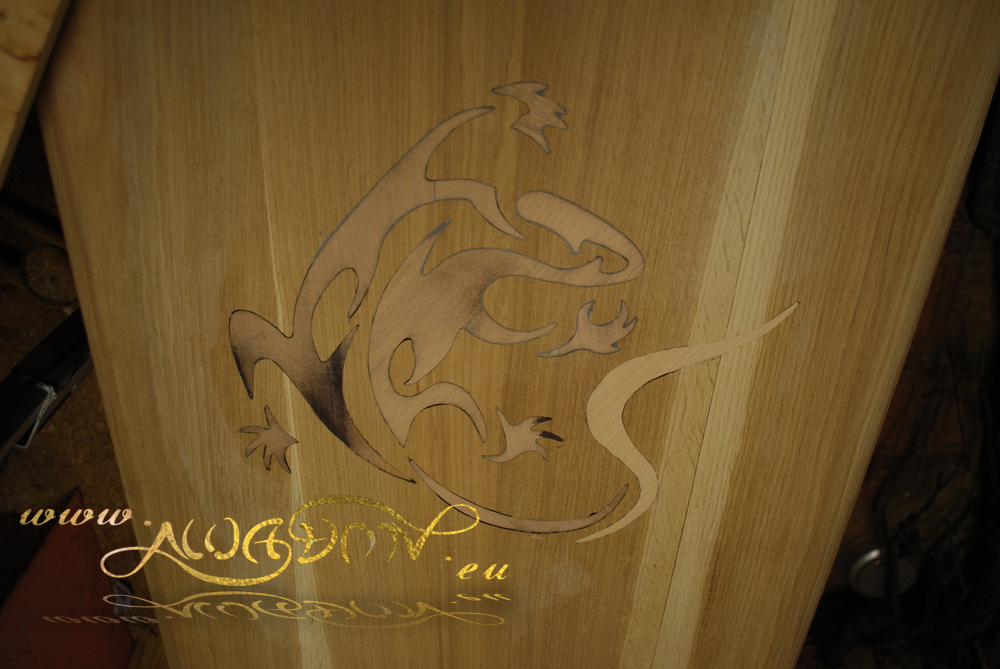

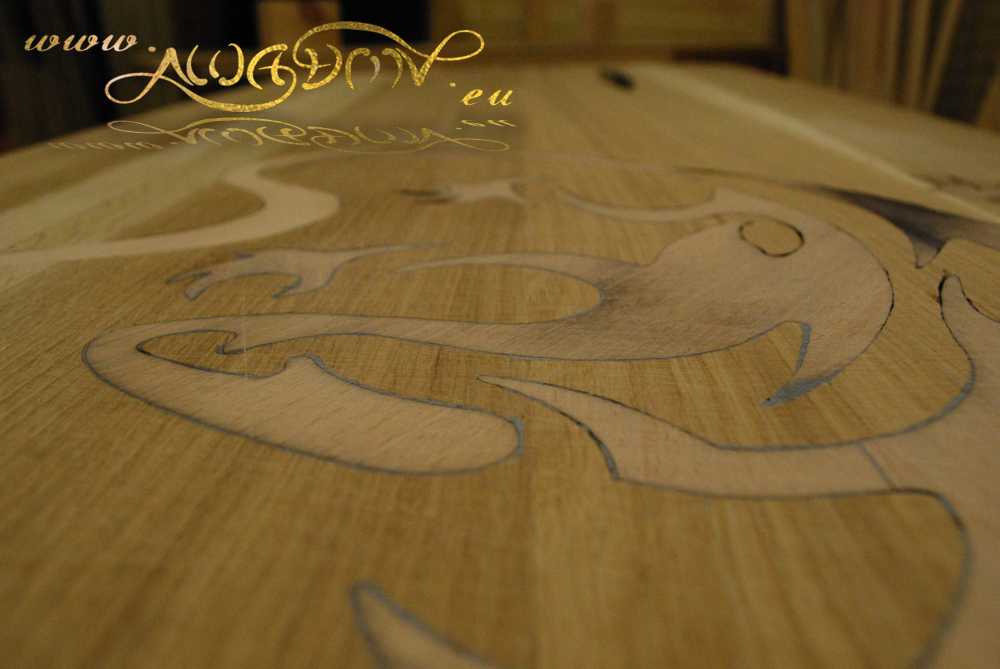

    Two days later, I had the inlay finished.

    [​IMG]

    [​IMG]

    There is still sanding and leveling the surface.

    Last edited: 21 Jul 2014
  2. metalglasses

    metalglasses Member

    Joined:
    10 Apr 2012
    Posts:
    44
    Likes Received:
    1
    Hey, I hear ya about not modding for a while.

    Anyways, I dig the inlays, good job.

    One question, though, what is the setup going to look like (ie, componet placement, intake/exhaust fan placement, wire management ideas, etc). Are you going with something like L3P or something else?

  3. Knighthammer

    Knighthammer New Member

    Joined:
    18 Feb 2011
    Posts:
    103
    Likes Received:
    0
    Nice inlay - wow!

  4. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32
    Maybe it's funy. But I really don't know now. I want to place a full motherboard inside. No watercooling. That's for sure.

    Now I want to make some progress which doesn't need exact component placement.

    And than maybe search for some sponsors. Which isn't easy, especially in Poland.

    Now some more work progress.

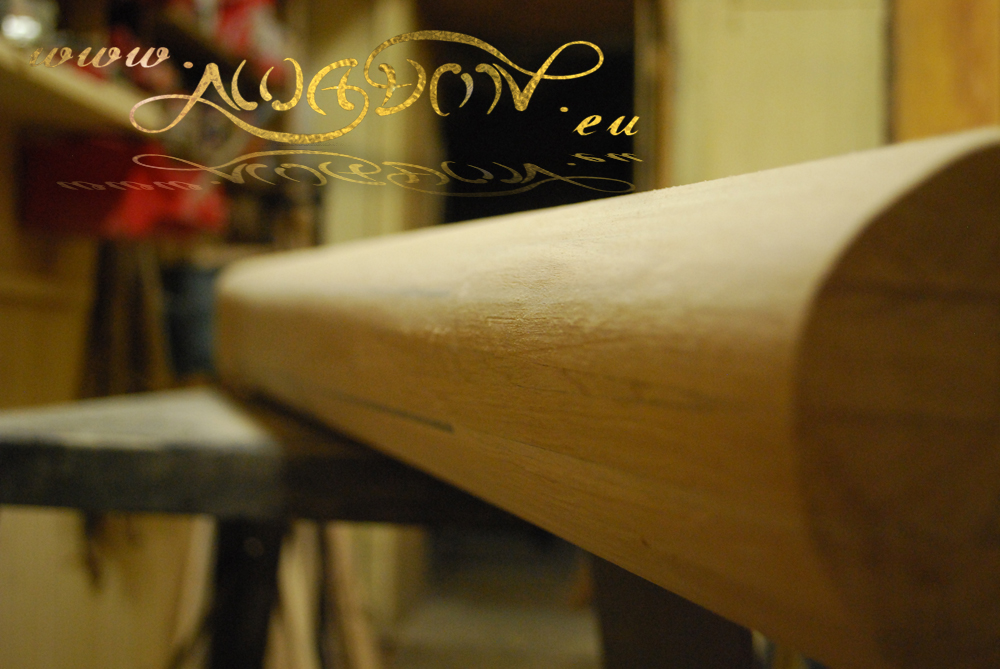

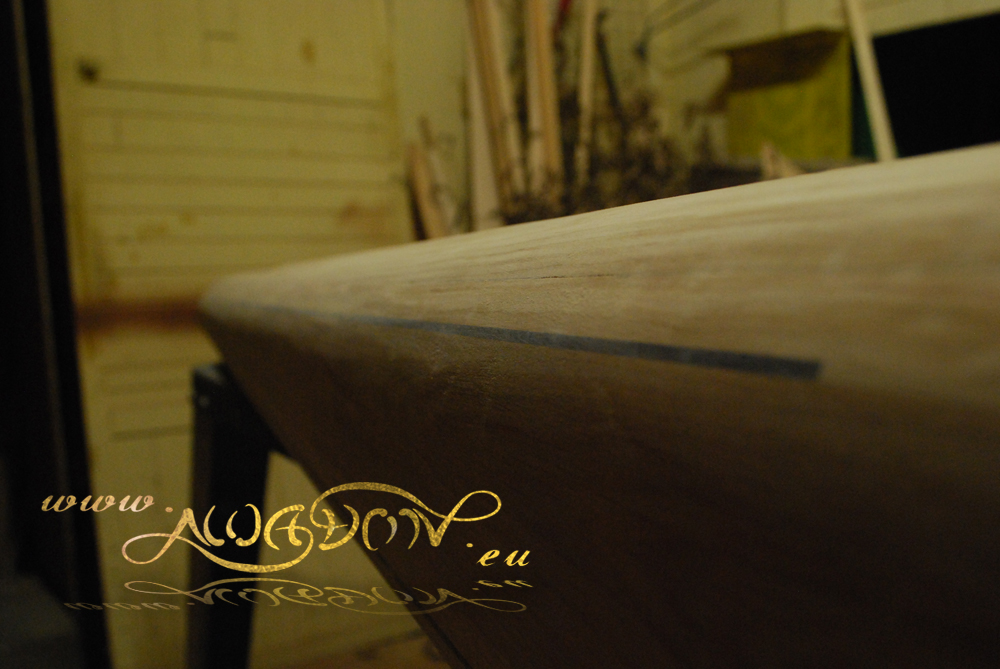

    I want to make desk countertop to be in a wedge shape. That's why I've added the triangular edge bands. Then cut them lightly.

    [​IMG]

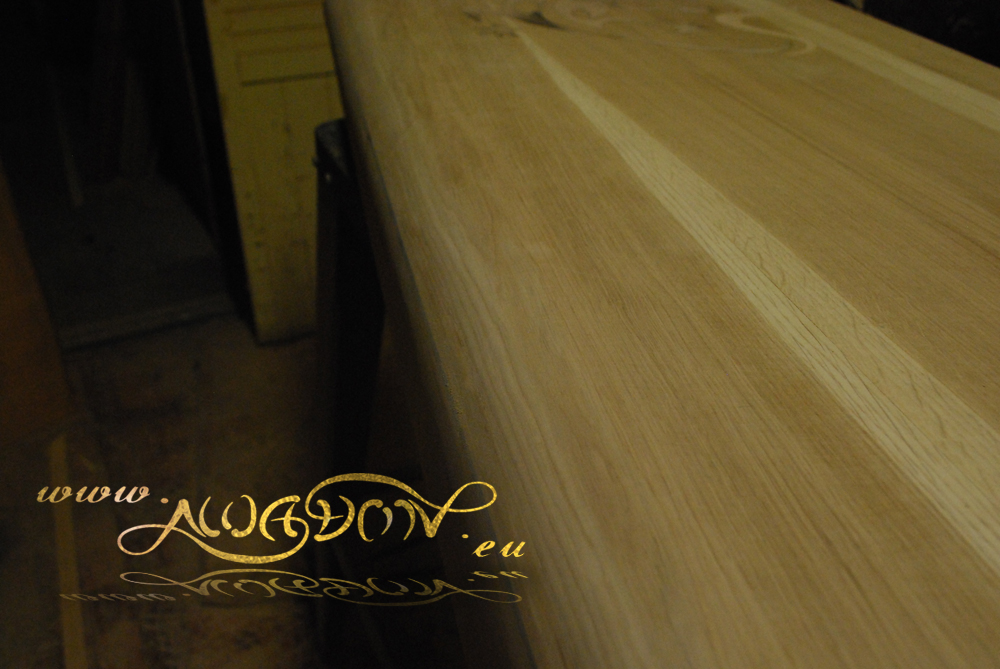

    And then I've sanded them. (Oh, how I do not like this dust).

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

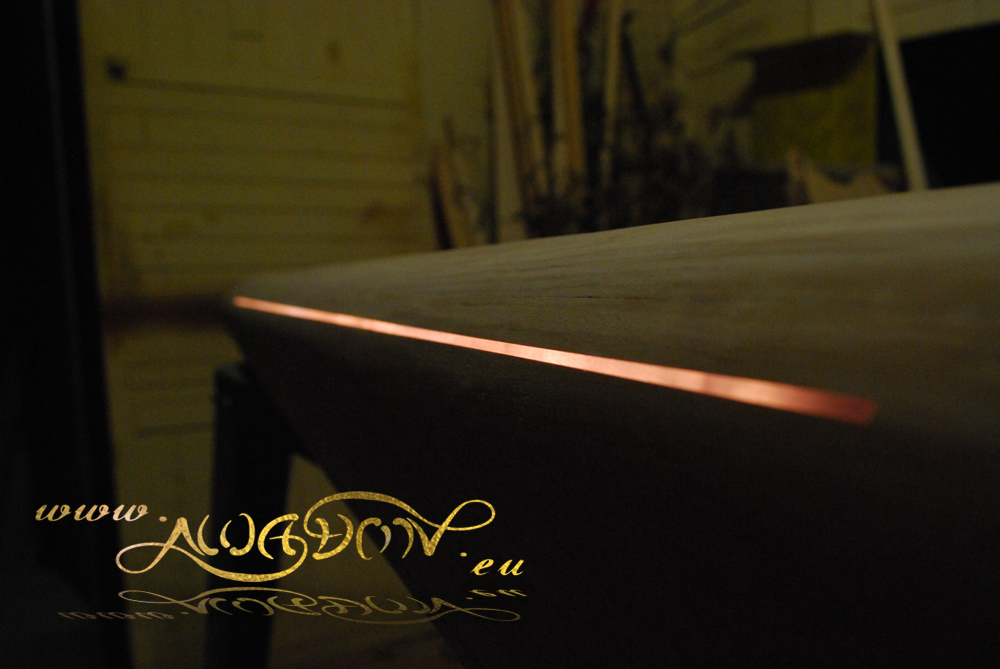

    A little to dark !!!




    Aziz, LIGHT!




    [​IMG]



    Ahh, much better. Thank you, Aziz..



    [​IMG]

    [​IMG]

    [​IMG]

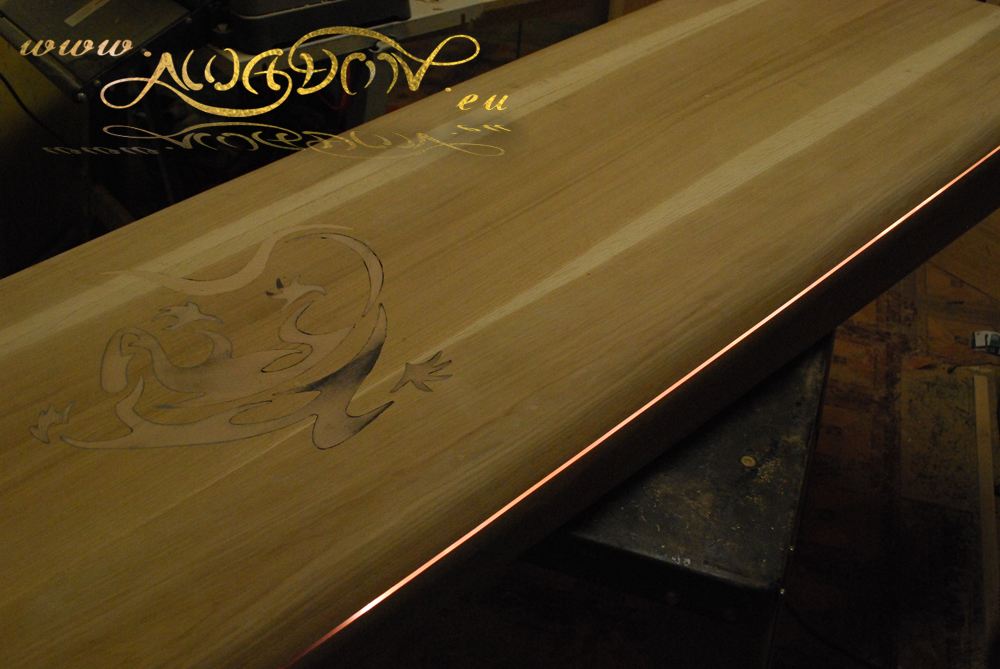

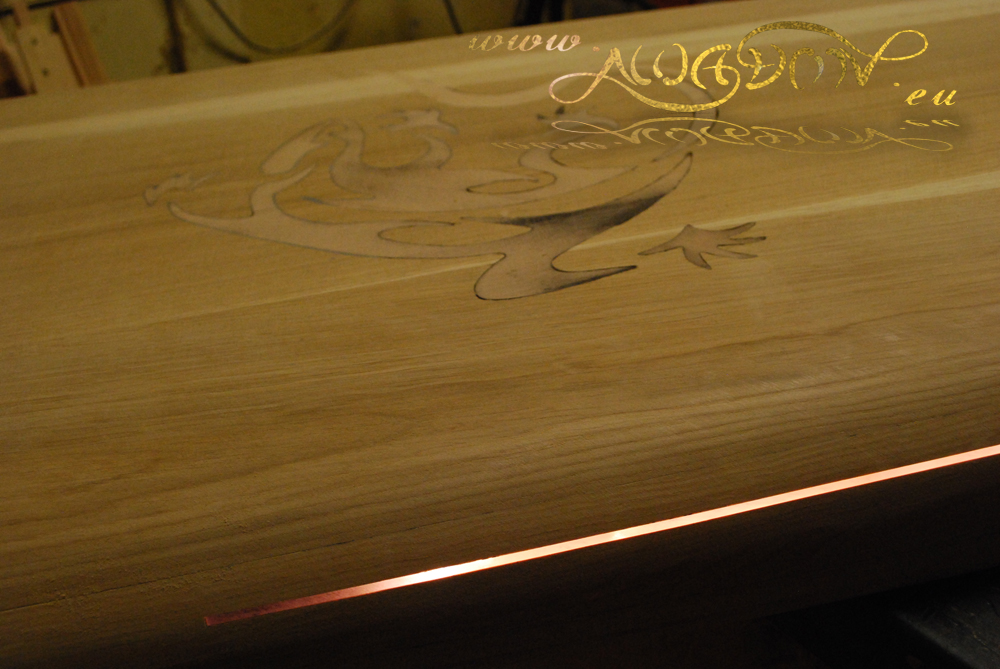

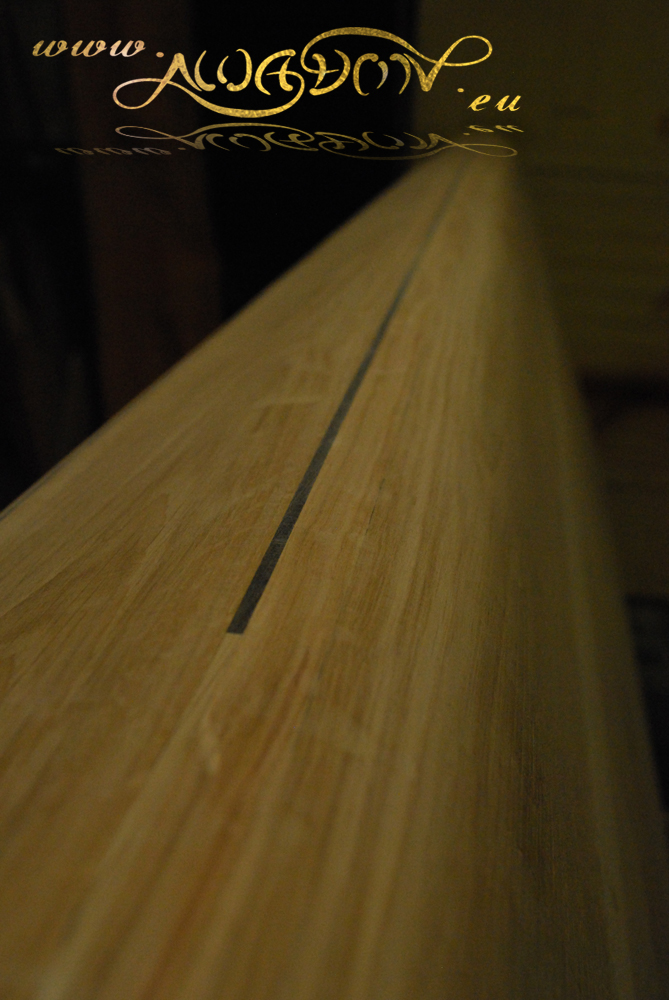

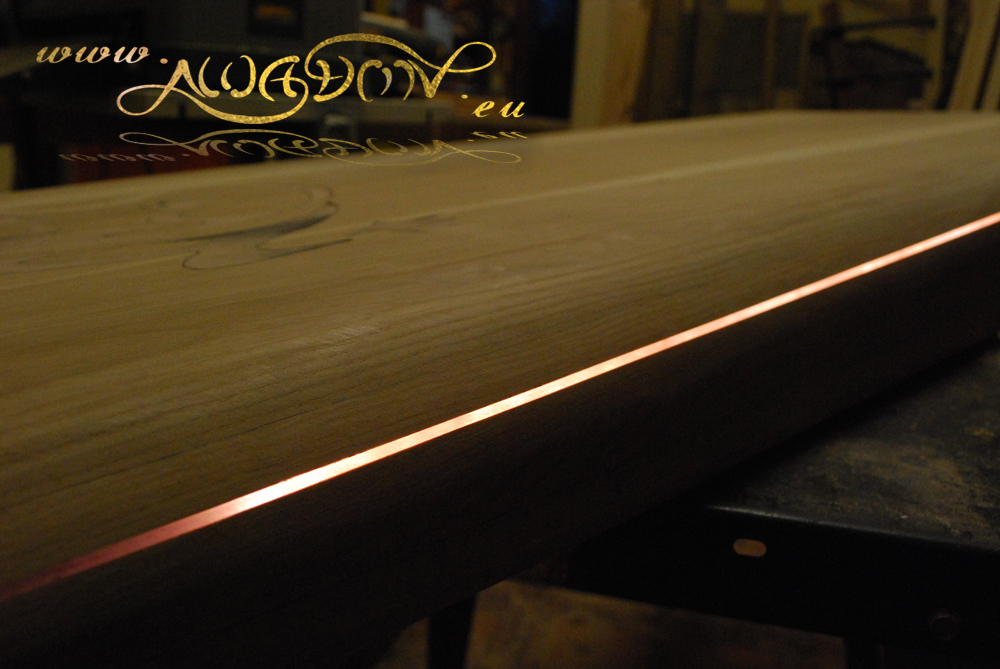

    I've "merged" some pvc in the edge. At the moment it's just an operating test. I wonder what color would be the best here :)

  5. Primum Agmen

    Primum Agmen New Member

    Joined:
    21 Sep 2012
    Posts:
    74
    Likes Received:
    0
    Interesting inlay, be interesting to see where you go with this.

    Loving the Fifth Element joke. :D

  6. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,120
    Likes Received:
    572
    Lovely start. :D

  7. Egami

    Egami Why is the dremel on fire?

    Joined:
    27 Aug 2013
    Posts:
    177
    Likes Received:
    3
    I likey big time. Count me in.

  8. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32
    Thanks guys :)

    Some progress for today.

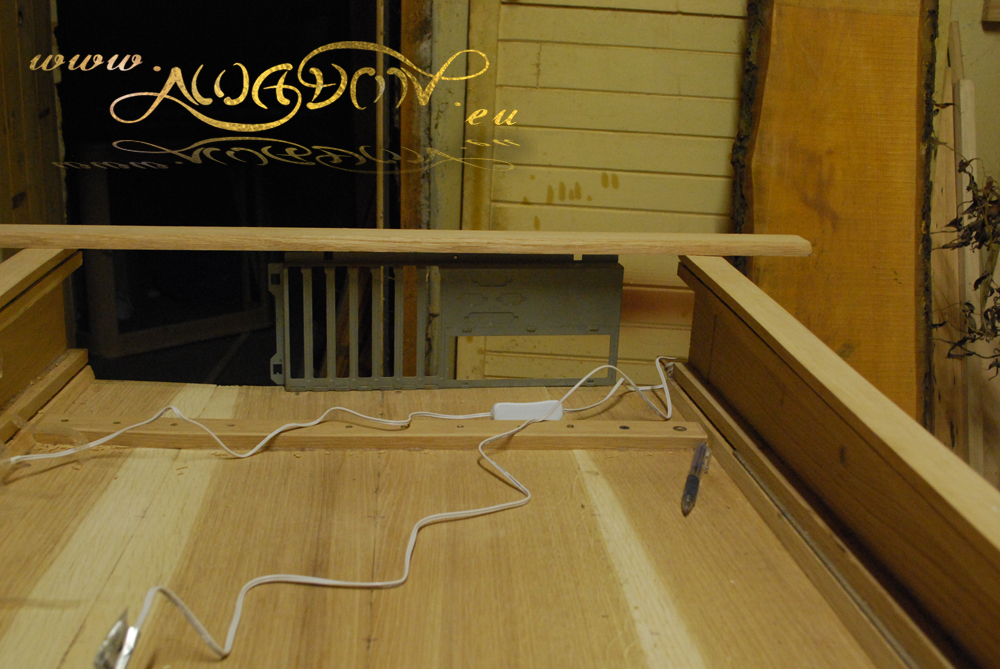

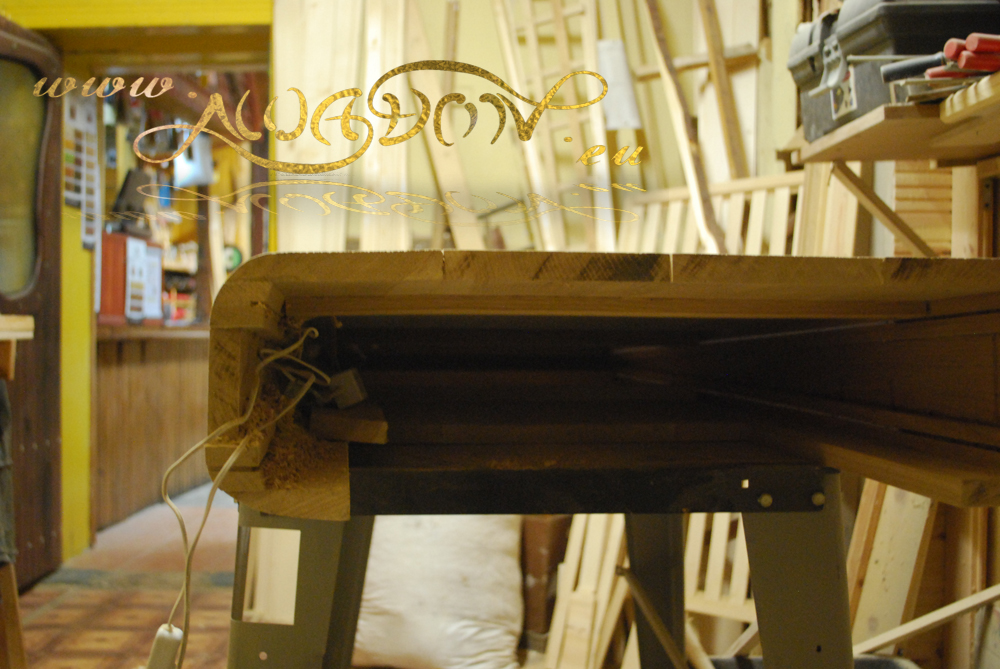

    Success! I was able to precisely determine the location of the motherboard.

    It fits the highest part of the countertop.

    [​IMG]

    [​IMG]

    Yes. I know You still do not see anything:) I will try to show a sketch in the near future.

  9. l3p

    l3p www.^.nl

    Joined:
    1 Nov 2010
    Posts:
    832
    Likes Received:
    71
    Very very good start :)

  10. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,120
    Likes Received:
    572
    Careful there... There's a lot of GPU cards on the market that stick up way above the I/O bracket.

  11. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32
    Thank you for that info. I think I will have about 2-3 cm more space. That will have to do.
    There is a lot of cpu fans much higher too. But I'll have to settle for lower.

  12. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32

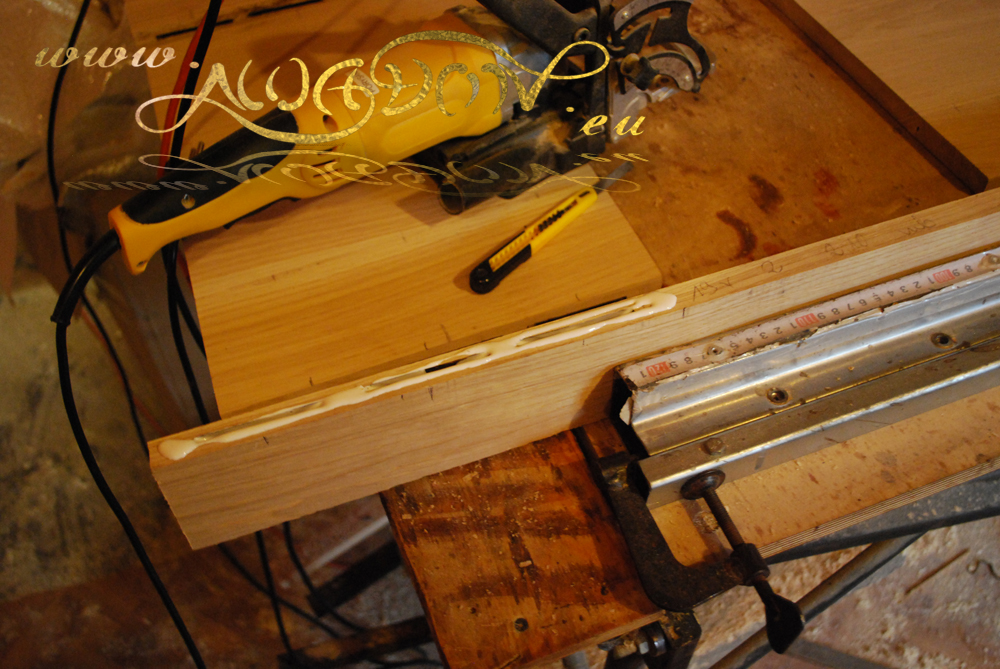

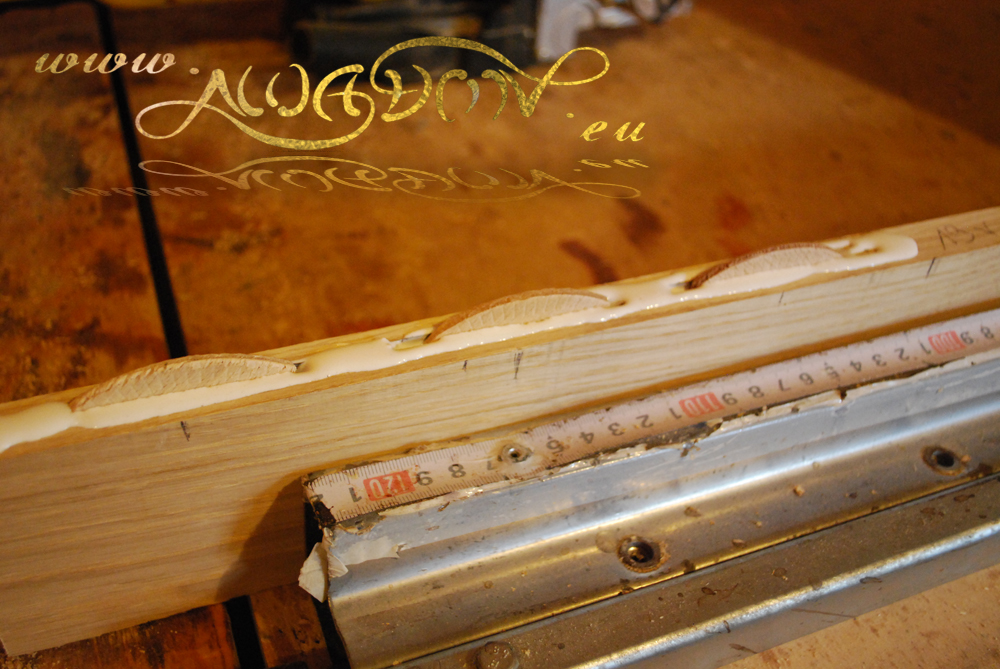

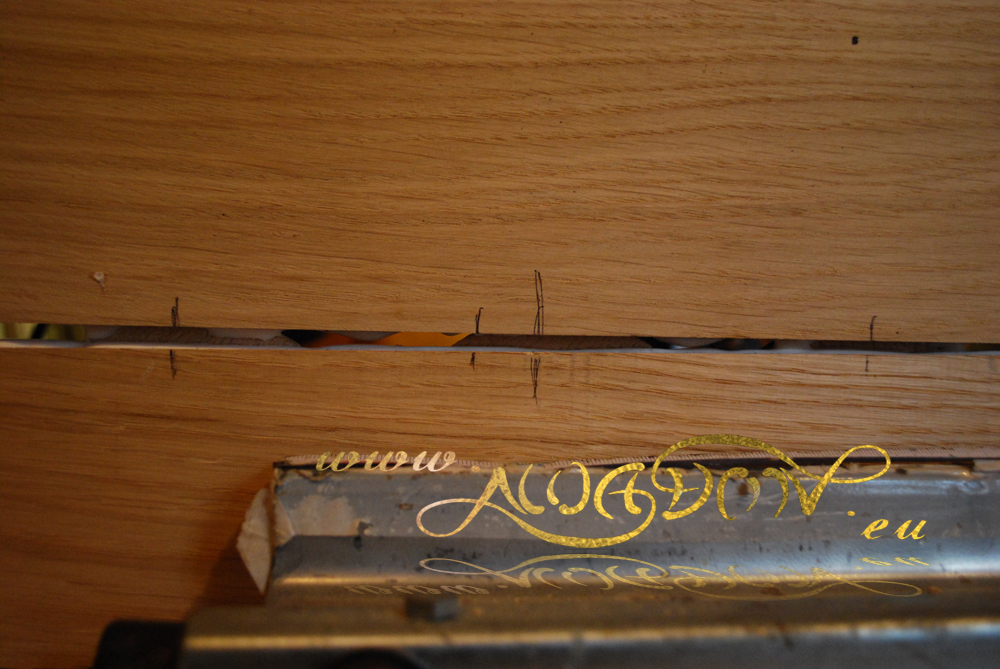

    Some pictures from gluing. I'm using wood biscuits - lamellas.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    There are never too many clamps :)

    [​IMG]

  13. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32
    Deck already took final shape of the wedge. I've sanded it initially too.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

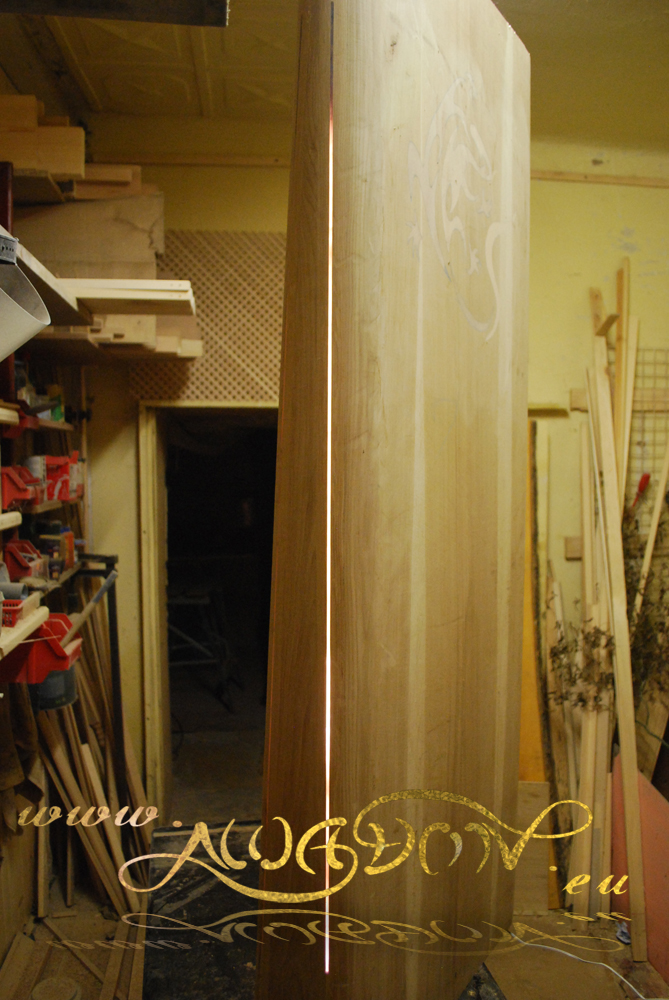

    Vertically it would also look nice :)

    [​IMG]

  14. keir

    keir S p i t F i r e

    Joined:
    5 Oct 2003
    Posts:
    4,377
    Likes Received:
    48
    wow

  15. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,120
    Likes Received:
    572
    Vertical works too. -not as a desk, but it looks really good.

  16. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32
    Thanks :) Of course I will stick to my "old" plan.

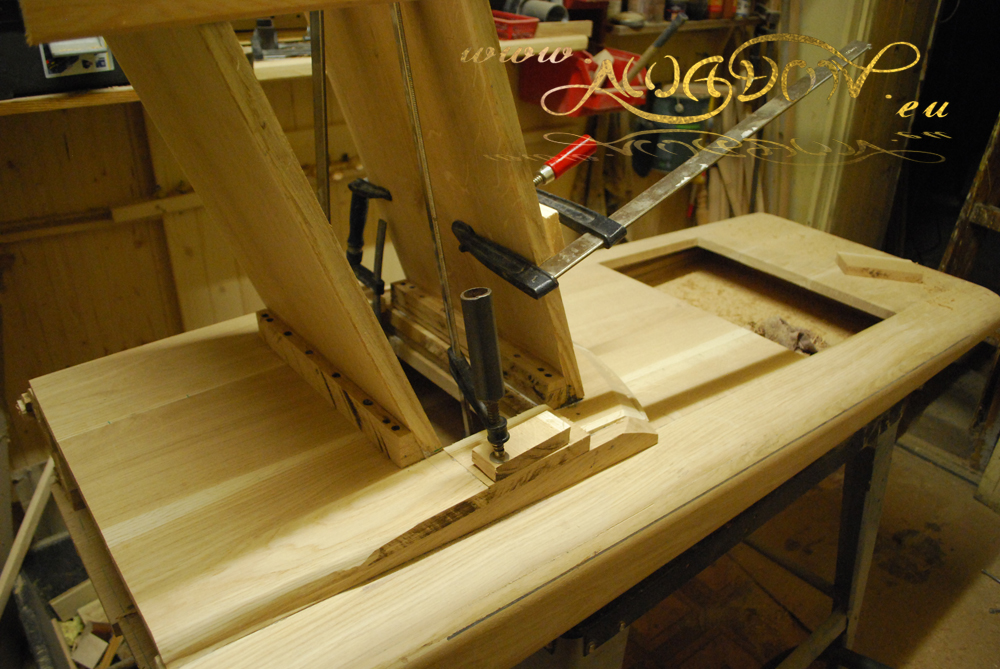

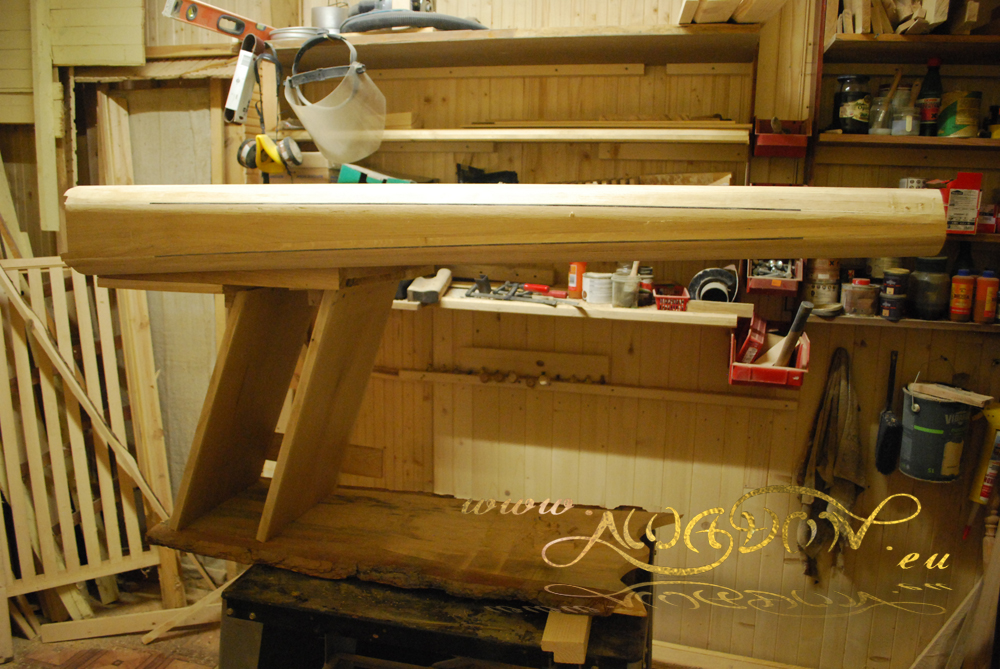

    Now I must add a leg.

    [​IMG]

    [​IMG]

    And a small test.

    [​IMG]

    [​IMG]

  17. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    10,120
    Likes Received:
    572
    Interesting concept. Watch out for "that person". -The dumb fat one that sits on stuff.
    If you don't know one of those people, then this will be awesome.

  18. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32

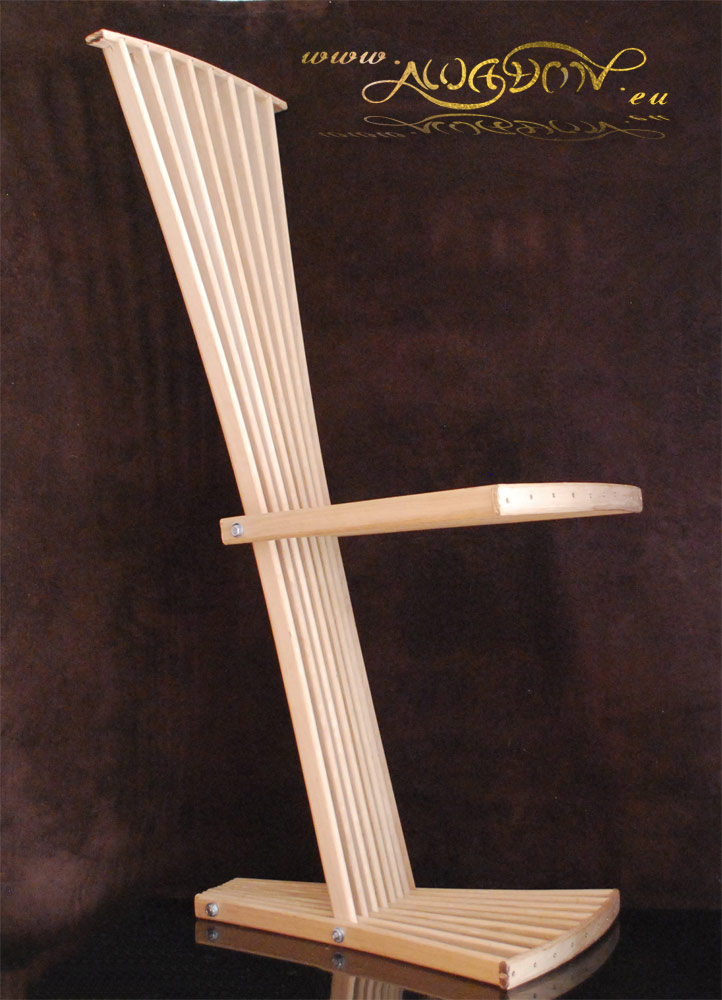

    I believe I can avoid "that person" :)

    I will give him my chair.

    [​IMG]

  19. Primum Agmen

    Primum Agmen New Member

    Joined:
    21 Sep 2012
    Posts:
    74
    Likes Received:
    0
    You're a braver man than I, I would have added some bracing under that seat to support my 14 stone weight. :D

  20. awadon

    awadon New Member

    Joined:
    23 Jan 2010
    Posts:
    244
    Likes Received:
    32

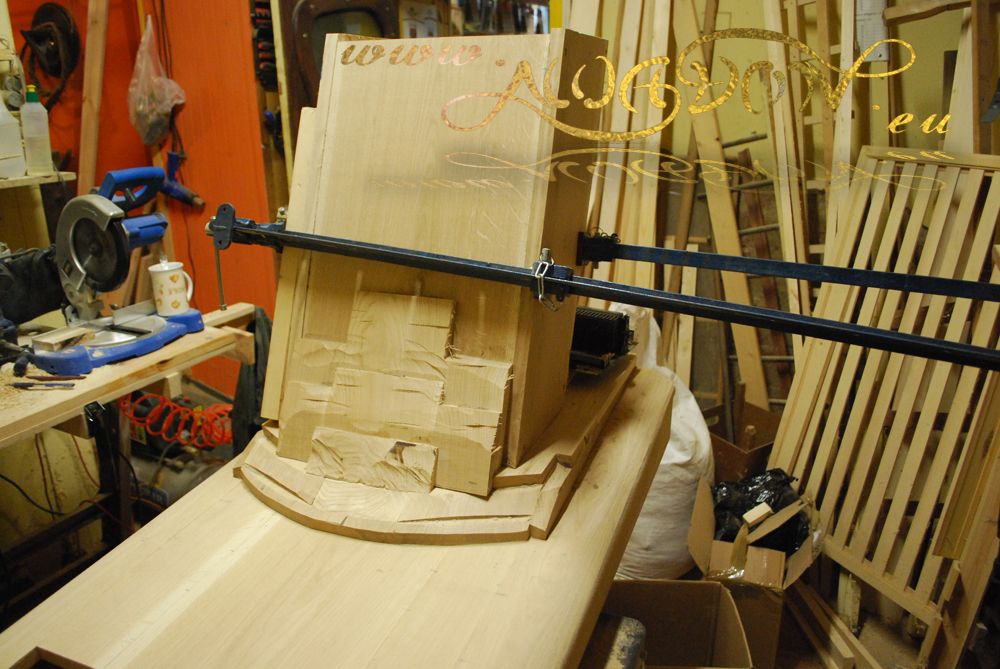

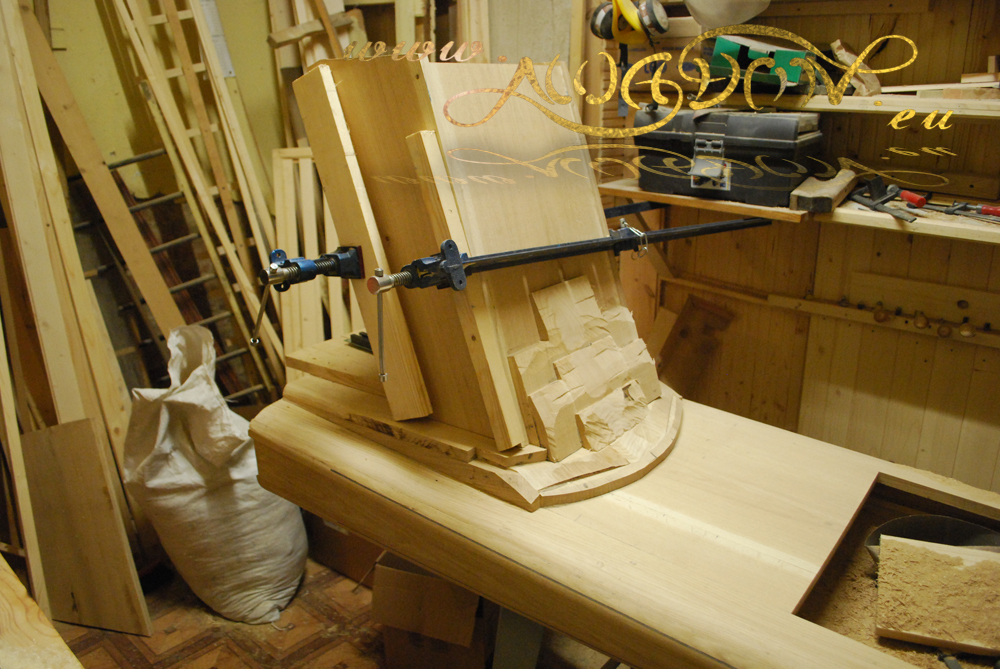

    In order to properly shape it I have glued several layers of wood. Already it is tiring. And as I think about grinding and shaping ....

    [​IMG]

    [​IMG]

    [​IMG]

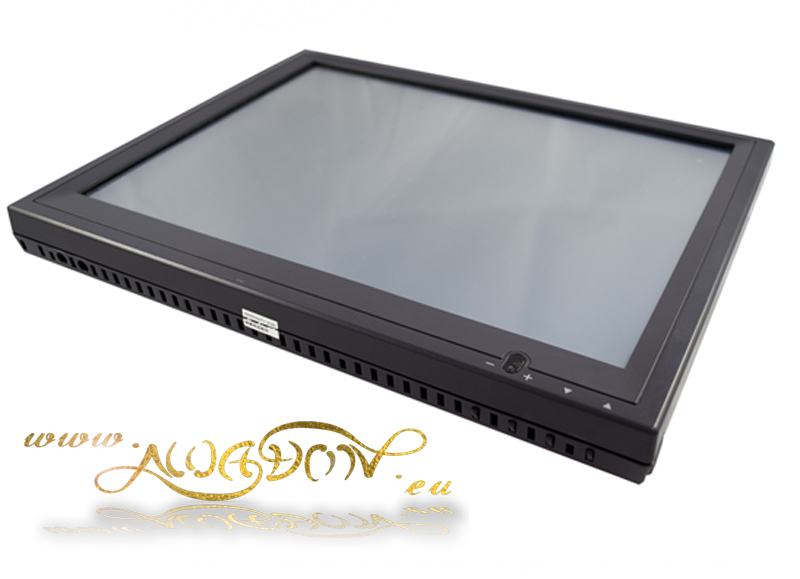

    Today arrived a secondary touch screen - it will be ejected from the side table.

    [​IMG]
