Case Mod - In Progress Poor Man's PC MOD - Finish..

Discussion in 'Project Logs' started by jay2, 22 Oct 2012.

  1. jamsand

    jamsand Minimodder

    Joined:
    21 May 2011
    Posts:
    1,208
    Likes Received:
    48
    Think we just stepped back 20 years to the origins of watercooling lol

  2. Canardwc

    Canardwc @French_fab_factorie

    Joined:
    22 Sep 2011
    Posts:
    568
    Likes Received:
    159
    Really good idea, but with how many pressure di you tes it? Be careful with the pomp pressure delivery.. :thumb:

  3. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    a very small update..

    [​IMG]

  4. k.3nny

    k.3nny Minimodder

    Joined:
    27 Jan 2010
    Posts:
    846
    Likes Received:
    34
    Respect for u sir!

    I love the way you do this!

  5. spolsh

    spolsh Multimodder

    Joined:
    4 Feb 2012
    Posts:
    1,049
    Likes Received:
    315
    like the idea of modifying the dark knight to water cooling. Would some springclips be a possible solution to mating the water hose to the coolers heatpipes neatly ?

    remember to leak test again after tidying up the sealant, easy to introduce a weak spot when tidying.

  6. CMos

    CMos What's a Dremel?

    Joined:
    30 Mar 2009
    Posts:
    39
    Likes Received:
    0
    This log put a smile on my face. It's really nice to see what you can do with just what you have on hand. Great work so far!

  7. legoman

    legoman breaker of things

    Joined:
    28 Feb 2010
    Posts:
    4,286
    Likes Received:
    624
    Amazing work shows modding isnt about lobbing money at things +rep

  8. OcSurfe

    OcSurfe Uber Noob

    Joined:
    7 Aug 2012
    Posts:
    605
    Likes Received:
    11
    Love the mod mate keep it up!
    nice to see what can be achieved whilst keeping a budget!

  9. Si_the-dude

    Si_the-dude Techaholics Anonymous. 0 days clean

    Joined:
    17 Dec 2012
    Posts:
    429
    Likes Received:
    32
    :DThis really cheered me up dude. Now, where are all of those spare shoelaces of mine!?

  10. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    :D

    I failed in water cooling, I accidentally drop a screw on my mobo procy pins.. and 1 pin is completely broken un repairable.. I sold my rads to buy a new mobo.. thats why this project will not be watercooled :(

    :D:thumb:
    Money is expensive :eyebrow::D
    I'll play more on air cooling after i found some cheap mobo nearby. An itx perhaps :D
    :D shoelaces :rock:

  11. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    an other small update

    a newbie buy enermax TB 40 and put it on a small case, and end up he cant close the case door. So he cut off some of enermax top fins and copper tube. But the result is ugly as hell.

    I cant resist to buy it when he sell it for only 5$ w/o fans. Well, i still have may beloved yateloon fans so I fix that hsf and here it is.

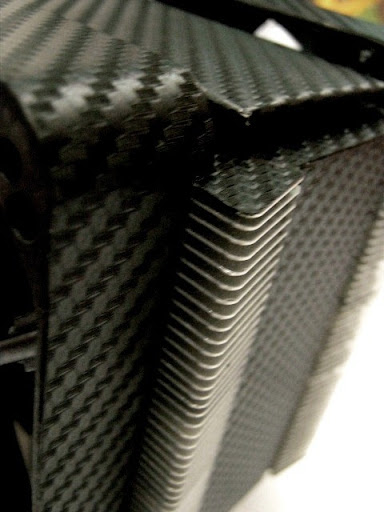

    Enermax TB40 Carbon edition :)

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    I dont know its performance yet, since i dont have one mobo to test it. But i put my faith on yateloon, i believe it wont perform bad.

  12. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    double post.. sorry

  13. OcSurfe

    OcSurfe Uber Noob

    Joined:
    7 Aug 2012
    Posts:
    605
    Likes Received:
    11
    Love the work mate

  14. Guest-23315

    Guest-23315 Guest

    It might not work because he's probably cut the top off the heat pipes, and busted the thermal wick effect-stuff-thingy..

    But otherwise, awesome work... real improvement over the original case.

  15. Sheiken

    Sheiken Wat?

    Joined:
    9 Jan 2005
    Posts:
    1,124
    Likes Received:
    18
    It will perform horribly.

    Otherwise very impressive and inspiring log!

  16. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    :D:thumb:
    I close the heat pipe top with tin solder and galvanic plate.

    today i'll buy a biostar itx mobo, and we'll find out its performance

  17. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    small updates.. again.. sorry

    [​IMG] [​IMG] [​IMG] [​IMG]

    brighter photo, a bit dirty :D
    [​IMG]

    The VGA CARD: Super Ultra Great Delicious Wonderful Over Watch HD 6570 :rock:
    [​IMG]

  18. jay2

    jay2 Indonesian Modder

    Joined:
    3 Oct 2012
    Posts:
    107
    Likes Received:
    8
    Finish-ish

    Hiding cables
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    case panel closed
    [​IMG]

    Front panel with USB3, Jet fighter military switch, knob fan controller
    [​IMG]


    Carbon :rock:
    [​IMG]

  19. elAwesome

    elAwesome What's a Dremel?

    Joined:
    1 Nov 2012
    Posts:
    214
    Likes Received:
    3
    This is really nice!

    Well done!

  20. jamsand

    jamsand Minimodder

    Joined:
    21 May 2011
    Posts:
    1,208
    Likes Received:
    48
    you appear to have mad a raystorm backplate before xspc did lol good work!
