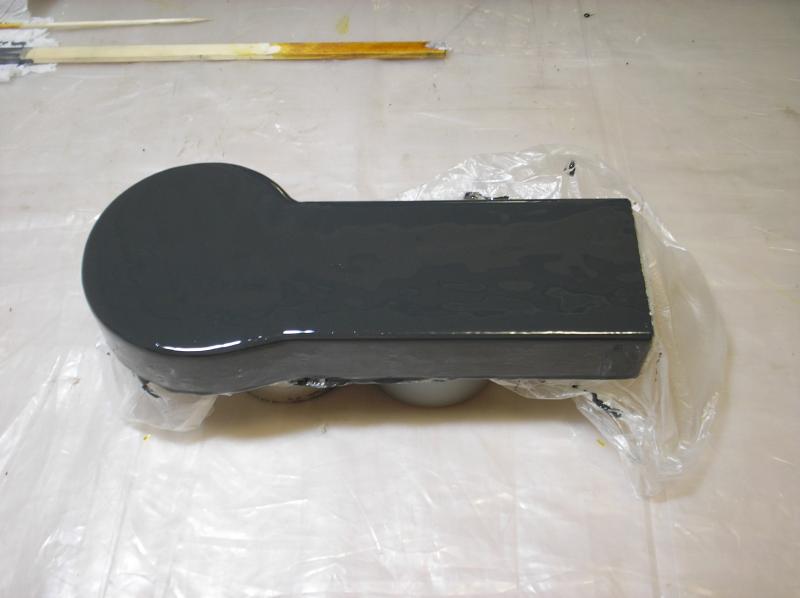

    Now that the main radiators is already there, I need to make shrouds for directing air flow. For the video card cooler shroud is a simple form. In the background I took a piece of MDF with rounded edges and covered it with tape.
    [​IMG]
    For the CPU cooler will cover more complex shapes. I machined the basis of two layers of laminated chipboard.
    [​IMG]
    Next, I covered both blanks four layers of fiberglass with epoxy resin.
    At this stage, there are almost no photographs: hands were busy.
    [​IMG]
    For fiberglass layers more tightly pressed together, I wrapped the blanks tape.
    [​IMG]
    After curing, I removed the tape and processed surface with sandpaper. Then apply two coats of gelcoat to make it easier to grind the surface.
    [​IMG]

    [​IMG]

    Then there was a long grinding ... My wife was unhappy with a lot of dust. But I said: "Darling, it's all for you." :duh: After that, she was angry. :D

    hyperion and Waynio like this.
  6. pp.amorim

    pp.amorim I'm satisfied with my E5300

    Joined:
    2 Feb 2011
    Posts:
    24
    Likes Received:
    0
    Cool! Do you have a theme for the case?

  7. KidMod-Southpaw

    KidMod-Southpaw Super Spamming Saiyan

    Joined:
    28 Sep 2010
    Posts:
    12,592
    Likes Received:
    558
    That's looking really nice, love the shine!

  8. m4cc3r

    m4cc3r New Member

    Joined:
    8 Aug 2011
    Posts:
    6
    Likes Received:
    0
    Well this is what i call MODDING. I follow this with a great interest. :baby:

  9. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    This is really really good stuff philosopher, following with high interest. :D rep & stars due :rock:

  10. philosopher

    philosopher I use a Dremel to clean the teeth

    Joined:
    22 Feb 2010
    Posts:
    35
    Likes Received:
    8
    Thank you, comrades! [​IMG]

    I like the high-tech and minimalism. In this style, and I will arrange that case.

  11. domthecondom

    domthecondom Noob Modder

    Joined:
    27 Jun 2010
    Posts:
    117
    Likes Received:
    3
    Nice work so far keep it up

  12. Ishmum

    Ishmum New Member

    Joined:
    20 Feb 2012
    Posts:
    11
    Likes Received:
    0
    Plastic traps electricity, metal lets it pass
    Now you are prone to frying your mobo if even 0.0000000001v of electricity passes through it

  13. Sutura

    Sutura Member

    Joined:
    23 May 2011
    Posts:
    65
    Likes Received:
    1
    Интересный мод. Я в шоке. :D
    I stop here before embarassaing myslef with the scarce knowledge of the language. Although I don't mind if you switch into Russian. :)
    OnTopic: that is officialy the cleanest DEsolder of components out of a motherboard I have seen up to date. It's like they have never been pinned to the PCB on the first place. Amazing. And the fabrication of the heatsniks and the shroud....headshot.

  14. Korvus

    Korvus May contain traces of sanity.

    Joined:
    14 Apr 2011
    Posts:
    357
    Likes Received:
    16
    Very interesting build method. Will be watching this :eek:

  15. philosopher

    philosopher I use a Dremel to clean the teeth

    Joined:
    22 Feb 2010
    Posts:
    35
    Likes Received:
    8
    Sutura, I can write text in two languages ​​for the convenience of the Russian-speaking (under spoilers). My knowledge of English is also far from ideal. Fill the gaps in the lexicon helps Google online translator.

    To Tech_Jakl
    "If you're not paranoid does not mean that they are not watching for you." :worried:
    Russian proverb.​

  16. Baguette

    Baguette New Member

    Joined:
    6 Aug 2010
    Posts:
    93
    Likes Received:
    0
    This is true modding:
    Recycling and creation on virtually no budget...congrats, I'm sure this'll be amazing!

  17. pp.amorim

    pp.amorim I'm satisfied with my E5300

    Joined:
    2 Feb 2011
    Posts:
    24
    Likes Received:
    0
    I'm not there because of it! I prefer to take risks on behalf of the beauty :rock:
    And shielded capacitors? How is it?
    I think his arguments are not valid because it does not present any risk, it is easier to short-circuit the capacitor connectors than a ...

  18. philosopher

    philosopher I use a Dremel to clean the teeth

    Joined:
    22 Feb 2010
    Posts:
    35
    Likes Received:
    8
    Decisions, decisions ...
    [​IMG]
    Opted for Nvidia's products. They are lower profile and quieter operation.
    Остановил выбор на изделиях нВидиа. Они оказались ниже профилем и тише в работе.
    [​IMG]
    After polished billet, I cut edges and drilled holes.
    После шлифовки заготовок я подрезал края и просверлил отверстия
    [​IMG]
    First, turbine was mounted inside the enclosure. However, turbine was rubbing his upper edge of the cap screws on the radiator of north bridge. Then I cut a round hole in the casing and the turbine moved fixture on the other side of the casing, it is possible to bury the turbine to 2mm. That was enough.
    Сначала турбина должна была крепиться изнутри кожуха. Но турбина терлась своим верхним краем за шляпки болтов на радиаторе северного моста. Тогда я вырезал круглое отверстие в кожухе и перенес крепеж турбины на другую сторону кожуха, это позволило заглубить турбину на 2мм. Этого оказалось достаточно.
    [​IMG]

    [​IMG]

    Now the turbine for the video card.
    Теперь турбина для видеокарты.
    [​IMG]

    [​IMG]
    Tore off the sticker, removed the retaining ring, pulled out the impeller, knocked the bearings. Then gently shaking, and separated the motor from a plastic base.
    Оторвал наклейку, снял стопорное кольцо, вытащил крыльчатку, выбил подшипники. Потом слегка покачивая, отделил мотор от пластикового основания.
    [​IMG]
    Then I grind off the ground so that was convenient to mount it on the other side of the casing, as a turbine of CPU cooler.
    Потом я сточил основание так, чтобы удобно было его крепить на другую сторону кожуха, как в случае с турбиной процессорного кулера.
    [​IMG]
    I had to grind just a little bolts that attach the turbine to its casing. Here's the result.
    Пришлось так же немного сточить болты, которыми турбины крепятся к своим кожухам. Вот результат.
    [​IMG]

    :idea:

    A little thinking and decided to improve the flow of air to the turbine of the CPU cooler. To do this, cut three holes around the base of the motor mount.
    Немного подумал и решил улучшить приток воздуха к турбине процессорного кулера. Для этого вырезал три отверстия вокруг крепления основания мотора.
    [​IMG]
    As such, the shrouds will be up to final assembly, to which I have them painted black.
    В таком виде кожухи будут до окончательной сборки, перед которой я их покрашу в черный цвет.
