Modding Spider's Web by G69T

Discussion in 'Modding' started by G69T, 15 Nov 2004.

  1. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Hy guys. :thumb: A beatiful welcome to everybody by G69T, the creator of Spider's Web.
    I would like to introduce you, with a few lines, my home made case.
    This modding was created in aluminium and worked with CNC tools machine.
    The most part of the pieces could be fixed all togheter with joint.

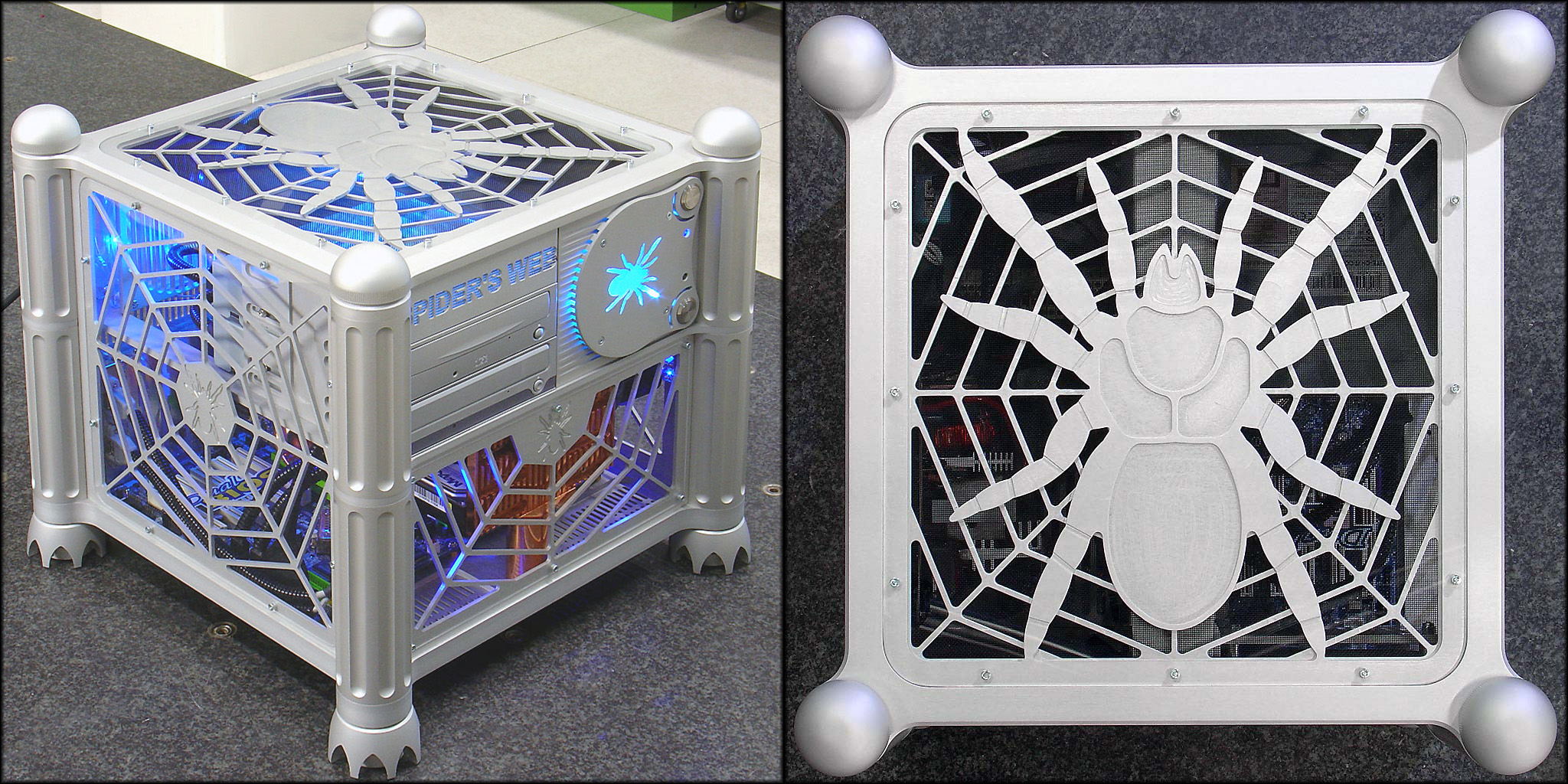

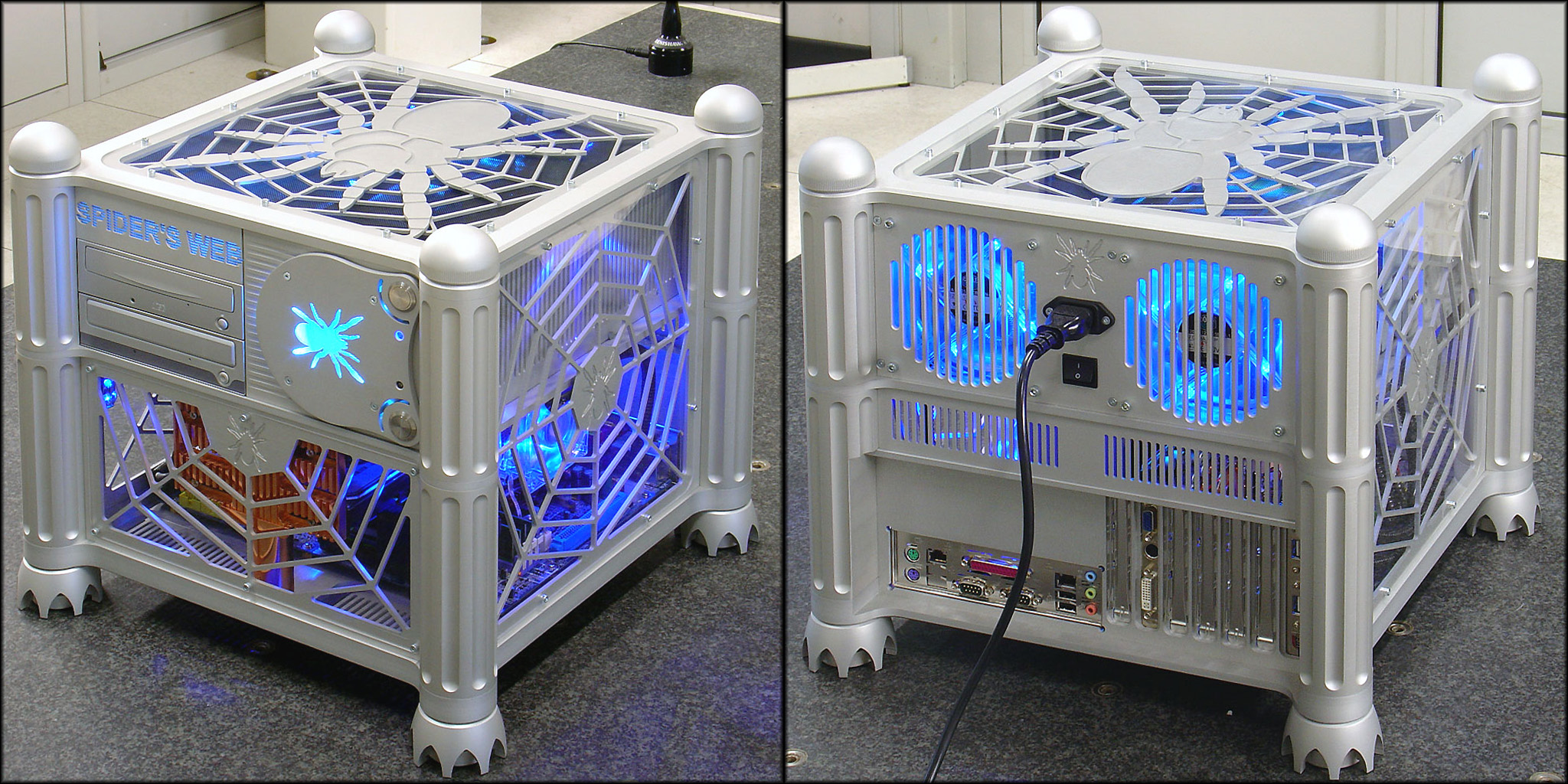

    Following we can see the pictures of the Spider's Web about we're speaking.

    [​IMG]
    Z O O M

    [​IMG]
    Z O O M

    The first part of the home worked modding is the top of the case.

    Cad-Cam project

    [​IMG]

    We obtain the entire job starting from a aluminium flat (10 mm. thick)

    [​IMG]
    IMG 640x480

    The top was mill in two parts; the bottom we obtain the external profile and the spider's web. On the oter side was milled the spider image.

    [​IMG]
    IMG 640x480

    [​IMG]
    IMG 640x480

    [​IMG]
    IMG 640x480

    At least the picture of the finished top on the CNC machine.

    [​IMG]
    IMG 640x480

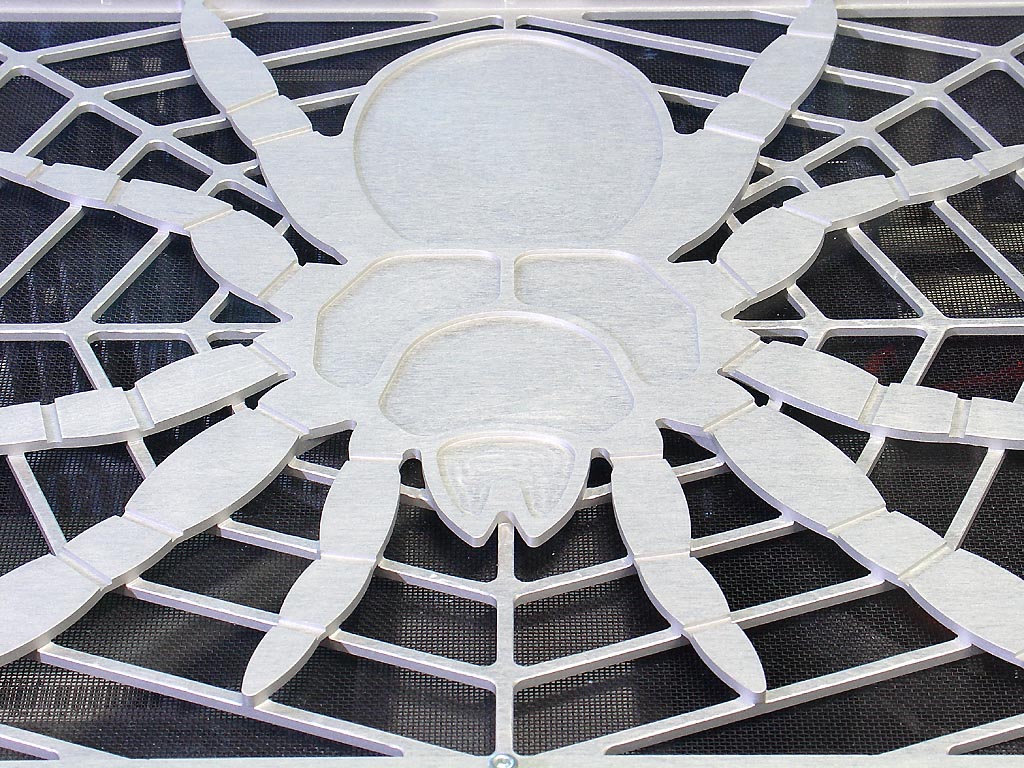

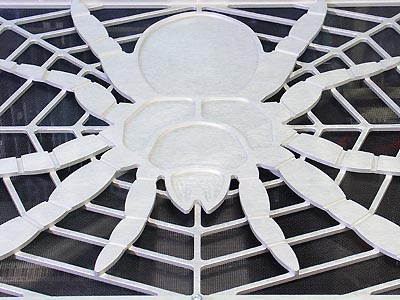

    External part of the top.

    [​IMG]
    ZOOM

    [​IMG]
    ZOOM

    [​IMG]
    ZOOM

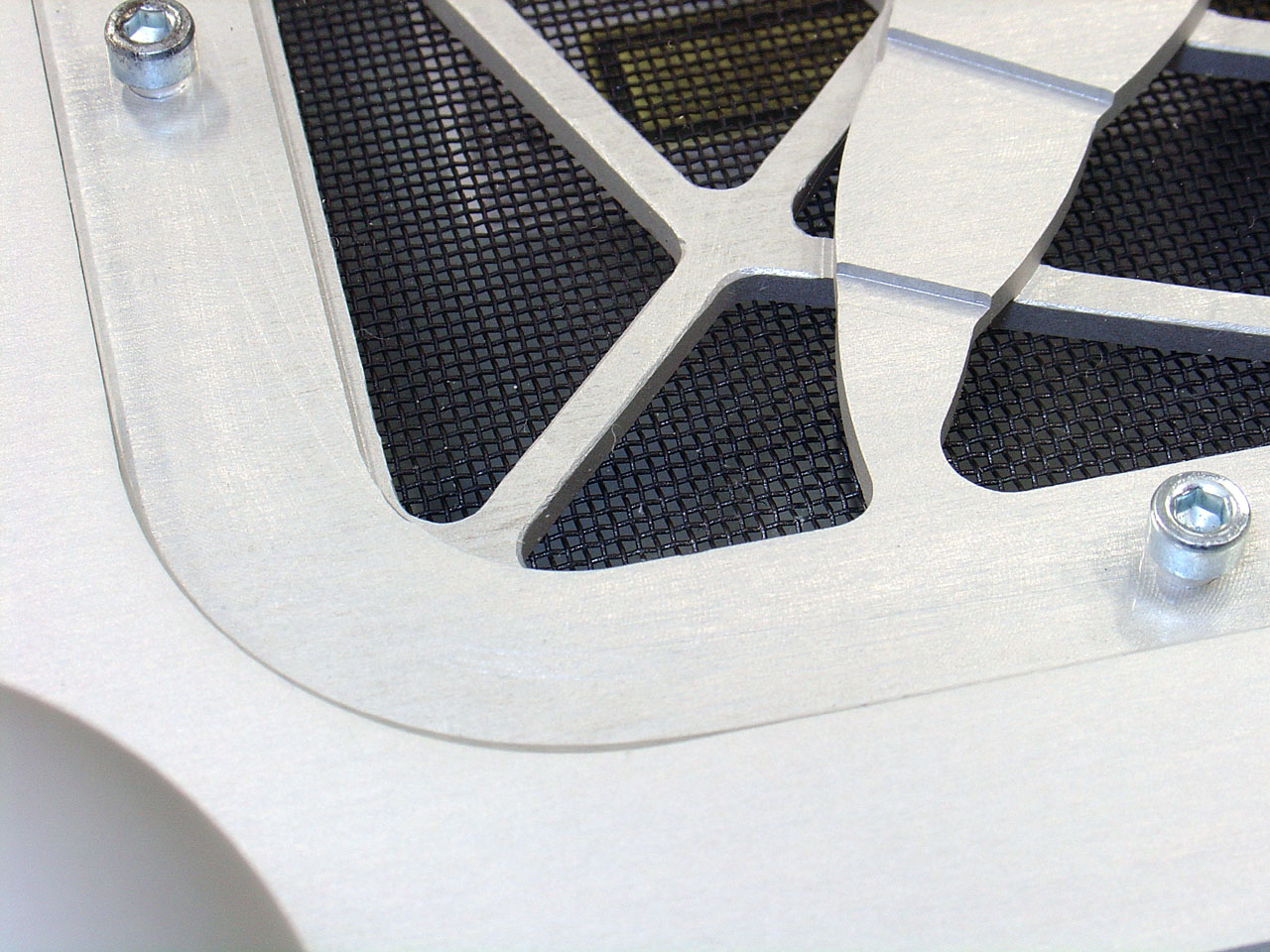

    Internal part of the top.

    [​IMG]
    ZOOM

    [​IMG]
    ZOOM

    [​IMG]
    ZOOM

    The top, and all the parts of the Spider'S Web, sould be anodyzed after a hand making polishing.

    Back for the sequel in a few time.

    Thenks everybody... Bye ;)

    Gianluca

    Last edited: 15 Nov 2004
  2. Godboy_g

    Godboy_g New Member

    Joined:
    13 Aug 2004
    Posts:
    396
    Likes Received:
    0
    WOW! This has got to be one of the coolest cases I have ever seen. BRAVO!!
    :thumb: :jawdrop: :thumb:

  3. Isuo

    Isuo New Member

    Joined:
    13 Oct 2004
    Posts:
    430
    Likes Received:
    0
    Whoooooooooooooa...

    /me tries to whistle...

    Really cool case, with a capital C.

  4. Defyant Mods

    Defyant Mods Well-Known Member

    Joined:
    14 Sep 2004
    Posts:
    1,132
    Likes Received:
    589
    Very impresive!

    This being the "project logs" section of the forums, I hope the sequel will have your original planning stages, how you went about the designing process etc.
    Would also like to see how you assembled the unit and how the parts were all fitted inside.

    As this type of process is way out of your avareage modders league it would be nice to see how a mod like this comes about?

    Would also be nice to know what sort of costs are involved for others to attemp a mod like this.

    This is a very professional job well done.

  5. Gangsta

    Gangsta Banned

    Joined:
    3 Jul 2004
    Posts:
    312
    Likes Received:
    0
    Ewwwwwwwwwwwwwww!!!! itsy, bitsy spiders, lolz :D

  6. Slayer the Unholy

    Slayer the Unholy New Member

    Joined:
    19 Aug 2004
    Posts:
    113
    Likes Received:
    1
    :jawdrop::eeek: I want that case so bad

  7. Bloody_Sorcerer

    Bloody_Sorcerer New Member

    Joined:
    16 Nov 2004
    Posts:
    48
    Likes Received:
    0
    absolutely incredible. I finally registered just to say that. What parts you got in it?

  8. Constructacon

    Constructacon Constructing since 1978

    Joined:
    12 Oct 2004
    Posts:
    2,651
    Likes Received:
    97
    Very high quality stuff. /me wishes he had a CNC mill. Ditto DÈF¥âÑt¸.·´¯`¤. It would be good to see conceptual ideas about this case. The only point where you have let yourself down that I can see is the generic drives. You've gone to such an effort to make a really nice standout case and then just paint the standard drive fronts (You may have almost got away with it if they were the same type of drive) I think that either stealthing the drives or at the very least making 2 identical facias for the drives would improve the looks.

    Awesome work tho. Out of my league.

  9. drinn

    drinn New Member

    Joined:
    16 Jul 2004
    Posts:
    196
    Likes Received:
    0
    Very cool case dude :rock:
    GJ

  10. G4m3R_X3r0

    G4m3R_X3r0 New Member

    Joined:
    3 Sep 2004
    Posts:
    446
    Likes Received:
    0
    I like it, very neat looking, I'm starting to notice cube type cases are starting to be come popular.

  11. DrPepper

    DrPepper New Member

    Joined:
    26 Aug 2004
    Posts:
    72
    Likes Received:
    0
    Looking awsome ;)

  12. G-gnome

    G-gnome Peter Dickison

    Joined:
    8 May 2003
    Posts:
    795
    Likes Received:
    3
    Welcome to the forums G69T, I have seen an earlier version of this case that you did a few months back on an Italian site (and also in PC Fun magazine I think?). Very Impressive design. :)

    I've moved this thread to Modding, as per the rules for Project Logs, as finished mods/cases belong here. PL's is for full worklogs only.

    Keep up the good work!

  13. Stesio54

    Stesio54 New Member

    Joined:
    25 Oct 2004
    Posts:
    16
    Likes Received:
    0
    yeah!!!!!!!


    i personally see the spider web @ ngilan04....well...that's great...as the producer(g69t) :rock: :rock: :rock:



    the spider web win the modding contest @ ngilan....that's all!

    [​IMG]


    [​IMG]

    i think it's fantastic....but...some modder's didnt understund the concept of spider web......becouse it's made by cnc machine....well...i think that the modding have some face of realization......someone modd by a finish product...other build it...........in all case of it...it's modding and the personal touch(professional or not) it's the most important thing!

    :dremel:

  14. Zephyr

    Zephyr Go V-Boy, Go!

    Joined:
    1 Oct 2004
    Posts:
    2,024
    Likes Received:
    1
    :jawdrop: :jawdrop: wow...absoluetly amazing. what are the specs of this beast? :clap:

  15. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
  16. Bloody_Sorcerer

    Bloody_Sorcerer New Member

    Joined:
    16 Nov 2004
    Posts:
    48
    Likes Received:
    0
    :eeek: is that custom-done wire sheathing in there? got any pics of the inside (if theres anything abnormal/special/cool about it)?

  17. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks guys :thumb:

    Last edited: 22 Nov 2004
  18. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks ;)

    The Spider's Web Mod is manufactured following ATX spec. (form factors)

    Hardware installed

    MB Gigabyte K8NNXP
    CPU Athlon64 3000+ / Coolermaster Hyper6
    1024 Mb Ram
    2 HD Maxtor 120Gb SAta raid 0
    VGA Hercules 9700Pro
    PSU Chieftec 420W Dual fan (before modding it :D :D :D )
    1 DVD Rom LG
    1 DVD RW LG

    Bye :thumb:

    Last edited: 22 Nov 2004
  19. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    It's only a time problem: at the moments the Optical Device are semply painted; in future you'll see what I'm preparring. ;)

    I'd like to post all the fases that permit me to create the Spider's Web, and I remand you to the sequel.

    About costs: Not so expansive. I normally use the CNC machine for my job... After hours btw 9 p.m. to 2 a.m. every night for six months: and all's done :eeek: , really not so easy but very interesting for me too :thumb:

    bye

  20. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks, the Spider's Web was developed from my first modding G69T created in 2003. ;)

    Thanks ;)
