Modding Spider's Web by G69T

Discussion in 'Modding' started by G69T, 15 Nov 2004.

  1. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks G-gnome, I am very pride for your good offices. I also have seen your modding Orac3 and I shall say, it's a very good and interesting job. :clap:

    Bye ;)

  2. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Thanks Stesio! :rock:


    Ciaooo ;)

  3. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Following I introduce you some projects, thet I thoght, but at least they haven't had a future.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    In my opinion that's the one I want to work with.

    [​IMG]

    Project of the left and right side

    [​IMG]


    The aluminium flat was obtained from a 2 x 1 m. plate.

    [​IMG]

    Zoom

    That's the shears.

    [​IMG]

    Zoom

    and the parts ready to be worked by CNC machine.

    [​IMG]

    Zoom



    Workship of the front-bottom part and pictures of the side parts.

    [​IMG]

    ZOOM

    [​IMG]

    ZOOM

    [​IMG]

    ZOOM

    Bye ;)

  4. keir

    keir S p i t F i r e

    Joined:
    5 Oct 2003
    Posts:
    4,377
    Likes Received:
    48
    very nice :rock:

  5. Kingpin

    Kingpin New Member

    Joined:
    20 Nov 2004
    Posts:
    13
    Likes Received:
    0
    WOW...great case....where can u get those buttons in the US?

  6. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
  7. blknoel

    blknoel New Member

    Joined:
    14 Jun 2004
    Posts:
    303
    Likes Received:
    0
    holy shoot :jawdrop:

    if any modder could have their bloody access to milling machines like u can :jawdrop:

  8. Lost.Soul

    Lost.Soul New Member

    Joined:
    26 Oct 2004
    Posts:
    339
    Likes Received:
    0
    original theme and nice work... :clap:

    BTW: as blknoel said, where do you get acces to that CNC machine?? :jawdrop:

  9. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    I like the look of the copper and alu, plus that should keep your harddrives nice and cool.

  10. 3N1GM4

    3N1GM4 New Member

    Joined:
    23 Jun 2003
    Posts:
    685
    Likes Received:
    0

    /me dreams of that

    case is amazing my friend

  11. infered101

    infered101 New Member

    Joined:
    30 Oct 2004
    Posts:
    566
    Likes Received:
    0
    NIce work i rly like the copper hard drive bay looks awsome if i had access to a mill machine i would make one.

  12. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15

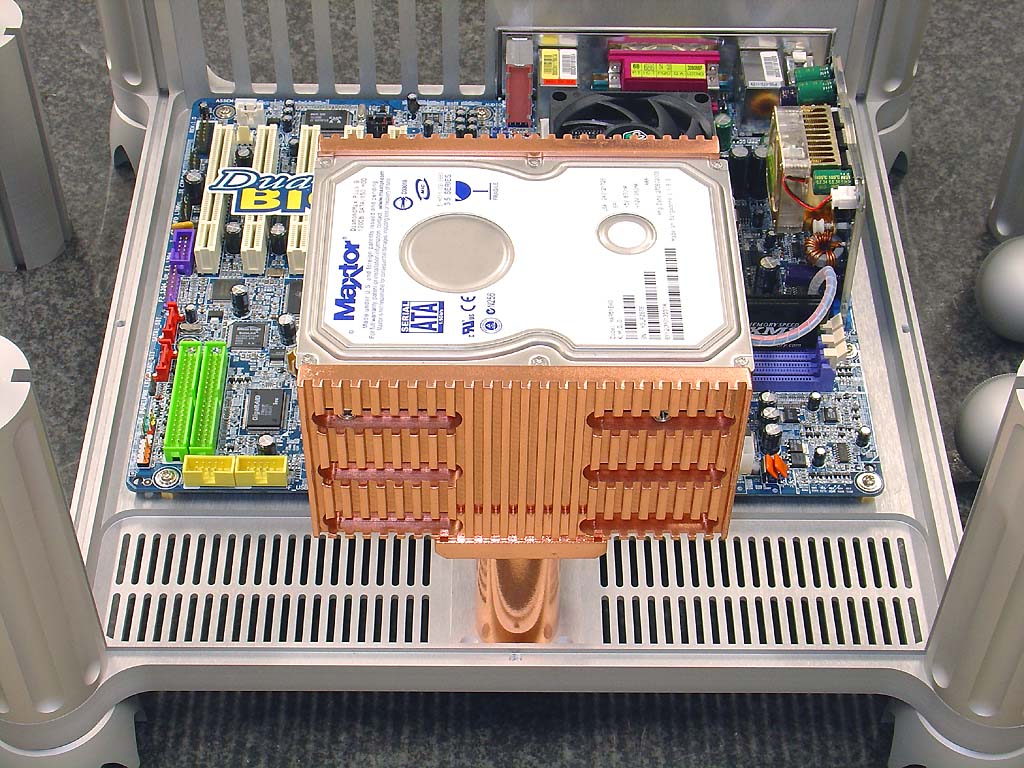

    The two (SAta) discs installed on the support.

    [​IMG]
    Zoom

    Thanks guys :thumb:

  13. blknoel

    blknoel New Member

    Joined:
    14 Jun 2004
    Posts:
    303
    Likes Received:
    0
    Have you got any coat on the copper support? Will it turn dark over time?

    I hate to say this, but the machines capable of doing those products ***MUST*** be computer programable ones :waah:

  14. NeoVirus

    NeoVirus New Member

    Joined:
    26 Sep 2004
    Posts:
    13
    Likes Received:
    0
    very nice man....

  15. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    I'got the possibility to use all the CNC machine by the firm where I work. Thank you for compliments. ;)

  16. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    You look like expert. Weel said. :thumb:

  17. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    The four part of the copper support were enameled with a transparent spray paint. ;)

  18. G69T

    G69T CNC Modder

    Joined:
    6 Jun 2004
    Posts:
    570
    Likes Received:
    15
    Little foot remembering the spider idea.

    It will be interesting, I belive, seen the hand made mill, used to create the spider's legs

    [​IMG]

    Zoom 1024
    How to change the CNC tools


    [​IMG]

    Zoom 1024
    The hand modeled milling cutter by the machine, ready for the job.

    [​IMG]

    Zoom 1024
    The tools parking area (Max 80 tools).

    [​IMG]

    Zoom 1024
    The original mill form (HSS CO 5%)

    [​IMG]

    Zoom 1024
    The hand modeled milling cutter specifying for the case legs.


    [​IMG]

    Zoom 1024
    Great control using high precisions tools (profile projector).

    [​IMG]

    Zoom 1024

    [​IMG]

    Zoom 1024
    The original form of the two cuts mill

    [​IMG]

    Zoom 1024
    at least some pictures of the finished legs.

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    [​IMG]
    Zoom

    Bye Bye ;)

  19. Rocket733

    Rocket733 Austerity - It's the only way

    Joined:
    27 Dec 2003
    Posts:
    1,166
    Likes Received:
    3
    *wipes drool off of chin* very nice. off topic How many cases do you plan to make?

  20. scitrekkie

    scitrekkie New Member

    Joined:
    1 Dec 2004
    Posts:
    2
    Likes Received:
    0
    [first post]
    Wow! Your cases are quite impressive! always wanted to have access to a CNC machine :D :idea:

    that's got to be over $100K of machinery there :eeek:

    :dremel:
