The Obsidian Spire | Stacker Mod: NEW PICS of Improvements!

Discussion in 'Project Logs' started by Sub-Zero, 4 Apr 2005.

Page 6 of 9
  1. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    1: It´s a repack-cooling Silentio midi.
    Look here:
    http://www.repack-cooling.de/index.html?/produkte/Radiator-Silentio-MP.html
    Note: I´ve contact the producer of the radiator! The production stoped of it!!! That means, no radiator..... I´ve searched in the whole internet, nothing. Then I contacted a guy who tested the radiator(a german modding site). He know the guy who produced the radiator himself! He wrote him that I want one of his sexy radis... but he didn´t write back. The guy from the german modding site, said that he is maybe in holiday...(not sure that I get one of this babys... if not i will make it myself.... , my dad´s friend bought a big company with lots of CNC machines. :clap: :clap: :clap: :dremel: )

    2: BTX-Style: yes i thought about it, but i want to have my computer on my right side and to look through the window (window must be on left side...).

    3: No problems with the temps!
    Standard running:CPU: 43 degree and GPU 37 degree(celsius).
    playing a game: CPU 46 degree and the GPU 45 degree.
    Note: If I get the Silentio mide, i will have one radiator more.--> 2. --> better temps.

    4: I had the same trouble with the bubbles. But then i´ve changed the pump and it is ok now, no bubbles.(the old one was to powerfull).

    if i hear something new about the radi I will post it here. :thumb:


    Sub-Zero

    Sub-Zero, 17 Aug 2005
    #101
  2. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    Small update: enjoy!

    two pieces of plexi:

    [​IMG]

    [​IMG]

    hehehe, my hand... after filling the carbon...

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]

    It looks hot, better than on this pic.

    [​IMG]

    [​IMG]

    tomorrow pics of the lighted triangle..

    Last edited: 7 Oct 2005
    Sub-Zero, 17 Aug 2005
    #102
  3. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0

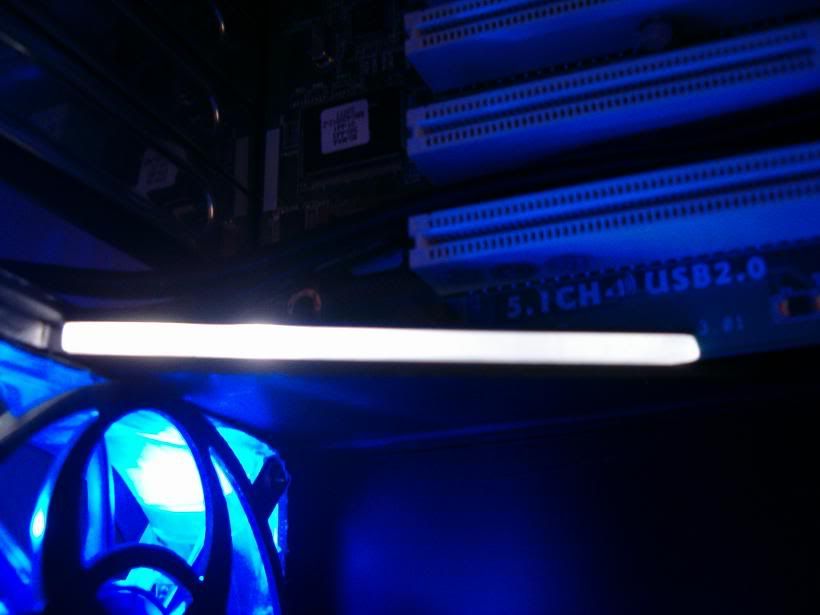

    The promised pics of the lighted triangle.

    [​IMG]

    [​IMG]

    :D

    Last edited: 7 Oct 2005
    Sub-Zero, 19 Aug 2005
    #103
  4. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    hello,

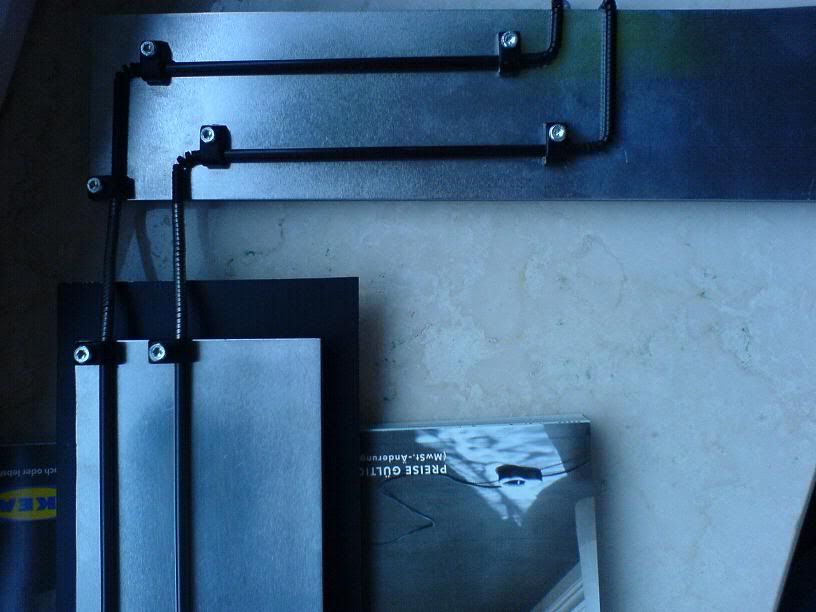

    i´ve done some job on my wiring. i´ve taken the idea of ferry and adapted it to satisfy my demand. It´s a combination of those "glorious" brake calbes and my carbon tubes. The parts which had to be fitted are made of brake cables and all other parts of the carbon tubes. Most of the parts are black(or just carbon) and the rest is silver. (black on silver aluminium plate, silver on black aluminium plate(contrast)). the borders of the black aluminium plate is lighted white and the silver on is lighted blue.(pics tomorrow of the finished mounted).

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: 7 Oct 2005
    Sub-Zero, 27 Aug 2005
    #104
  5. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    hi,

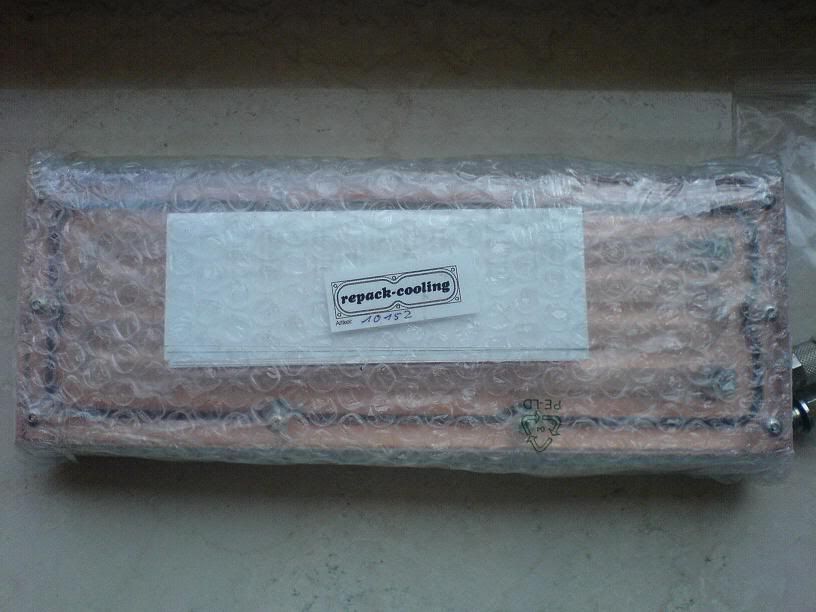

    today i got my repack-cooling silentio midi! The last one in Germany!!!!!!!! :rock: :rock: :rock: :D

    Enjoy!(pics taken with my new mobile phone cam, 2mega pixels :D )

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    here you can see the holes for the leds.(i will take white leds)
    [​IMG]

    the other side
    [​IMG]

    Backside of the radi.
    [​IMG]

    [​IMG]

    it will take some time to mount it.

    Some feedback would be nice.

    Sub-Zero

    Last edited: 7 Oct 2005
    Sub-Zero, 7 Sep 2005
    #105
  6. Leeum

    Leeum What's a Dremel?

    Joined:
    16 Feb 2004
    Posts:
    2,494
    Likes Received:
    1
    Got a link to that radiator? Looks an interesting design concept and a good performer, I'm guessing it's passive?

    Keep up the good work :hip:

    Leeum, 7 Sep 2005
    #106
  7. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    The cooling efficiency isn´t very good, but that´s no problem! This radi is only for design! I will use the silentio midi additionally and yes it´s passiv but you can mount a 80mm fan.

    http://www.repack-cooling.de/index.html?/produkte/Radiator-Silentio-Midi.html

    Note: you can´t buy it anymore!

    Sub-Zero, 7 Sep 2005
    #107
  8. Black92RS

    Black92RS What's a Dremel?

    Joined:
    22 Mar 2004
    Posts:
    19
    Likes Received:
    0
    Hey you can have that effect...

    Why dont you put in the plexy (windows) two layers of (damm that word) windows darkener (one black and other silver) so when there is no light inside the window will be flat black and when you turn on a light it will become almost transparent???

    hope that helps a little.


    Black92RS, 7 Sep 2005
    #108
  9. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    ?????that works?????? i don´t know.
    you tell me that the silver one would reflect the light, if it was off.
    mhhh, but it would look like a mirror and that´s the problem! i want to have the hole case "clean" that means: lights off the hole case should be dark, no reflection(no mirror effect!)

    Somebody experience with something like this? any links, pics????


    btw. i use normal glass, no plexi!

    Last edited: 7 Sep 2005
    Sub-Zero, 7 Sep 2005
    #109
  10. Leeum

    Leeum What's a Dremel?

    Joined:
    16 Feb 2004
    Posts:
    2,494
    Likes Received:
    1
    The stuff is blackout film and is used for stuff like limousine windows. Pop down to your local auto store and see what they have :)

    For pictures of the stuff in action check out this project.

    EDIT: Fixed the link, go to the last page to see it when the lights go off :hip:

    Last edited: 7 Sep 2005
    Leeum, 7 Sep 2005
    #110
  11. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    i edited my post, read it.

    the link is dead, can you fix it please?

    Sub-Zero, 7 Sep 2005
    #111
  12. Fall-From-Grace

    Fall-From-Grace What's a Dremel?

    Joined:
    24 Feb 2005
    Posts:
    43
    Likes Received:
    0
    Love the case man.I am thinking of my own Gygabyte 3d Aurora case mod and you gave me lot of inspiration.Thanks,that case is realy unique!

    Keep on modding

    Fall-From-Grace, 8 Sep 2005
    #112
  13. -Erik-

    -Erik- Guest

    That is one sexy radiator man, where can you buy a few of those? :D

    -Erik-, 8 Sep 2005
    #113
  14. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    i bought them at:
    http://www.hardware-rogge.com/
    this was the last one! Production stopped! :waah: :waah: :waah: sorry
    I paid 85 euro+shipping 9 euro.

    Sub-Zero, 8 Sep 2005
    #114
  15. huren

    huren What's a Dremel?

    Joined:
    14 Aug 2004
    Posts:
    407
    Likes Received:
    1
    huren, 8 Sep 2005
    #115
  16. Starbuck3733T

    Starbuck3733T Look out sugar, here it comes

    Joined:
    16 Sep 2002
    Posts:
    920
    Likes Received:
    0
    It looks good, but it also looks like an 3/16" copper plate, 1/2" of plexi w\ channels, and some aluminum fins. Pretty, but pretty simple... ya dig?

    Starbuck3733T, 8 Sep 2005
    #116
  17. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    y´re right! but to hell, it looks damn nice especially with leds...
    i haven´t seen any radi before which looks sexier than the silentio!
    have you???

    Sub-Zero, 8 Sep 2005
    #117
  18. Starbuck3733T

    Starbuck3733T Look out sugar, here it comes

    Joined:
    16 Sep 2002
    Posts:
    920
    Likes Received:
    0
    I wouldn't even call it a radiator, but it is very pretty... can't argue there.

    Starbuck3733T, 8 Sep 2005
    #118
  19. Sub-Zero

    Sub-Zero What's a Dremel?

    Joined:
    6 Feb 2005
    Posts:
    108
    Likes Received:
    0
    ????What else????

    Sub-Zero, 9 Sep 2005
    #119
  20. ralph.pickering

    ralph.pickering What's a Dremel?

    Joined:
    6 Apr 2005
    Posts:
    346
    Likes Received:
    0
    Of course it's a radiator - it radiates heat. It may be unconventional, but it's still a radiator (and I wants one... my precious)

    ralph.pickering, 9 Sep 2005
    #120
