Scratch Build – In Progress Wall-E - Evolution - 290712 - fresh Paint

Discussion in 'Project Logs' started by thechoozen, 10 Apr 2011.

  1. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    And again, it´s time to start a new worklog.....

    this time we meet an old friend again :D
    We´re going to build a new version of our Wall-E Mini ITX System. :D

    This time we will build it out of metal, and combine that with a few servos an arduino and a few old rc parts which we recycle from our peacemaker project :rock:

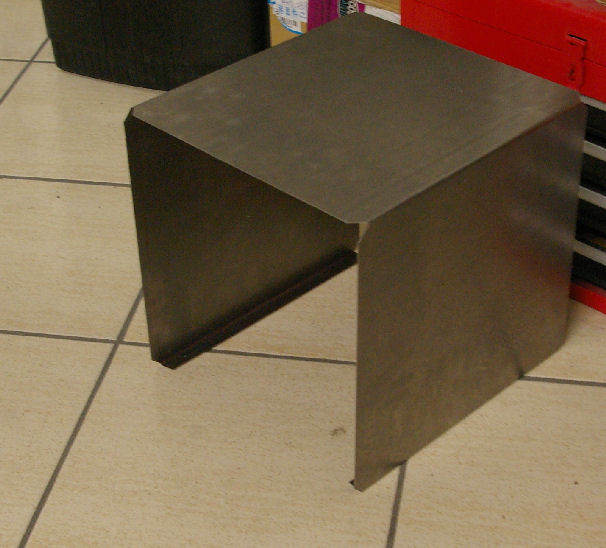

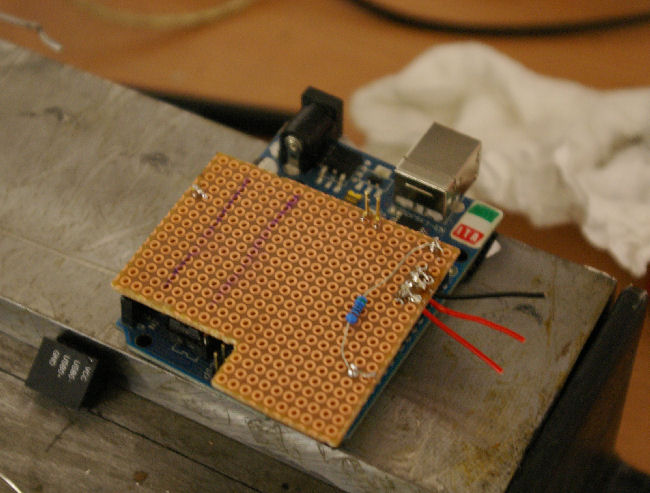

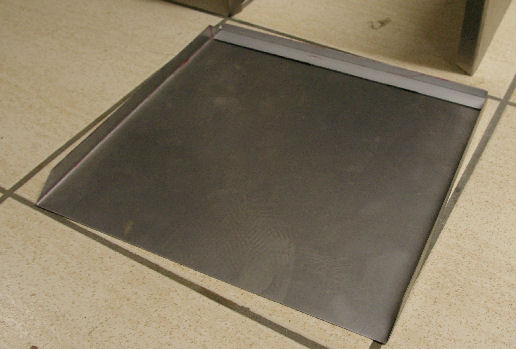

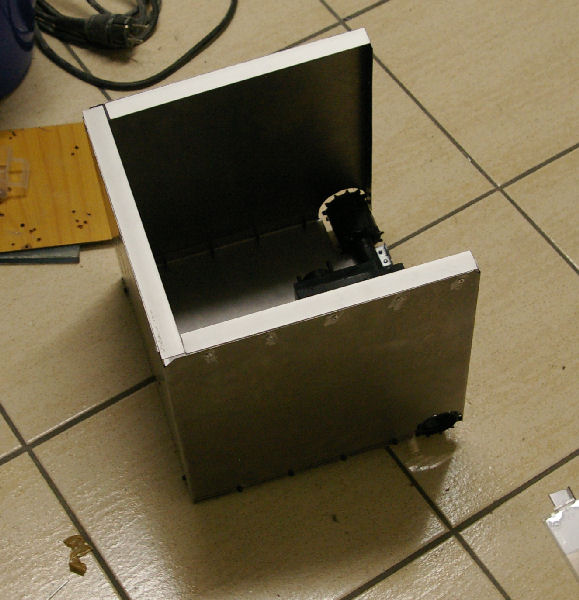

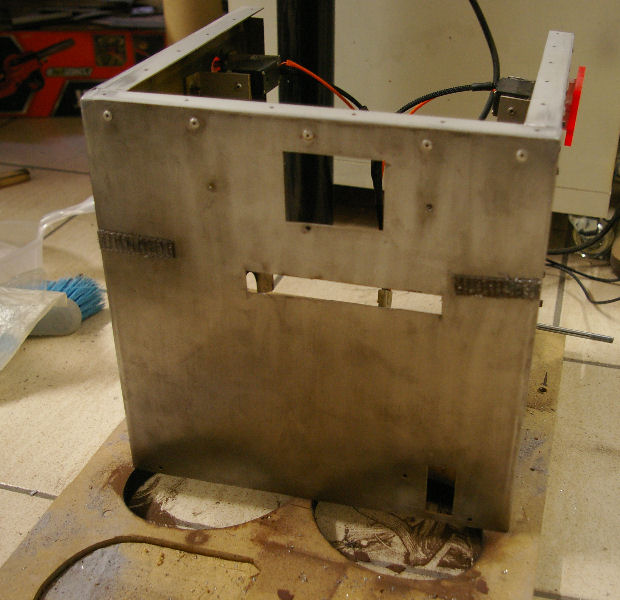

    We already started in the last days. First we only made a few test´s with the arduino to see if it makes what it should. After that we start the metal work while bending the first parts for the base construction....

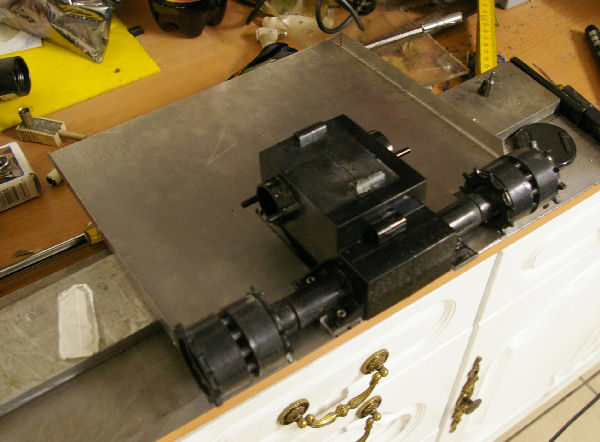

    After that we already mounted the first part of the rc unit so that we could change all other parts around it so that it finally fits in :thumb:


    But enough of the words....



    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: 29 Jul 2012
  2. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69

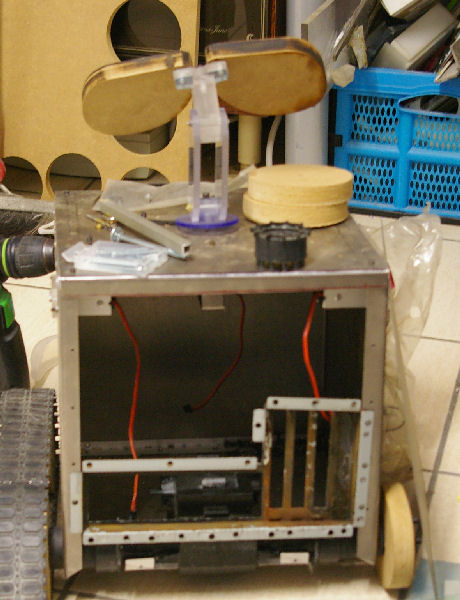

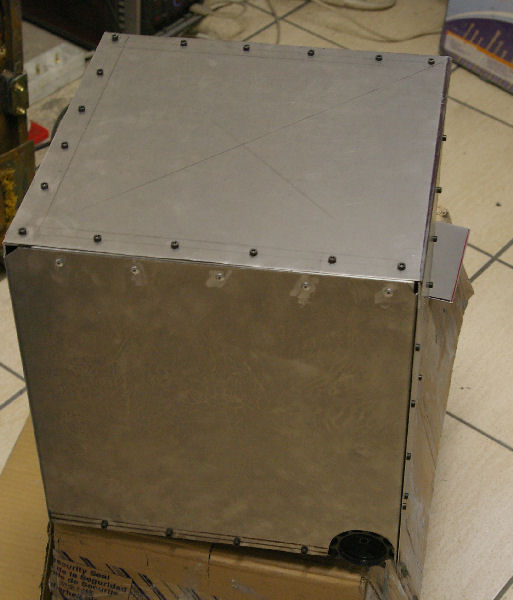

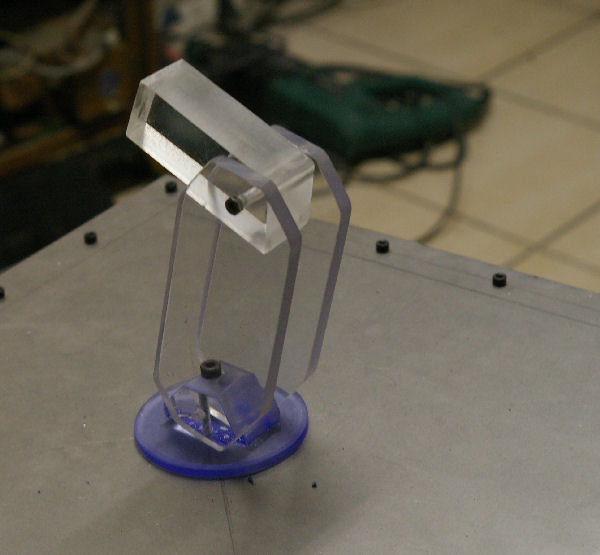

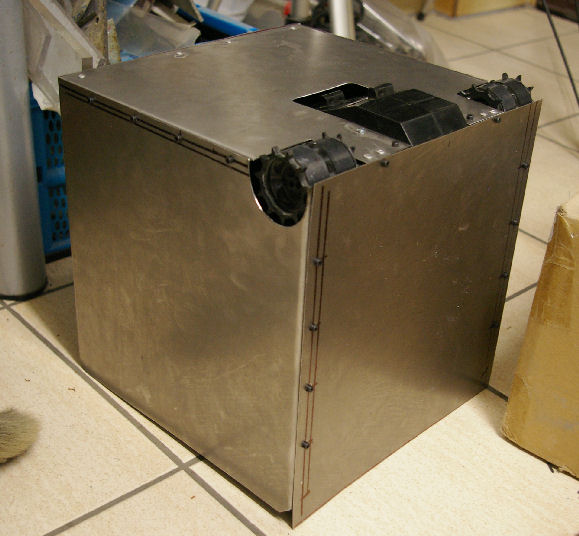

    After closing the case....i continued with the first part of the head....the neck

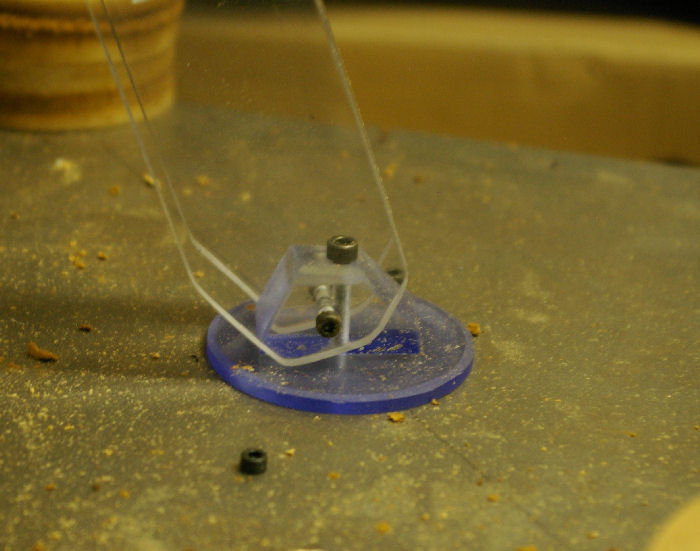

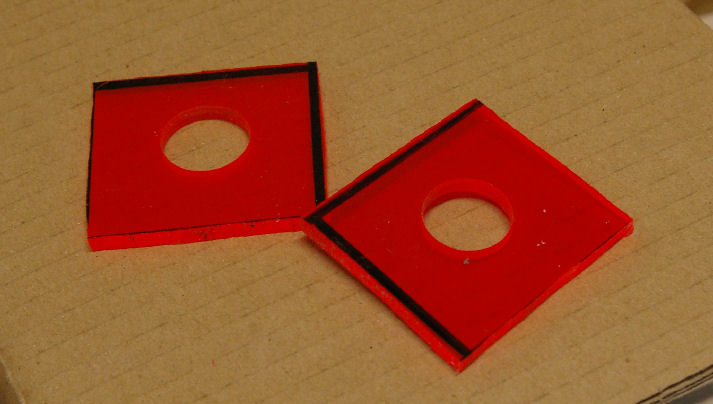

    for the neck, i first cutted out a few plexiglas parts which then were drilled and assembled ...

    [​IMG]
    [​IMG]
    [​IMG]

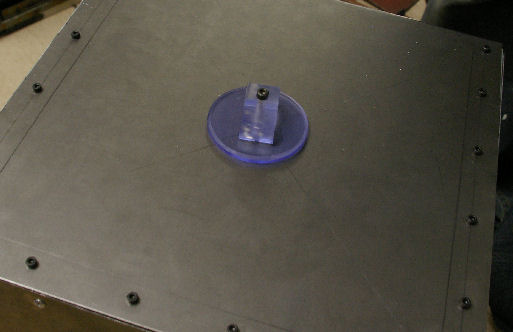

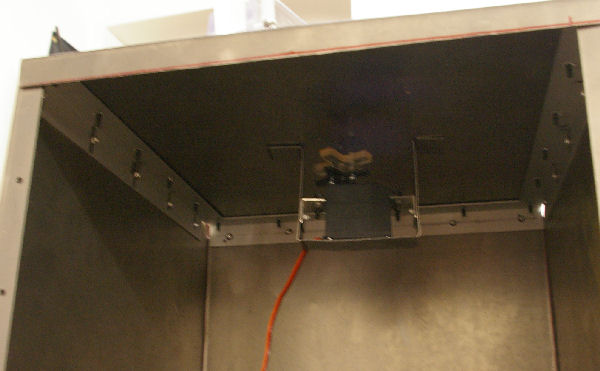

    under the top of the case i already mount a first servo which will controll the movement of our head
    [​IMG]

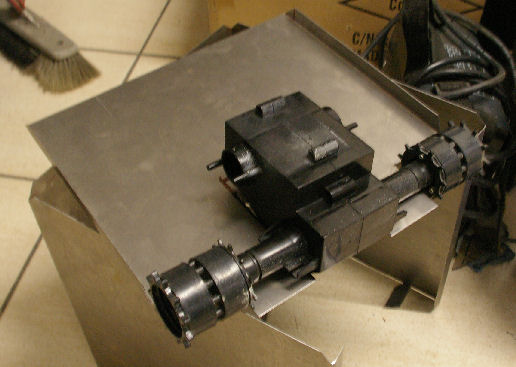

    and i also started to build the first parts of the chain drive...

    [​IMG]
    [​IMG]

  3. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    time for the next update :D

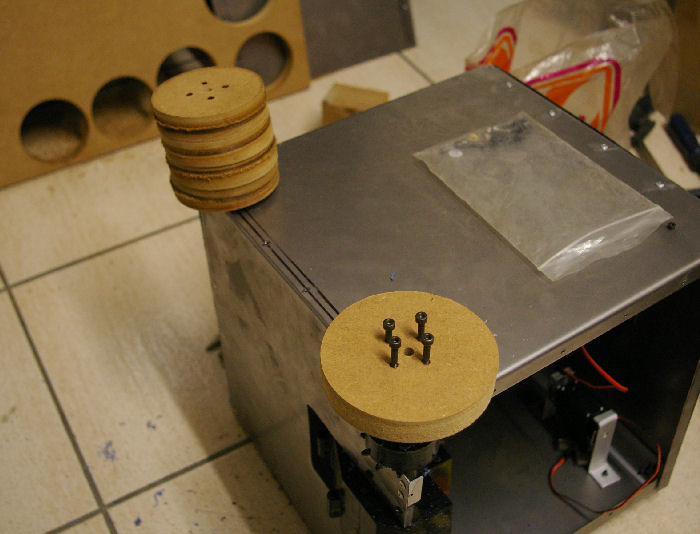

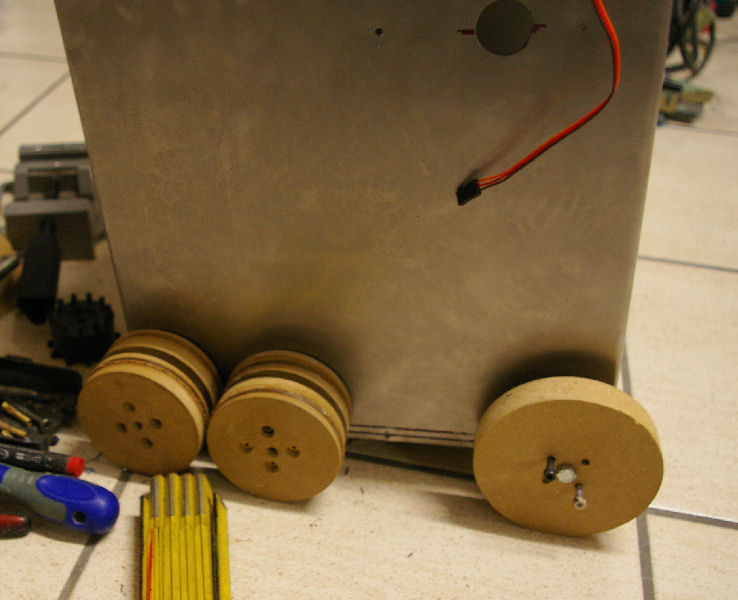

    after cutting out the first parts for the chain drive we continued with the next rolls so that we get 6 rolls for each side. From this 6 rolls we build 3 double rolls each rolls

    [​IMG]

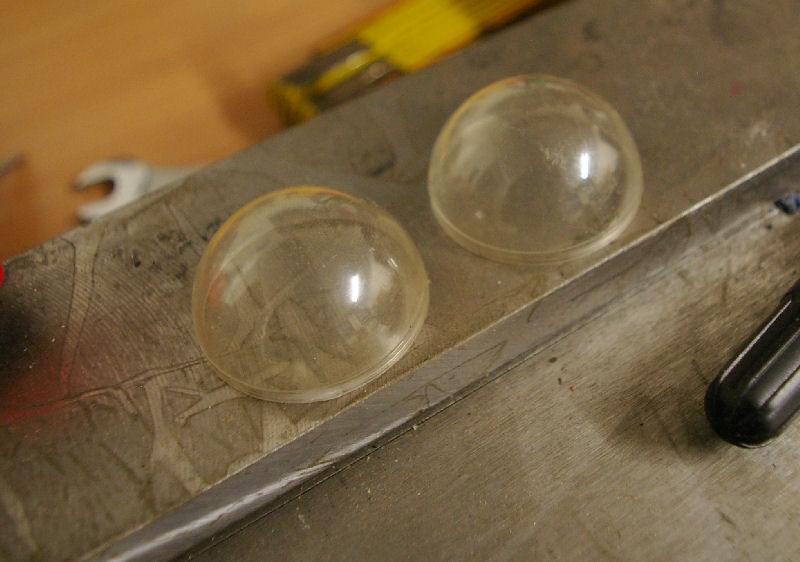

    then we continued with the first layers of the eyes

    [​IMG]

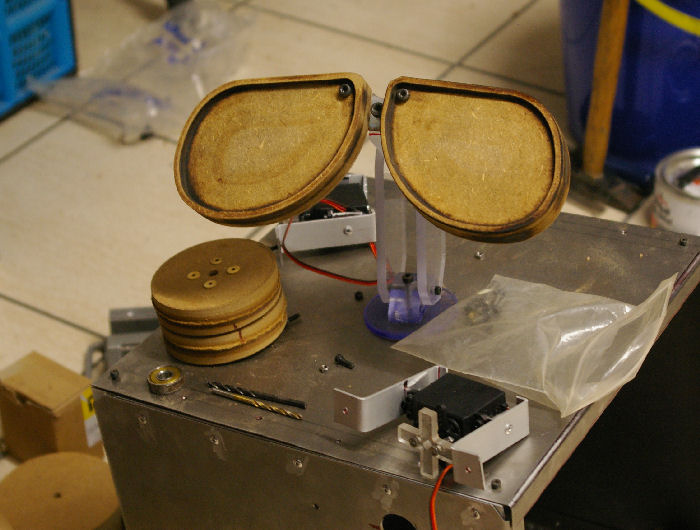

    and mounted them for a first test
    [​IMG]
    beside that we also put in the i/o panel for the backside so that we could see where changes were needed...

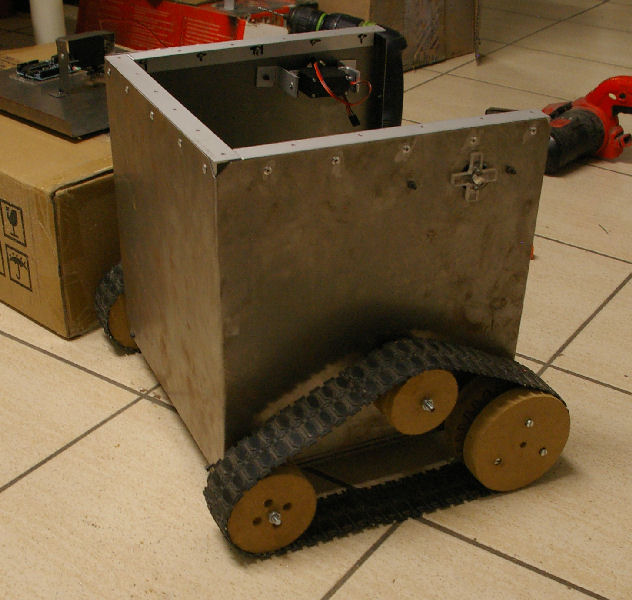

    then we shortened the chain for the drive and mounted it for a first test

    [​IMG]

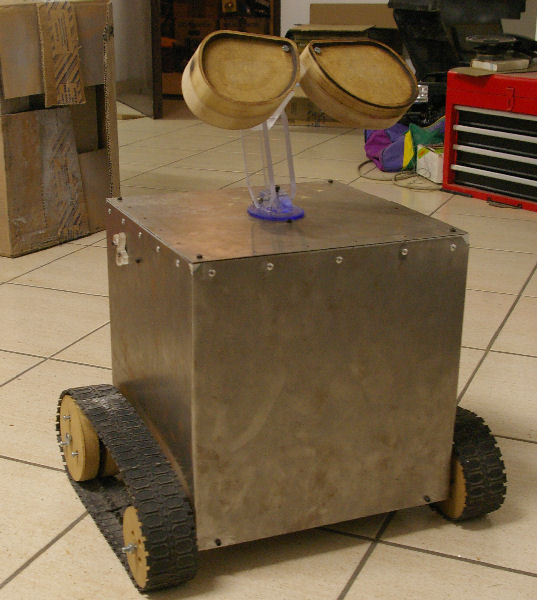

    after that we continued with the next layer for the eyes....glued them together and mounted them again....
    [​IMG]
    [​IMG]

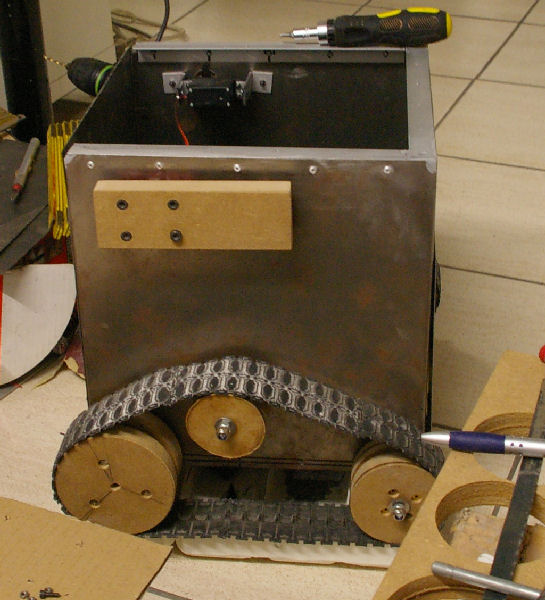

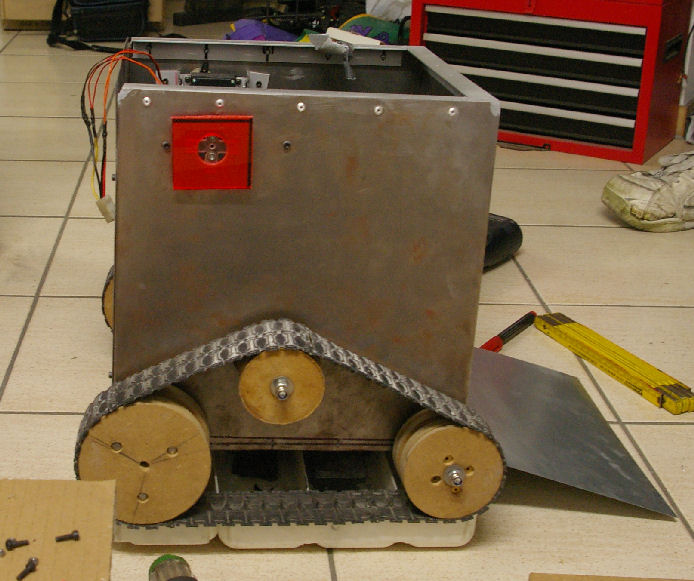

    as next step we mounted the 3rd axis of the chain drive
    [​IMG]

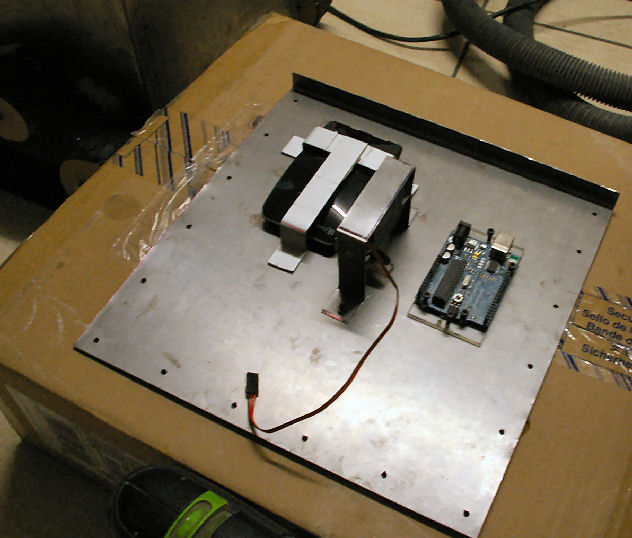

    we also attached the arduino and it´s power source (choiix power fort) under the top panel
    [​IMG]

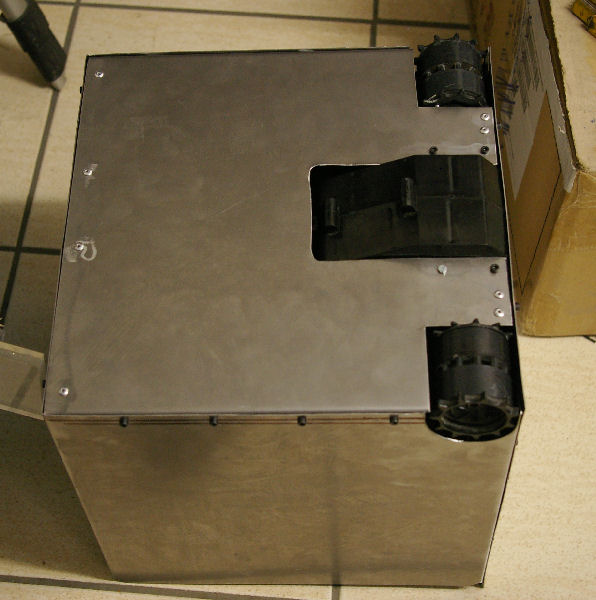

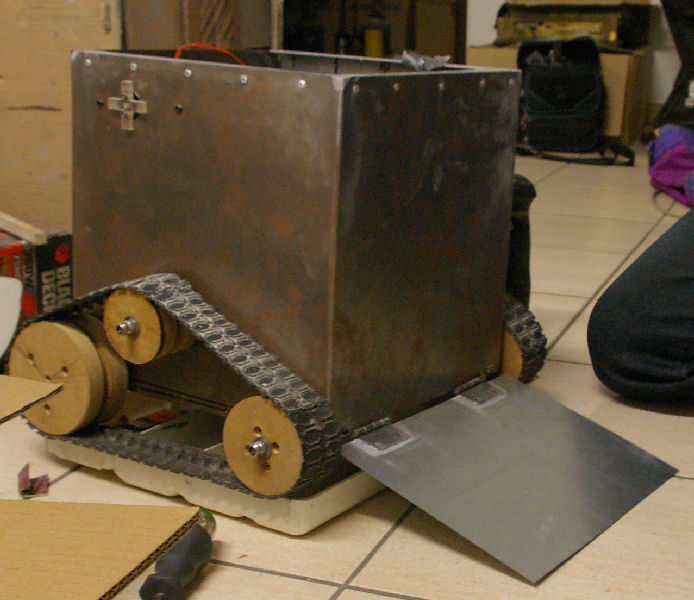

    and we prepared the front lid
    [​IMG]

  4. Angel OD

    Angel OD Pump Killer

    Joined:
    16 Sep 2007
    Posts:
    1,610
    Likes Received:
    114
    Except for the fact that my girlfriend will want me to build her one when she see this, it's awesome! :rock:

  5. wbdog206

    wbdog206 not me

    Joined:
    15 Jan 2007
    Posts:
    442
    Likes Received:
    1
    sweet.

  6. Lineage

    Lineage New Member

    Joined:
    19 Sep 2003
    Posts:
    143
    Likes Received:
    0
    sweeet~~~ now, r u gona build eva next? :p

  7. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thanks a lot!!! :clap:


    eve is also in our big pile of planned and up to now not realized mods....:D
    as soon as we find a few solutions for some minor problems we will start the building process.
    Up to now...the biggest problem would be the hovering parts of her body like the head and the arms....:D


    time for a "small" update :D:thumb:

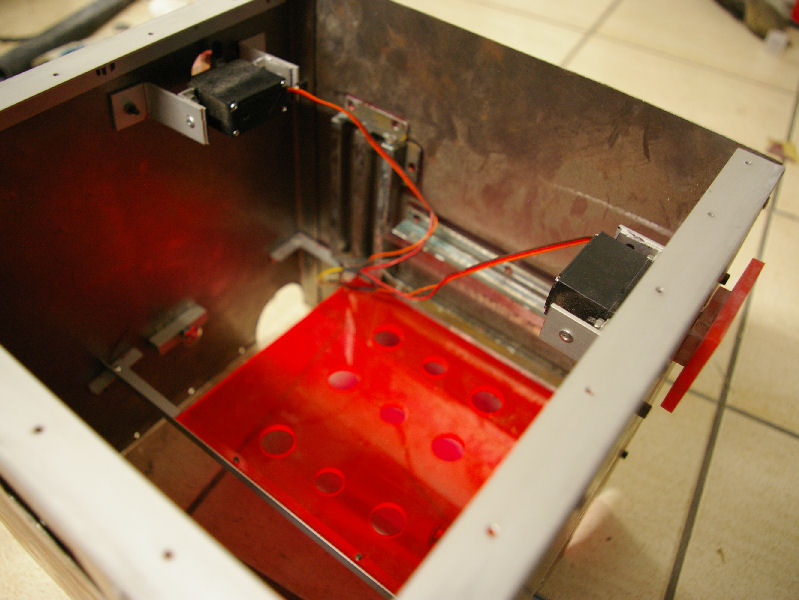

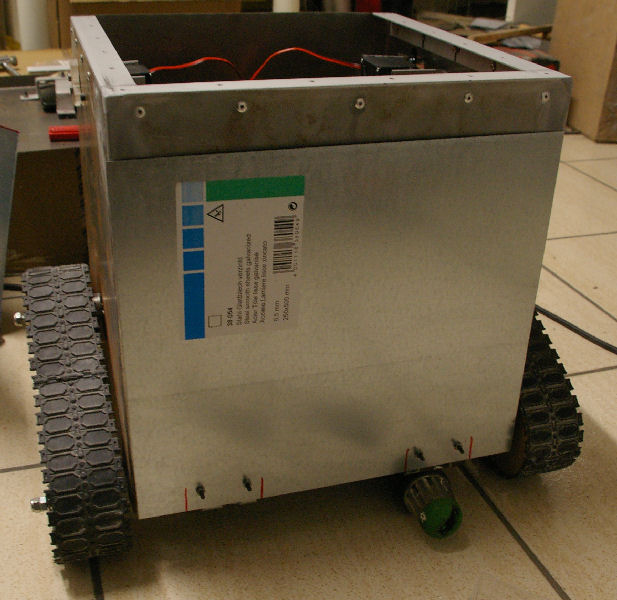

    one of the next steps...was to assemble the mainbase for a first test...so that we can see if if fits like it should...
    [​IMG]
    [​IMG]

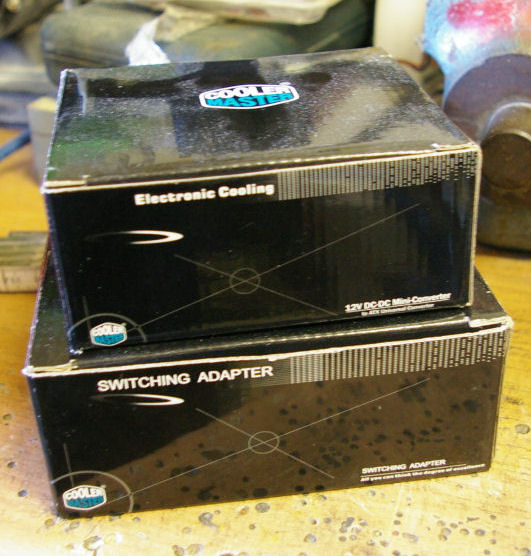

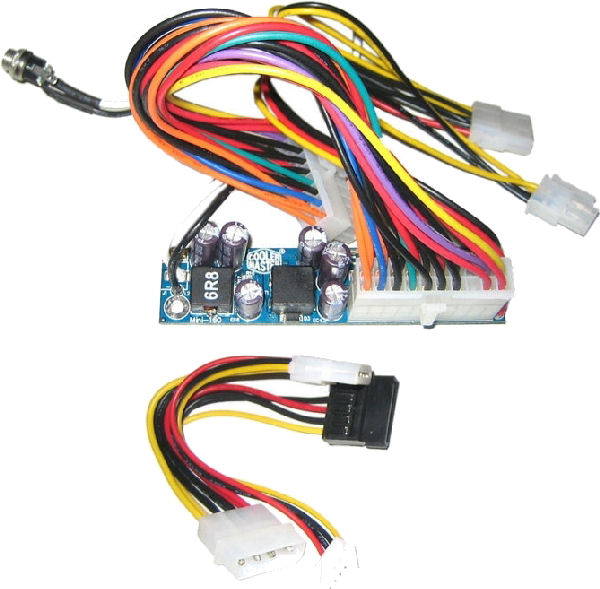

    Then we choosed a "PSU" for the system....so that we can start searching for a nice place for it...
    [​IMG]
    [​IMG]

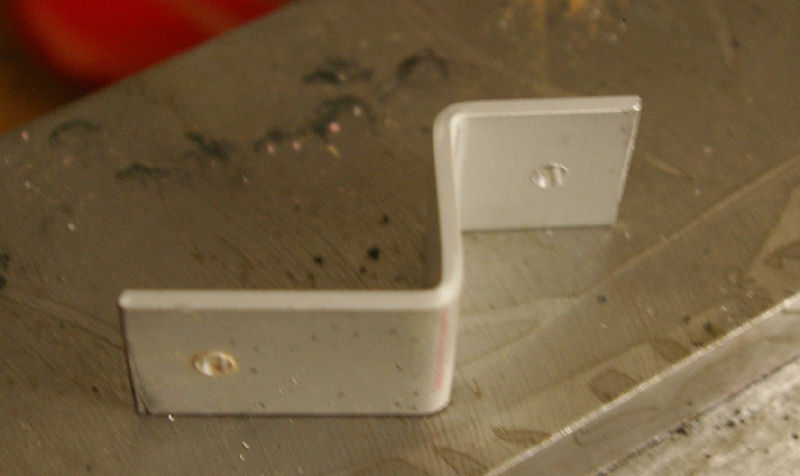

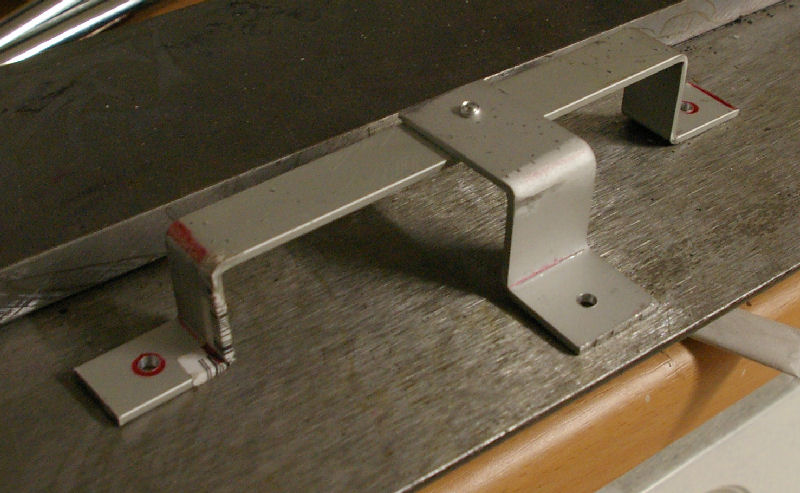

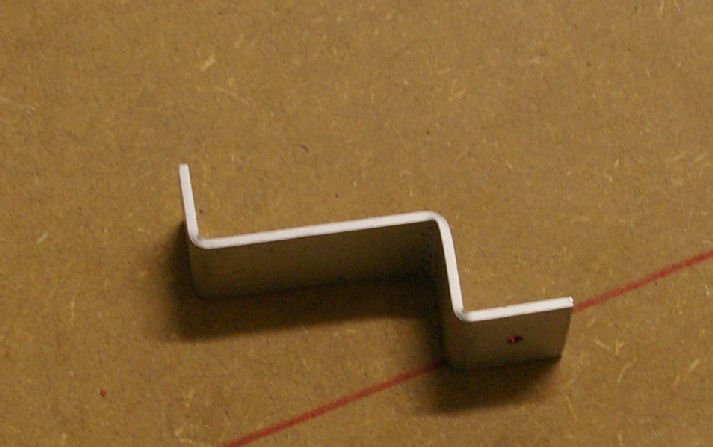

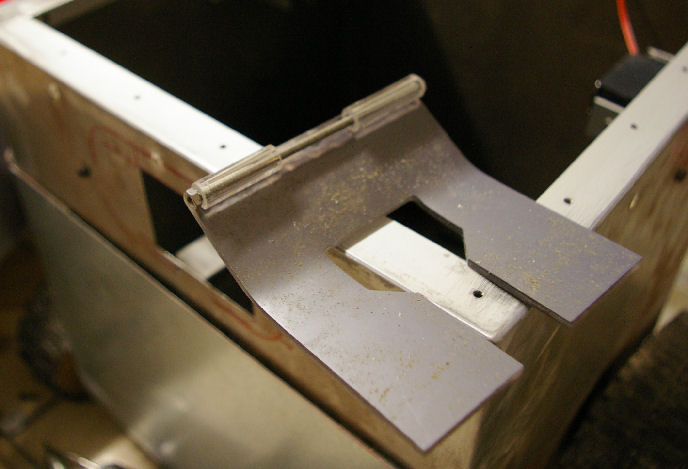

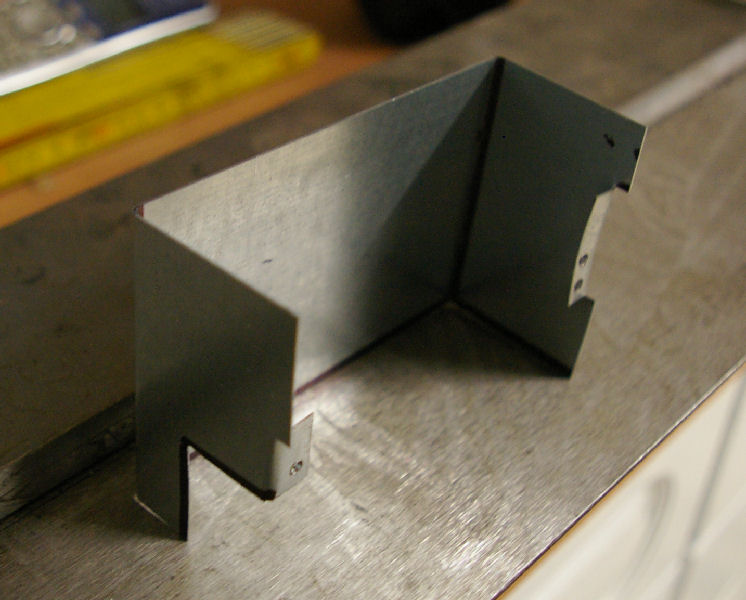

    then we bended a small angle, which will hold another servo...which opens and close the front lid
    [​IMG]

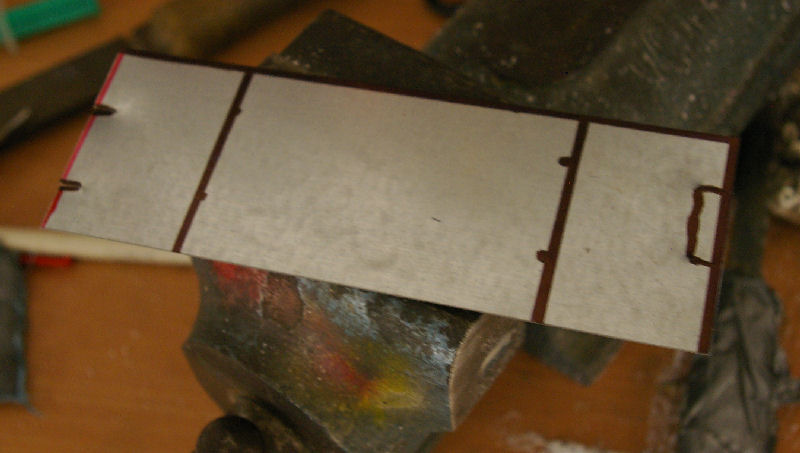

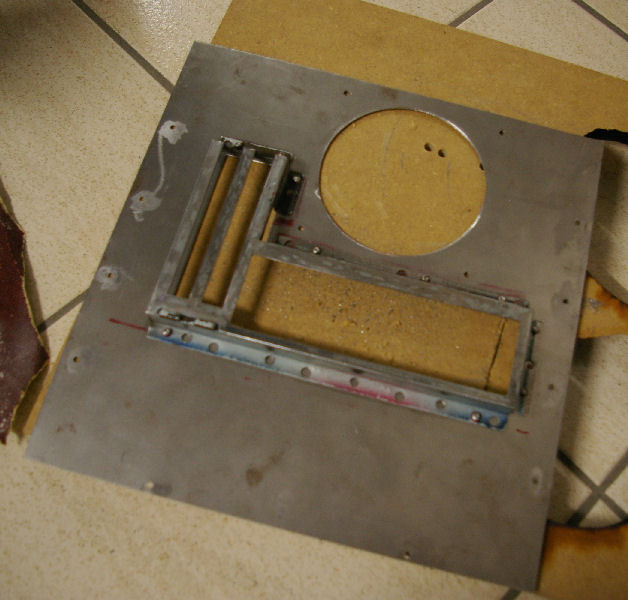

    as next we reduced the size of the I/O Panel for the backside....
    [​IMG]

    before we started to cut out the first parts of the arms....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

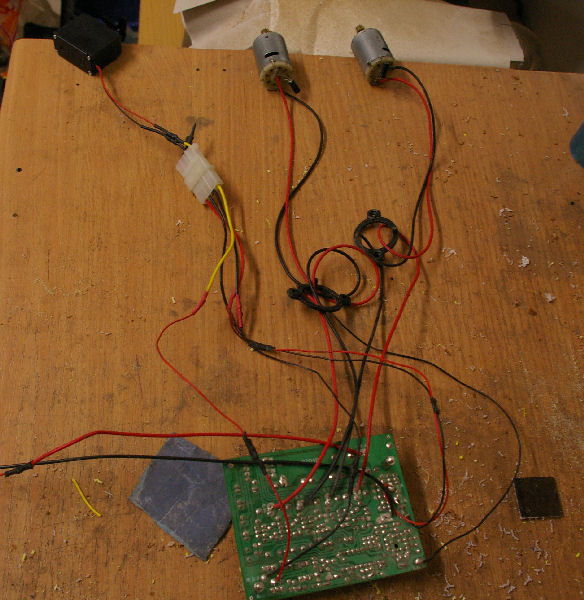

    we also overworked the electronics for the chain drive so that it will work without problems...
    [​IMG]

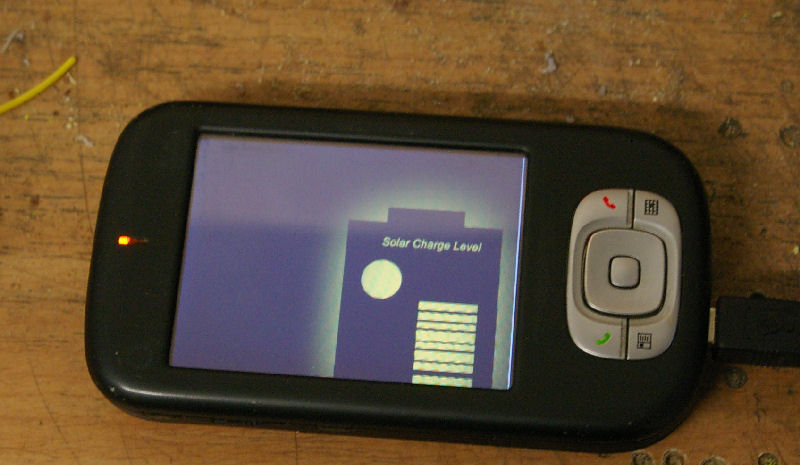

    last but not least....we picked an old phone (htc magician) which we will use as addition for the windows desktop and as standalone device for the small front display which wall-e originally has.....(it also can play soundfiles)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  8. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    and here is a short video of the first test run we made....



  9. kinghong1970

    kinghong1970 Just a Clumsy Ape

    Joined:
    19 Apr 2009
    Posts:
    188
    Likes Received:
    6
    for eyes... use one of those cylindrical webcams...

  10. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    time for the next update :thumb:


    not for this version of the eyes, but we already plan a second version of them....so that we can integrate the webcams in the second version :thumb:


    Like you can imagine from the video....the next steps we made were the arms & hands....

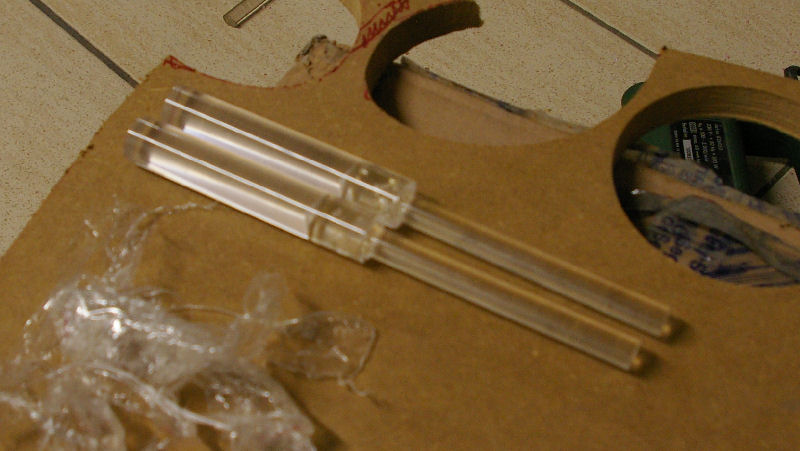

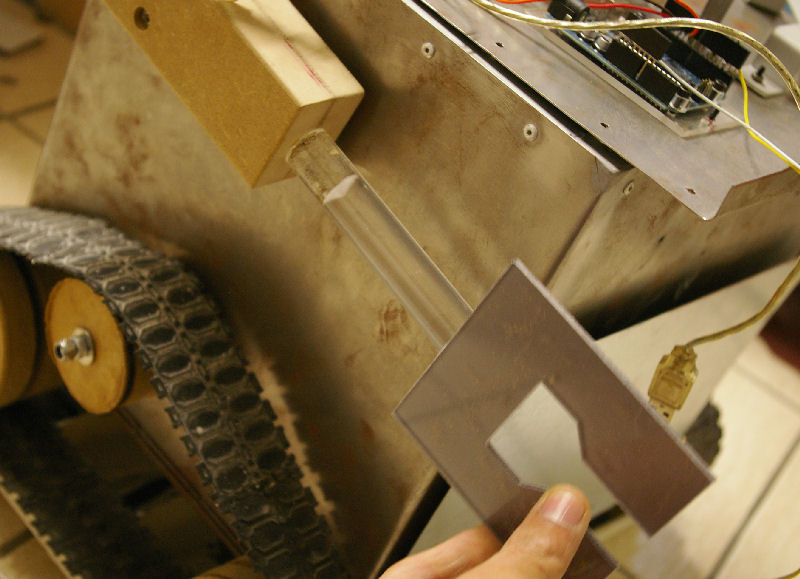

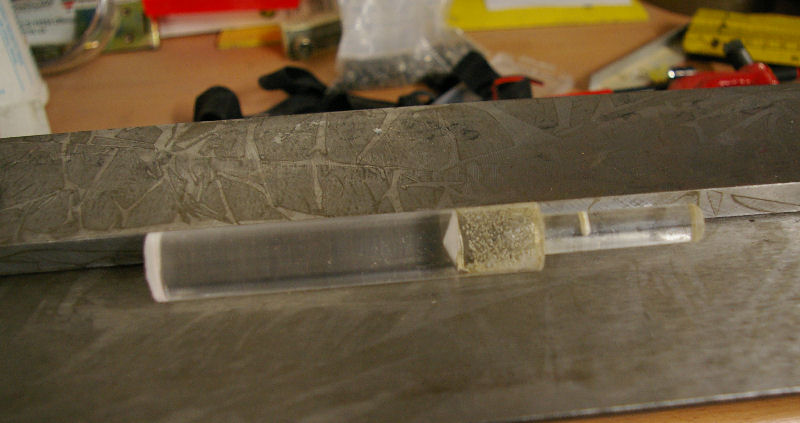

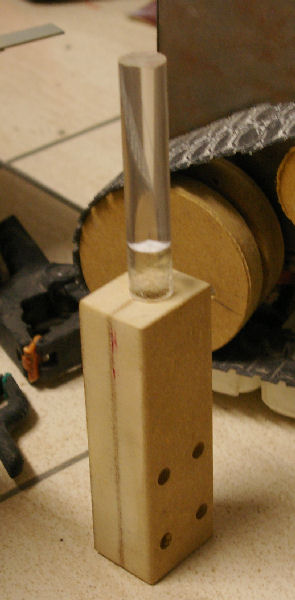

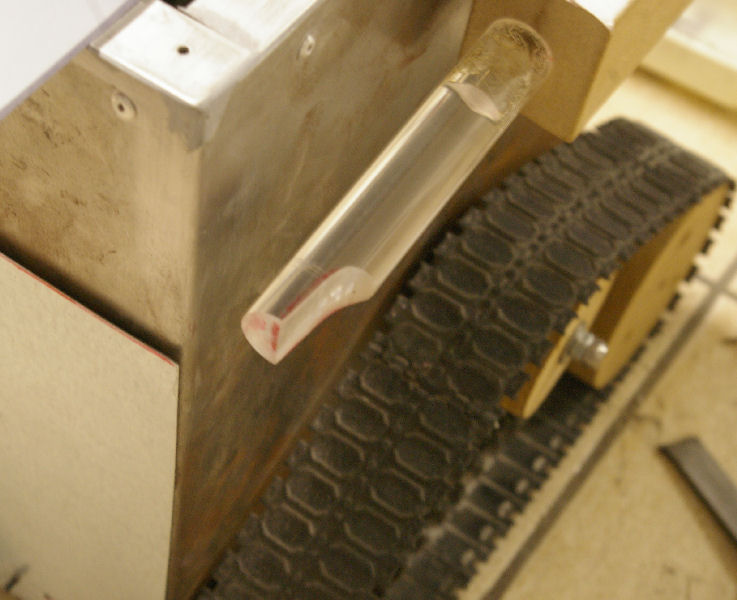

    for the arms we first prepared a solid plexiglas rod (25mm diameter) with a hole where we can insert a bit smaller rod...the smaller rod is glued to the bigger one and will be used to connect upper arm and forearm.....

    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

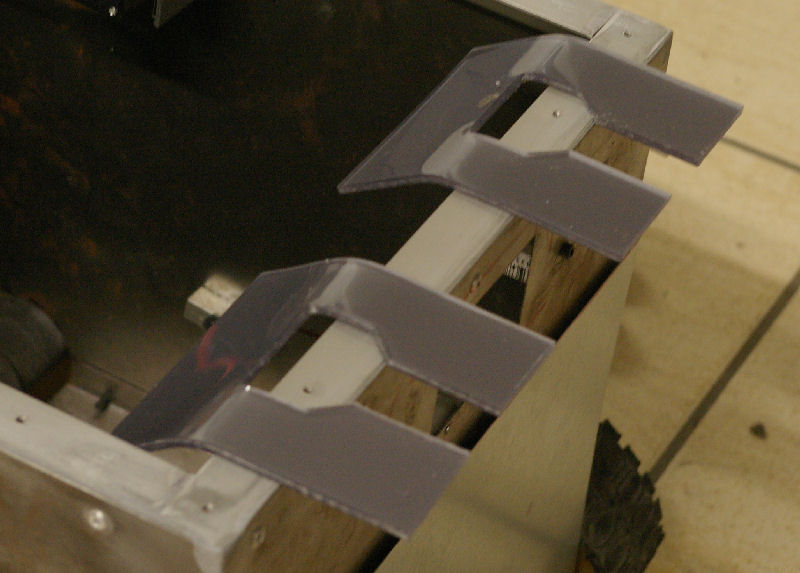

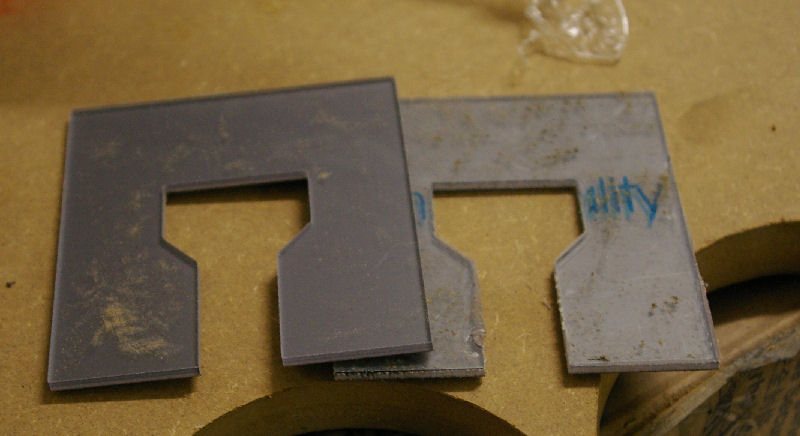

    the we cut out the first parts of the hands....
    [​IMG]
    [​IMG]

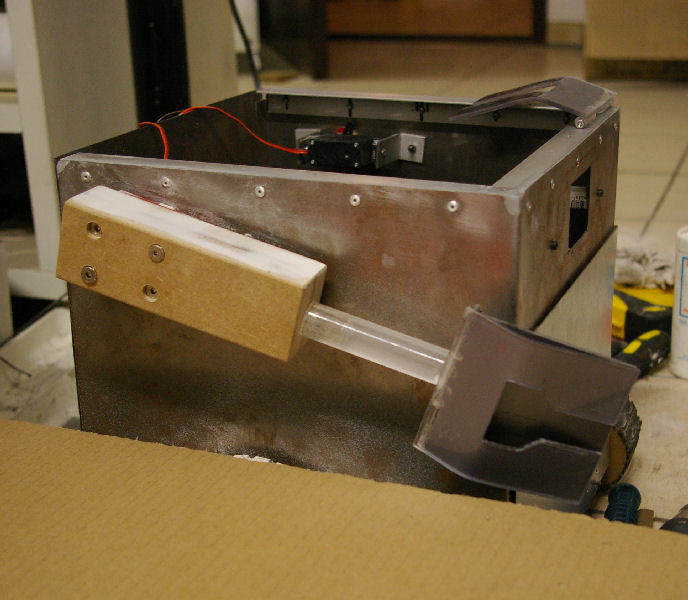

    then we first bended the already prepared hands and sanded the forearms....so that we can attach the hands to them....
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

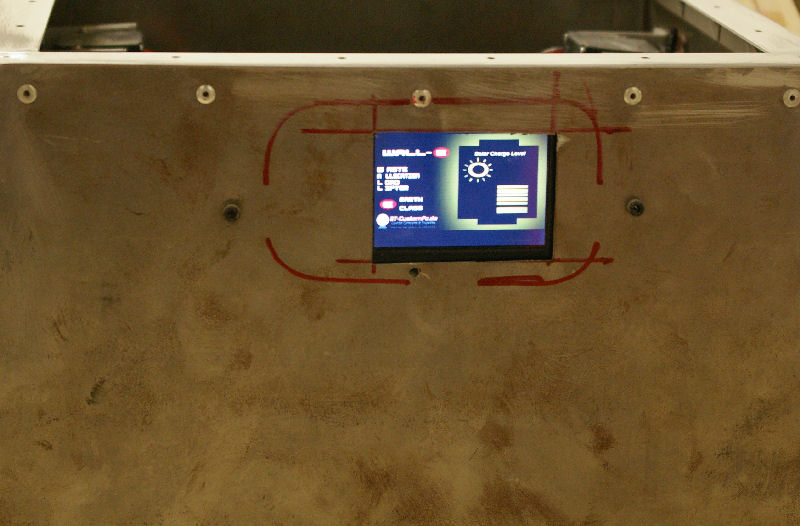

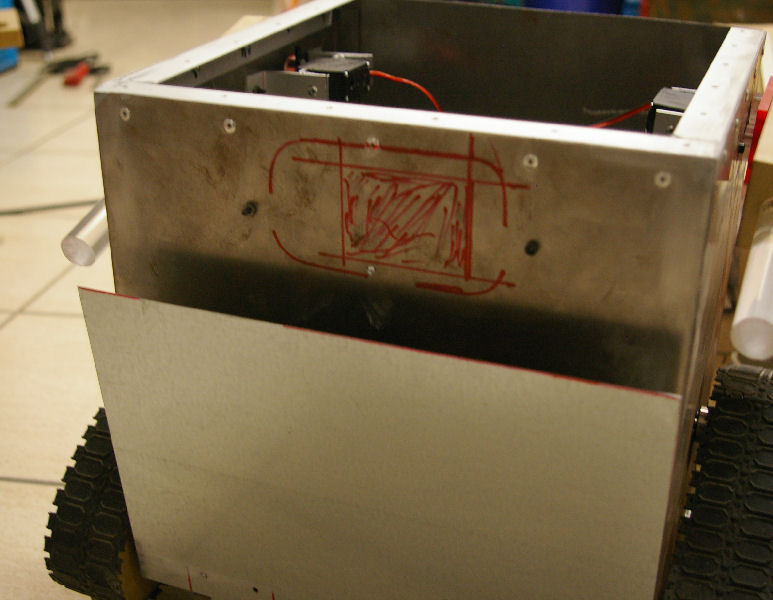

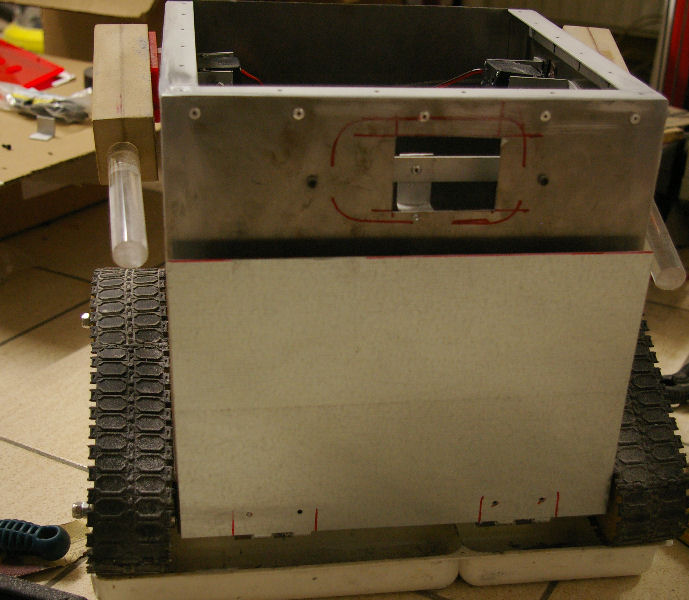

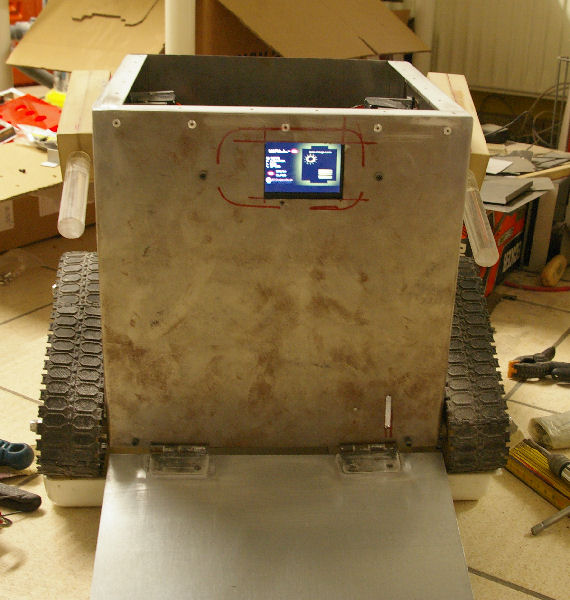

    beside that we also prepared the front for the display and made the needed cuts
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

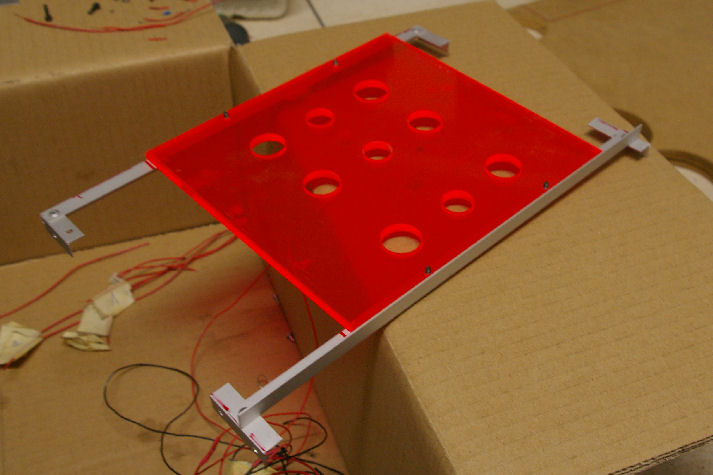

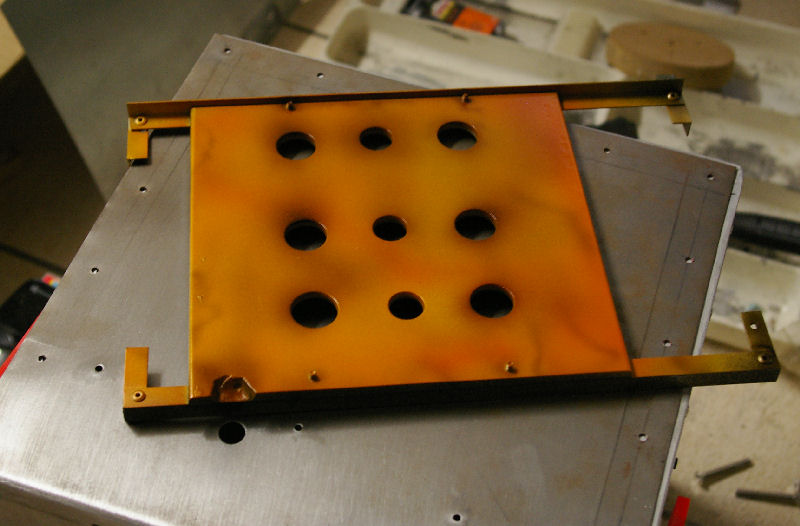

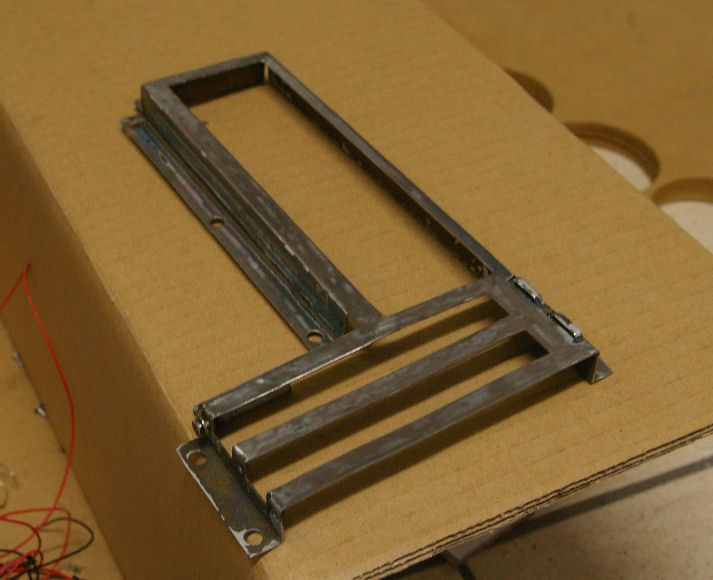

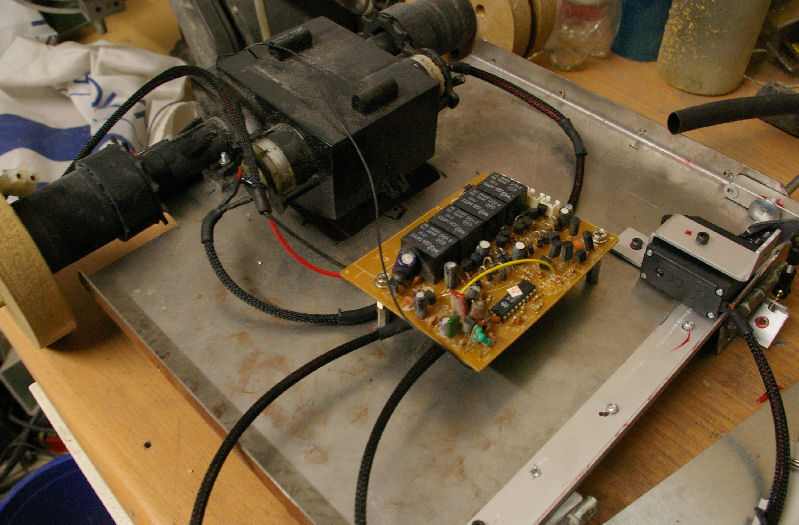

    last but not least we mounted the Mainboardtray and the electronics for the driving functions for a first time....
    [​IMG]
    [​IMG]
    [​IMG]

  11. password

    password New Member

    Joined:
    28 Dec 2010
    Posts:
    20
    Likes Received:
    0
    this is awsome!! :D :thumb: loved the film

  12. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx a lot m8!!

    it´s time for an update! :clap:

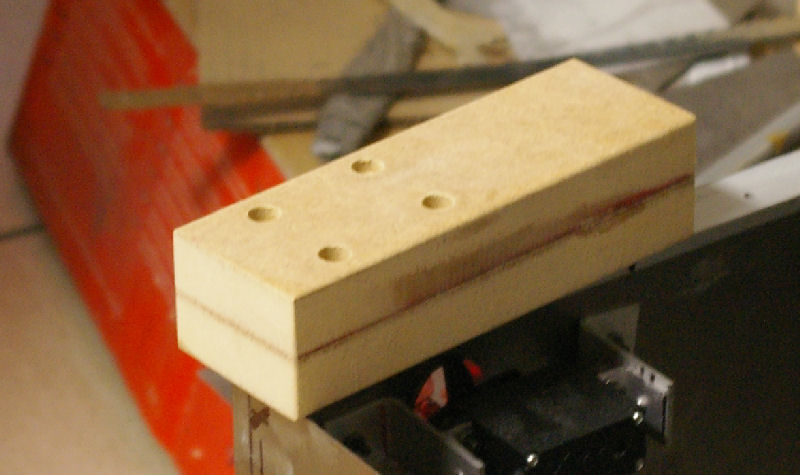

    the next parts we made were some covers for the servos which lifts our arms....

    [​IMG]

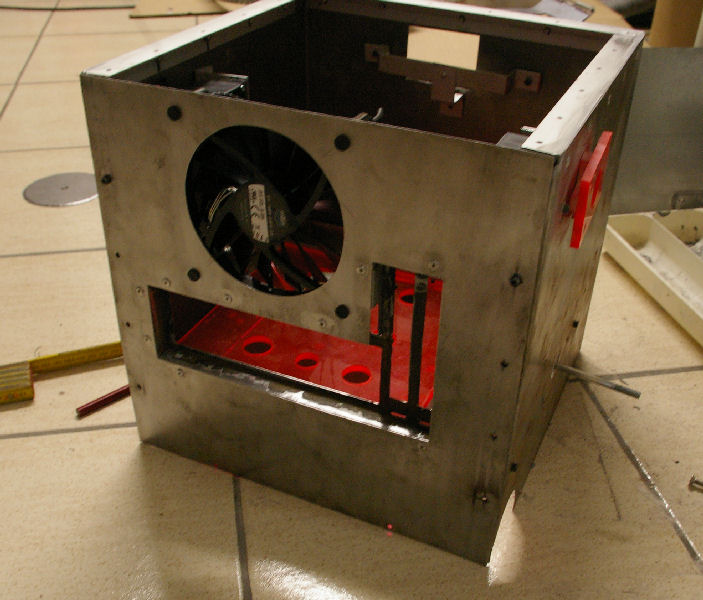

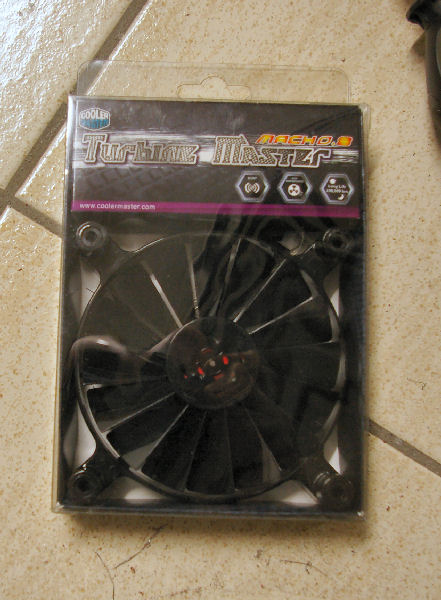

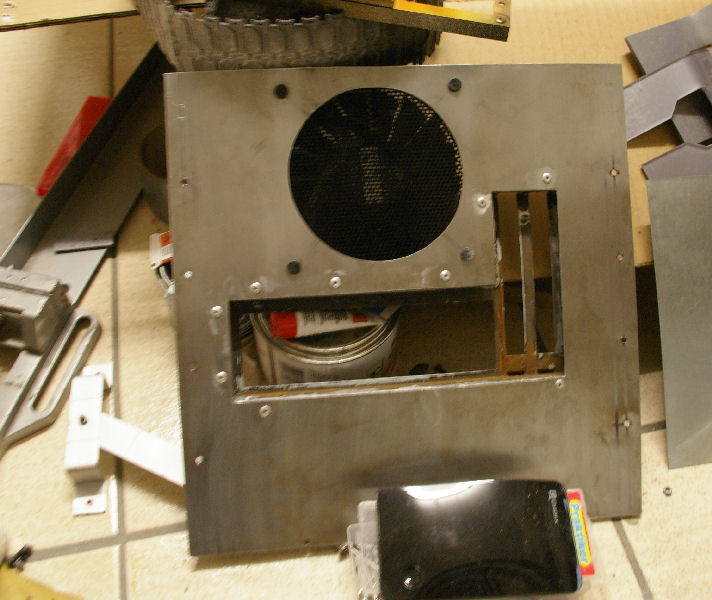

    then we first choosed a fan for the backside of the case...

    [​IMG]


    ....so that we could mark his place and cut out the needed blowhole....

    [​IMG]
    [​IMG]

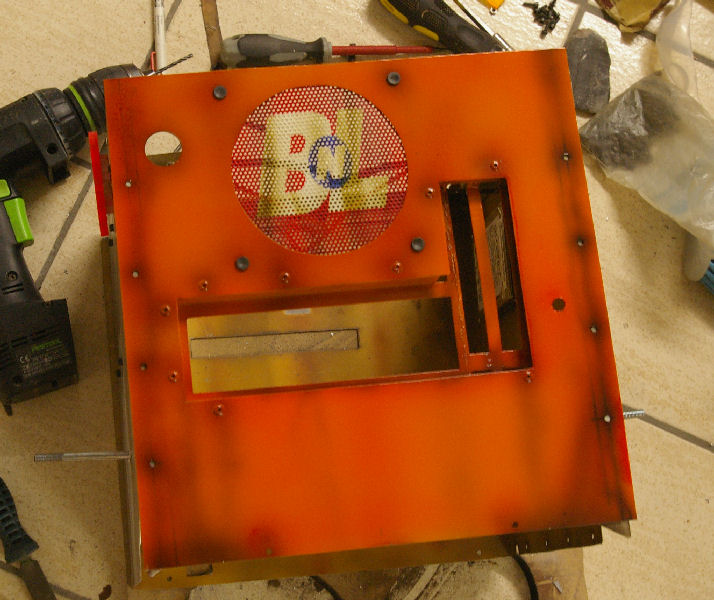

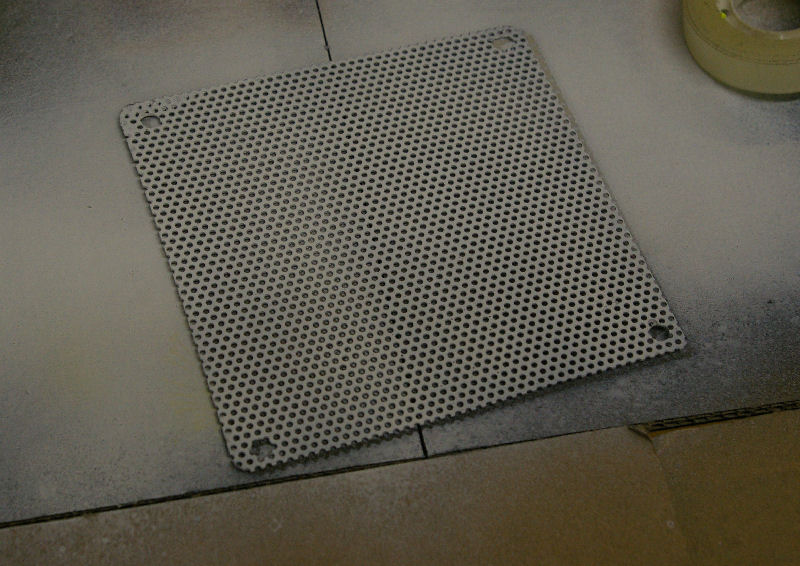

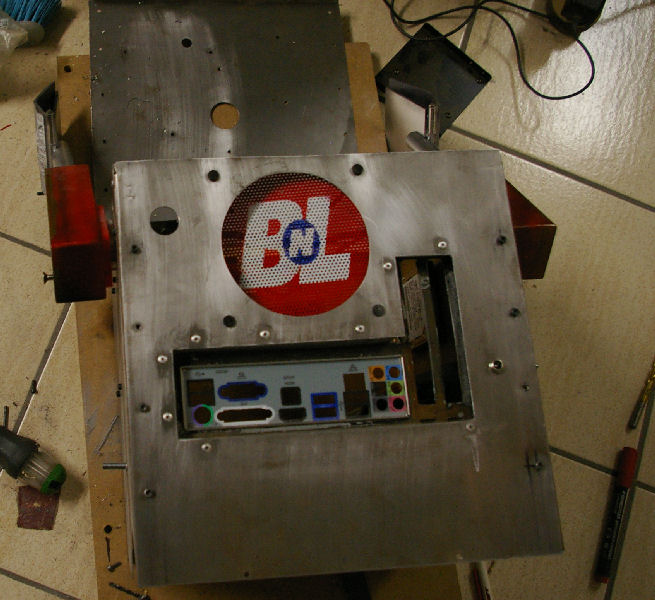

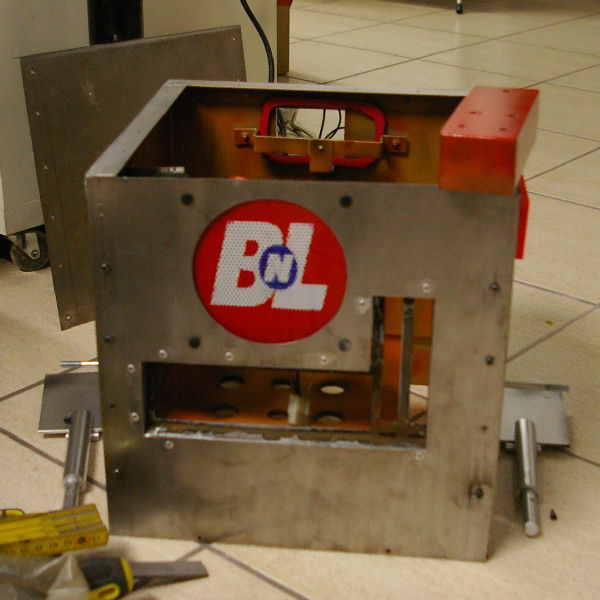

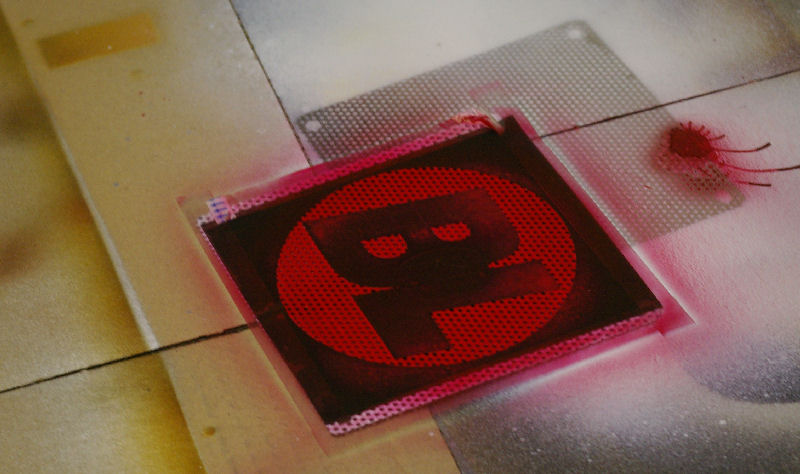

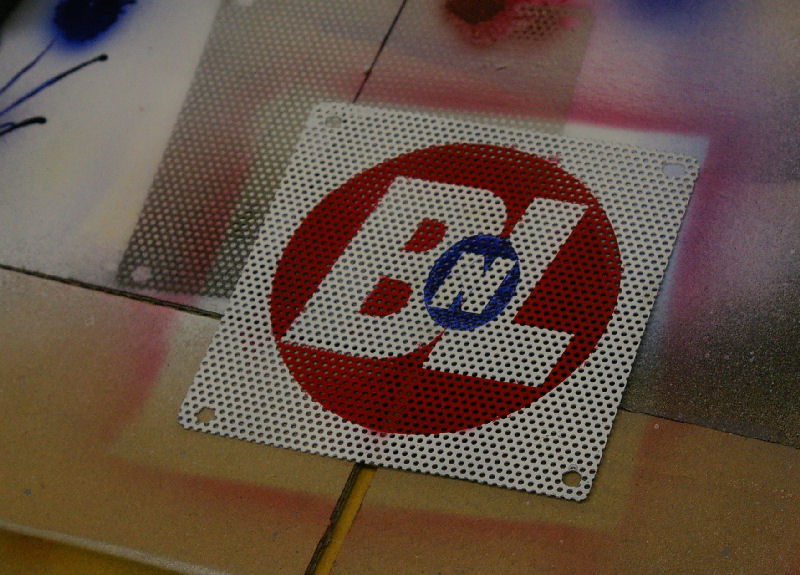

    after that we cutted a piece of modders mesh to fit behind that blowhole...and we also painted it with the BnL Logo from the movie....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

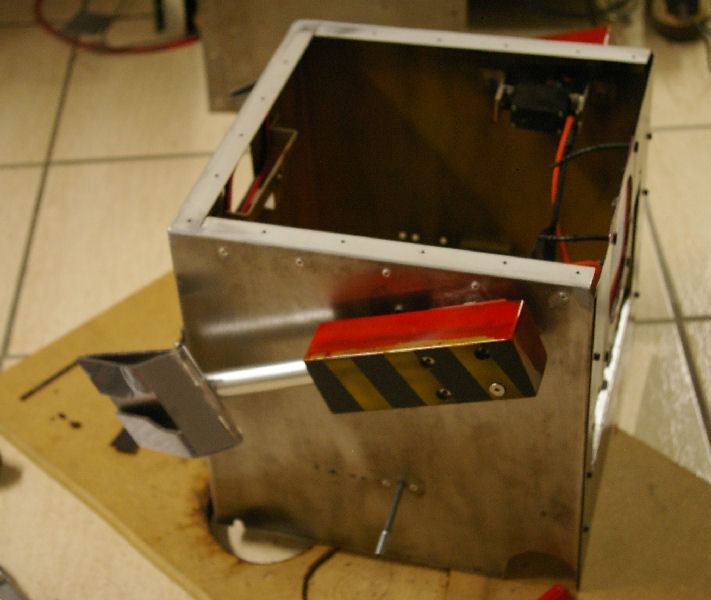

    beside that we added a bit of paint to the mainbase and the arms....

    [​IMG]
    [​IMG]

  13. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    time for an update again :rock:

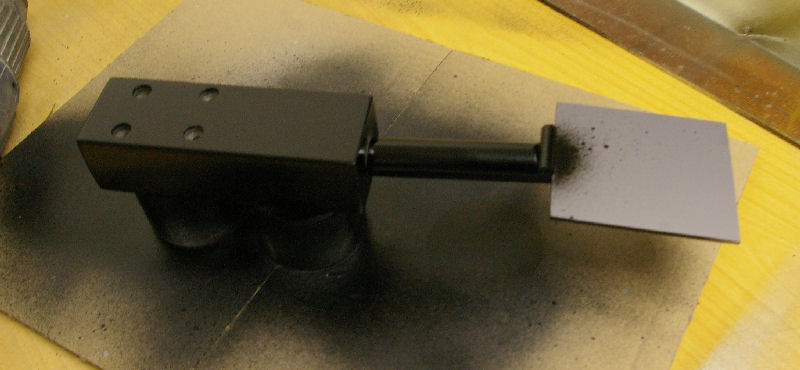

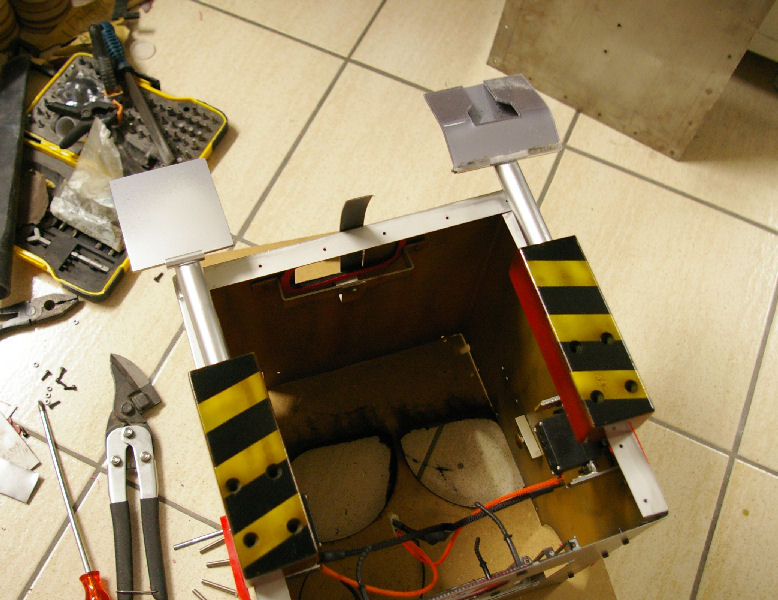

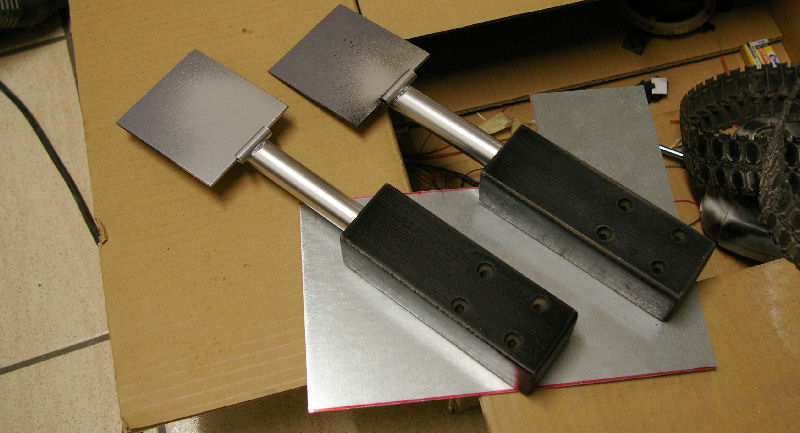

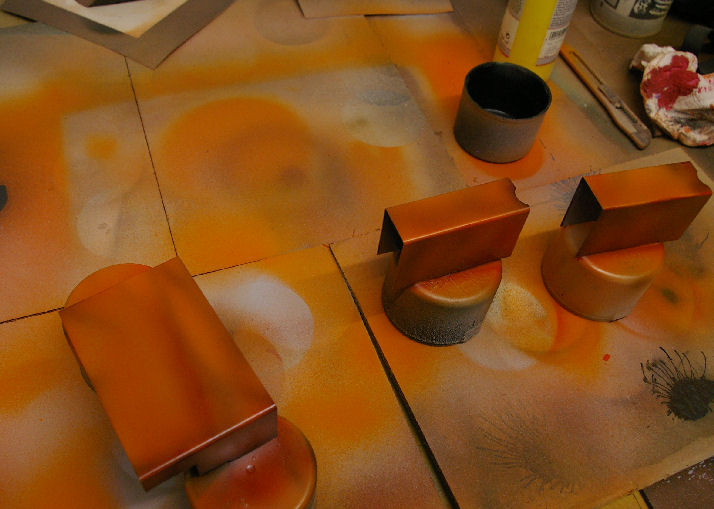

    first we finished the painting process on the arms / hands.....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

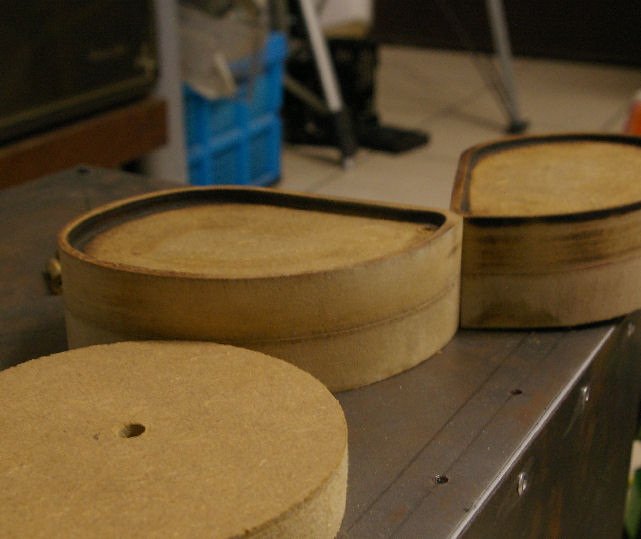

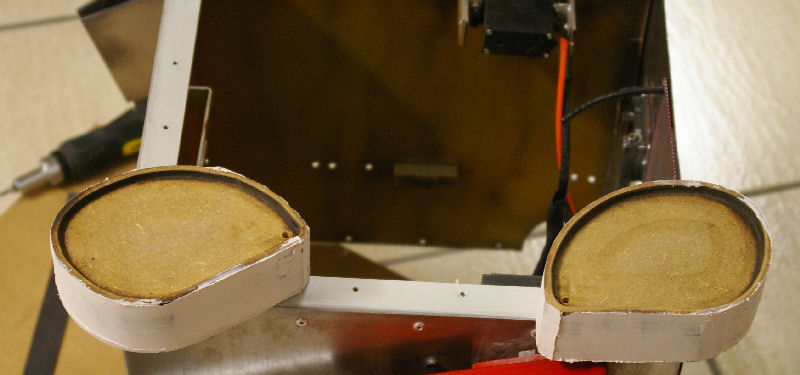

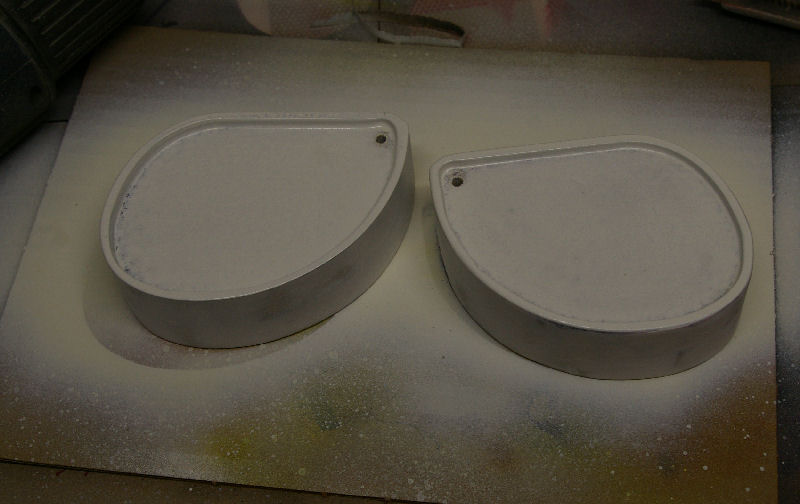

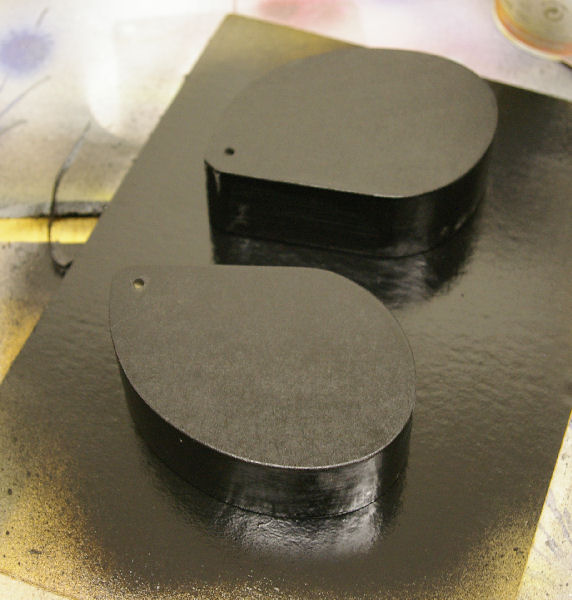

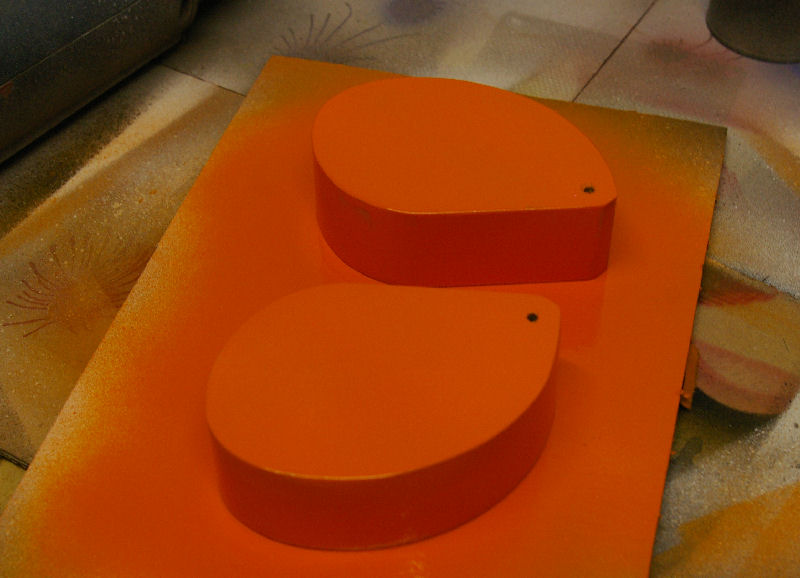

    then we continued with the eyes....they needed a bit of bondo and sanding before we could start to paint them.....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

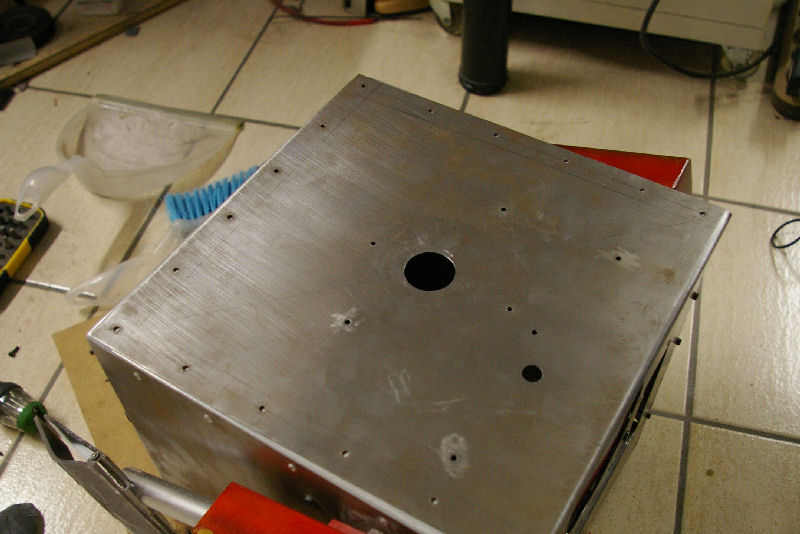

    then we had to drill a few more holes into the the top

    [​IMG]

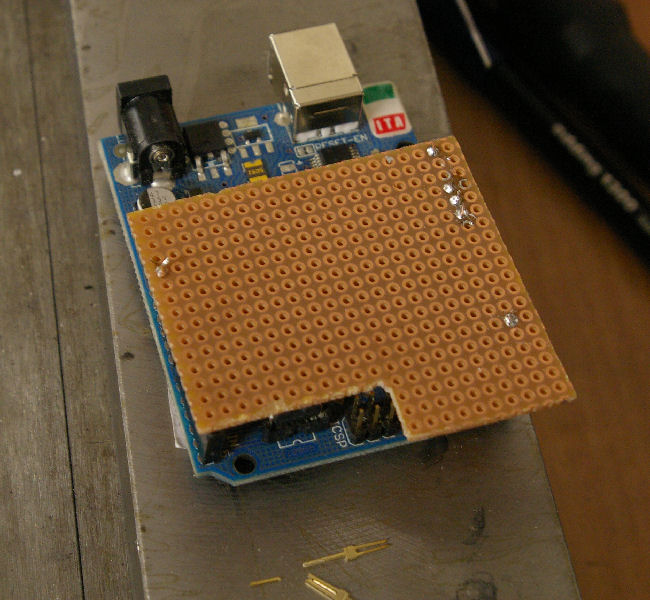

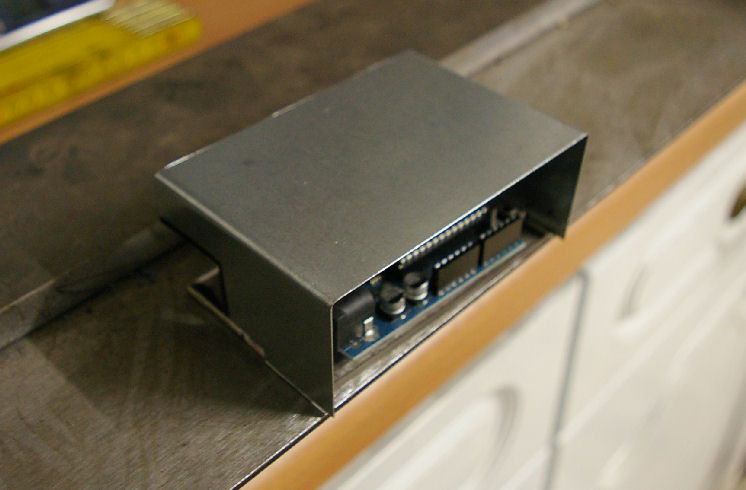

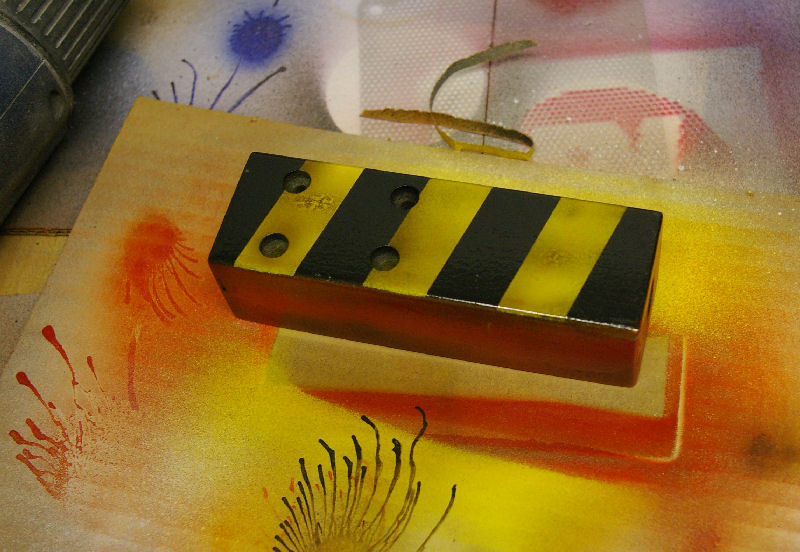

    For the arduino which should be mounted under the top, we made a small cover....

    [​IMG]
    [​IMG]
    [​IMG]


    before we startet to mount the hardware for a first test


    [​IMG]
    [​IMG]

  14. alain-s

    alain-s Active Member

    Joined:
    12 Jan 2011
    Posts:
    427
    Likes Received:
    54
    very nice thechoozen
    its is comming along nicely

  15. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    :D Sweet project & coming along excellent, subbed 5 star :). :hehe: Have you guys hit 100 mods yet or gone way over? :D keep at it :cooldude:.

  16. flame696

    flame696 Terminating People Since 1980....

    Joined:
    15 May 2009
    Posts:
    5,558
    Likes Received:
    230
    my god thats awesome! I hate you guys for having so much skill..!!!!!

  17. Volund

    Volund Am I supposed to care?

    Joined:
    16 Sep 2008
    Posts:
    1,947
    Likes Received:
    65
    Very cool project

    How is the HTC Magician interfaced with the PC? through the Arduino or just via USB?

  18. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s!! :thumb: :clap:

    oh that depends on how you count :D if we count them all together (customer mods/scratch builds and those we build just for us) we´re way over it....if you count only those we did for us....we have reached the half with one of our last projects........:clap:



    we will use one of the internal usb connectors (Front USB) to connect the magician directly to the mainboard. That way it´s recognized as normal device which can be synced....(thats a must, because else the driver for the display wouldn´t work and a working display becomes more and more important )


    But now it´s time for a short update:

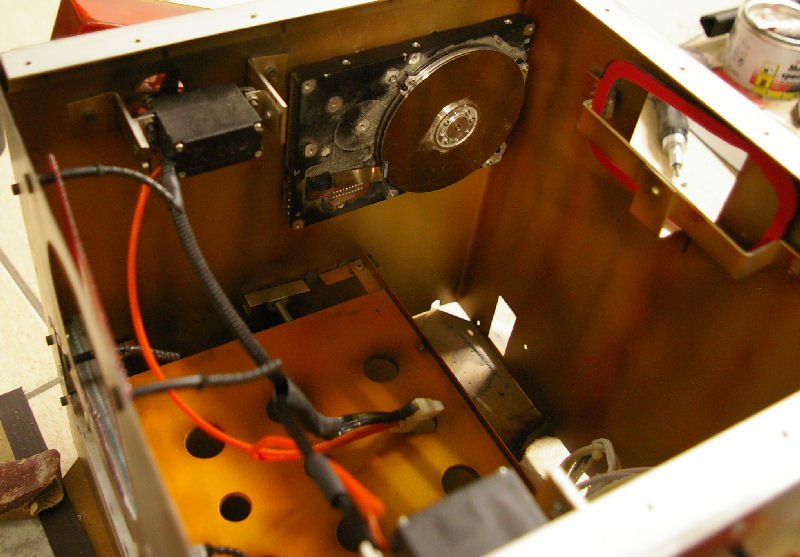

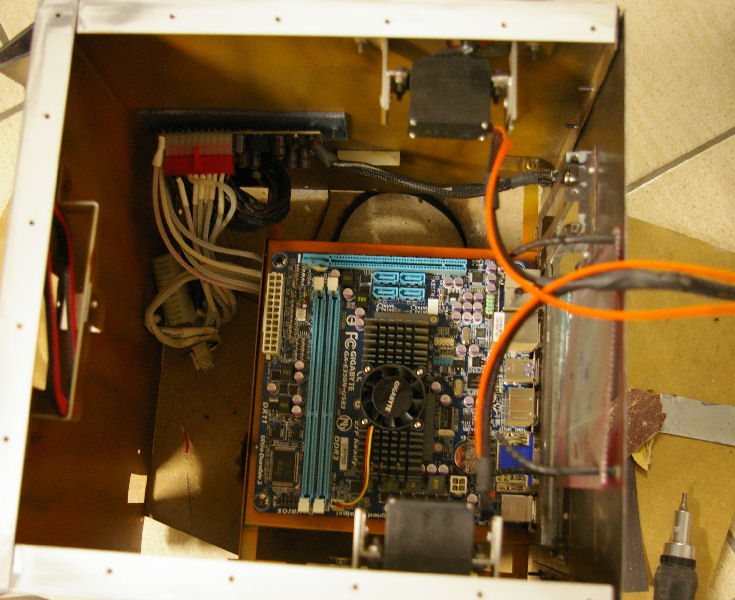

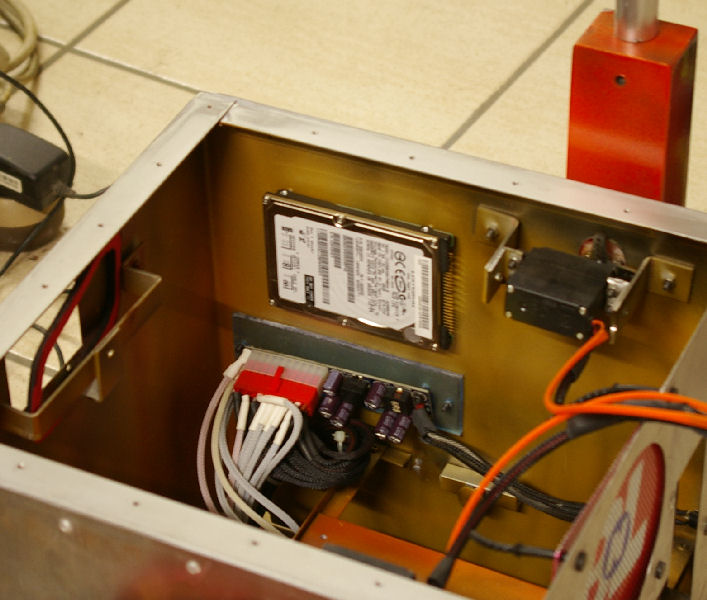

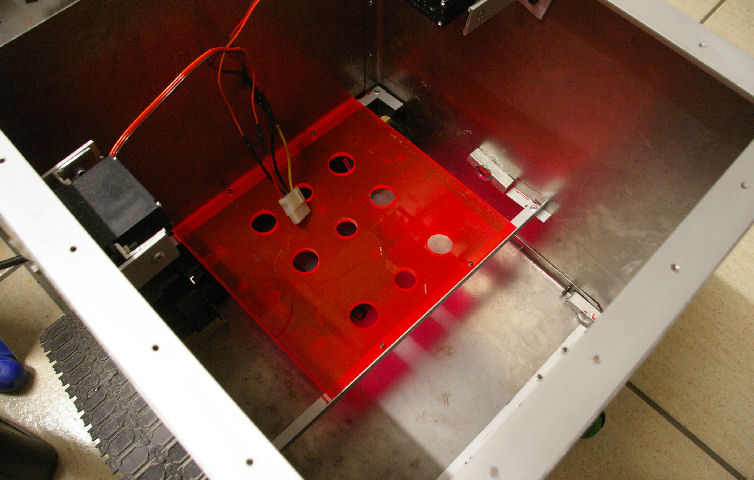

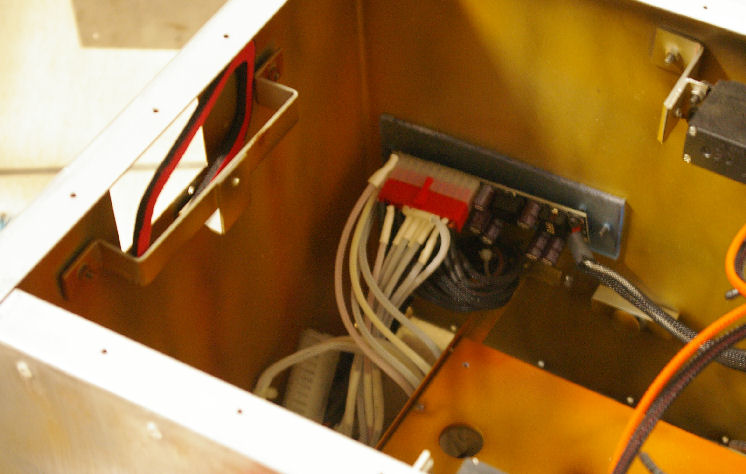

    After mounting the mainboard, we also mounted a few dummy parts (as place holders for the real hardware) to see if everything will fit inside.....

    [​IMG]
    [​IMG]

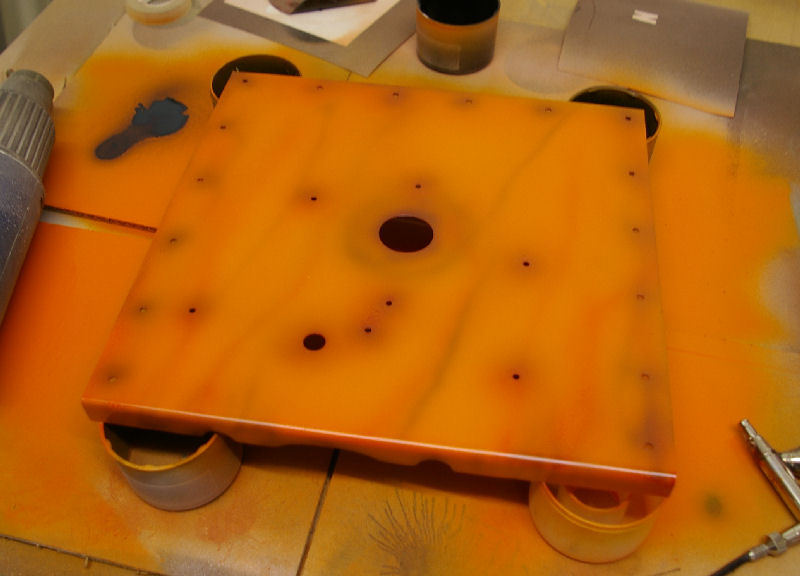

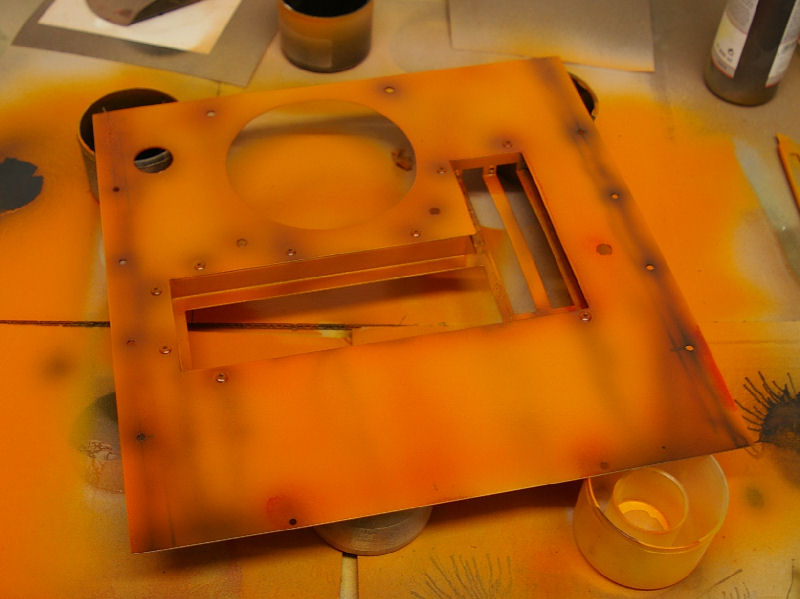

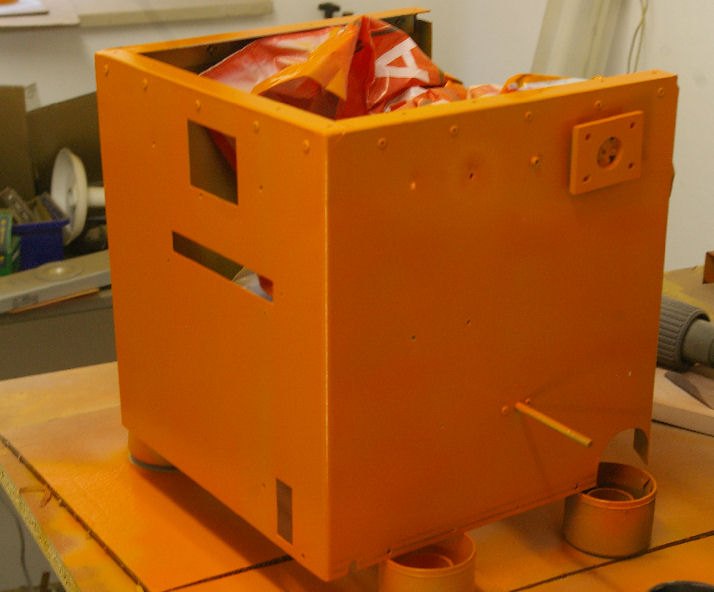

    as next we started the painting process for Top/Backside of the Case
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

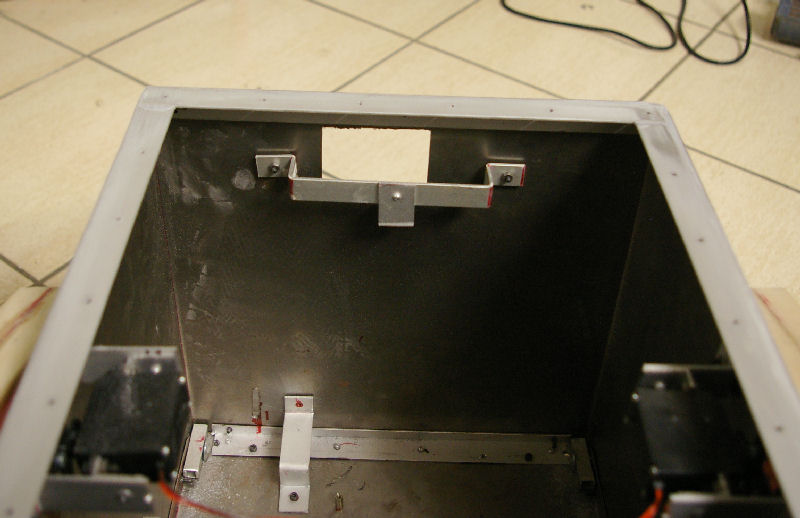

    after that we made the last cuts...so that a DVD Drive can be mounted behind the front..
    [​IMG]

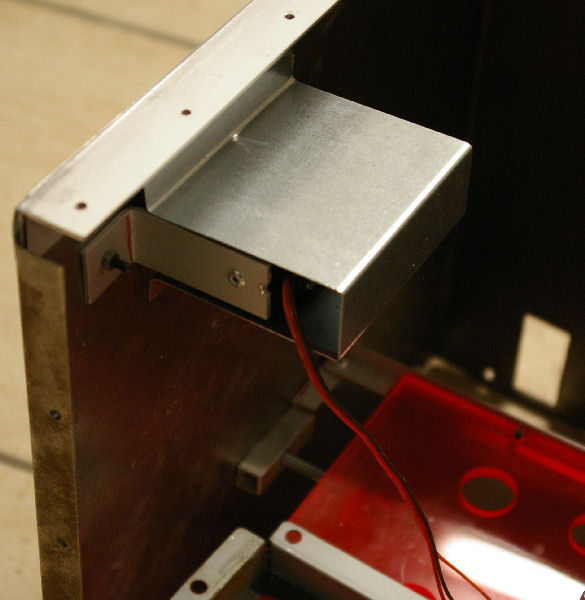

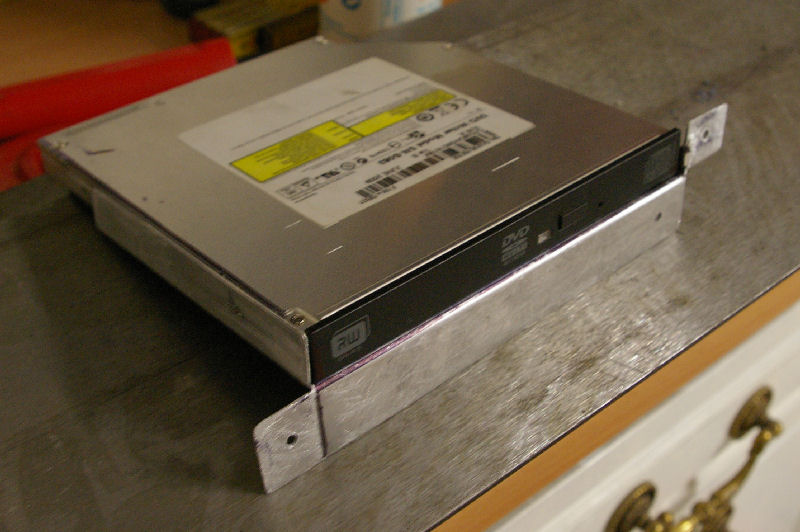

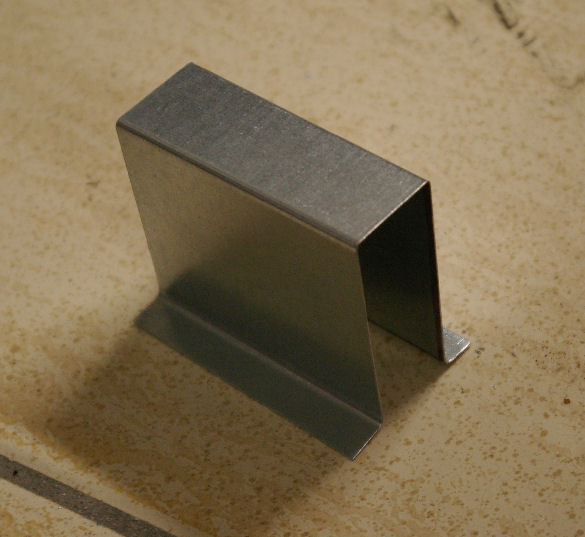

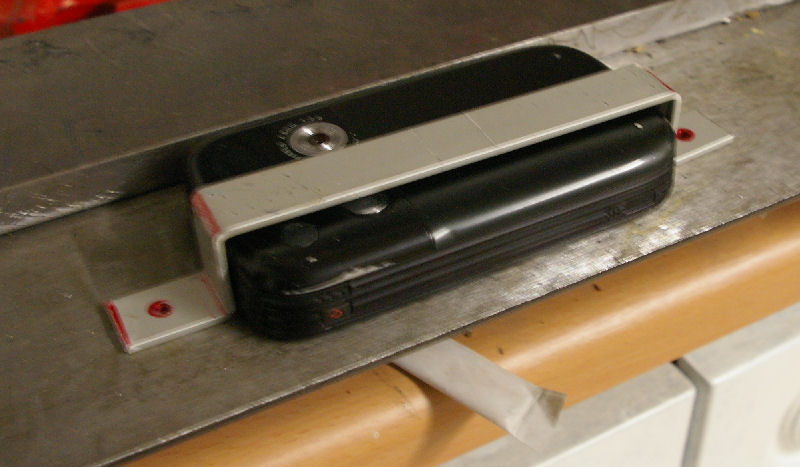

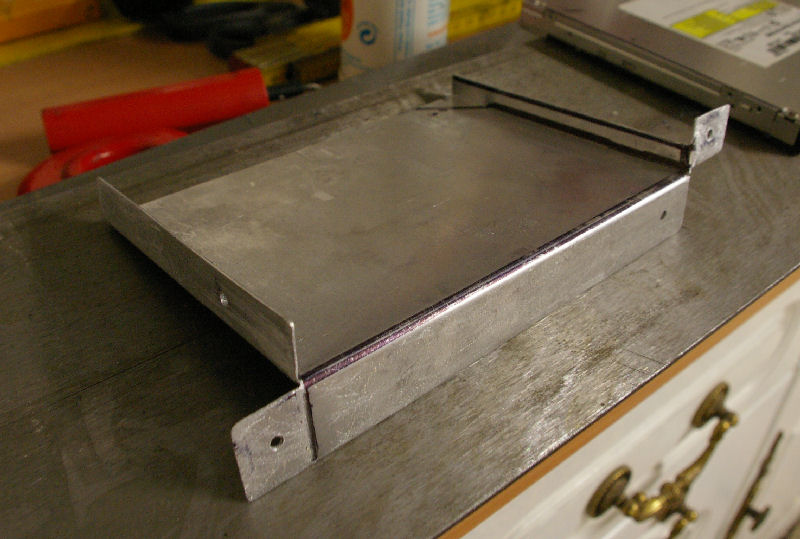

    we also made a small drive cage for the dvd drive
    [​IMG]
    [​IMG]

    before we continued the painting process of the rest of the body
    [​IMG]
    [​IMG]

  19. Waynio

    Waynio Relaxing

    Joined:
    20 Aug 2009
    Posts:
    5,712
    Likes Received:
    211
    :D Knew it had to be many, wow 50 personal mods that really is some going, no bow down emotion so I'll have to jaw drop :D :jawdrop: :clap:.

    Nice update, paints looking good :thumb:.

  20. Stem83

    Stem83 Addicted to modding.

    Joined:
    26 Mar 2011
    Posts:
    498
    Likes Received:
    16
    you can really see this taking shape in the last couple of posts, then you add the paint and it transforms completely, hope this comes out as good as its looking now.
