Case Mod - In Progress Project Streamliner (upd 23.12.14)

Discussion in 'Project Logs' started by aio, 16 Mar 2014.

  1. flix

    flix Minimodder

    Joined:
    5 Aug 2009
    Posts:
    151
    Likes Received:
    29
    omg this is amazing :eeek:

  2. aio

    aio Minimodder

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Yep, bit-tech is wonderful community

    Thanks :)

  3. aio

    aio Minimodder

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Part 5


    Photos coming soon

  4. MarkVarley

    MarkVarley Minimodder

    Joined:
    12 Sep 2014
    Posts:
    320
    Likes Received:
    13
    I'm very curious what the various switchgear will do, and the speedometer...

    Sent from my GT-I9505 using Tapatalk

  5. Attila

    Attila still thinking....

    Joined:
    22 Feb 2008
    Posts:
    1,259
    Likes Received:
    238
    While people can argue about the aesthetics, (as with any other build). No-one can complain about the quality. Awesome work and mind numbing attention to detail. :thumb:

  6. HandMadeAndroid

    HandMadeAndroid That's handy.

    Joined:
    18 Feb 2005
    Posts:
    741
    Likes Received:
    10
    Your sir are an artist.

  7. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,877
    Likes Received:
    1,562
    Dials and knobs match beautifully.:D

  8. douglas alves

    douglas alves Minimodder

    Joined:
    3 Mar 2014
    Posts:
    361
    Likes Received:
    134
    congratulations

  9. RooiDuiwel

    RooiDuiwel What's a Dremel?

    Joined:
    20 Sep 2009
    Posts:
    52
    Likes Received:
    4
    when are you making the car to match this build? :D :p

    absolutely amazing in both the videos and the building

  10. morgansk

    morgansk I've got wood

    Joined:
    12 Jan 2013
    Posts:
    103
    Likes Received:
    0
    Holy Moses, this just keeps getting better. The amount of work you have put in and the quality is amazing. Have you made all of the PCB's yourself too? They bring a whole new level of quality to the build. Huge respect to you!

  11. Hasle

    Hasle nohasslemods›

    Joined:
    27 Sep 2004
    Posts:
    134
    Likes Received:
    1
    Amazing! :)

  12. aio

    aio Minimodder

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    The speedometer will show the CPU load. About other I'll write later :)

    Thanks!

    :hip:

    These are the original retro parts :)

    Thanks, with what ? :)

    I don't plan it in the near future :D


    Simple PCBs I do myself. PCBs with microcontrollers and firmware are made by comrade ALS

    Thanks :)

  13. aio

    aio Minimodder

    Joined:
    8 Jun 2012
    Posts:
    105
    Likes Received:
    11
    Assembling the components of the front panel
    [​IMG]

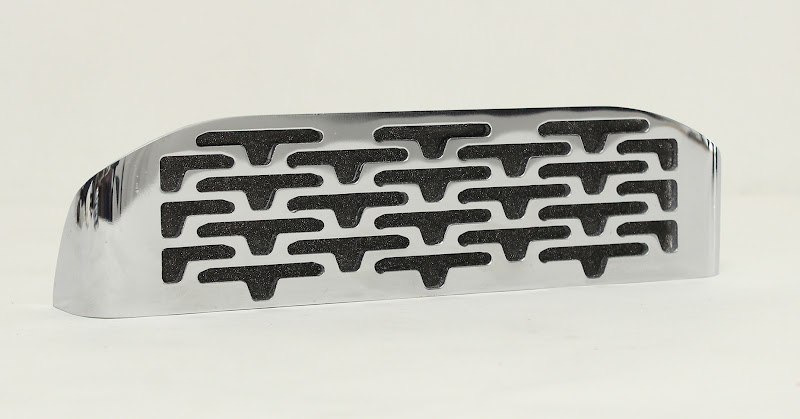

    Chrome-plated lower grille with dust filter
    [​IMG]

    [​IMG]

    On its place
    [​IMG]

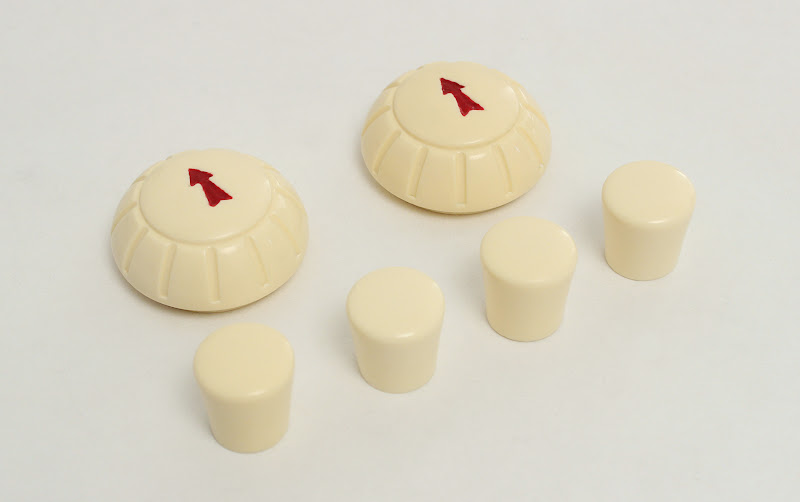

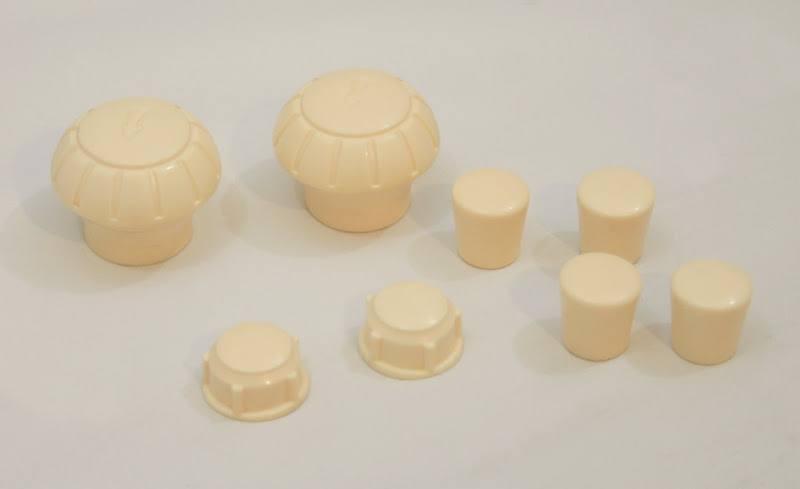

    Original plastic knobs from the interior of the Soviet car GAZ M-20B "Pobeda" ("Victory")
    [​IMG]

    Shortening the large knob
    [​IMG]

    Grinding and leveling the base
    [​IMG]

    Milling the space for the nut
    [​IMG]

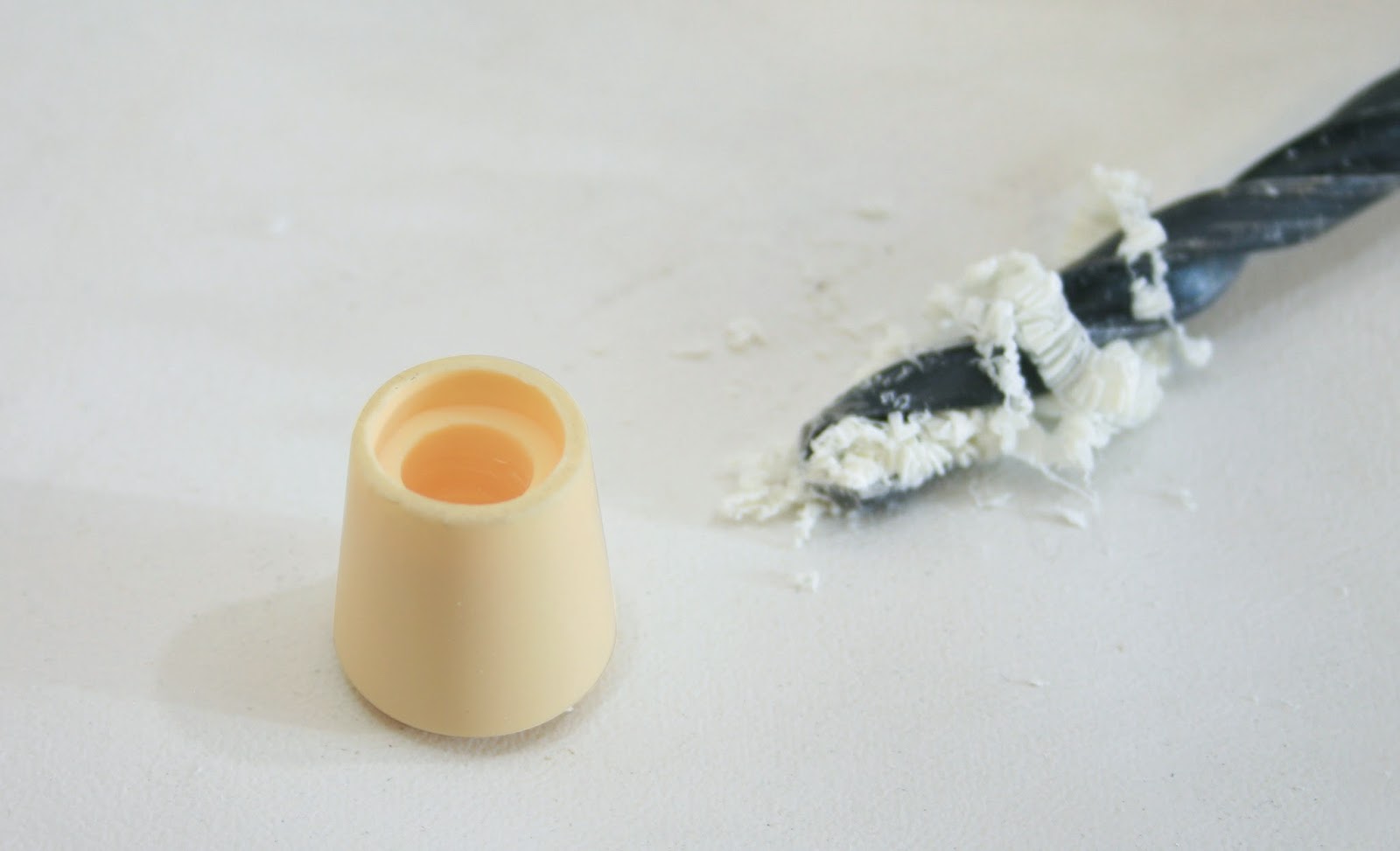

    The hole for the sleeve of a "radio knob"
    [​IMG]

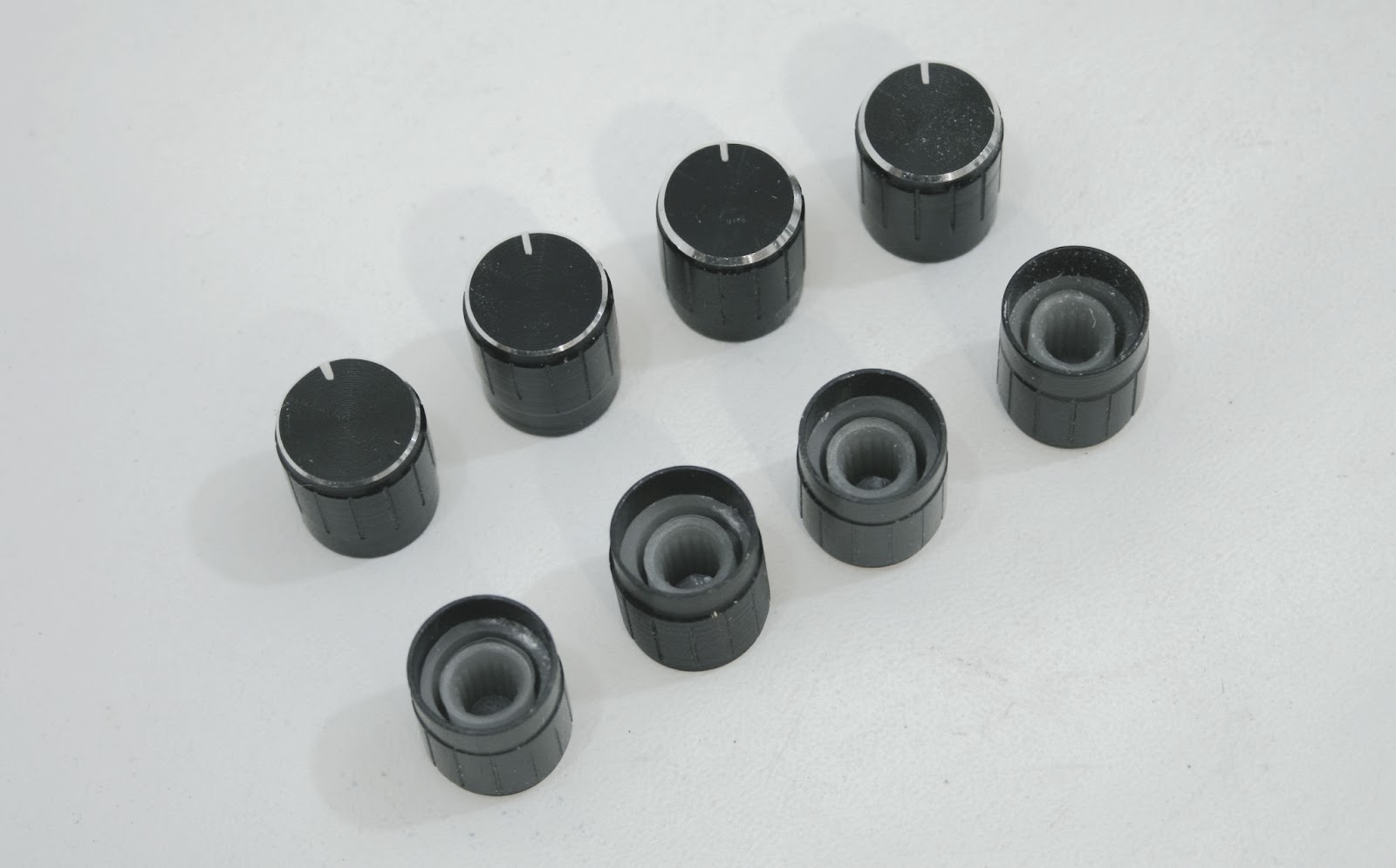

    Knobs for radio equipment
    [​IMG]

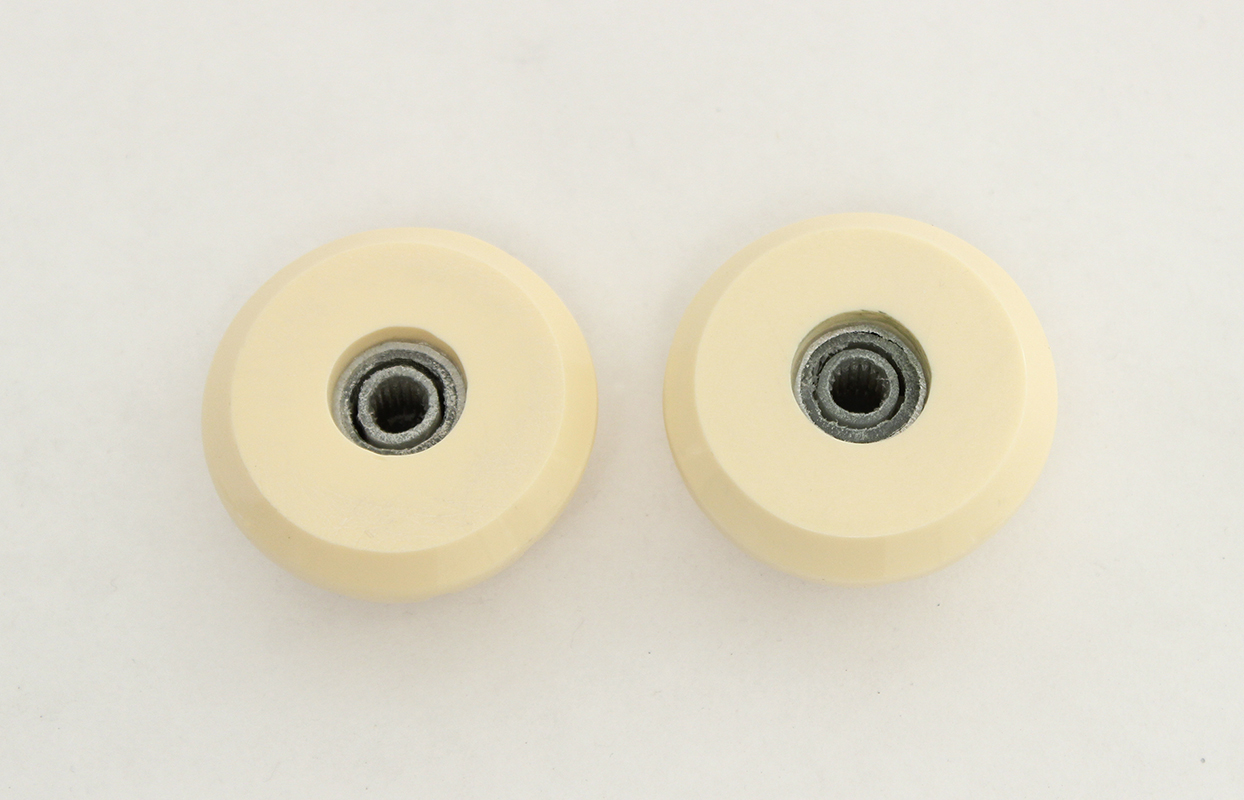

    Sleeves with holes for resistors, retrieved from "radio knobs". And knobs from the car interior prepared for installation.
    [​IMG]

    Glued with epoxy glue
    [​IMG]

    [​IMG]

    Knob kit for the front panel
    [​IMG]

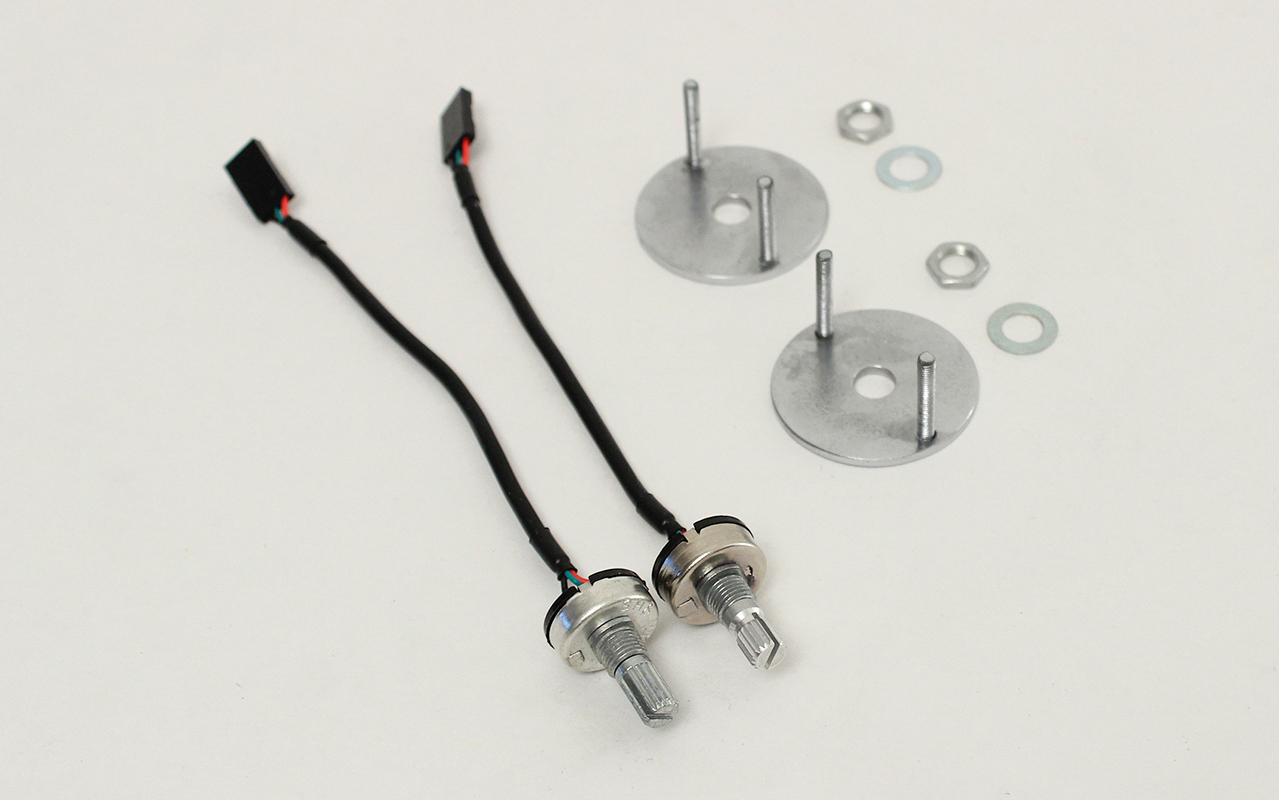

    Variable resistor with cable
    [​IMG]

    [​IMG]

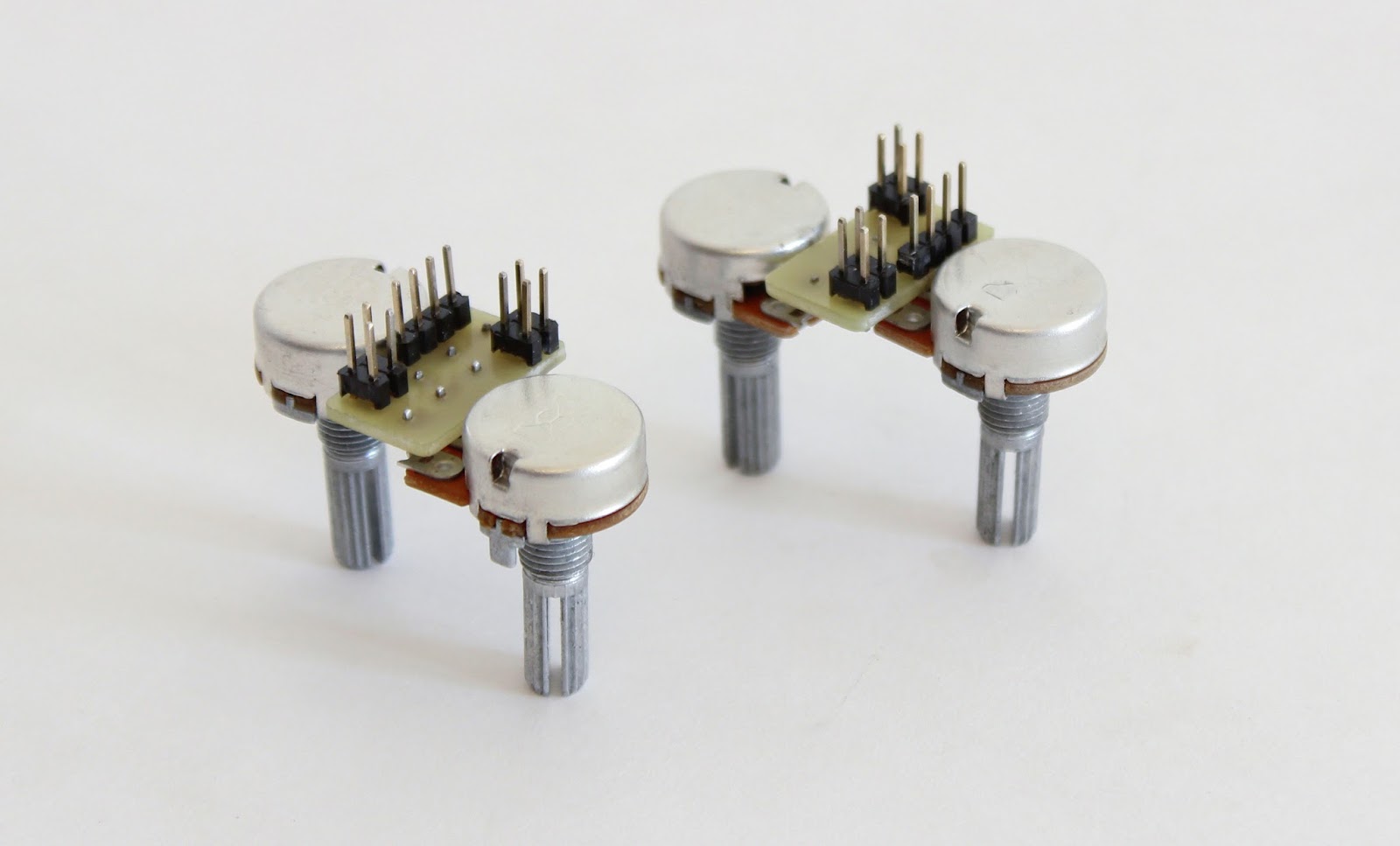

    Resistors are connected with mounting boards
    [​IMG]

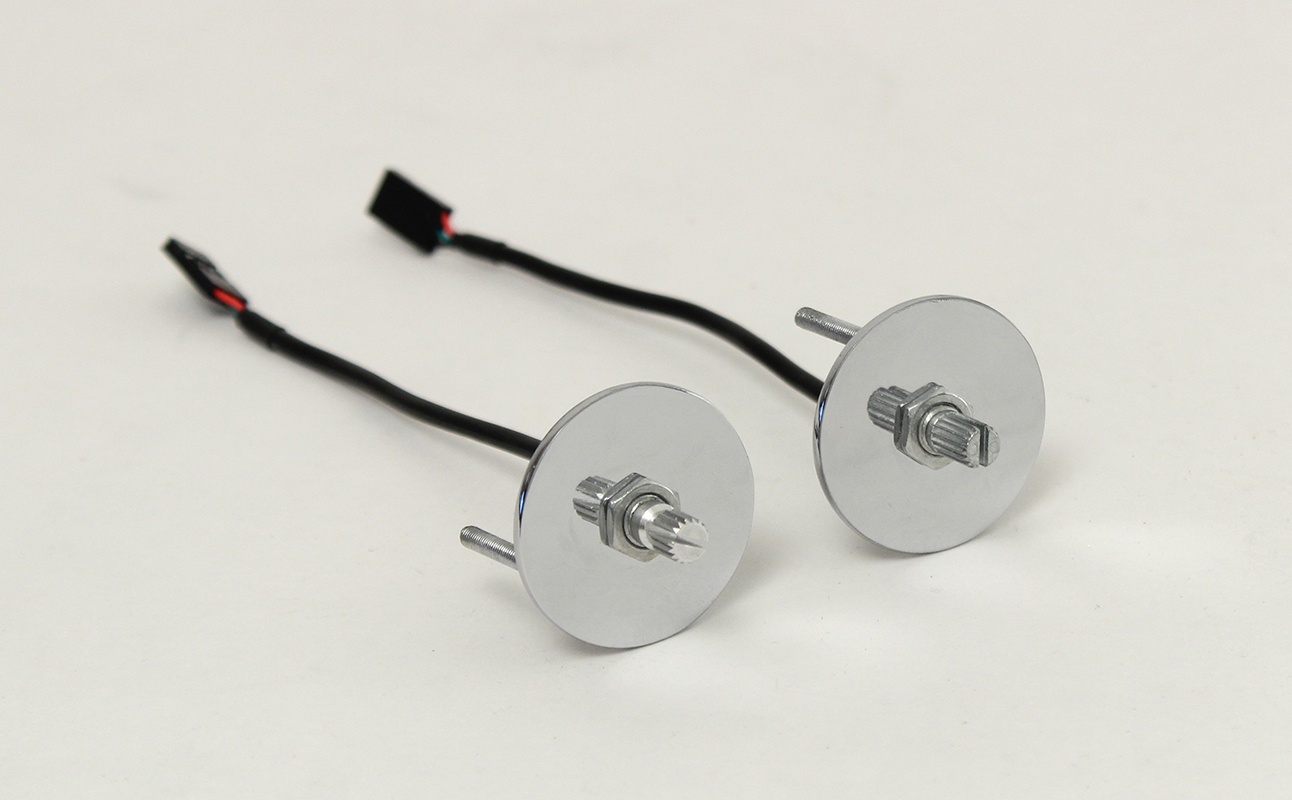

    Inserted into the knobs
    [​IMG]

    Two controllers on theirs places
    [​IMG]

    Front panel switch plate
    [​IMG]

    3 mm red LEDs in casing
    [​IMG]

    Wires crimped by PLS connectors
    [​IMG]

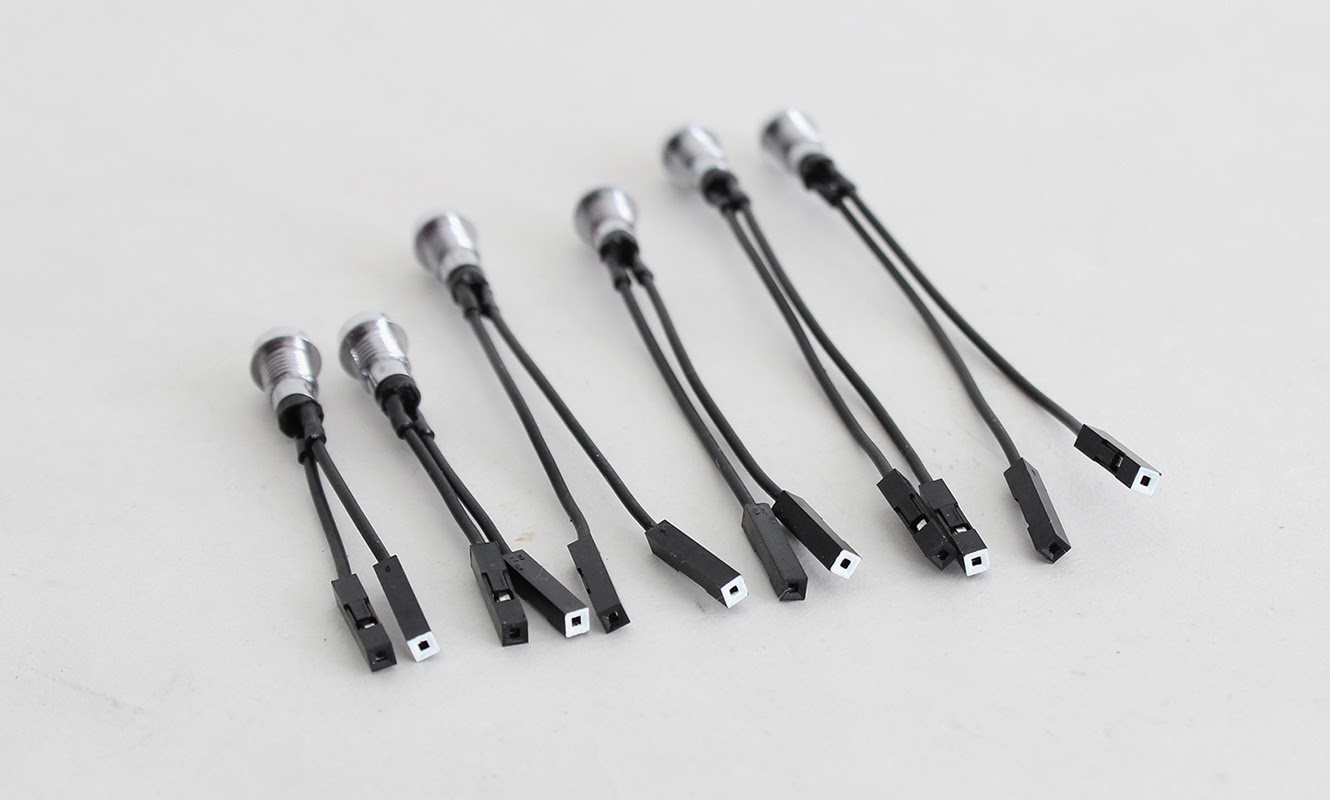

    LEDs with cables
    [​IMG]

    Installed
    [​IMG]

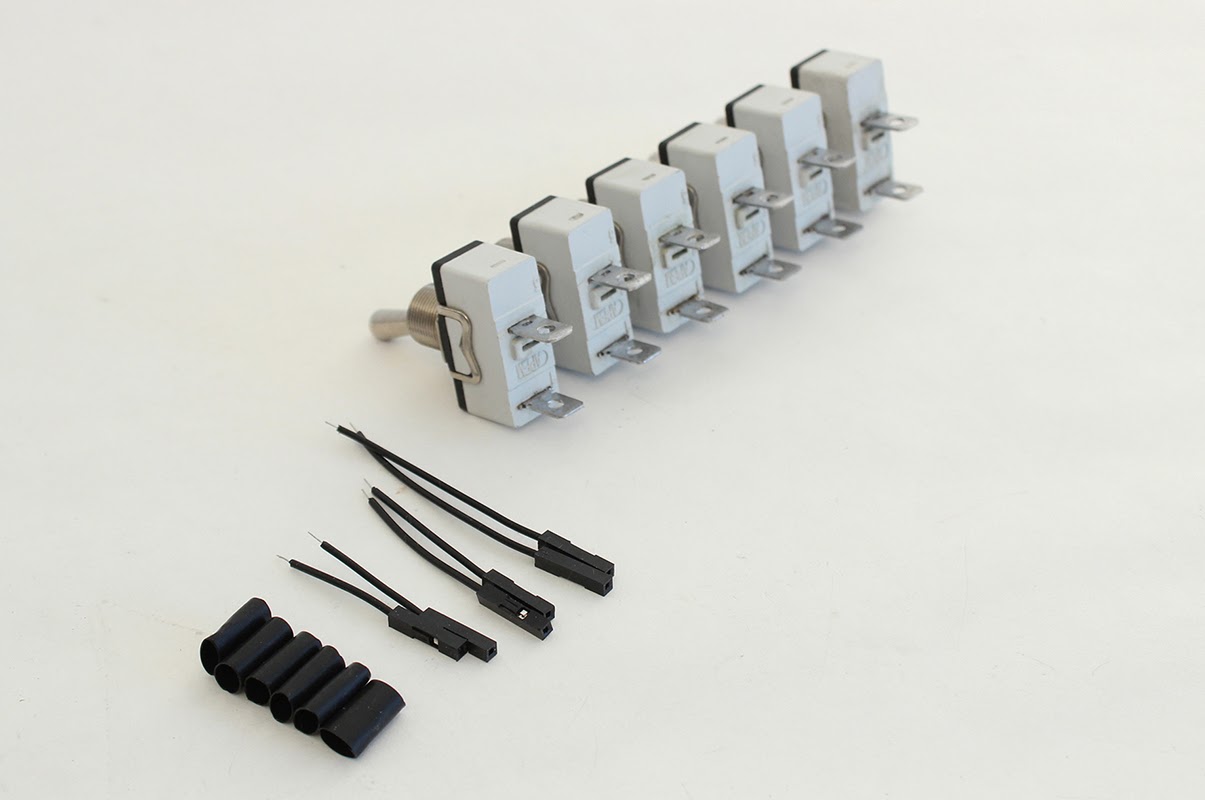

    Industrial class switches APEM 636H/2
    [​IMG]

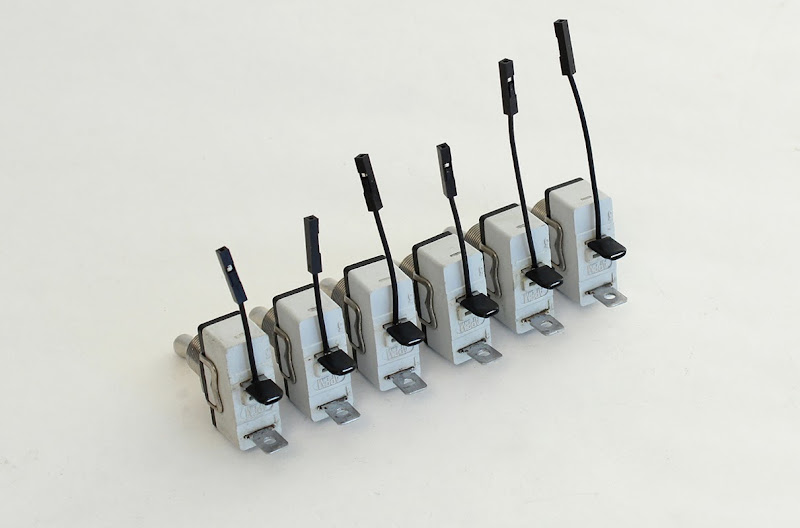

    Wires with PLS connectors for the upper row of contacts
    [​IMG]

    Soldered
    [​IMG]

    Switching board for toggle switches, LEDs, LED lights in the bottom of the case and two controllers
    [​IMG]

    PLS connectors on the board
    [​IMG]

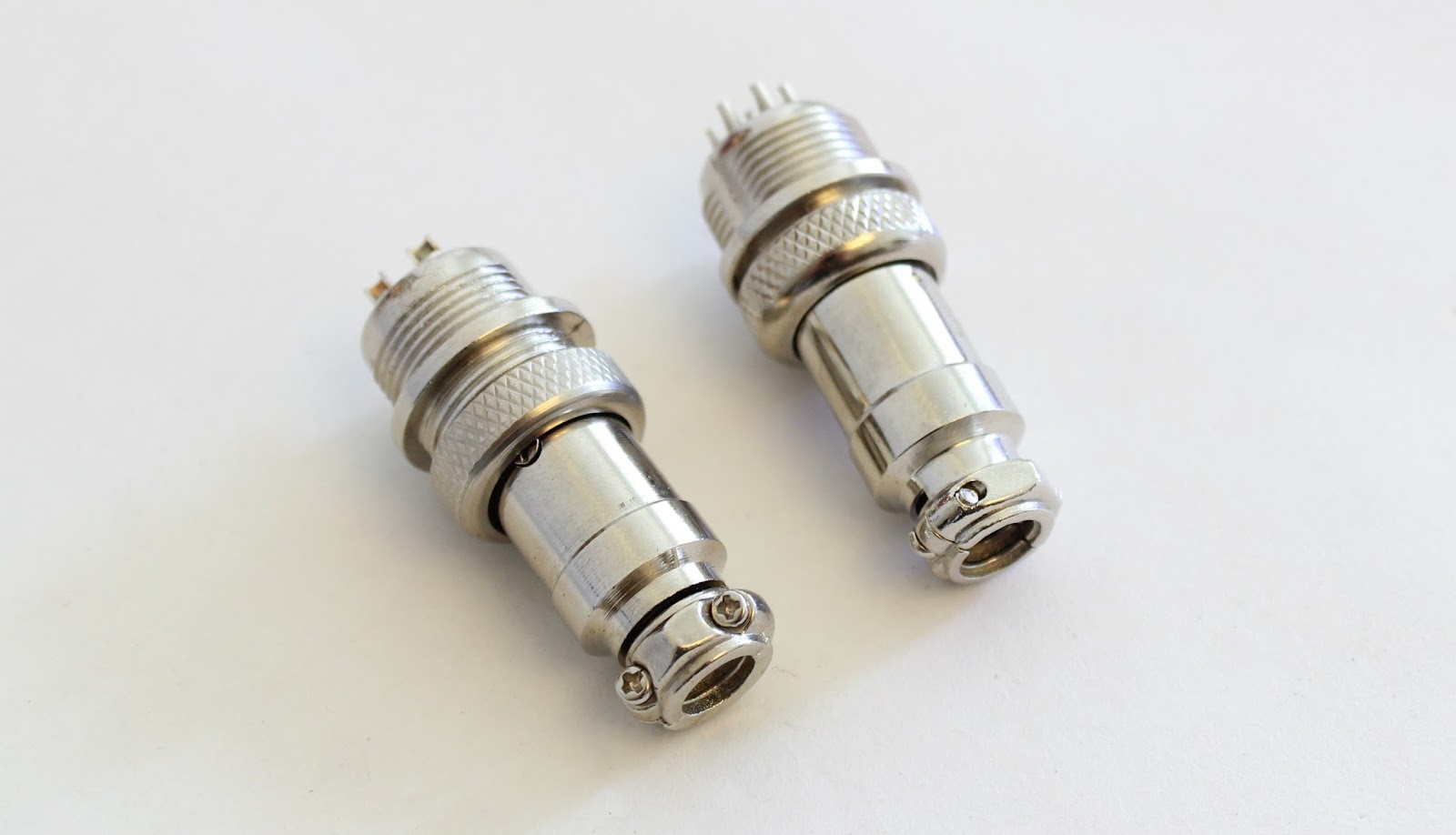

    GX16 connectors
    [​IMG]

    Cutting off the cable clamps
    [​IMG]

    and modifying them for planar installation
    [​IMG]

    Cable clamps for the board are ready
    [​IMG]

    PCB is covered with black acrylic paint for aesthetics
    [​IMG]

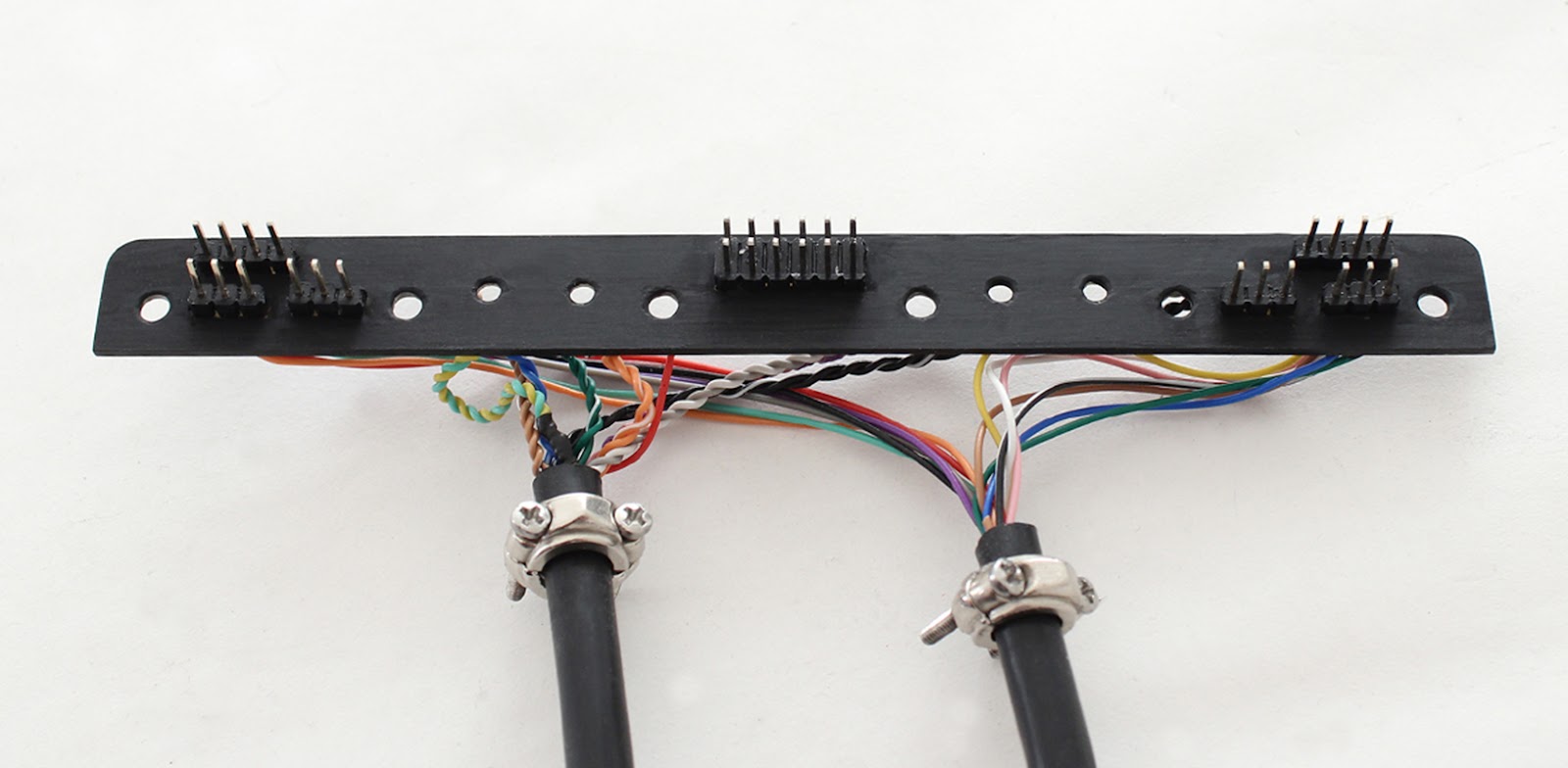

    Two 18-pin conductor cables are connected to the switch board
    [​IMG]

    The board and the lower row of switches' contacts are connected by screws
    [​IMG]

    The switches are finally connected to the PCB
    [​IMG]

    The switches are mounted on the plate. LEDs are connected to the PCB.
    [​IMG]

    Front view
    [​IMG]

    On its place
    [​IMG]

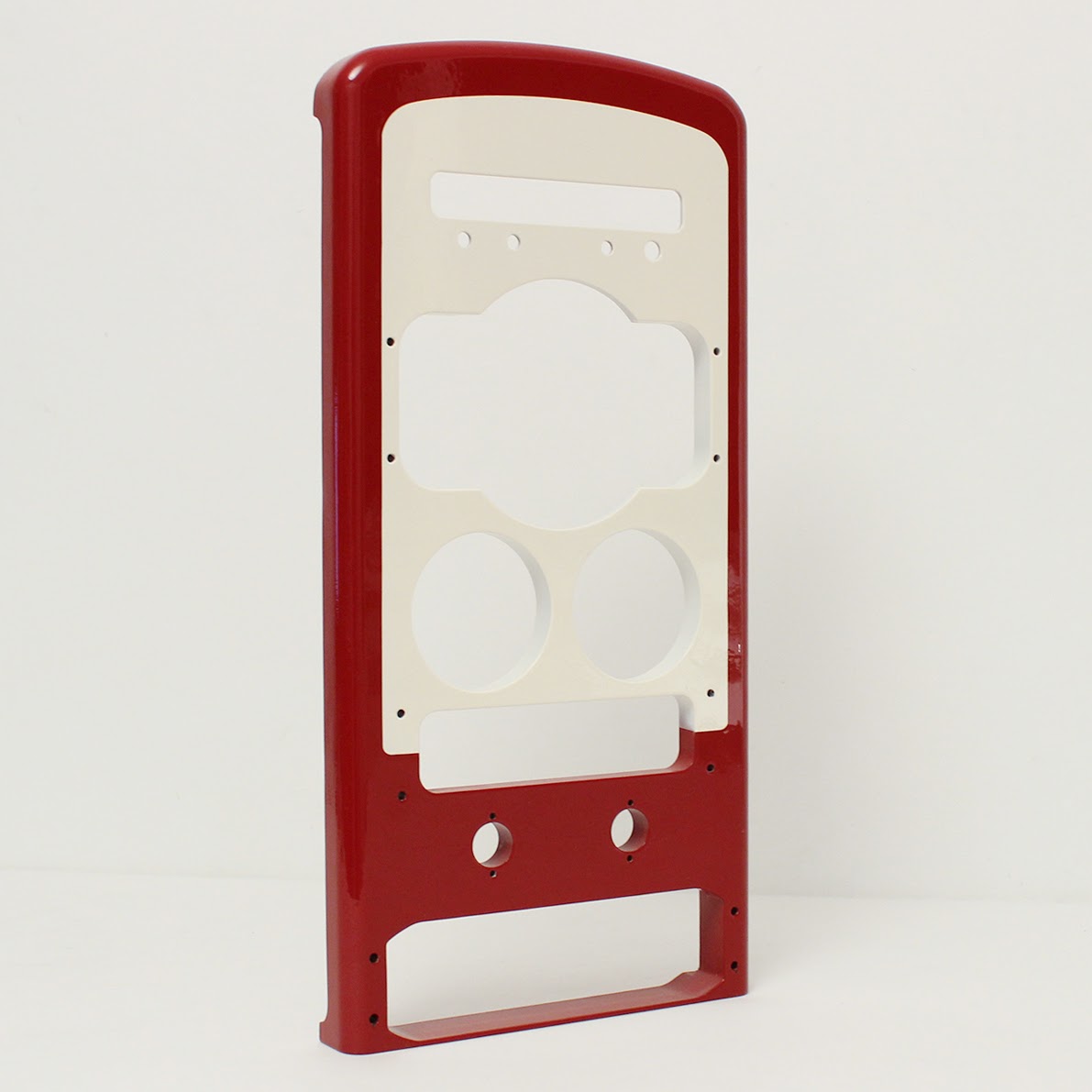

    The front panel plate for the power button, the "ignition key" and 4 controllers
    [​IMG]

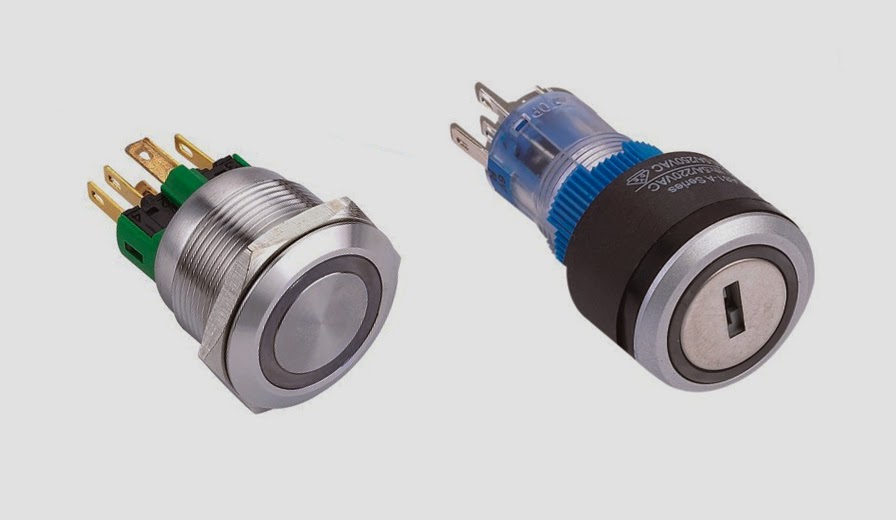

    ELEWIND PM221F-11E button
    ELEWIND PB223WY-11Y key
    [​IMG]

    Installed on the plates
    [​IMG]

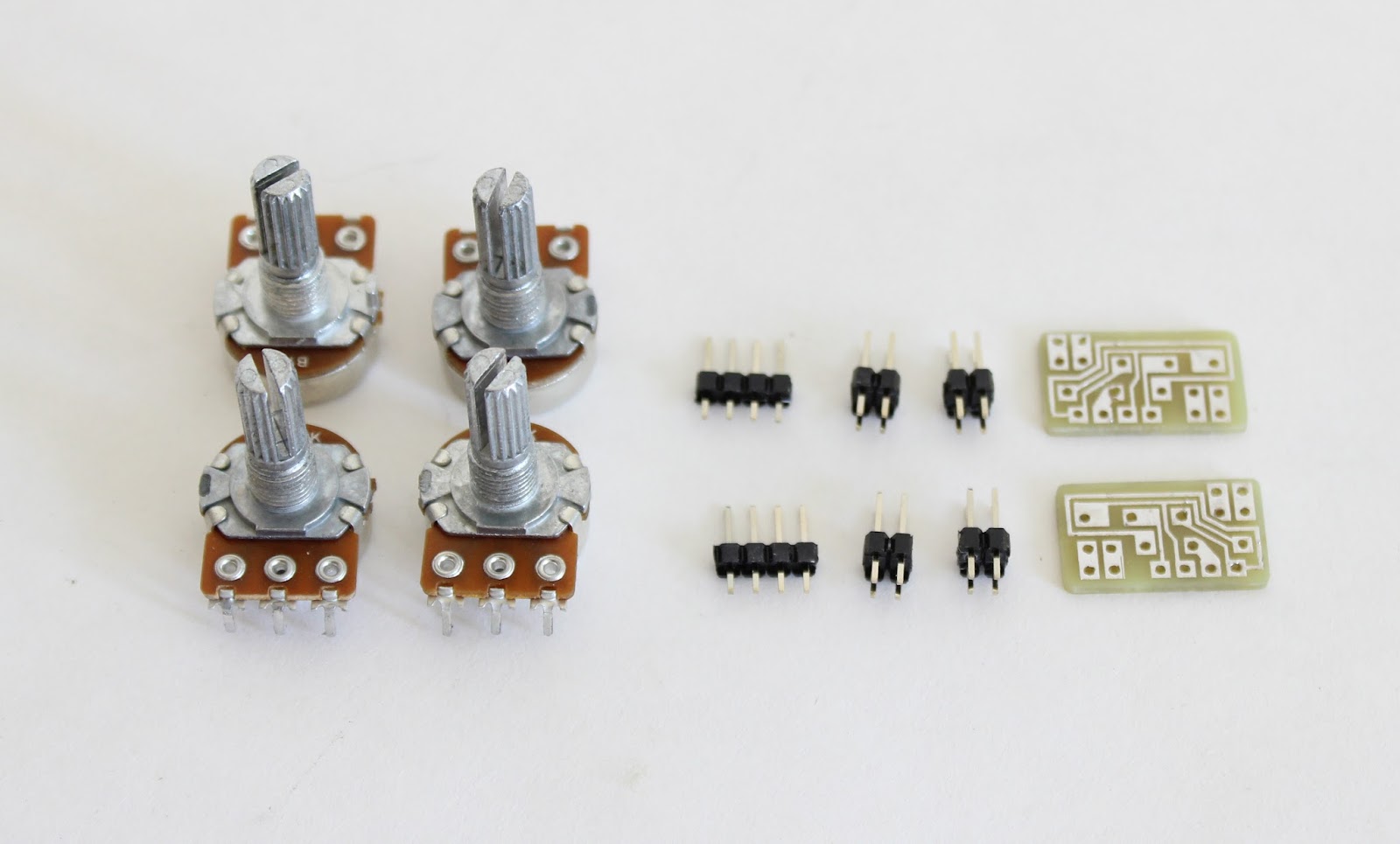

    Switch boards for the controllers, the button and the key
    [​IMG]

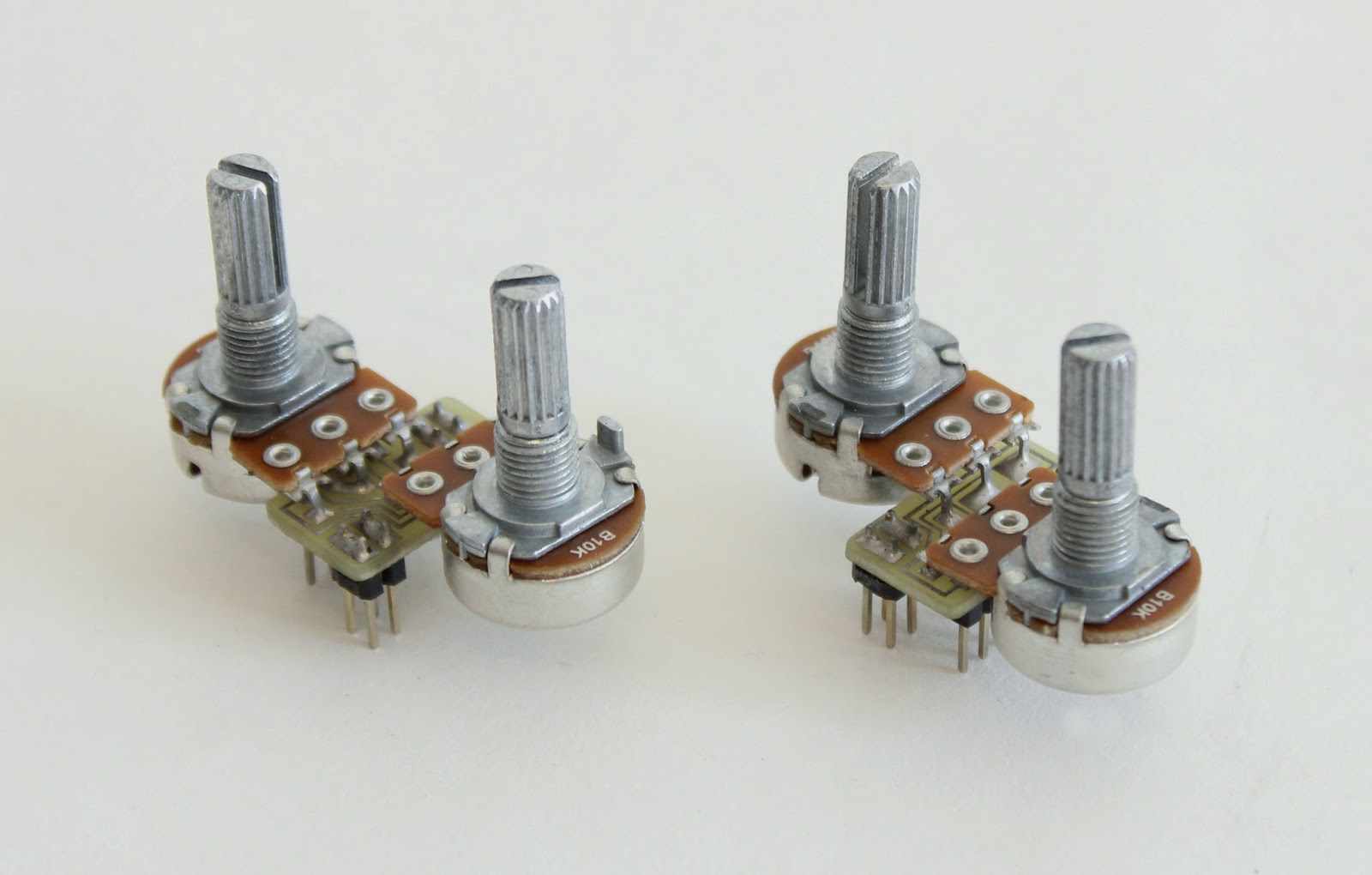

    Variable resistors are soldered
    [​IMG]

    [​IMG]

    [​IMG]

    Variable resistors are installed, the button and the key are connected to the PCB

    [​IMG]

    Front view
    [​IMG]

    Оn its place.
    The switch has 2 positions. In the first one the button works as a power button. In the second one the button does not work. The presence of the key is an important element of visual style and also a good protection from little children who want to press everything :)
    [​IMG]

    The interior of the Soviet car GAZ M-20 "Pobeda"
    Manual suction and manual gas knobs
    [​IMG]

    [​IMG]

    The knob rotating the external antenna
    [​IMG]

    [​IMG]

    GAZ M-20B "Pobeda", model 1955
    [​IMG]

    Last edited: 1 Dec 2014
  14. HandMadeAndroid

    HandMadeAndroid That's handy.

    Joined:
    18 Feb 2005
    Posts:
    741
    Likes Received:
    10
    Outstanding work. If I can offer constructive crit: I almost wrote 'no vandal switches' as a joke because I thought you wouldn't use them, then I scrolled down and there it was! I'm not sure it matches the rest aesthetically.

  15. humanityBG

    humanityBG King of Hell.

    Joined:
    7 Nov 2013
    Posts:
    38
    Likes Received:
    2
    That... That.. Just... *channels inner-teenage-girl* I CAN'T EVEN!

    But seriously though, this is an INSANELY well done mod! +1 for creativity and skills! Can't wait to see more :)

  16. OrangeClockwerk

    OrangeClockwerk Clockwerk Industries

    Joined:
    28 Jul 2013
    Posts:
    307
    Likes Received:
    6
    You are obviously a machinist who came here to show up the modders =D hahaha just kidding man this is amazing though, easily on of the best quality mods Ive ever seen with the use of true skills like, milling, turning, welding, circuit design, and this is my favorite style of modding, details details and more DETAILS! Keep it up man, this is perfection. Cant wait to see more!

  17. griso

    griso What's a Dremel?

    Joined:
    9 Sep 2014
    Posts:
    36
    Likes Received:
    0
    Amazing masterpieces.

  18. bulldogjeff

    bulldogjeff The modding head is firmly back on.

    Joined:
    2 Mar 2010
    Posts:
    8,403
    Likes Received:
    634
    OMG. This is just art, no other way to put it.. Its absolutely stunning.

  19. Mockingbird

    Mockingbird What's a Dremel?

    Joined:
    7 Sep 2011
    Posts:
    136
    Likes Received:
    2
    Came here 'mildly interested' in an update, now absolutely hooked. How does the key look for that key switch, if I may ask this early in the reveal?

  20. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,877
    Likes Received:
    1,562
    Bender's cousin spotted.
    I meant the knobs and paint match great.:D The whole style works great.
