Scratch Build – In Progress [Roku] - Shoji Style Scratch Build - update 081110 - reservoir finished

Discussion in 'Project Logs' started by thechoozen, 16 Oct 2010.

  1. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    It´s time for a new log :thumb:....and too be honest, it´s almost too late, because we already started the building process a few days ago....but better now then never

    The temporary name for it will be Ruko (which is japanese) and should just mean 6. Because it´s the sith variation of a shoji styled case we build.

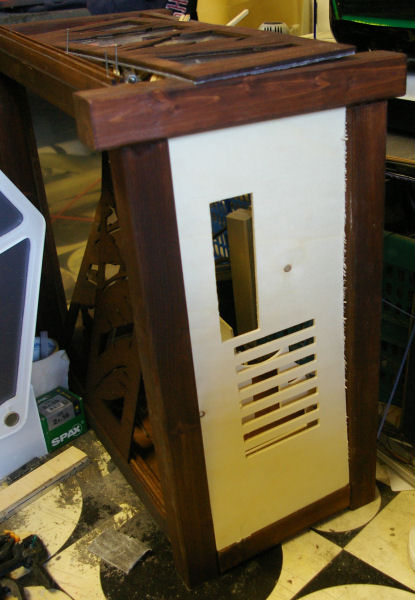

    This time we won´t use a lot of plexiglas, because it´s a commssioned build which should be build mostly out of wood. The Raw Frame for the case is already done and stained so that we now can continue with the details.

    For the Right Side of the case (backside of the mainboard) we plan to build a multipart sidepanel which can be opened/closed by sliding the single pieces to the left or right side.
    For that we already added a simple rail system to the raw frame. The Rails were build out of a square wood rod(thats the middle part) and 2 bigger wood bars for the outer side.

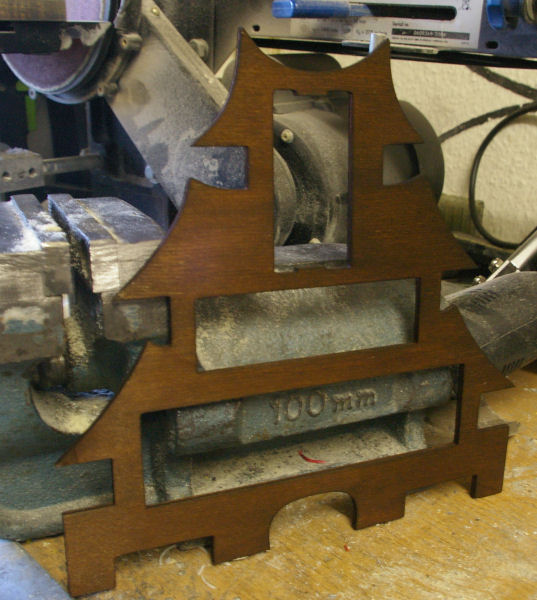

    We also started to build a drive cage for 1 optical, 1 hdd and 2 ssd. It should look like a pagoda, so we first made the front and the backside of the drive cage and connected both parts with a few other wood pieces....


    But enough of the words....here are the first pictures of it....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: 8 Nov 2010
  2. General_Confusion

    General_Confusion Now Where was I?

    Joined:
    3 Jul 2010
    Posts:
    134
    Likes Received:
    0
    Very nice. I can't seem to pick I part I like the best.. it's all awsome. Great work so far :thumb:

  3. Djayness

    Djayness phwupupupup

    Joined:
    7 May 2008
    Posts:
    1,000
    Likes Received:
    41
    What a start, usually people just post a picture or two and then blab all day about the hardware they are going to put in.

    I will subscribe, this thing needs to be watched.

  4. bobisgod

    bobisgod New Member

    Joined:
    19 Apr 2010
    Posts:
    61
    Likes Received:
    0
    Wow. How do you guys manage to do these projects so quick and breathtaking at the same time?

  5. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    Not only are you awesome with plexi but you are awesome with wood as well. I can't wait to see more of this.

  6. AnG3L

    AnG3L Ultimate Modder

    Joined:
    19 Mar 2009
    Posts:
    2,634
    Likes Received:
    153
    Holy maoly this is more than awesome!!! Moar pls!!!!! ;)

  7. ulfar

    ulfar holy s**t, i can change this?

    Joined:
    5 Oct 2010
    Posts:
    450
    Likes Received:
    30
    really like the japanese style.
    awesome build, can't wait to see more.

  8. Fabou

    Fabou New Member

    Joined:
    22 Apr 2010
    Posts:
    455
    Likes Received:
    2
    Yeah like Djayness said that a real start you want to follow.

  9. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thats a simple thing....we´re just modding all day long :rock::dremel::D:thumb:


    and thanks a lot for all your comments m8´s!!!!


    In the last days we prepared the 3 plexiglas sidepanels with a few pieces of japanese rice paper ....as next step we will attach the Plexiglas/Rice Paper Panels to the Wood Panels.

    Beside that we also cutted the Plexiglas for the Front into 3 Pieces so that we get no problems with the optical drive....beside that we will use one of the parts as drive cover so that the drive is invisible as long as it is closed :D


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  10. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69

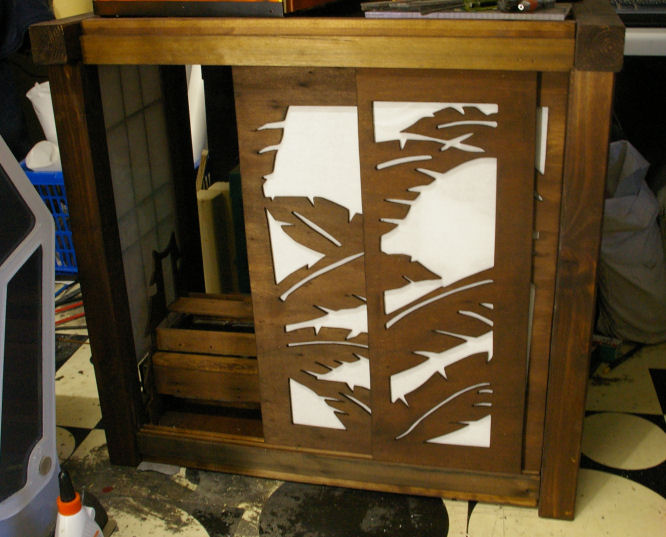

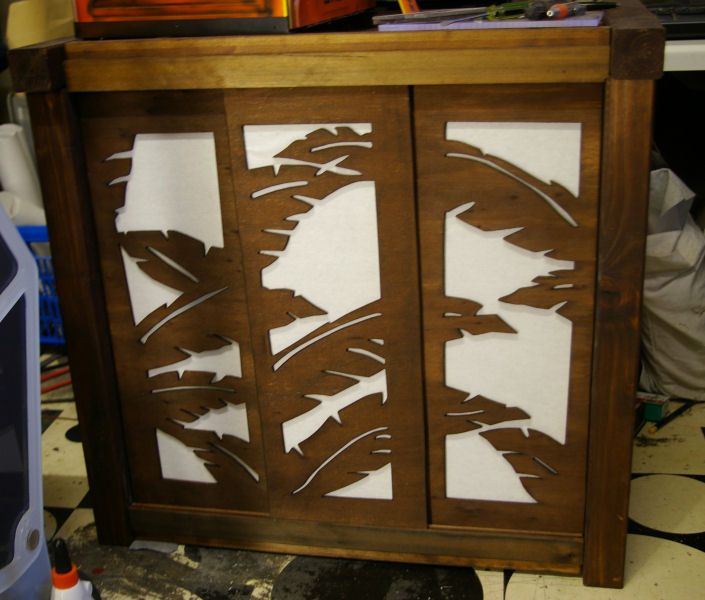

    today we finished the other 2 parts of the 3 tiled sidepanel, beside that we also made a bit of progress on the front of the Case...we already cutted a few wood stripes and made a few grooves in them so that we could build a "mesh" out of them.....


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    and another project we´re currently working on :rock:
    [​IMG]

  11. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    Time for another update :rock:

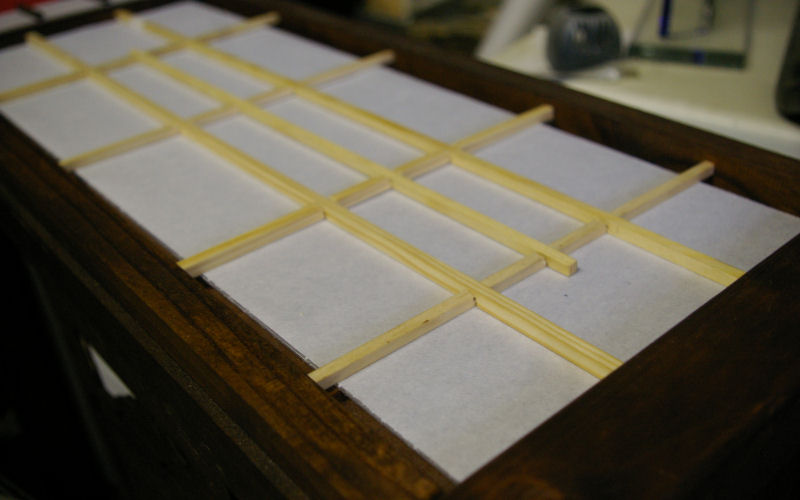

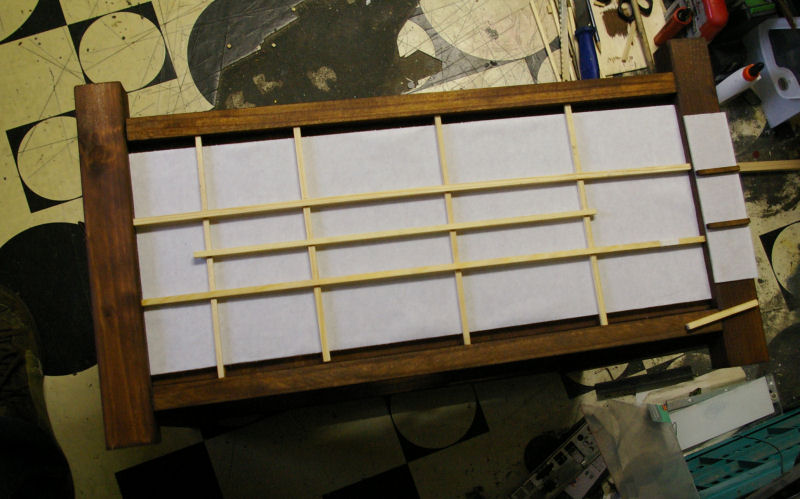

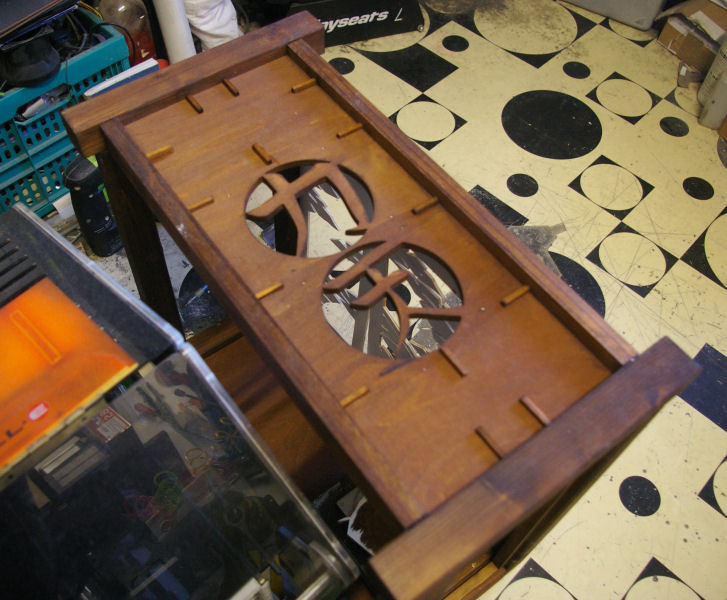

    in the last few days we made the next layer of the Casetop, it will cover the wood layer where the radiator can be mounted. It´s just another sheet of plexiglas which we cutted to the right dimension and attached some rice paper. It will be mounted upon a few wood spacers which we already add to the wood layer....that way we get a small gap where the hot air could go through (already tried that on a similar case in the past, and it works really good for 2 years now)

    Upon the plexiglas/rice paper layer we put another shoji wood mesh which we prepared in the next step.

    Today we put the first white leds for a quick test into the case...so that we could see how it will look with lights on and if the silhouette from the drive cage will be visible in the front....:thumb:


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    bulldogjeff likes this.
  12. bulldogjeff

    bulldogjeff The modding head is firmly back on.

    Joined:
    2 Mar 2010
    Posts:
    8,403
    Likes Received:
    634
    Very nice, a lot of detailed work on that, like it. + rep:thumb:

    sixfootsideburns likes this.
  13. p0Pe

    p0Pe gief cake?

    Joined:
    23 Nov 2007
    Posts:
    1,442
    Likes Received:
    94
    You guys are MACHINES! :D

  14. bobisgod

    bobisgod New Member

    Joined:
    19 Apr 2010
    Posts:
    61
    Likes Received:
    0
    The contrast between the dark finish and the rice paper is amazing!:jawdrop:

  15. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s!

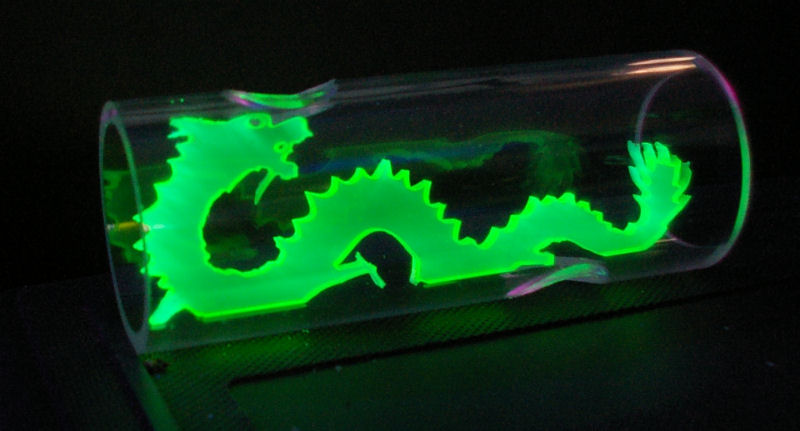

    in the last days we started the building process of the reservoir, when it´s finished it will be placed upon the drive cage. For the inside of the Reservoir we just prepared a little Plexiglas Dragon which should match our theme real good....

    [​IMG]

    [​IMG]

    [​IMG]

  16. The boy 4rm oz

    The boy 4rm oz Project: Elegant-Li

    Joined:
    10 Apr 2008
    Posts:
    5,297
    Likes Received:
    54
    I love the dragon in the res, so cool.

  17. Razer2007

    Razer2007 Building Proxima

    Joined:
    18 Jul 2010
    Posts:
    1,212
    Likes Received:
    33
    with water in it will look like the Loch Ness monster. hmmm. very cool build

  18. AnG3L

    AnG3L Ultimate Modder

    Joined:
    19 Mar 2009
    Posts:
    2,634
    Likes Received:
    153
    Very nice project I love these kind of builds!!! Moar pls! :)

  19. Yaka

    Yaka Well-Known Member

    Joined:
    26 Jun 2005
    Posts:
    1,544
    Likes Received:
    112
    love the dragon res, what are you using to finish/colour the would witah is it tung oil?

  20. thechoozen

    thechoozen Active Member

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    :thumb: thx m8´s!!

    yesterday & today we finished the Reservoir for the cooling loop....

    [​IMG]

    [​IMG]

    [​IMG]
