    inside our Cosmos Dragon Project we build a custom enclosure for the Medusa 5.1 Headset Controll Box. We really liked how it turned out, so we thought why not build a mini itx system in that style?

    So we came to the point that we will build a custom Mini Itx Case on Base of an Intel Atom Plattform (2x1,6Ghz), a slot in dvd burner and a small 2,5" HDD.

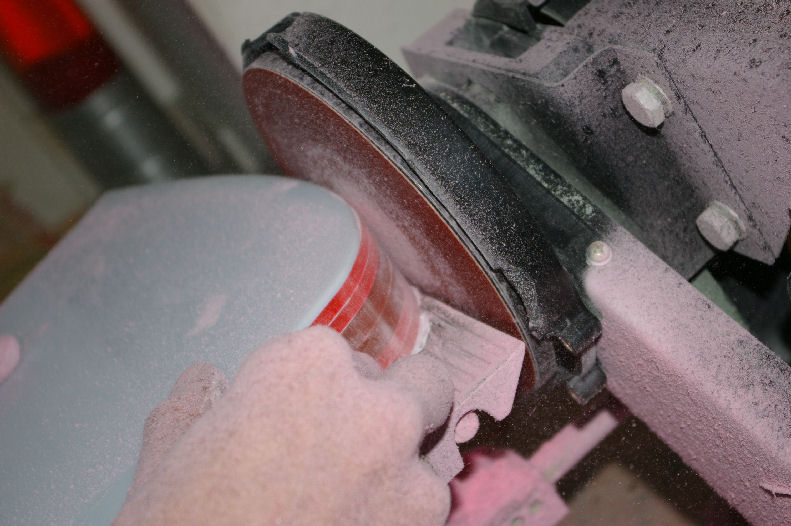

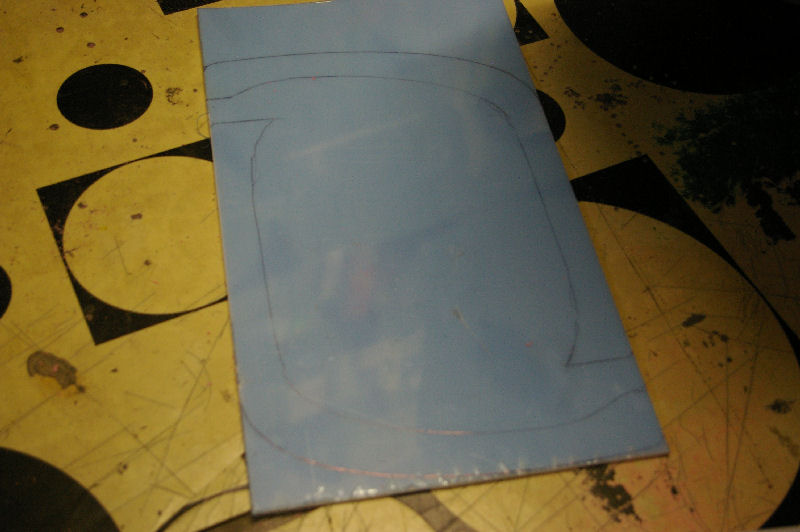

    We already started the project yesterday...so here is what we got so far...

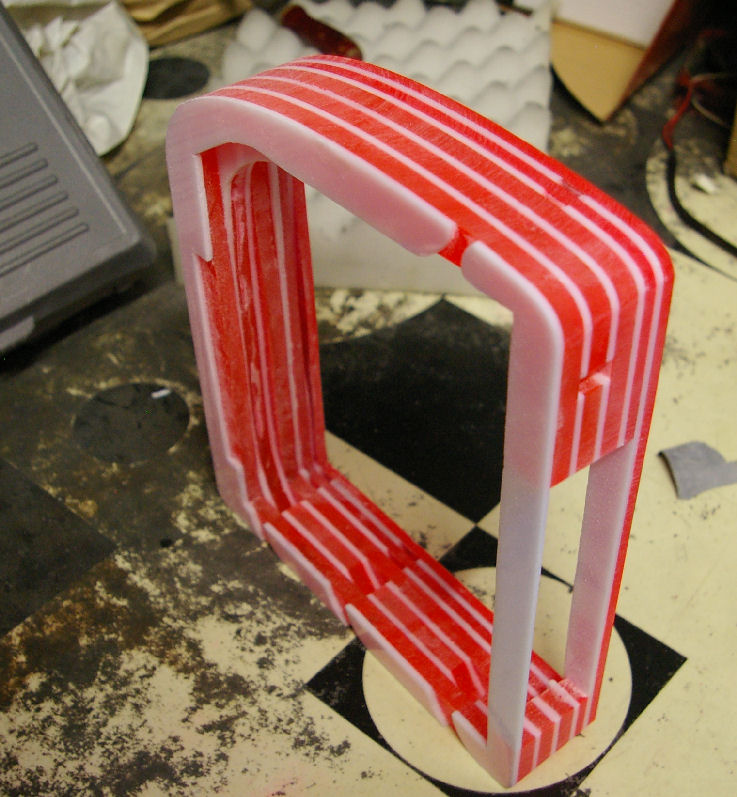

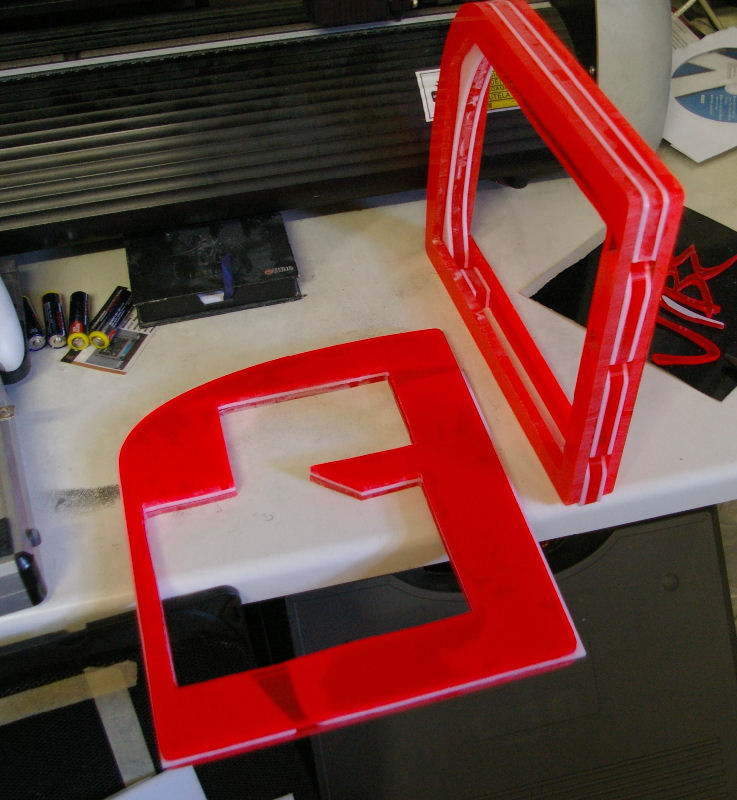

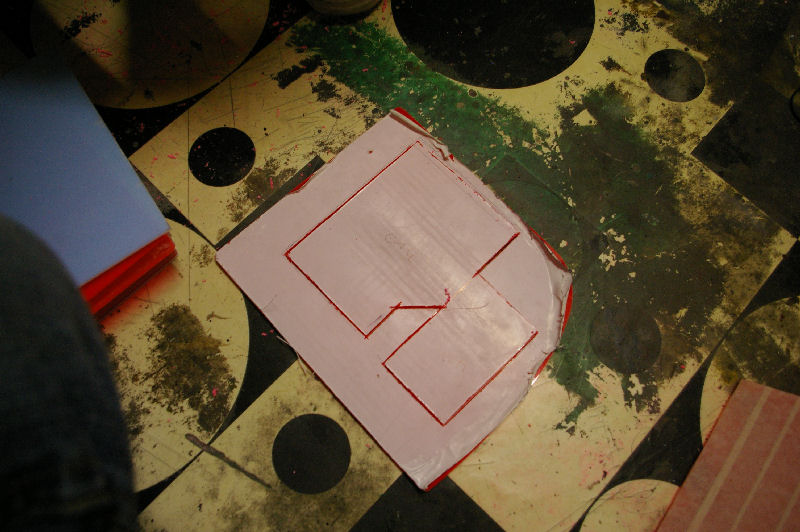

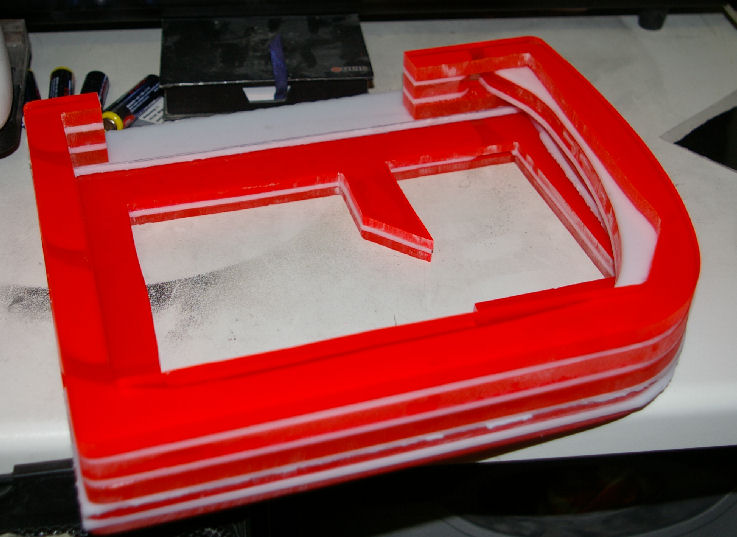

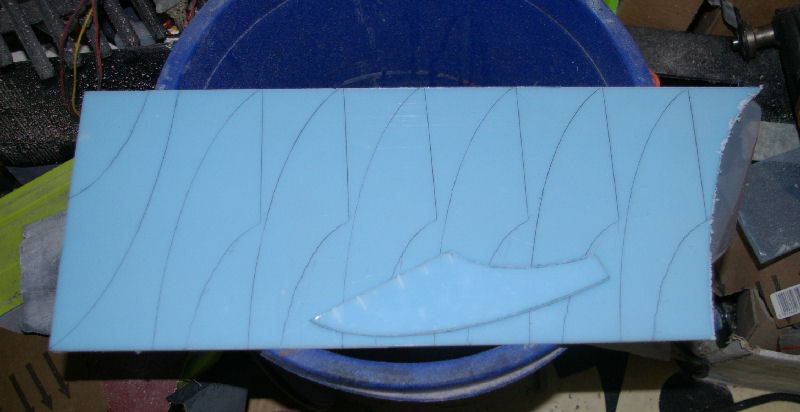

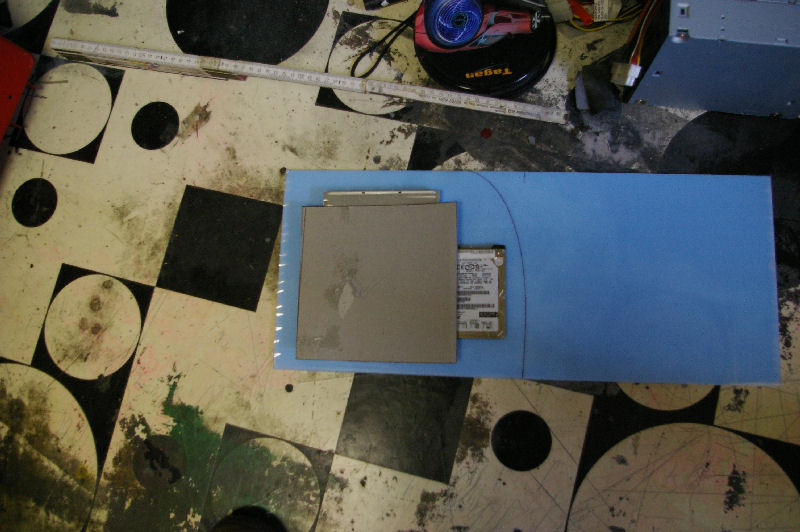

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: 4 Aug 2009
  2. Sonnenschein

    Sonnenschein What's a Dremel?

    Joined:
    6 Mar 2008
    Posts:
    41
    Likes Received:
    4
    Very nice, and I like the size of the case. But the question I have, how will get the fan at the NB-cooler cold air…that means, would you install another fan or something like this in the case, and if yes, where???
    I´m very curious of your next update.

  3. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx

    @ Sonnenschein.....the small fan will get fresh air through some ventilation openings which we will integrate....atm i´m using this board in a very small case without a fan or airflow and it works very fine with temps around 30 °

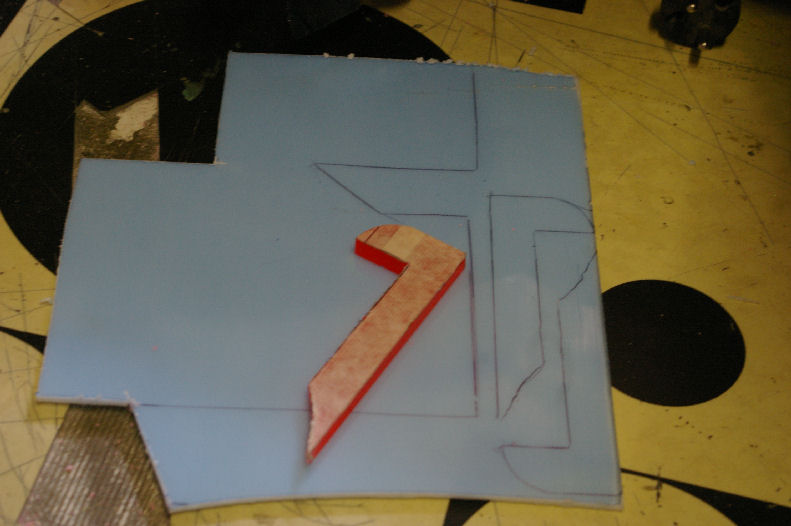

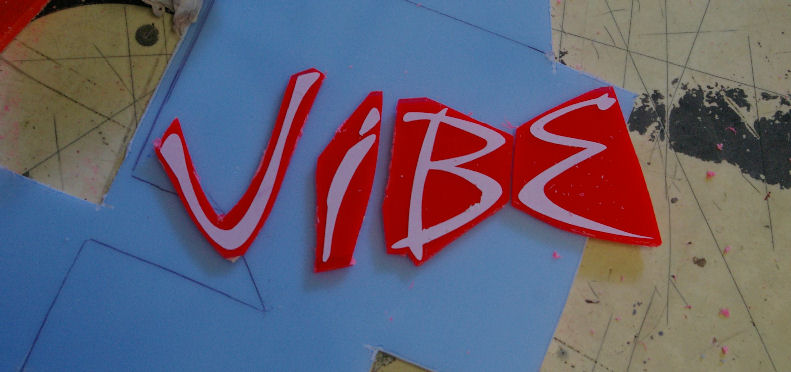

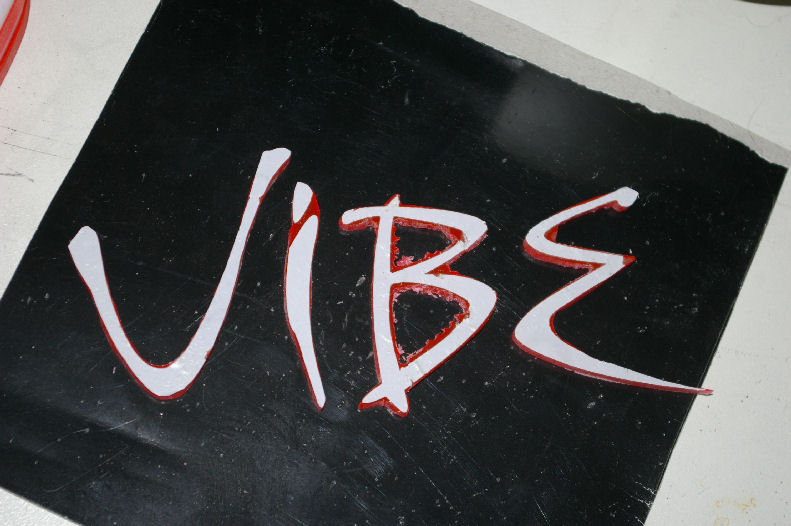

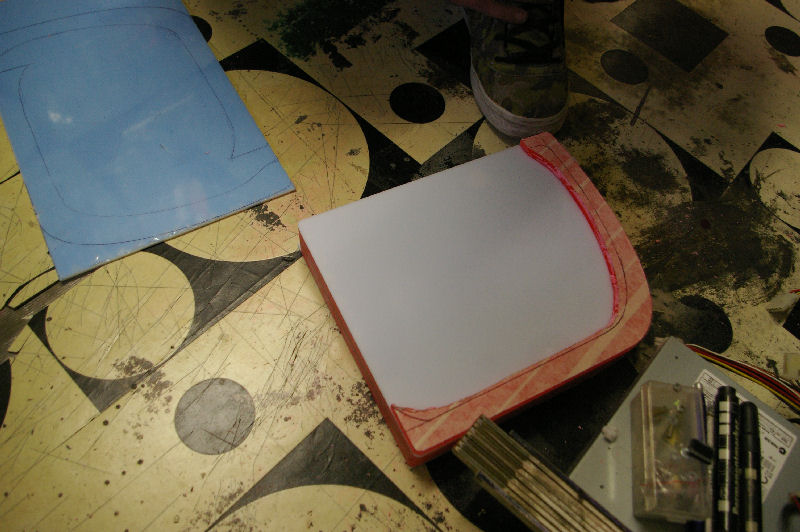

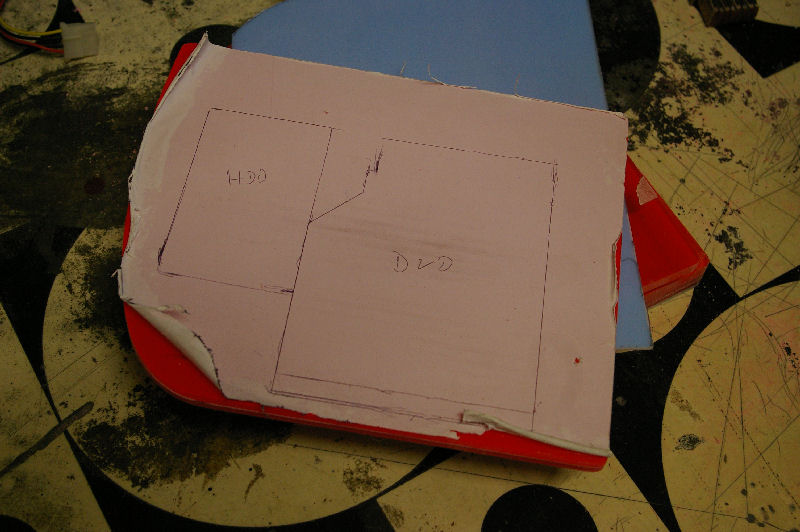

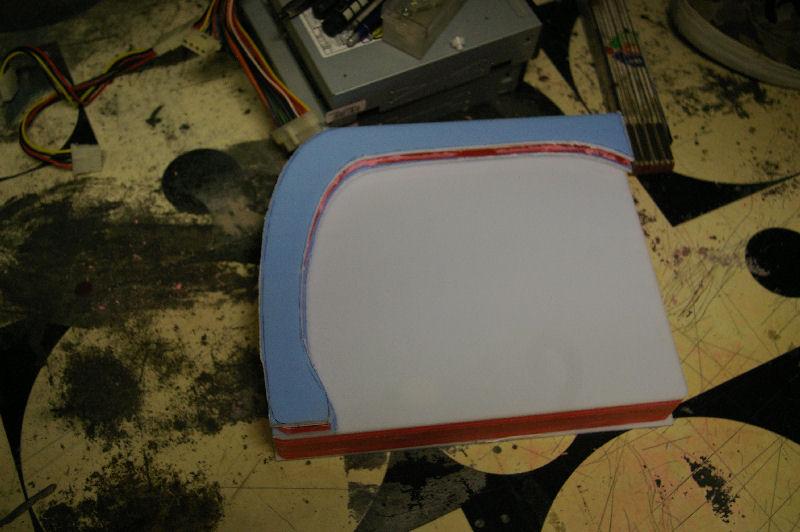

    today we made some progress on the next layers and parts which will be used...beside that we also prepared a custom name tag for a sidepanel...but its not finished yet....



    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  4. Cheapskate

    Cheapskate Insane? or just stupid?

    Joined:
    13 May 2007
    Posts:
    11,711
    Likes Received:
    1,457
    I like the way you think.:D This will look like a big chunk of candy when finished!

  5. Mokey Mokey

    Mokey Mokey What's a Dremel?

    Joined:
    9 Mar 2009
    Posts:
    143
    Likes Received:
    2
    Lookin' great, just like every case you guys make. :thumb:

  6. .Fatality.

    .Fatality. What's a Dremel?

    Joined:
    10 Jul 2008
    Posts:
    146
    Likes Received:
    0
    i agre this one will be look as big red candy :D!

  7. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx m8´s!!!!! :thumb:

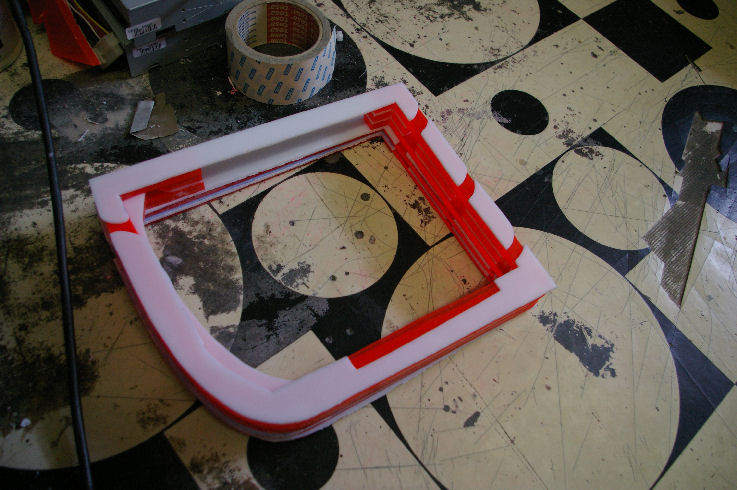

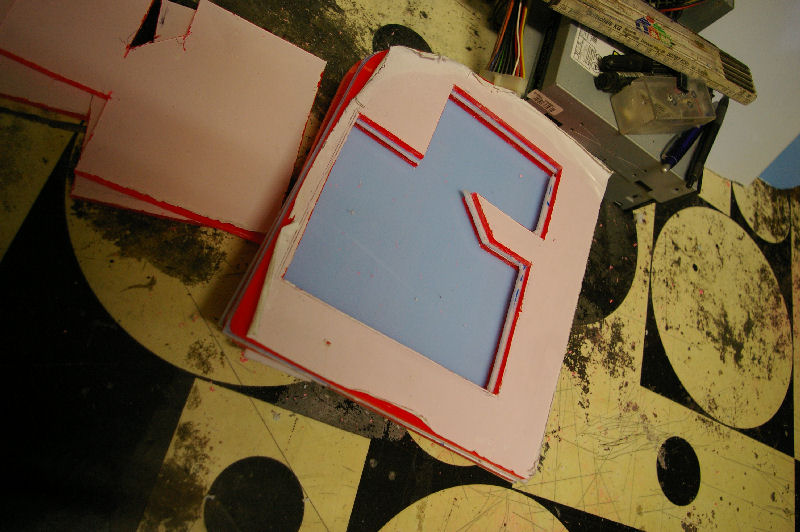

    today we also made a bit of progress.....so here are the new pictures....:rock:

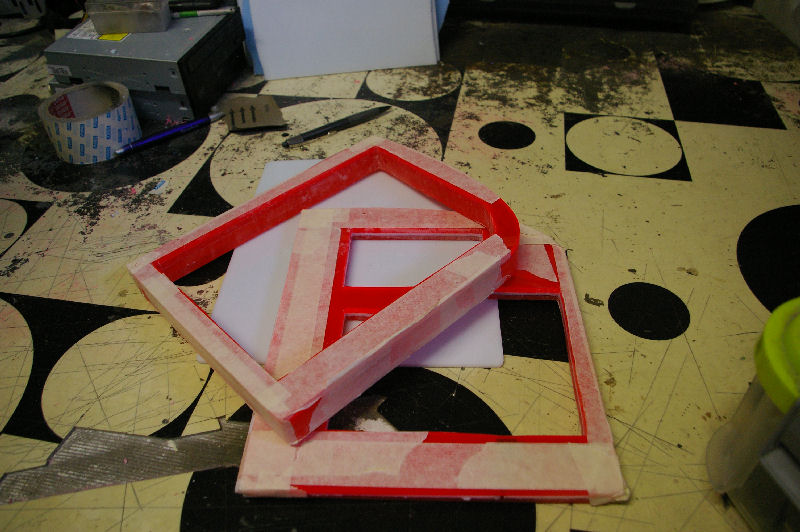

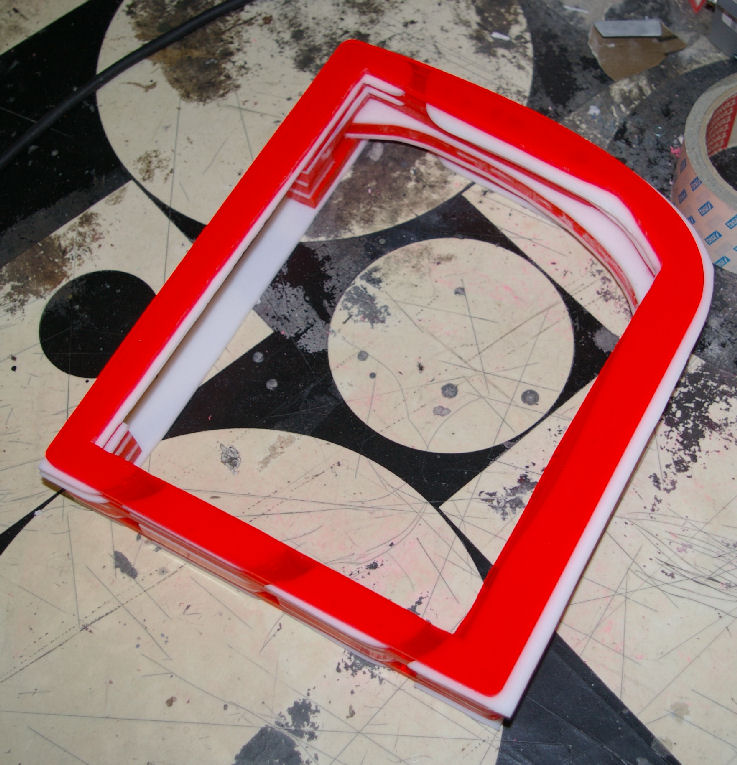

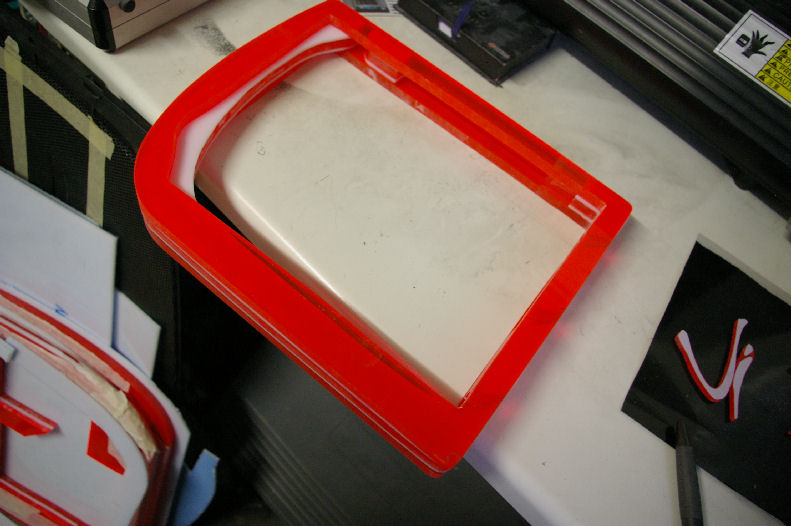

    all layers together....

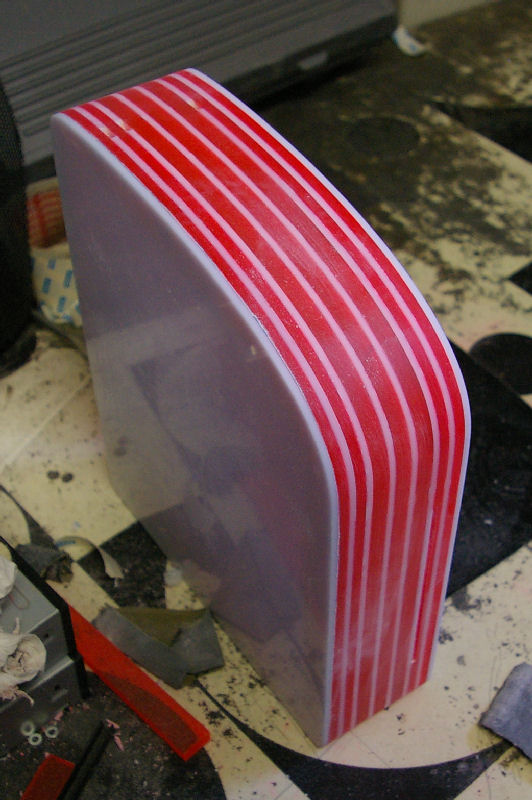

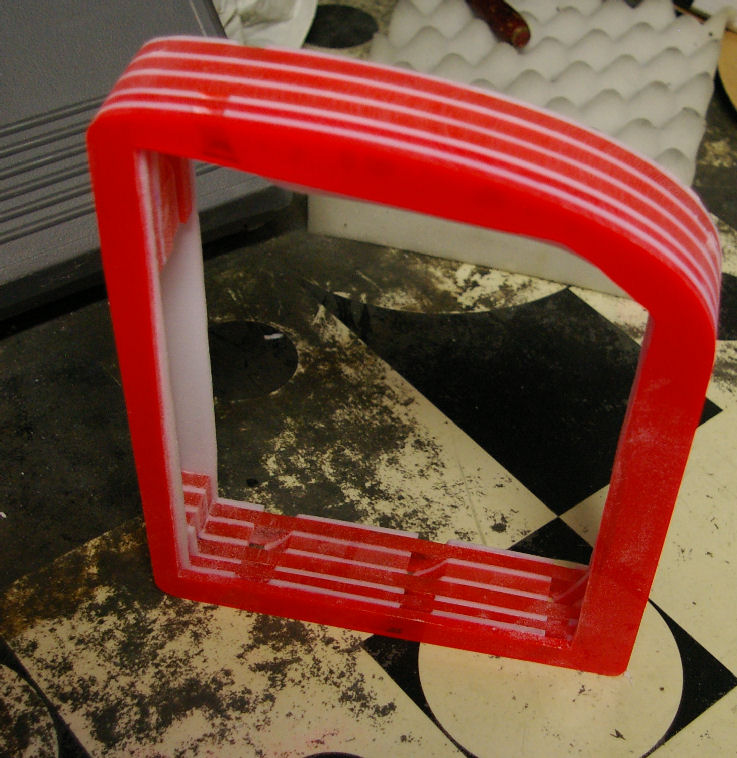

    [​IMG]

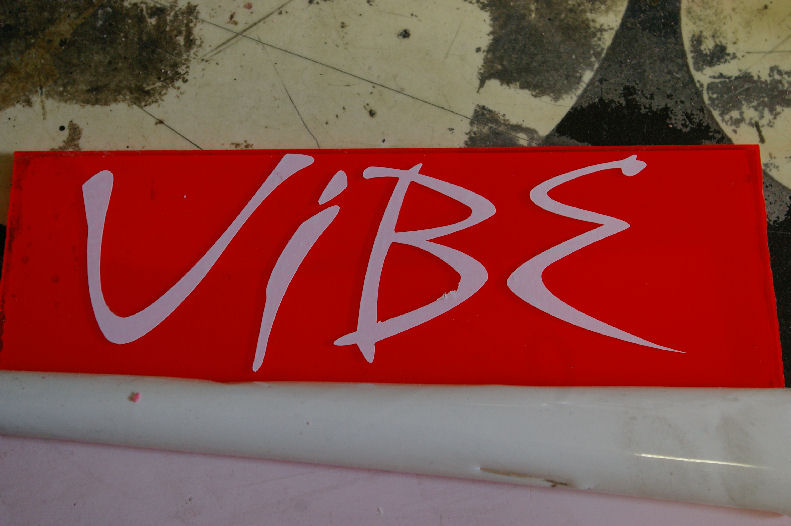

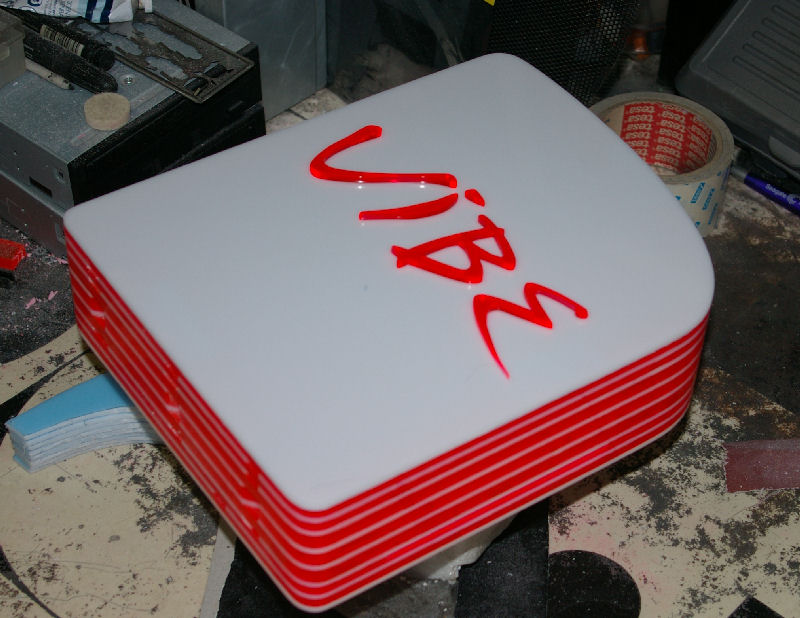

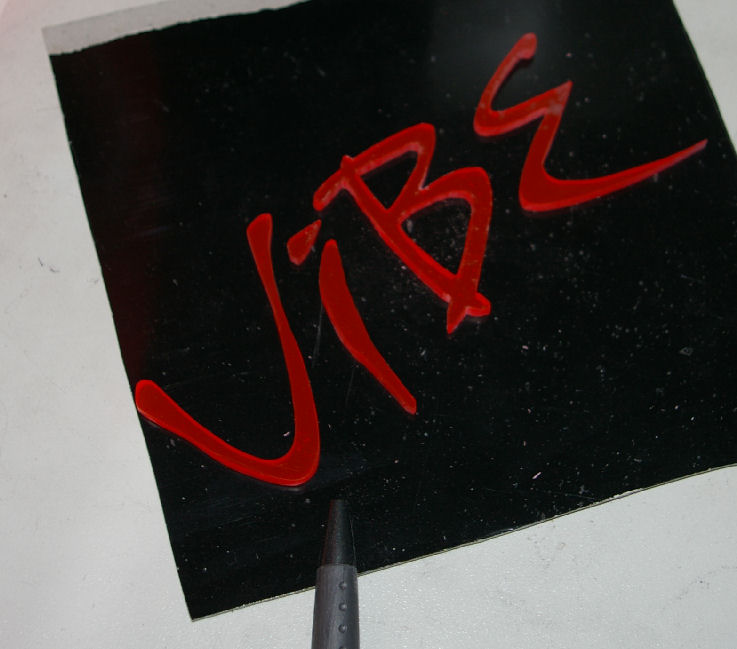

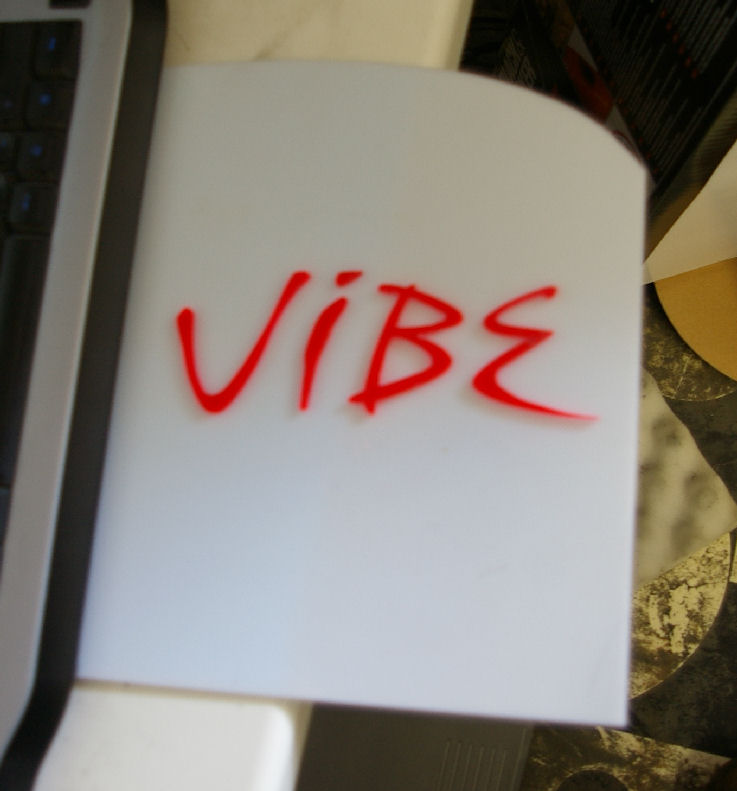

    short test to see how the sidepanel will look like with the logo on it....
    [​IMG]

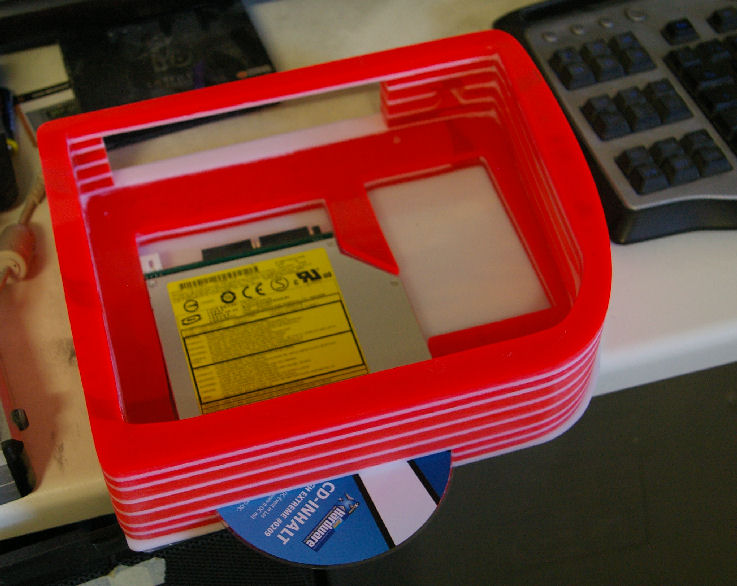

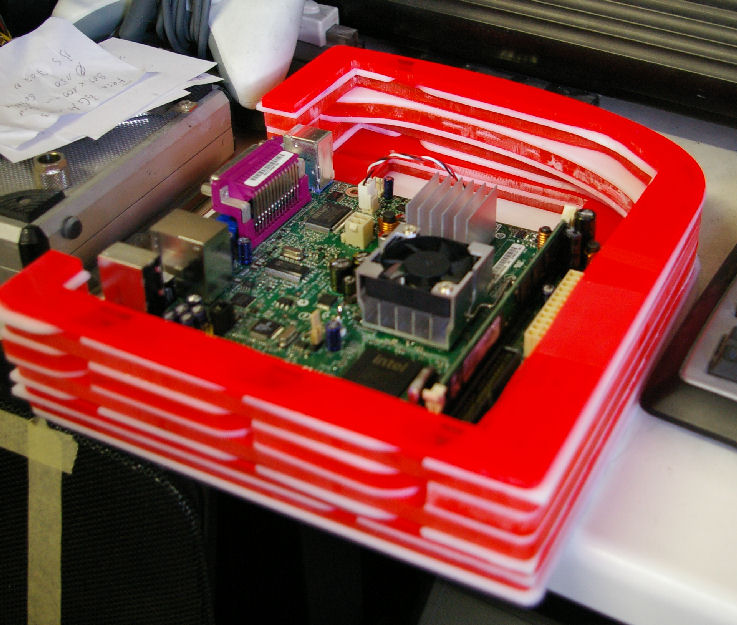

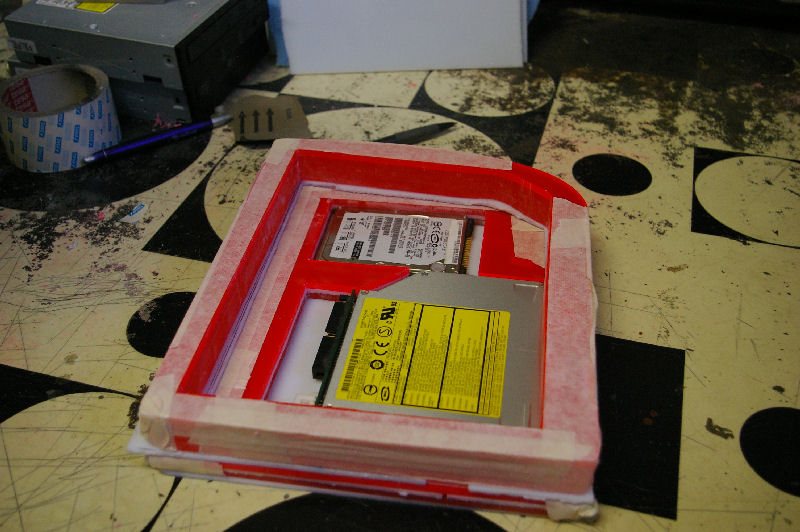

    Hardwaretest 1
    [​IMG]

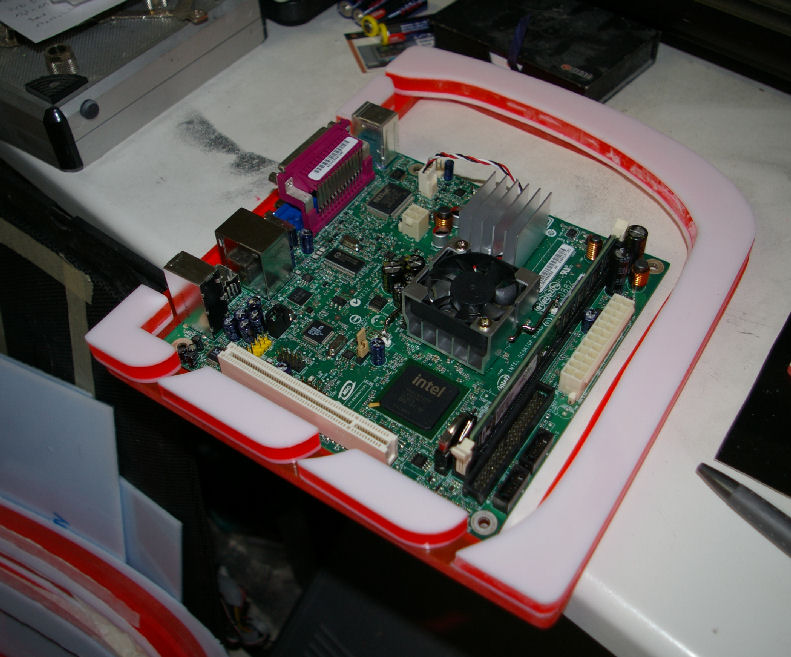

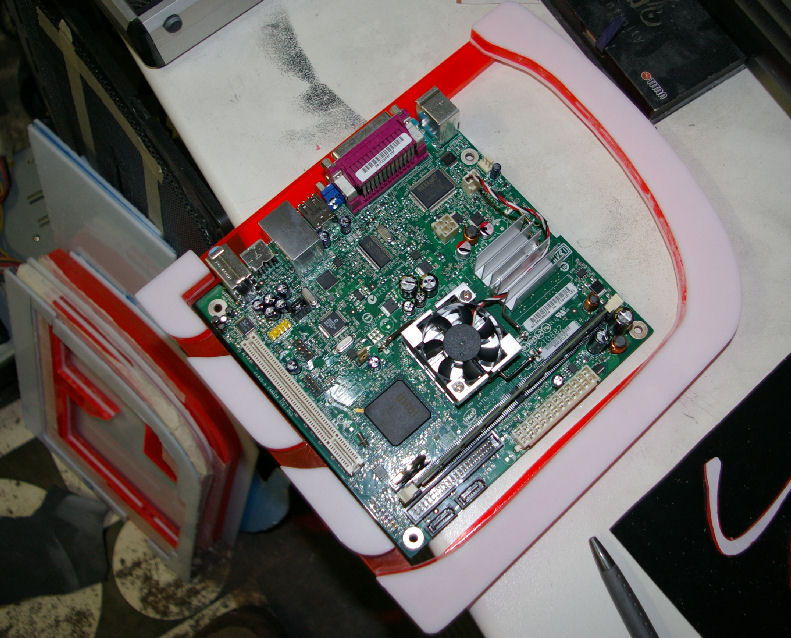

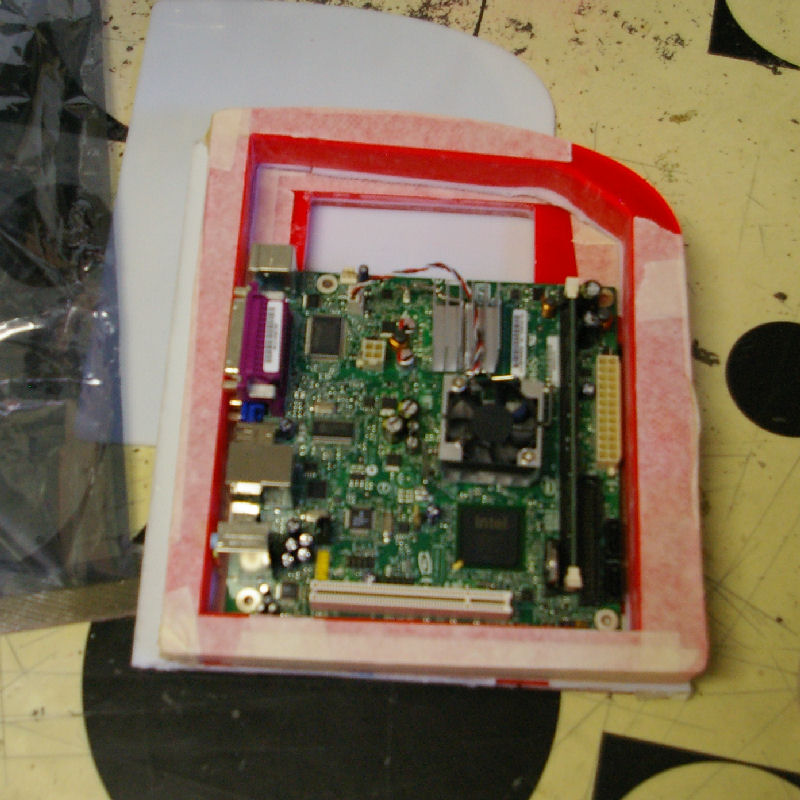

    Mainboard mounting points

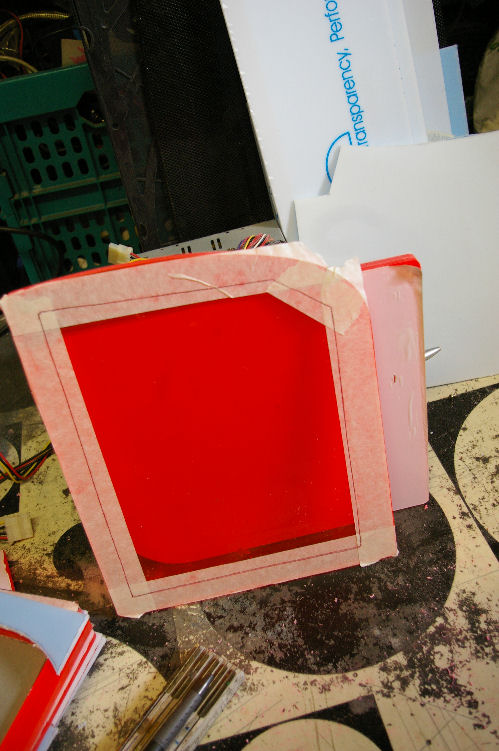

    [​IMG]
    Hardwaretest 2
    [​IMG]
    all layers together....
    [​IMG]

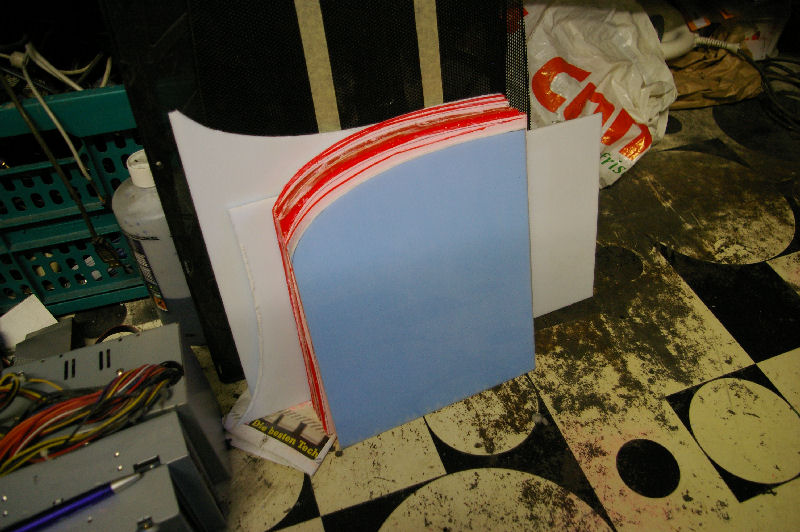

    and the complete box after the first sanding....
    [​IMG]
    [​IMG]

  8. Han$en

    Han$en Skulltrail!

    Joined:
    26 Mar 2009
    Posts:
    36
    Likes Received:
    1
    Different way to create a small case.. I like it :D

  9. Oreon_237

    Oreon_237 CHEA BRO!

    Joined:
    11 Dec 2007
    Posts:
    1,170
    Likes Received:
    1
    totally awesome layers approach to the case. nice work

  10. sui_winbolo

    sui_winbolo Giraffe_City

    Joined:
    25 Sep 2004
    Posts:
    1,544
    Likes Received:
    29
    Yummy! I want to lick it! :p

  11. jrs77

    jrs77 Modder

    Joined:
    17 Feb 2006
    Posts:
    3,487
    Likes Received:
    103
    I take it it's vanilla/strawberry flavor? :p :thumb:

  12. Burnout21

    Burnout21 Is the daddy!

    Joined:
    9 Sep 2005
    Posts:
    8,614
    Likes Received:
    197
    haha makes the eeebox look crap.

  13. .Fatality.

    .Fatality. What's a Dremel?

    Joined:
    10 Jul 2008
    Posts:
    146
    Likes Received:
    0
    awsome lidle andore way to make one sweet case 4 the atom
    wery nice!

  14. Singularity

    Singularity ******* Operator from Hell

    Joined:
    2 Mar 2008
    Posts:
    583
    Likes Received:
    4
    Oh, very nice case, love the two-tone layers idea! :)

  15. Yemerich

    Yemerich I can has PERSUADETRON?

    Joined:
    15 Sep 2004
    Posts:
    1,114
    Likes Received:
    36
    Great idea! i really like it :D

  16. thechoozen

    thechoozen Minimodder

    Joined:
    9 May 2006
    Posts:
    913
    Likes Received:
    69
    thx a lot m8´s!!!

    @jrs77.....yeah strawberry / vanilla :D i know on which sort of candy you think!! yummie...:D

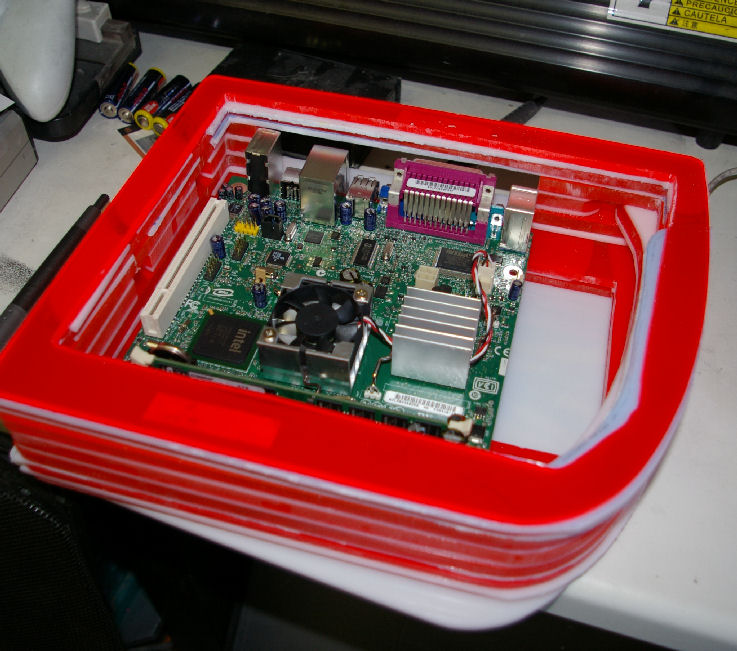

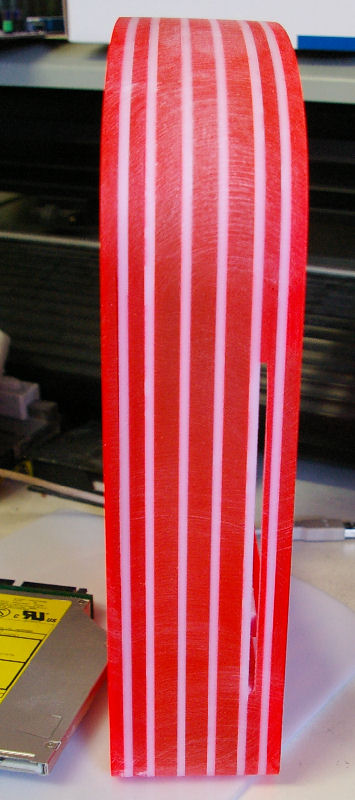

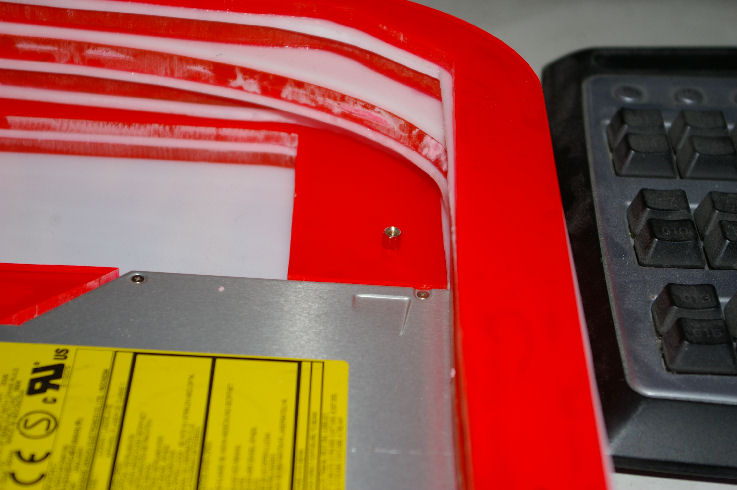

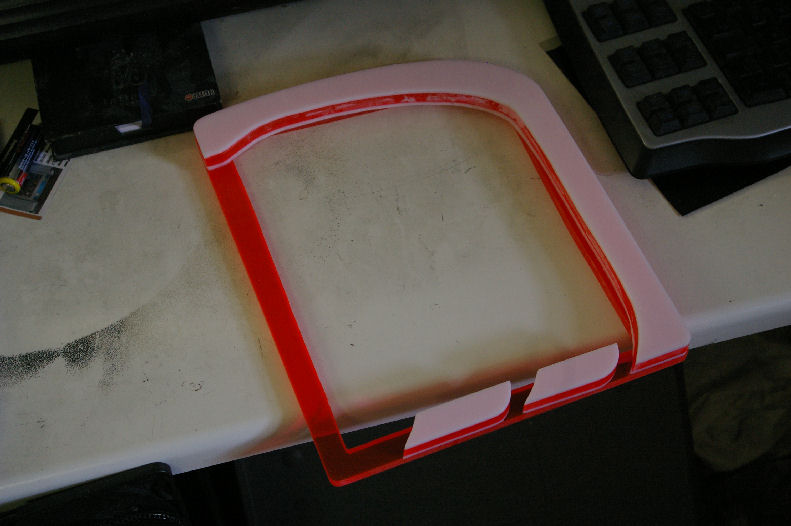

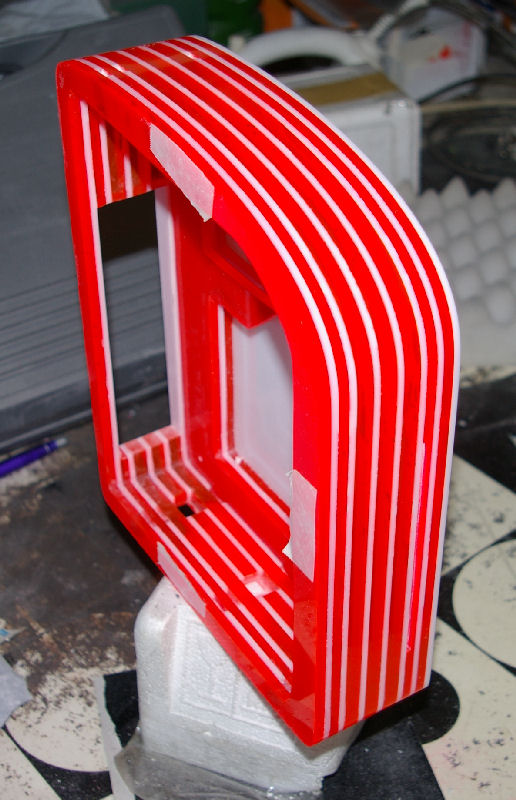

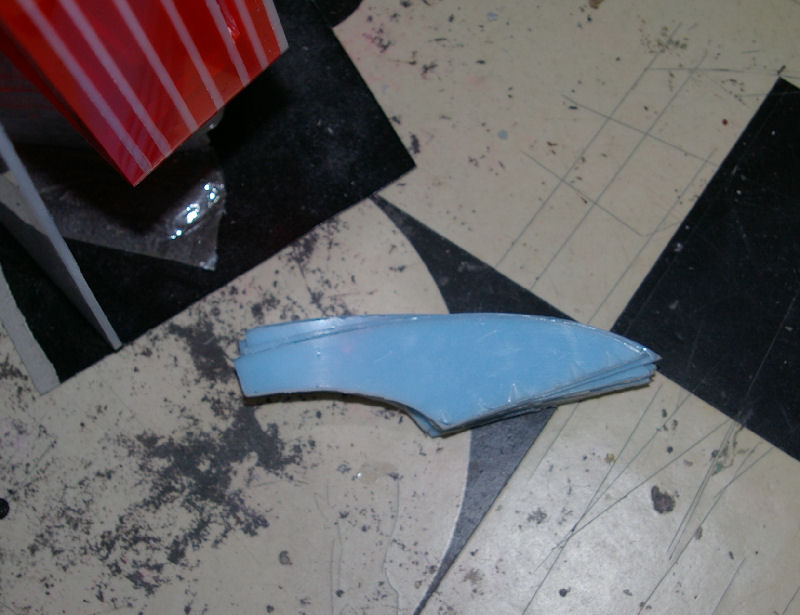

    in the last days we made a lot of progress on this little cutie....we integrated a hole for the dvd drive so that the dvd could be ejected ...and we also combined all layers with each other....beside that we also started to build the feets...but here are the new pictures.....

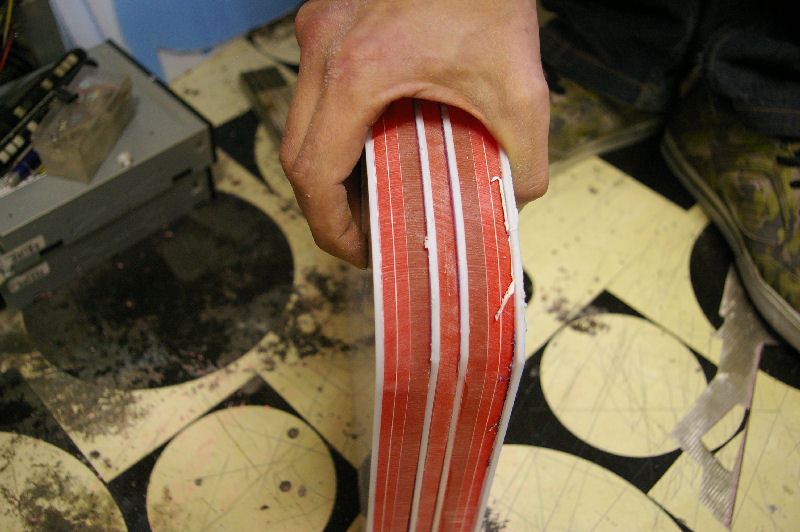

    [​IMG]
