project: LN23 *** last pic : 22/09 ***

Discussion in 'Project Logs' started by tortuegeniale, 7 Mar 2004.

  1. YingKo

    YingKo What's a Dremel?

    Joined:
    8 Sep 2003
    Posts:
    57
    Likes Received:
    0
    You could always go for a jacob's ladder out of the top.

    link

    Though it might be a little dangerous.

    YingKo

  2. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0
    I'm not sure I will be using plexy except for protecting the lcd screen
    thx


    as I go on this project, I want more that it looks like a crazy sci-fi machine :)

  3. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0
    it looks frightening for a dvr box :D
    with that, nobody will ever think to change channel to something I dun like :naughty:

  4. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0

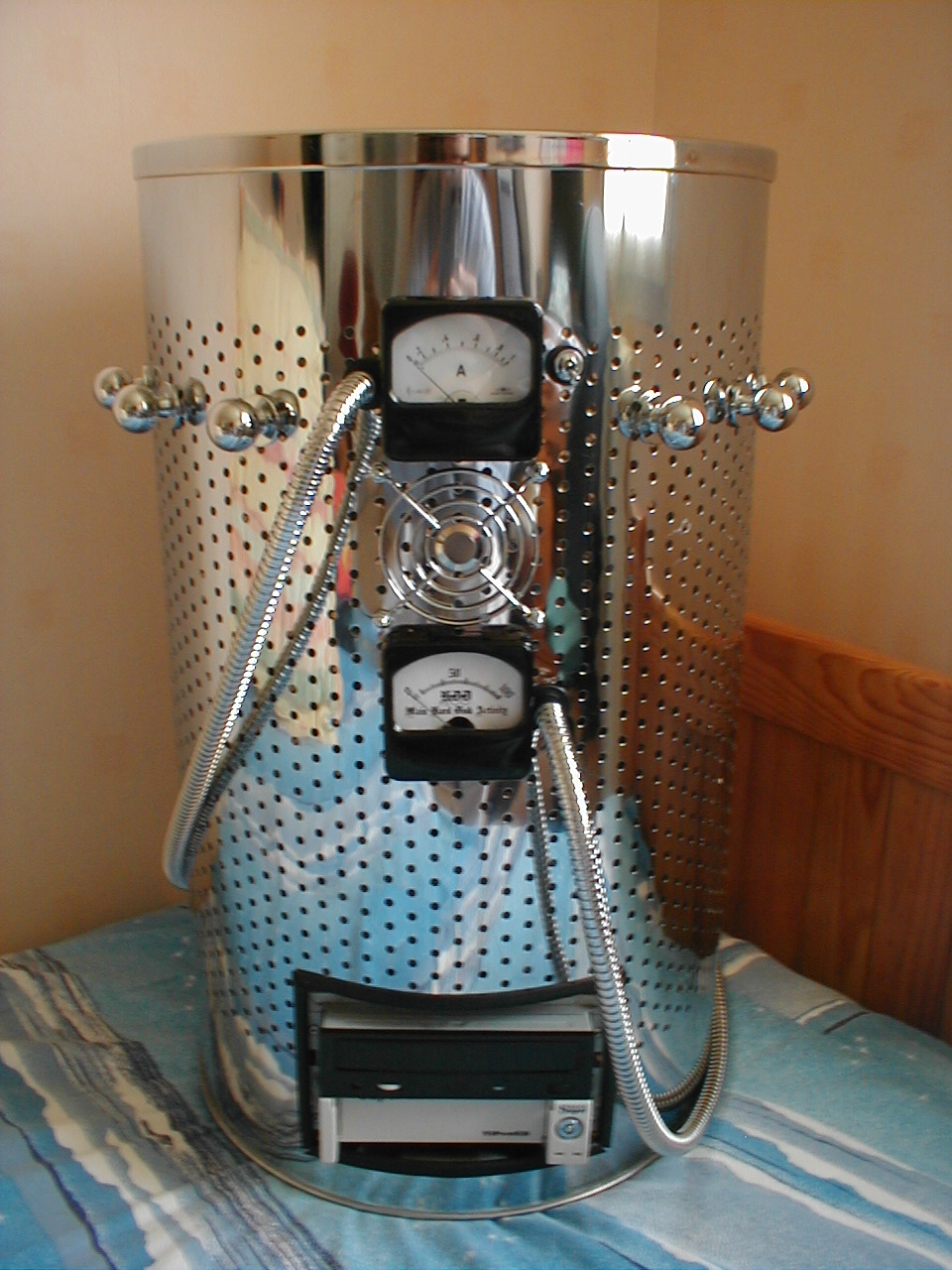

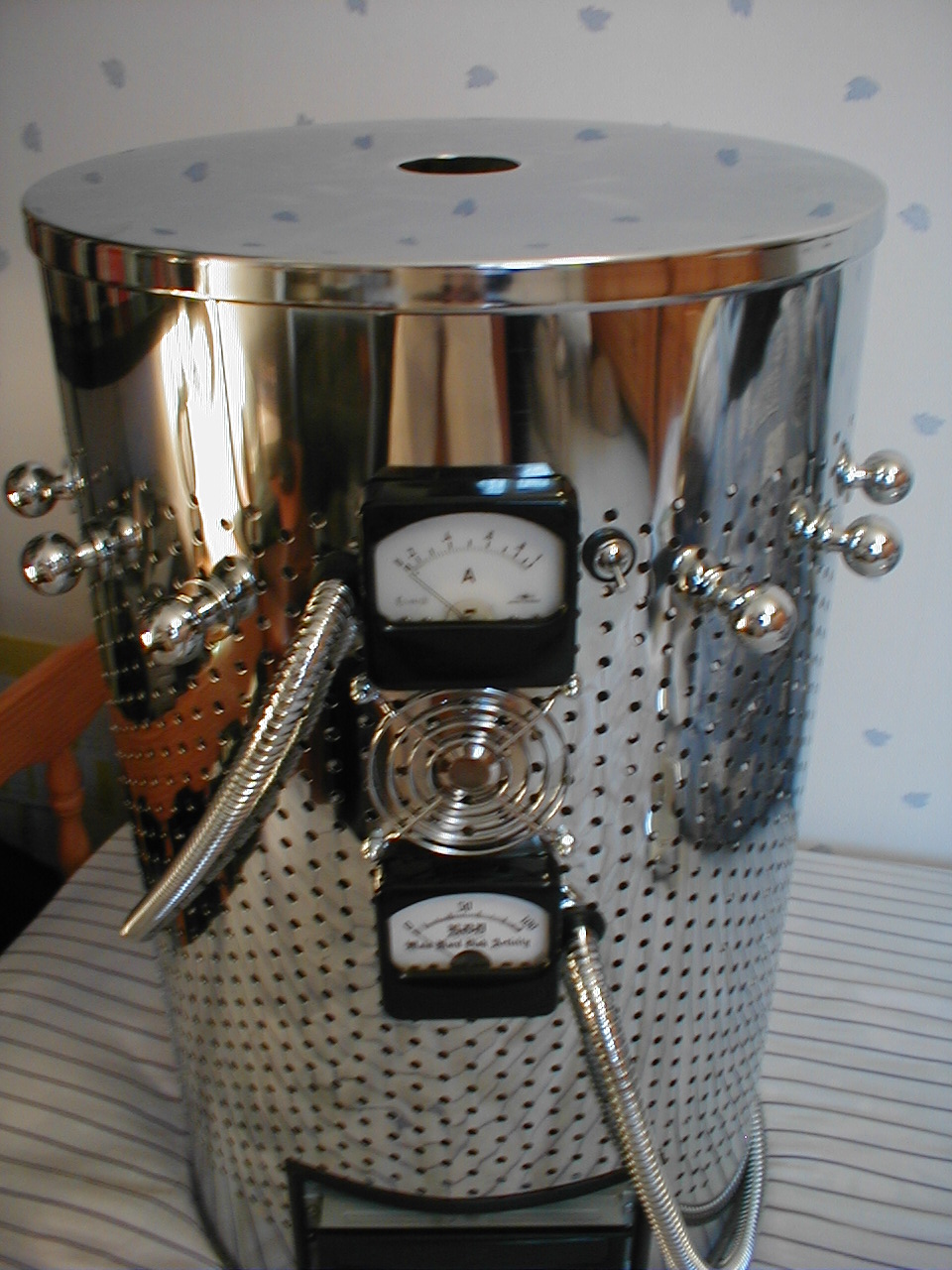

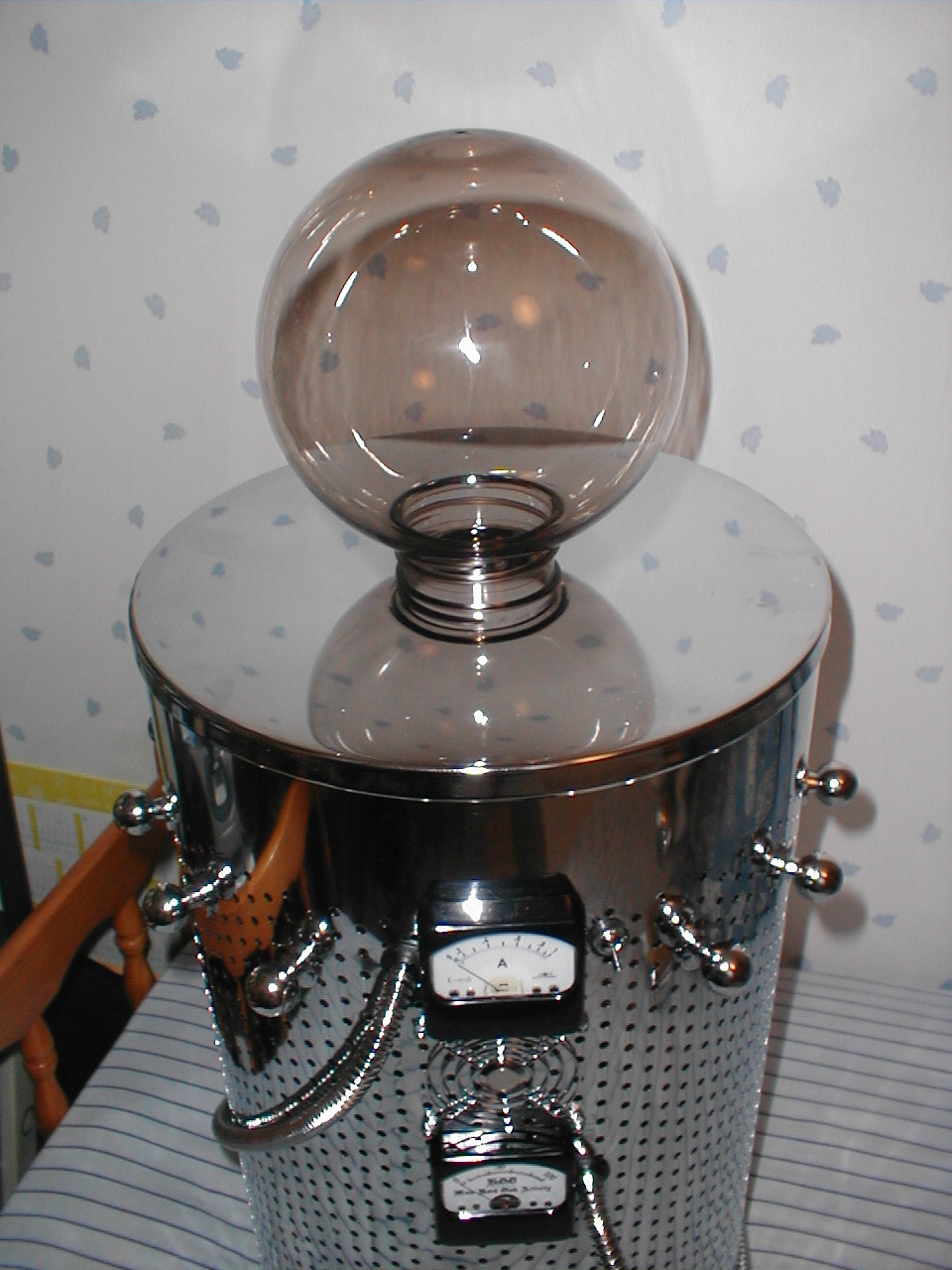

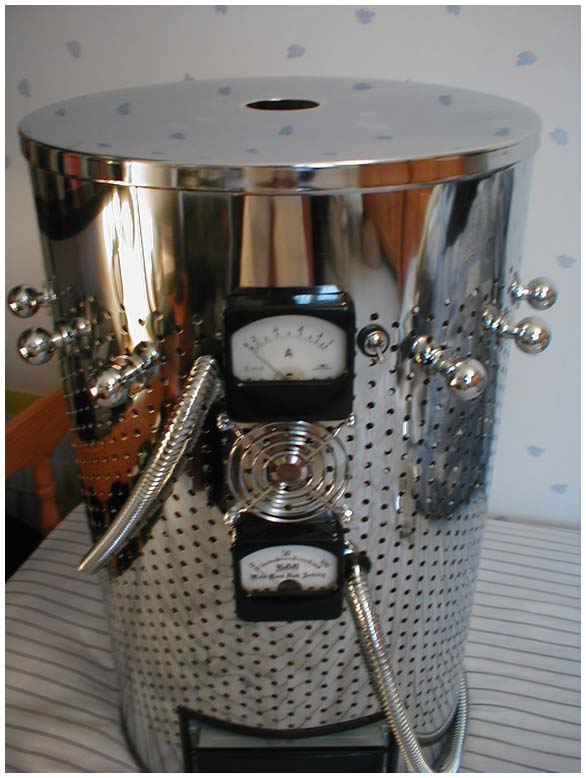

    better pics, 2nd shower hose added, a switch (for cold cathode) next to the top galvanometer, and 4 chromed balls more
    [​IMG]
    [​IMG]

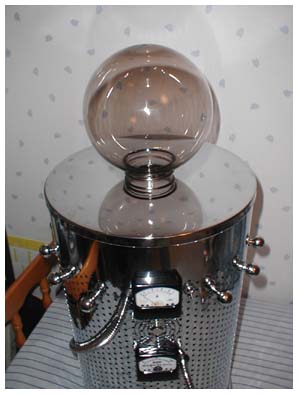

    quizz question: what will be in this sphere ?
    [​IMG]

    Last edited: 25 May 2004
  5. FourDee

    FourDee What's a Dremel?

    Joined:
    6 Mar 2004
    Posts:
    136
    Likes Received:
    0
    Yur res maybe?

  6. planki

    planki ...

    Joined:
    20 Dec 2003
    Posts:
    1,132
    Likes Received:
    0
    i hope you will put one of those crazy plasma ball things that go weird when you touch them into that sphere as that would look fly, i think it would also match you kinda theme aswell!

    lol ive got a wicker linen basket wonder if i could mod a pc into that? :D

  7. papeniglio

    papeniglio Minimodder

    Joined:
    5 Dec 2002
    Posts:
    420
    Likes Received:
    0
    That ball is perfect for a synthetic brain (maybe made of clear silicone) with some bright leds flashing with HDD/CD activity..... It could be suspended in greenish liquid with some bubbles coming out from the base...

    [black&white mode]
    Dr. Frankestein: "Igor..."
    Igor: "Yes Doctor!"
    Dr. Frankestein: "Give me the brain you've stolen...."
    [/black&white mode]

    :naughty: :naughty:

  8. JavaDog

    JavaDog What's a Dremel?

    Joined:
    13 Mar 2004
    Posts:
    663
    Likes Received:
    0
    I just picture a Coffee Percolator... :hehe:

    I like the brain idea though...

  9. Da_Rude_Baboon

    Da_Rude_Baboon What the?

    Joined:
    28 Mar 2002
    Posts:
    4,082
    Likes Received:
    135
    This is a fine project but i think at the moment the hoses dont look right. I personally would either remove them for a cleaner look or add more to go with the mad sci-fi theme, but then its your project.

    Good work though and i cant wait to see it finnished. :thumb:

  10. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0
    I got one of these plasma balls but it's bad with static electricity


    we got a Winner !!
    exact: a plastic brain (from halloween stuff store)
    (inspiration from all the sci-fi books I read with this concept and Futurama)
    at this point, I'm not sure about bubbles because the aquarium stuff I tried is too noisy.. I've also think about a vibrator like cellphone for hdd or cpu activity

    Last edited: 15 Apr 2004
  11. papeniglio

    papeniglio Minimodder

    Joined:
    5 Dec 2002
    Posts:
    420
    Likes Received:
    0
    :rock: :rock: :rock: So what are you going to send me as a prize ???? :D

  12. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0
    my respect :clap:

  13. papeniglio

    papeniglio Minimodder

    Joined:
    5 Dec 2002
    Posts:
    420
    Likes Received:
    0
    :hehe: GREAT!!!! :hehe:

  14. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0

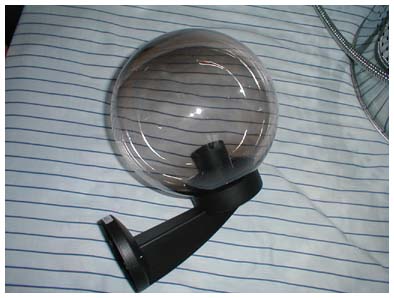

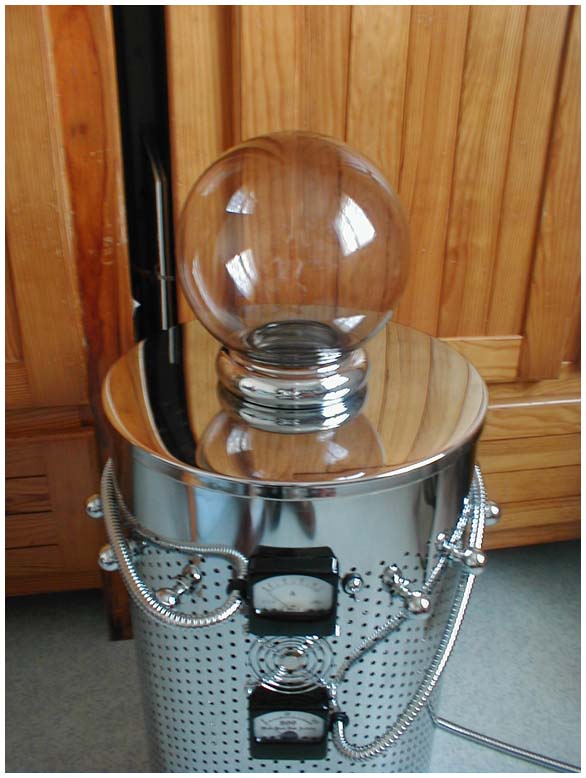

    I took the sphere from this exterior lamp
    [​IMG]

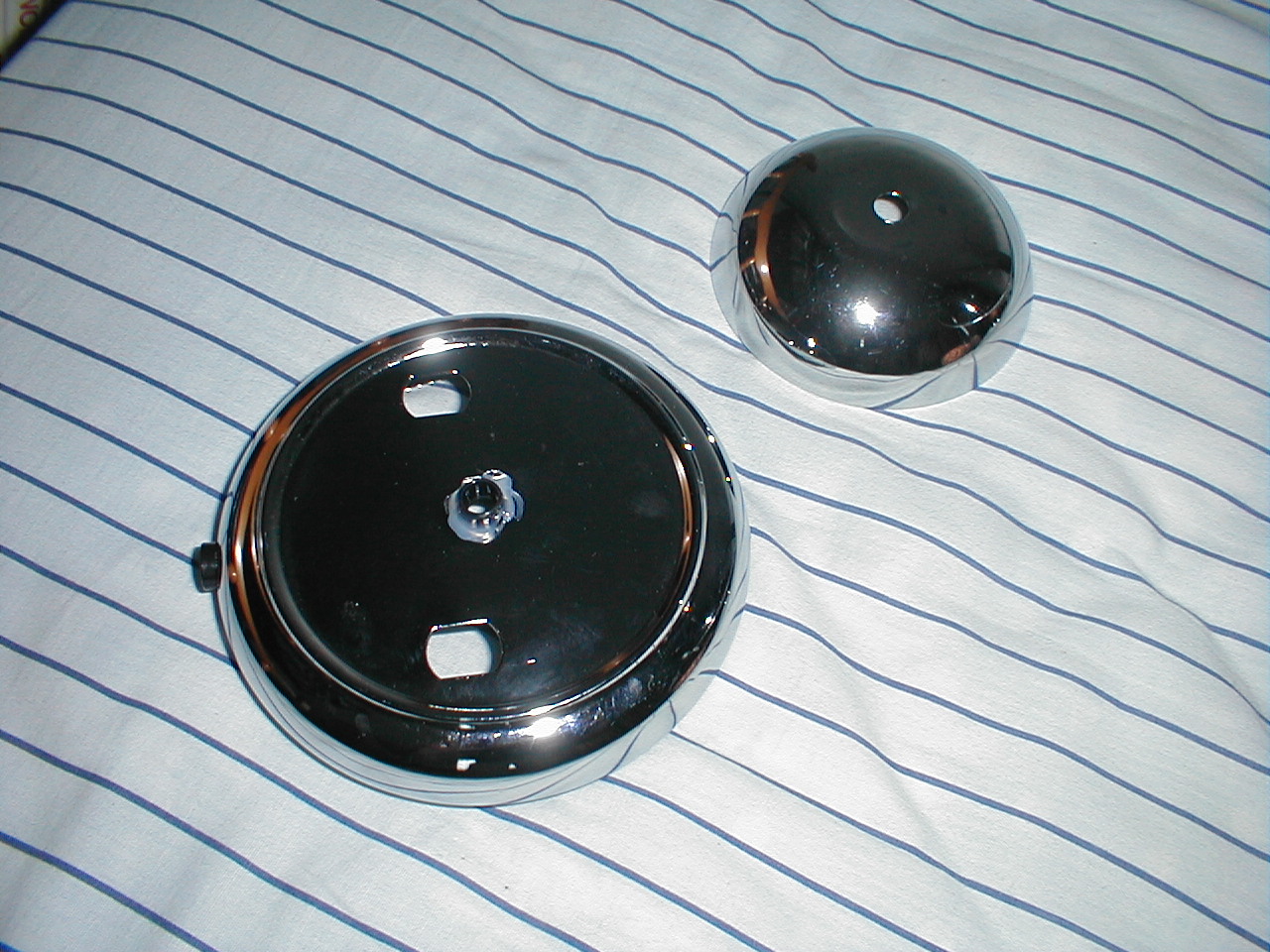

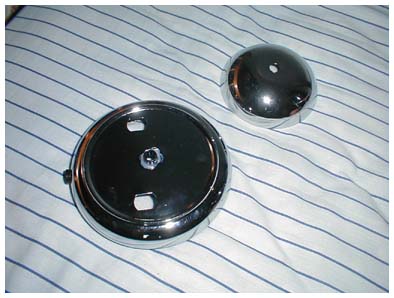

    chromed parts from a lamp seen few pics ago.. the left part will be the support for the sphere
    [​IMG]

    I started to cut the sphere's support part
    here's a pic to give an idea:
    [​IMG]

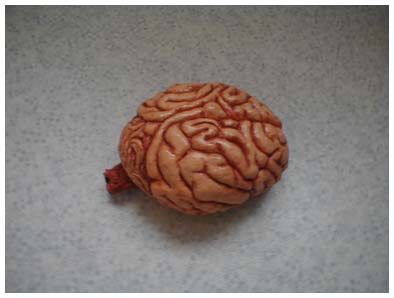

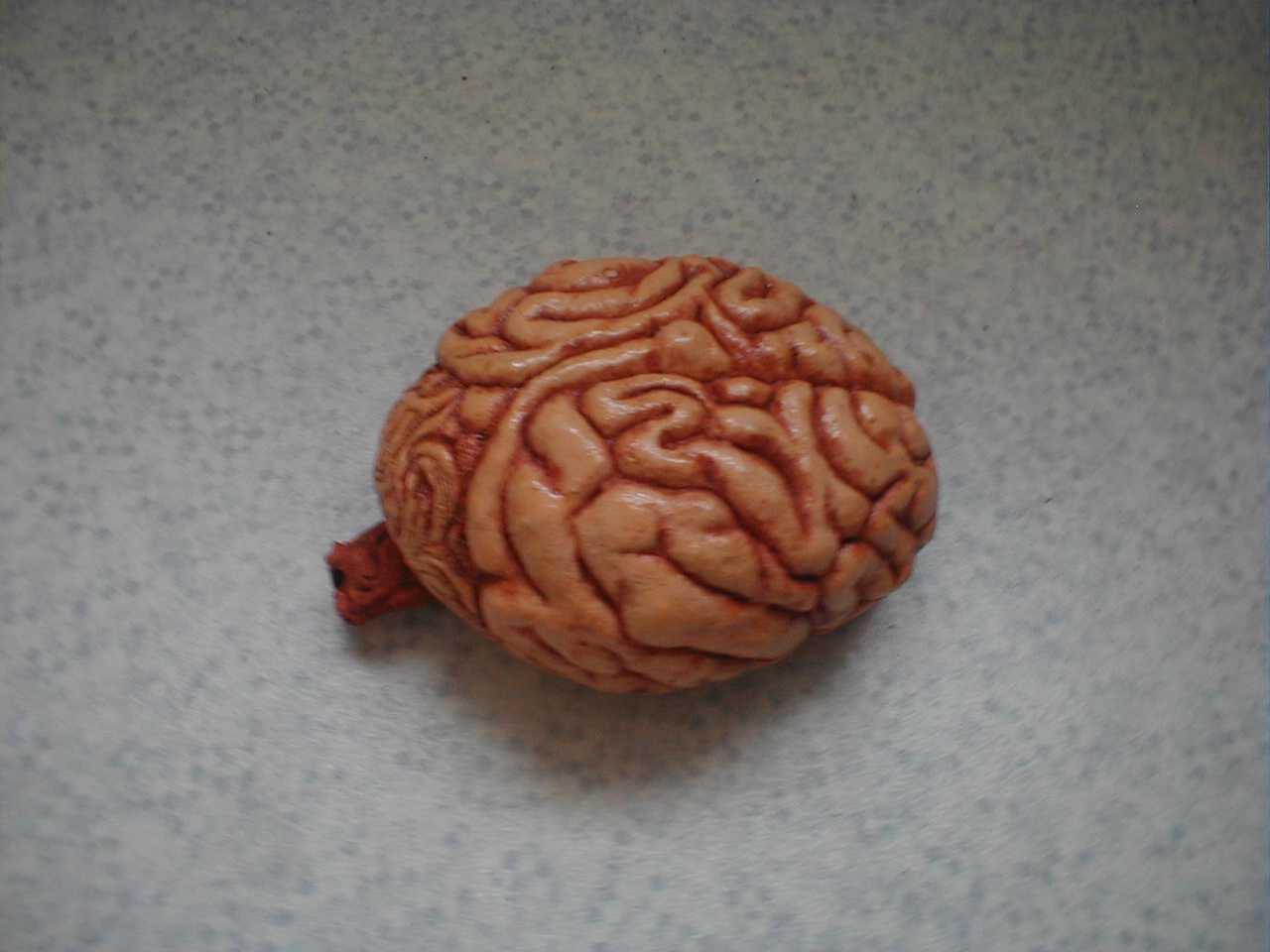

    and now the B.P.U. (biological process unit) :rock:
    [​IMG]

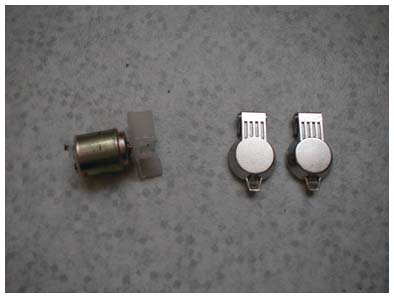

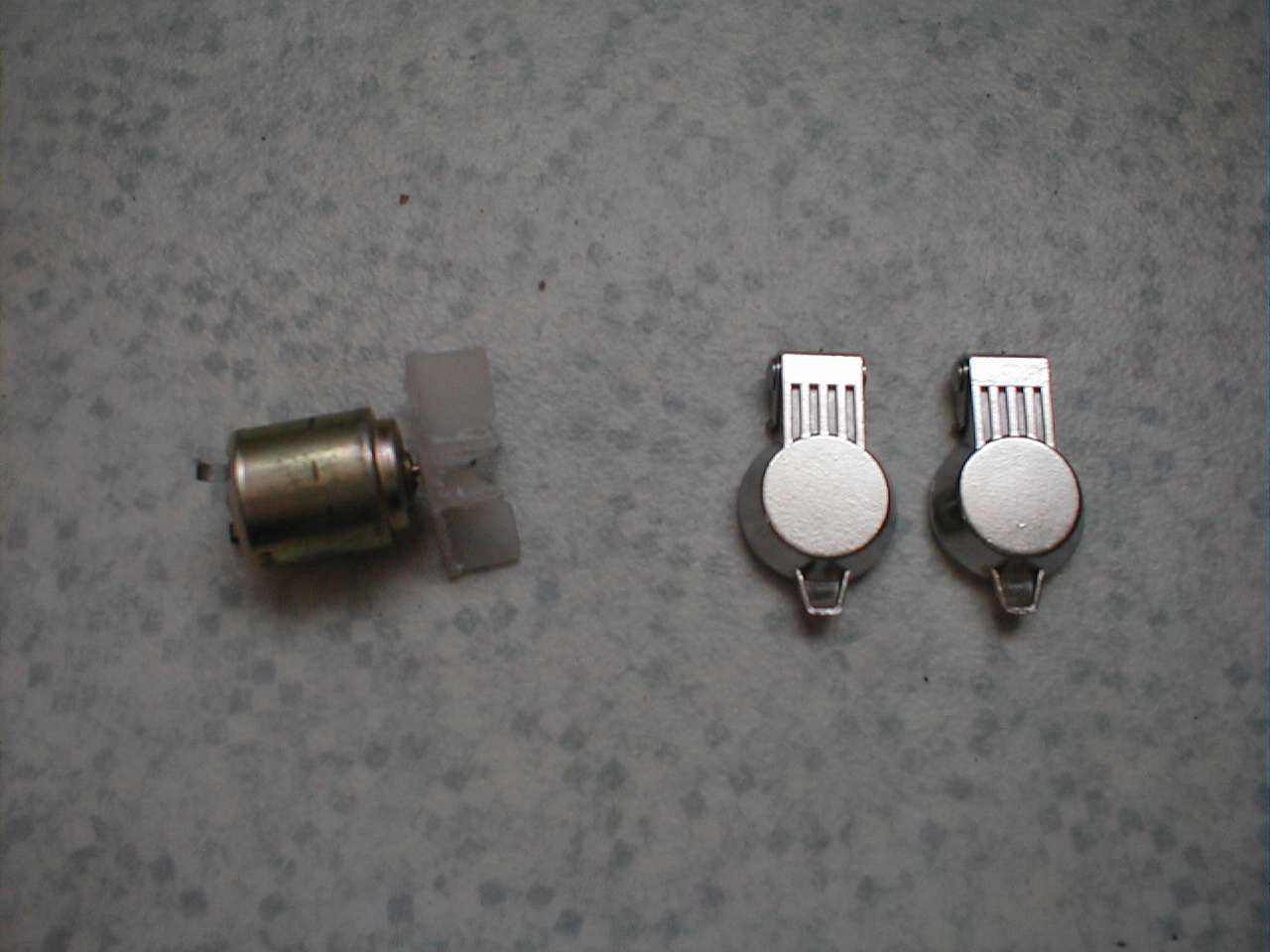

    small motor I will maybe use to vibrate the brain
    and two protections for buttons power and reset (the button in the middle of the case will be for opening dvd finally)
    [​IMG]

    Last edited: 25 May 2004
  15. Nexxo

    Nexxo * Prefab Sprout – The King of Rock 'n' Roll

    Joined:
    23 Oct 2001
    Posts:
    34,645
    Likes Received:
    2,088
    Heh, heh, heh... I like where this is going... You mad scientist, you. :rock:

  16. Cecil-San

    Cecil-San What's a Dremel?

    Joined:
    10 Dec 2003
    Posts:
    78
    Likes Received:
    0
    Swwweett....I thought this project was great before (as you and I share a similar "tube" design and that of course makes us cool) but now I think its awesome...

    You know you have to fill the bulb w/ a viscous fluid also..kinda like specimen jars..although I wouldn't suggest formaldehyde... :D

    You may try cooking oil.....it has the right color...its viscosity is pretty good..and its non conductive (that way if it does happen to leak...it shouldn't damage much if anything..)

    (I'm not 100% on the above statment on conductivity...you may do some research to make sure I'm correct)

    Looking great again! Update asap so we can see you..."brain" child...ha... :duh:

  17. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0
    thx a lot, I love your mod too, I'm eager to see how good it will look like with the pinup painted on it :)

    very good idea.. I saw a motherboard totally immersed in cooking oil so u'r right it's non-conductive.. I will do few tests with the brain to see what's better..

    Last edited: 20 Apr 2004
  18. Noah

    Noah What's a Dremel?

    Joined:
    8 Feb 2004
    Posts:
    171
    Likes Received:
    0
    This is fascinating. Great job!

  19. tortuegeniale

    tortuegeniale What's a Dremel?

    Joined:
    7 Nov 2003
    Posts:
    155
    Likes Received:
    0

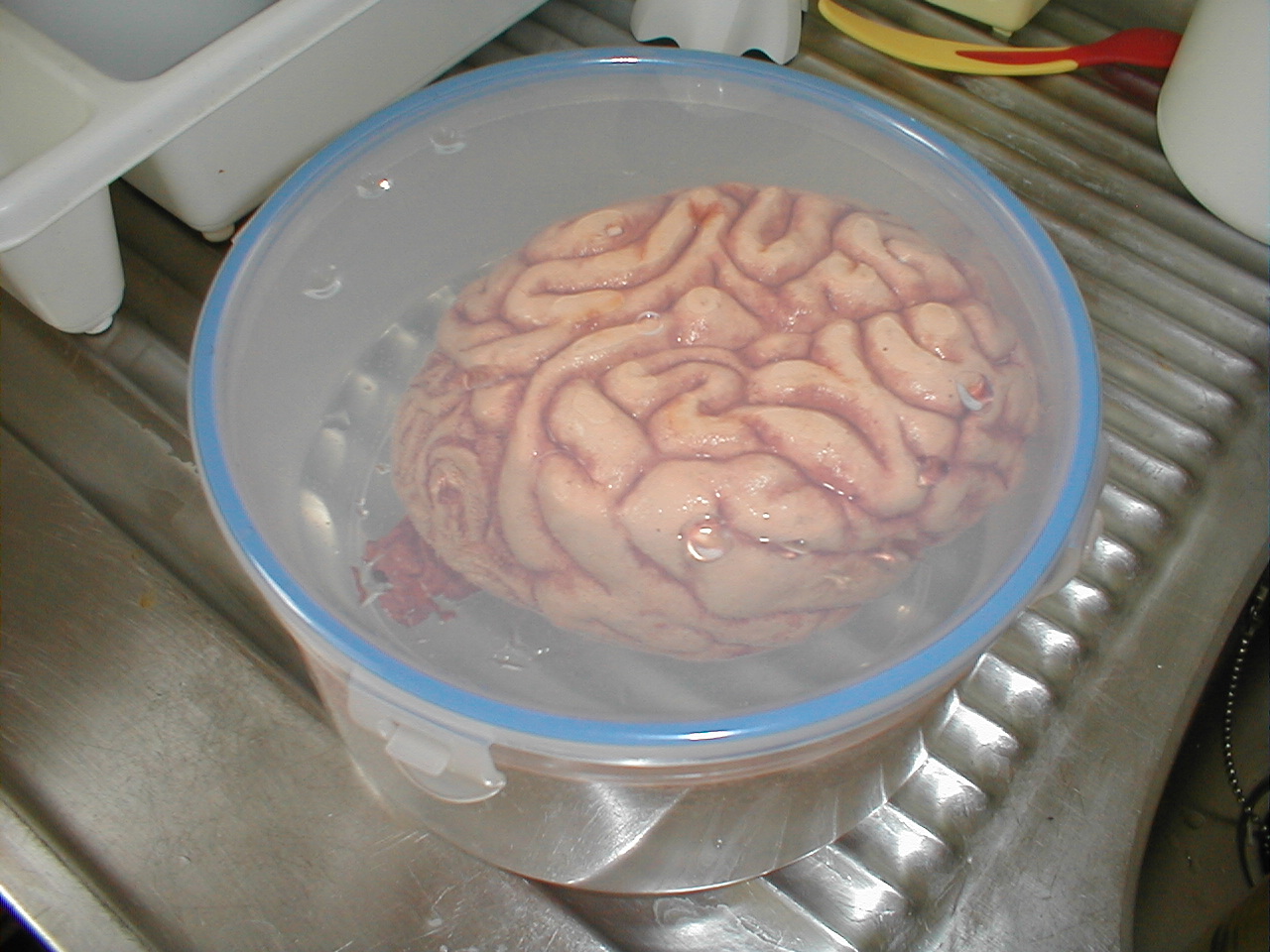

    I brought out the brain from the congelator for frankenstein's experiences...
    [​IMG]

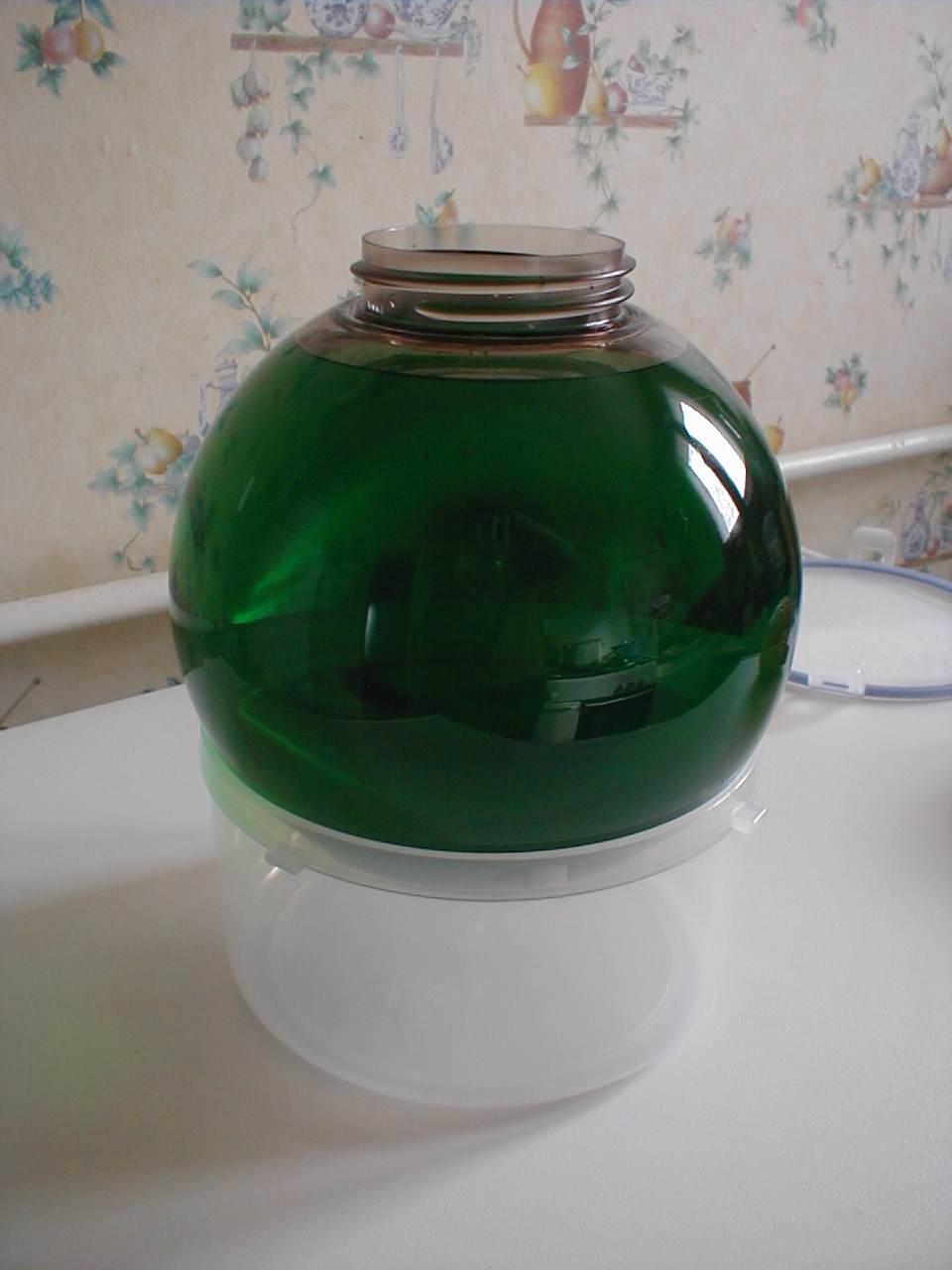

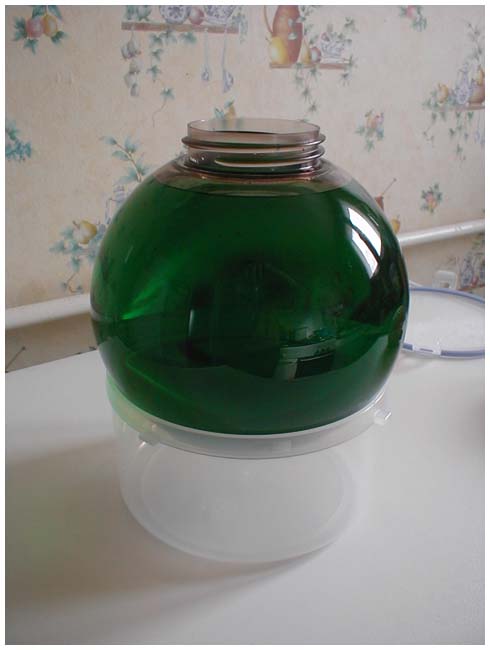

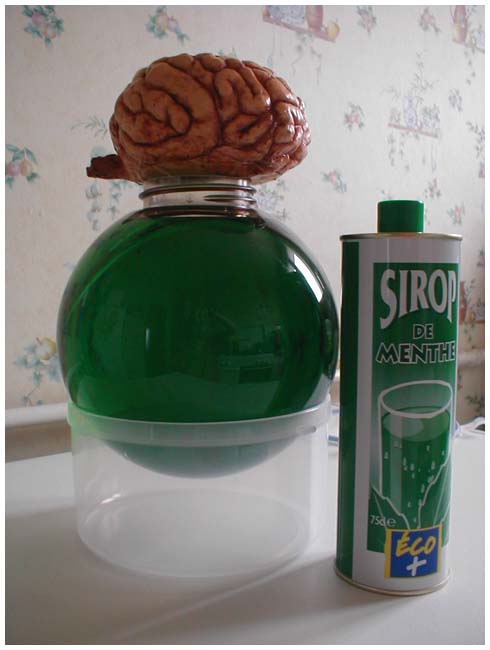

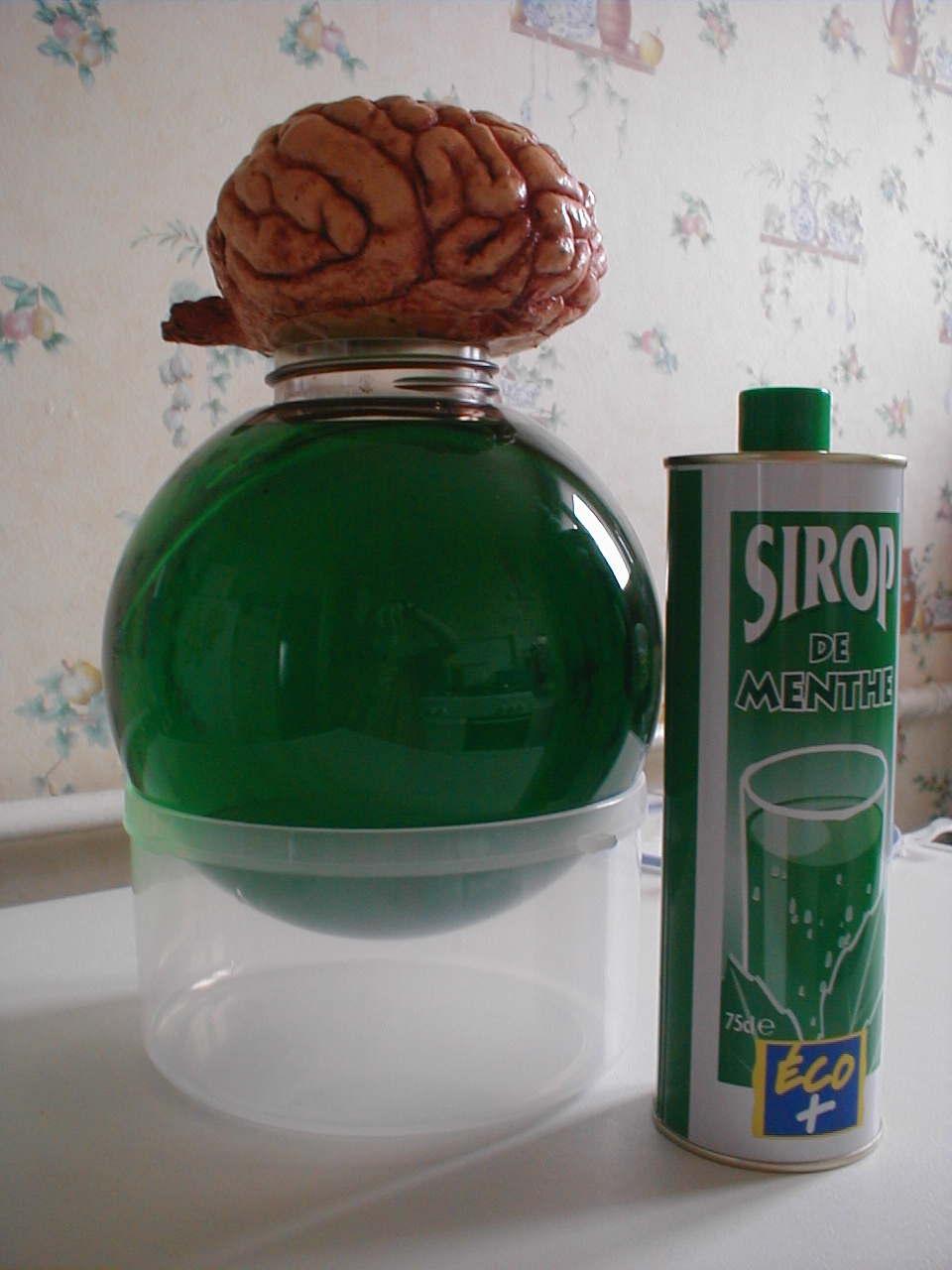

    I didn't find green cooking oil, only yellowish... so syrup mint + water.. nice green but maybe too dark...
    [​IMG]
    I'm thinking about uv liquid too... If I choose uv liquid, I will add uv leds in the bottom of the sphere
    [​IMG]

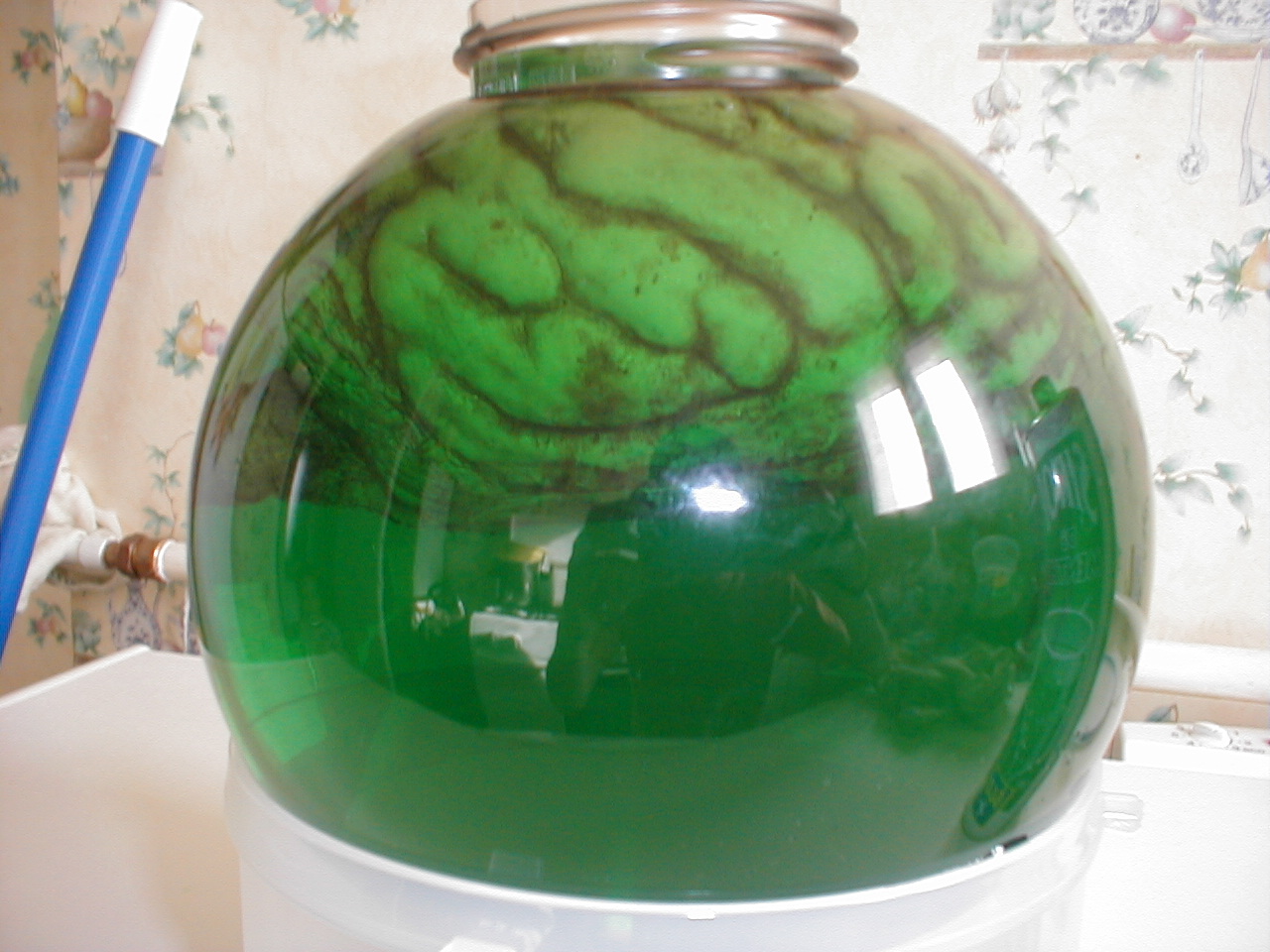

    the brain floats well, I will have to add a metal guide
    [​IMG]

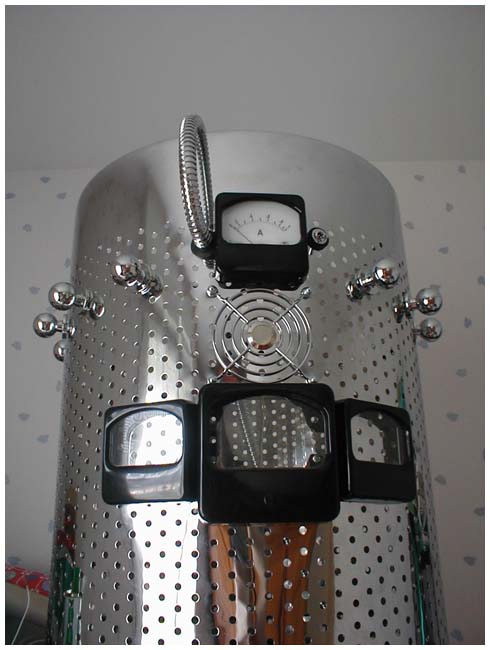

    new galvanometers, maybe a clock and a thermometer or for others hdd...
    [​IMG]

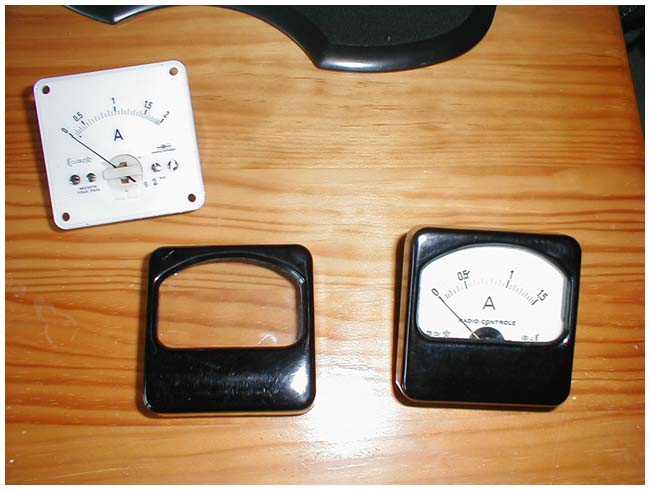

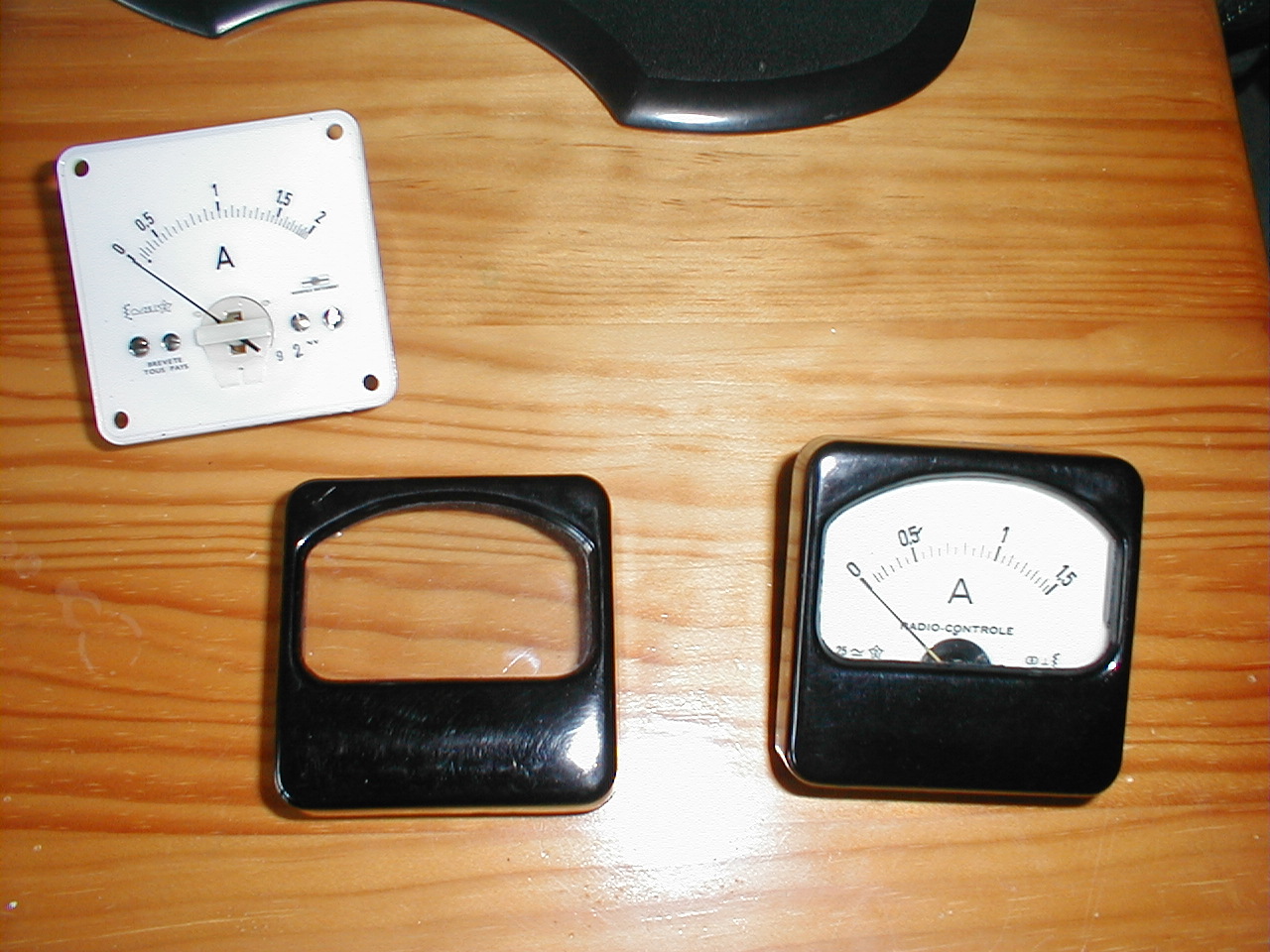

    when disassembling the galvanometers, I said to myslef that it could make nice mini-windows. So I take 'same-style' galvanometers a little bigger (last one from my local electronic shop) and will use it as a mini-window, in the center of the case. to look at the cold cathode or some crystals to look like green kryptonite)
    [​IMG]

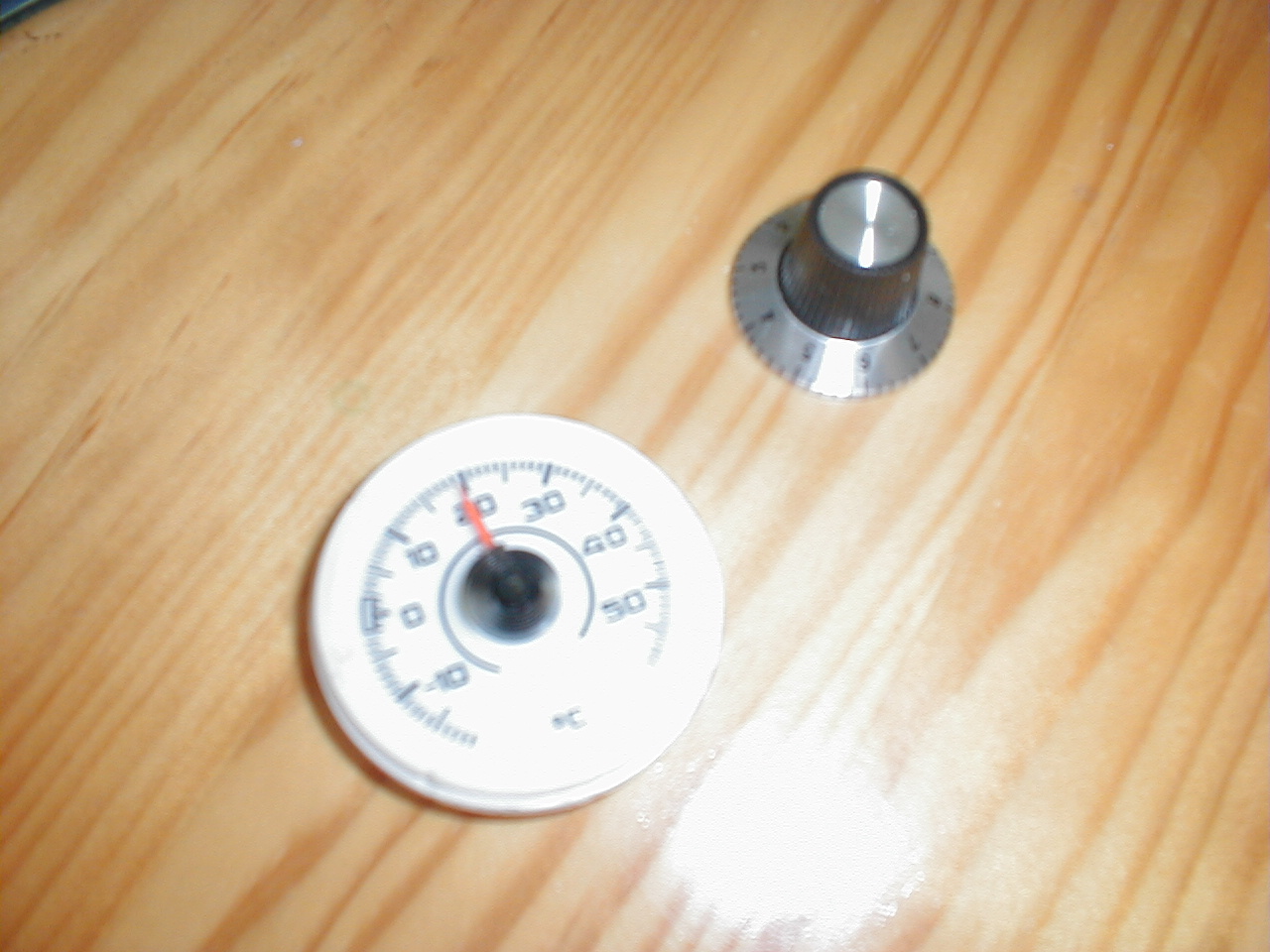

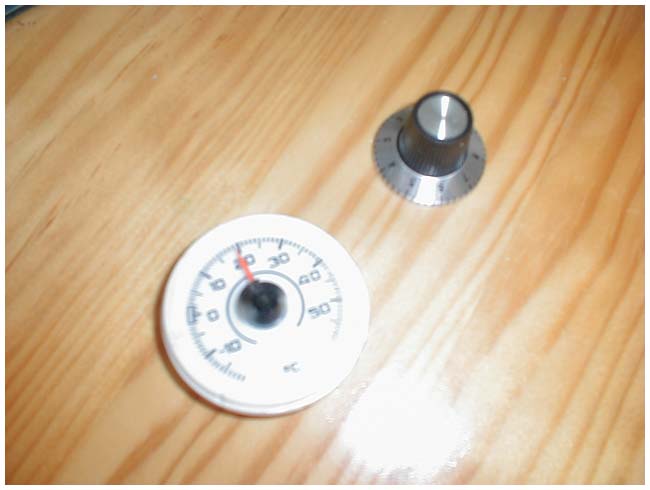

    on the left a thermometer I will try to use, on the right the button I will use on a rheo for tuning the backlight of the lcd display
    [​IMG]

    Last edited: 25 May 2004
  20. Acid Burn

    Acid Burn ..look but don't touch..

    Joined:
    14 Mar 2004
    Posts:
    976
    Likes Received:
    0
    haha that's grose! but extremly cool to! :hehe:
